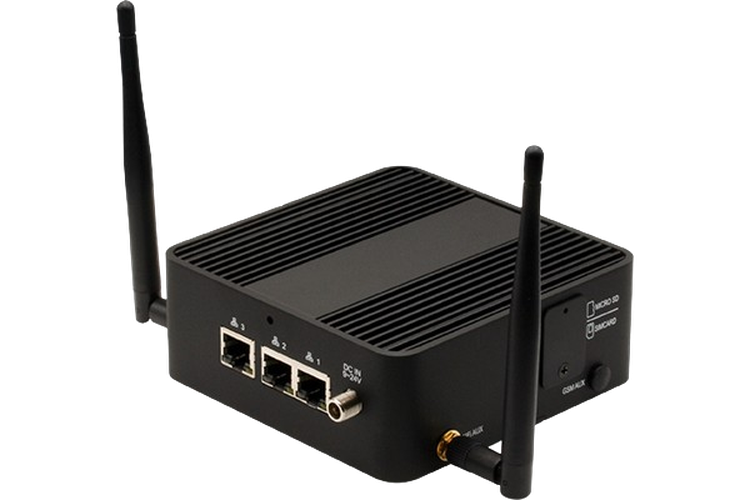

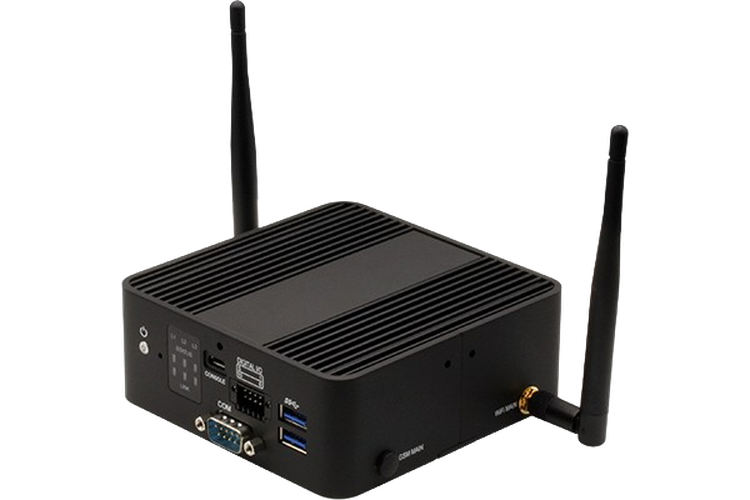

AAEON FWS-2275 (Intel® Celeron N3350, 3 GbE, 9-24VDC)
FWS-2275
Industrial network Box PC with Intel® Celeron® N3350 CPU and 3 Giga LAN ports
- Desktop network appliance
- Intel® Celeron® Processor N3350 SoC
- Onboard 16GB eMMC (optional up to 32GB)
- Onboard LPDDR4, 2GB
- Intel® i211 GbE x 3
- 1 x full-size Mini-Card slot with SIM socket
- Onboard Wi-Fi 802.11 b/g/n 2x2, BT4.1
- HDMI connector (optional)
- TPM supported (optional)
The AAEON FWS-2275 network appliance is a compact system designed to support a range of industrial networking applications. The FWS-2275 is designed for SD-WAN networks and can be deployed as an Edge Computing or Industrial IoT Gateway (IIoT). The Intel® Celeron® N3350 processor (formerly Apollo Lake) features built-in Intel® AES-NI, providing secure data encryption with faster processing than standard AES. The FWS-2275 can also support network applications such as UTM, firewall, and more.
Built for deployment in industrial environments, the FWS-2275 features an aluminum chassis, a wide operating temperature range of 0°C to 50°C, and a wide input voltage range (9~24V). The FWS-2275 is designed for easy integration into industrial networks and includes onboard Wi-Fi, a USB mini console, and a SIM card slot, as well as Digital IO and COM ports. AAEON manufacturing and OEM/ODM services also provide configuration and customization assistance to system integrators and independent developers.
Included
- Antenna x 2
- Power Adapter x 1
- VESA mount x 1
- FWS-2275
| SYSTEM | |
| FORM FACTOR | Desktop Network Appliance |
| PROCESSOR | Intel® Celeron® Processor N3350 SoC |
| CHIPSET | SoC |
| SYSTEM MEMORY | Onboard LPDDR4, 2GB |
| NETWORK | |
| ETHERNET | Intel® i211 GbE x 3 |
| BYPASS | — |
| DISPLAY | |
| GRAPHICS CONTROLLER | Integrated Intel® HD graphics |
| CONNECTOR | (HDMI connector x1 optional) |
| STORAGE | |
| HDD | — |
| CF/CFAST/MSATA | Onboard eMMC 16GB (optional up to 32GB) SATA III port x 1 for SATA DOM Micro SD card reader x1 |
| INTERNAL/EXPANSION INTERFACE | |
| PCIE SLOT | — |
| MINI-PCIE SLOT | Full-size Mini-Card slot with SIM socket x 1 (USB 2.0; PCIe co-lay with LAN 3) |
| KEYBOARD/MOUSE | — |
| USB | USB 3.2 Gen 1 x 2 |
| MISCELLANEOUS | |
| RTC | Internal RTC |
| WATCHDOG TIMER | 1~255 software-programmable steps |
| PROGRAMMABLE BUTTON | GPIO programmable push button x 1 |
| TPM | (TPM2.0 9665 optional) |
| GPIO | 4-bit input, 4bit output |
| FAN | — |
| MTBF (HOURS) | 550,521 hours |
| COLOR | Black |
| PHYSICAL & ENVIRONMENTAL SPECIFICATIONS | |
| POWER REQUIREMENT | 9~24 V DC power |
| OPERATING TEMPERATURE | 32°F ~ 122°F (0°C ~ 50°C ) |
| STORAGE TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C) |
| OPERATING HUMIDITY | 10%~80% relative humidity, non-condensing |
| STORAGE HUMIDITY | 10%~80% @40°C; non-condensing |
| VIBRATION | 0.5 Grms/ 5 ~ 500Hz / operation 1.5 Grms/ 5 ~ 500Hz / non-operation |
| SHOCK | 10 G peak acceleration (11 m sec. duration), operation 20 G peak acceleration (11 m sec. duration), non-operation |
| DIMENSIONS (W X D X H) | 4.53" x 4.53" x 1.73" (115mm x 115mm x 44mm) |
| I/O | |

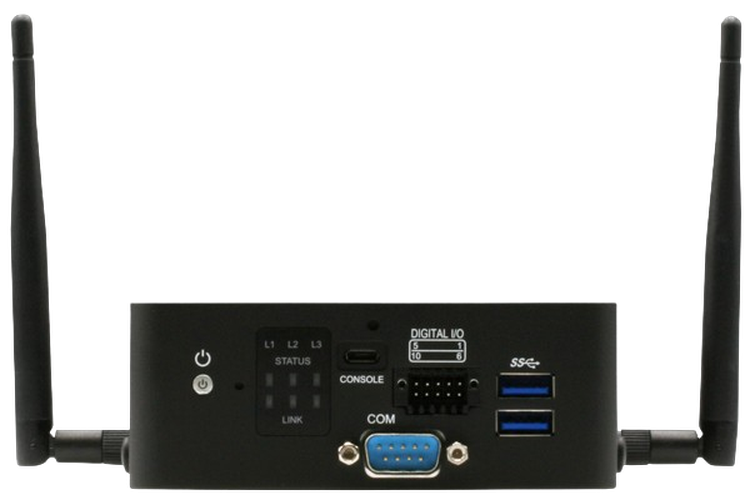

| FRONT PANEL | USB 3.2 Gen 1 ports x 2 LEDs (3 x top row, 2 x bottom row) x 6 Power button with integrated LED x 1 Micro-USB console port x 1 RS-232/422/485 x 1 8-bit GPIO, 4-bit input, 4-bit output Reset button x 1 |

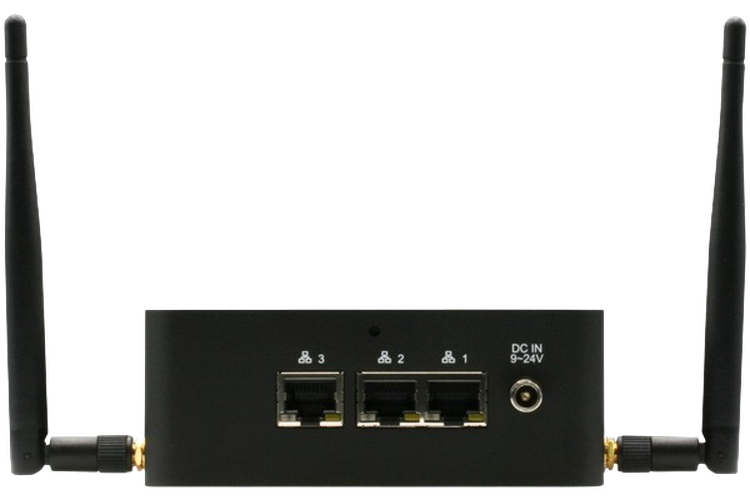

| REAR PANEL | 1GbE RJ45 ports x 3 Lockable power input connector x 1 |
Ordering information [FWS-2275]
| PART NUMBER | FWS-2275E3-A10-00 |
|---|---|
| CPU | Intel® Celeron® N3350 |
| MEMORY | Onboard LPDDR4 2GB memory |
| MINI-CARD SLOT | Full-size Mini-Card slot with SIM socket x 1 (USB 2.0) |
| STORAGE | 16GB eMMC SATA III port x 1 for SATA DOM Micro SD card reader x 1 |
| DISPLAY | — |
| LAN | Intel® i211 x 3 |
| USB | USB 3.2 Gen 1 x 2 |
| CONSOLE | Micro USB console x 1 |
| BYPASS | — |
| TPM | — |
| FAN | — |
| MOUNTING | Desktop |
| POWER | DC 12V,40W power adapter x1 |
| NOTE | * Please contact AAEON for other optional specifications. |
Accessories
| 1702031802 | Power cord, 3P-250V/10A, 180D, 1.8M, USA, YP22/YP12 |
| 1702031803 | Power cord, 3P-250V/10A, 180D, 1.8M, VDE, YP22/YP12 |
| 170203180B | Power cord, 3P-250V/10A, 180D, 1.8M, China, YP-03/YC-12 |
| 170203180E | Power cord, 3P-250V/10A, 180D, 1.8M, PSE, YP12/YC-12 |
