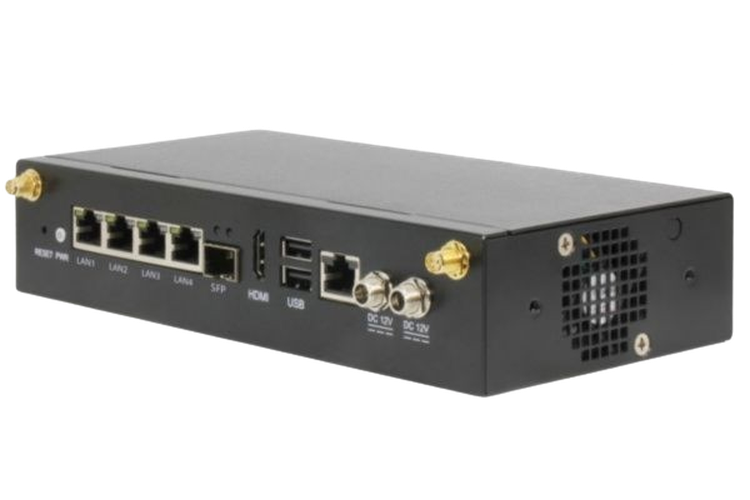

AAEON FWS-2280 (Intel® Celeron® J6412, 4* GbE, 1* SFP)
FWS-2280
Industrial network box PC with Intel Celeron® J6412 CPU, 4x GbE and 1x SFP
- Intel® Celeron® J6412
- DDR4 3200MHz SODIMM x 1, up to 32GB
- Intel® Ethernet Controller I211 GbE x 4, Intel® Ethernet Controller I210 SFP x 1
- Mini Card (full-size with SIM socket) x 1
- Half-size Mini Card slot x 1
- M.2 3052 B-Key (with SIM socket) x 1 (optional)
- Redundant power support
The FWS-2280 is powered by the latest Intel® Celeron® Processor J Series/Intel® Pentium® Processor N Series/Intel Atom® Processor X Series, designed to deliver the performance required for network applications ranging from UTM and firewall to VPN and SD-WAN, and is now FlexiWAN certified. Supporting up to 32 GB of RAM, the system can handle intensive networking processes while ensuring more accurate and secure connections through technologies such as Intel® AES-NI.

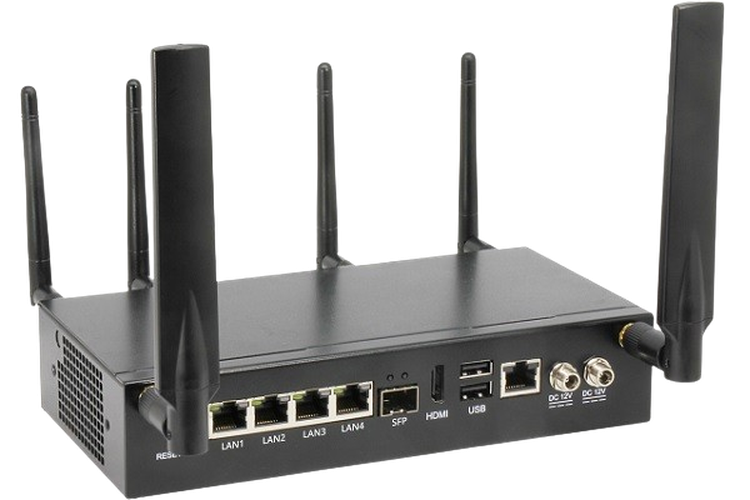

Designed for faster, more flexible connectivity, the FWS-2280 comes standard with four copper Gigabit RJ-45 LAN ports and one fiber SFP port, enabling fast, direct connections. The FWS-2280 provides wireless flexibility through six antenna ports and three Mini PCIe slots (co-lay with M.2), allowing up to three wireless modules to be installed simultaneously, including multiple Wi-Fi and Bluetooth networks, as well as 4G and 5G cellular modules.
The FWS-2280 also features a redundant power supply for more reliable networking and a 2.5” SATA drive bay to support local network storage requirements. The FWS-2280 is an excellent platform for a range of network deployments, including Work From Home with VPN and Firewall technologies, while also providing a uCPE white box platform for secure SD-WAN networks.
Included
- Power Adapter x 1
- FWS-2280
- 2.5” SSD Bay x 1
| SYSTEM | |
| FORM FACTOR | Desktop Network Appliance |
| PROCESSOR | Intel® Celeron® Processor J Series/Intel® Pentium® Processor N Series/Intel Atom® Processor X Series |
| CHIPSET | SoC |
| SYSTEM MEMORY | 260-pin DDR4 SO-DIMM x 1, 3200MHz |
| NETWORK | |
| ETHERNET | Intel® Ethernet Controller I211 GbE x 4 Intel® Ethernet Controller I210 SFP x 1 |
| BYPASS | — |
| DISPLAY | |
| GRAPHICS CONTROLLER | Intel® UHD Graphics |
| CONNECTOR | HDMI x1 |
| STORAGE | |
| HDD | — |
| CF/CFAST/MSATA | mSATA slot x 1 SATA III port x 1 |
| INTERNAL/EXPANSION INTERFACE | |
| PCIE SLOT | — |
| MINI-PCIE SLOT | Mini Card Socket (PCIe + USB 2.0, full size) with SIM x1 Mini Card Socket (PCIe, half size) x1 M.2 B key 3052 (USB 3.0, full size) with SIM x1(optional) |
| KB MOUSE | — |
| USB | USB 2.0 Type A x 2 |
| MISCELLANEOUS | |
| RTC | Internal RTC |
| WATCHDOG TIMER | 1~255 software-programmable steps |
| SOFTWARE BUTTON | GPIO programmable push button x 1 |
| TPM | (TPM SLB9670 VQ2.0 FW7.85 optional) |
| GPIO | (4 bits input, 4bits output optional) |
| FAN | Smart fan x 1 |
| MTBF (HOURS) | TBD |
| COLOR | Black |
| PHYSICAL & ENVIRONMENTAL SPEC | |
| POWER REQUIREMENT | 2 x lockable 12V DC power input connectors, 40W power adapter |
| OPERATING TEMPERATURE | 32°F ~ 104°F (0°C ~ 40°C ) |
| STORAGE TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C) |
| OPERATING HUMIDITY | 10%~80% relative humidity, non-condensing |
| STORAGE HUMIDITY | 10%~80% @40°C; non-condensing |
| VIBRATION | 0.5 Grms/ 5 ~ 500Hz / operation (mSATA) 1.5 Grms/ 5 ~ 500Hz / non-operation |
| SHOCK | 10 G peak acceleration (11 m sec. duration), operation 20 G peak acceleration (11 m sec. duration), non-operation |
| DIMENSIONS (W X D X H) | 8.27” x 4.09” x 1.73” (210mm x 105mm x 44mm) |
| I/O | |

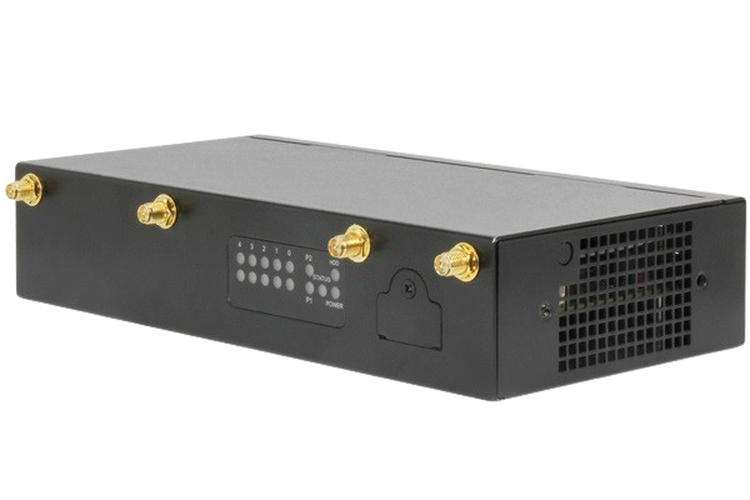

| FRONT PANEL | 3 x LEDs (Power, Status, Storage) 1 x Micro-SIM 2 x Antenna Holes |
| REAR PANEL | 2 x Lockable DC Power Input Connectors 1 x Power Button 2 x USB2.0 Ports 4 x 1GbE RJ45 Ports, 1 SFP 1 x RJ-45 console 1 x Reset Button 3 x Antenna Holes |
Ordering Information [FWS-2280]
| PART NUMBER | FWS-2280-E5-A10-000 |
|---|---|
| CPU | Intel® Celeron® J6412 |
| RAM | DDR4 3200 SODIMM socket x 1 |
| BYPASS | — |
| MINI-CARD SLOT | Mini Card Socket (PCIe +USB) x1(full size) Mini Card Socket (PCIe) x1 (half size) |
| STORAGE | SATA III Port x 1 |
| LAN | 4 x 1Gb RJ-45 1 x 1Gb SFP |
| USB | USB2.0 Type A |
| CONSOLE | RJ-45 x 1 |
| SYSTEM FAN | Smart fan x 1 |
| TPM | — |
| DISPLAY | 1 x HDMI |
| MOUNTING | Desktop |
| POWER | DC 12V power adapter |
Accessories
| 1700091805 | Console cable |
| 1702031802 | Power cord, 3P-250V/10A, 180D, 1.8M, USA, YP12/YC-12 |
| 1702031803 | Power cord, 3P-250V/10A, 180D, 1.8M, VDE, YP22/YP12 |
| 170203180B | Power cord, 3P-250V/10A, 180D, 1.8M, China, YP-03/YC-12 |
| 170203180E | Power cord, 3P-125V/7A, 1.8M, PSE, YP12/YC-12 |
