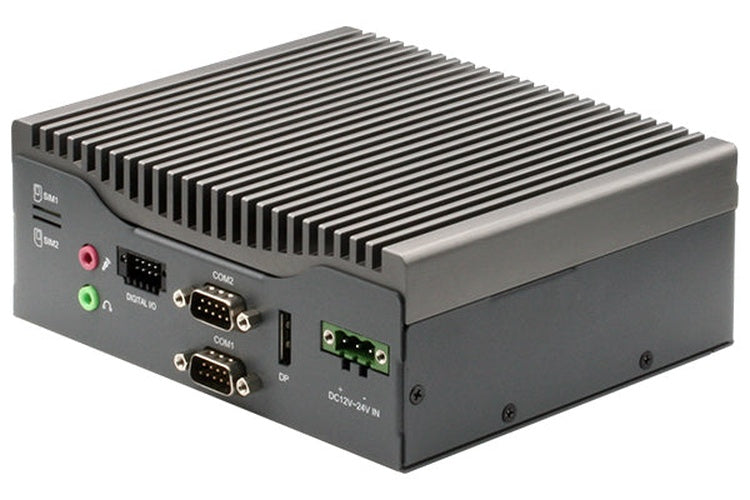

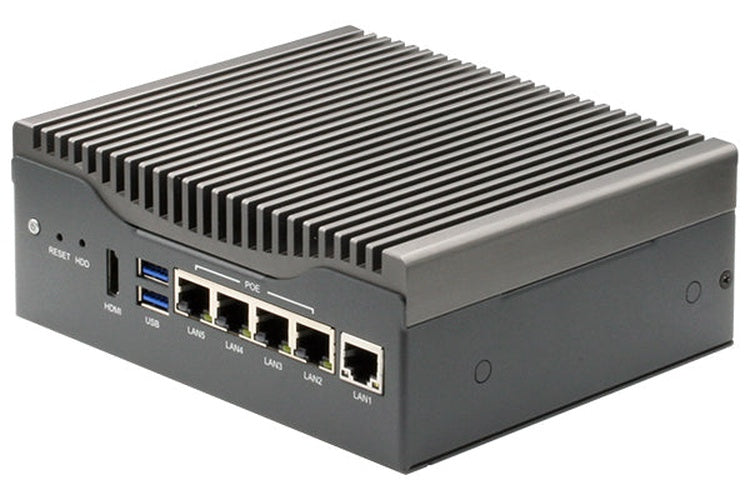

AAEON VPC-3350S (Intel E3940, DP, HDMI, PoE, 12-24VDC)

VPC-3350S-IS-A11-00

Fanless Multi-PoE Intel® Atom™ Embedded Box PC

• Mobile Industrial Platform
• 204-pin Single Channel DDR3L 1866 MHz SODIMM, up to 8 GB
• Intel® Integrated Graphics Engine Supports Two Displays via HDMI x 1, DP x 1
• Intel® Ethernet Connection with 5 ports (including 4 PoE ports)
• 2 full-size Mini-PCIe sockets (USB + PCIe); supports up to 4 Mini-PCIe sockets (in-vehicle platform)
• Built-in CANBus, GPS & G-Sensor (in-vehicle platform)
• eMark compliance available on a per-project basis

The AAEON VPC-3350S Mobile NVR provides users with options, flexibility, and customization unavailable in other mobile NVRs. The VPC-3350S includes the Intel® Atom® X5 E3940 processor (formerly Apollo Lake) as standard, with options for Pentium® N4200, Celeron® N3350, and Atom® X7 E3950. The main feature of the VPC-3350S is its four POE ports, which allow the system to connect to a wide range of devices.

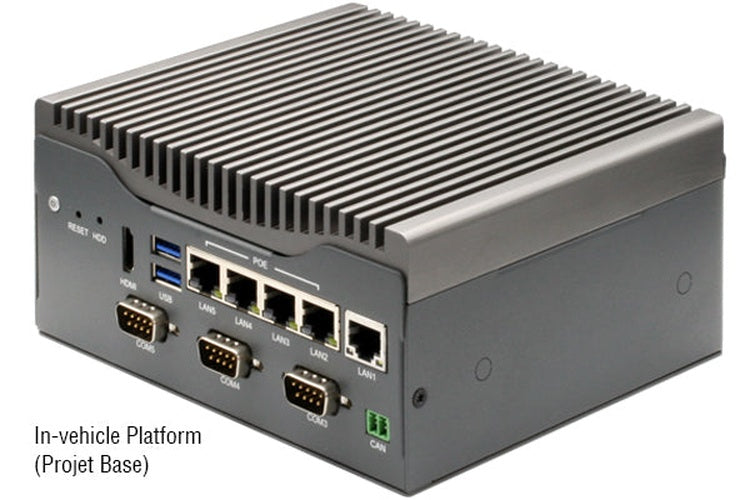

The innovative VPC-3350S mobile NVR is available in two configurations: the compact industrial VPC-3350s and the flexible in-vehicle VPC-3350s. The industrial configuration provides an ideal I/O set for machine vision applications such as license plate recognition. The in-vehicle configuration features an innovative modular design, delivering maximum flexibility, lower cost, and greater customization, with the ability to deploy the system quickly. The VPC-3350s can also be configured with an integrated Intel® Movidius ™ Myriad ™ X module.
