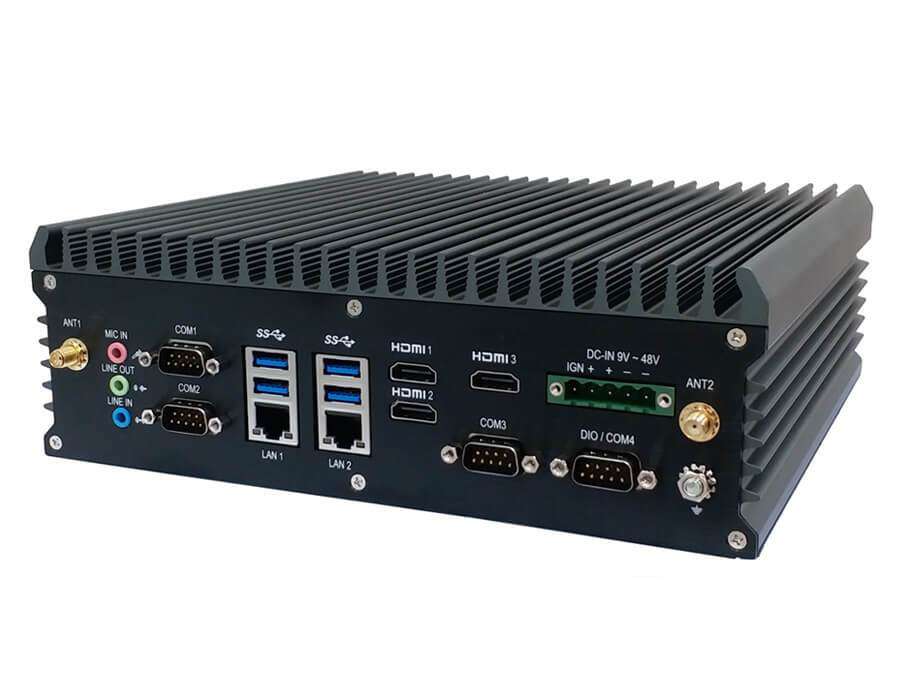

Sintrone ABOX-5000G Radeon E9260
Industrial PC for in-vehicle applications, Sintrones ABOX-5000G model with Intel Core i7-6700TE 4x3.4Ghz CPU, AMD Radeon E9260 GPU, Auto-start, Automotive 9-48V power supply, 6x LAN, 7x HDMI, dual hot-swappable bays for 2.5" drives with RAID 0/1/5 support and an internal interface for M.2 mSATA modules, making it an ideal system for IP digital video capture and KI/AI applications.
3x Mini-PCIe expansion slots accommodate optional connectivity modules: LTE, UMTS, 3G, 3.5G, GSM/GPRS, WLAN and Bluetooth. 2x SIM card slots enable redundant mobile connectivity using only a single board.
3x RS232/422/485 connectors, 4x digital inputs/outputs and 4x USB3.0 ports, plus 7x HDMI outputs for connection to a wide range of monitors. The integrated graphics support DirectX12, OpenGL4.5 and OpenCL1.2.
Multiple configuration and programming options, an optional backup battery kit, a wide input range (9-48V), an operating temperature range of (-40 ° to 70 ° C) and vibration / shock / eMark certification make this platform the ideal choice for any mobile application.
The industrial Mini PC ABOX-5000G was designed for fleet applications. The Car-PC system can be connected directly to the vehicle battery (12V / 24V), with system "ON/OFF" controlled according to the vehicle ignition.
Features:
- Fanless
- CPU Intel Core i7-6700TE 4x3.4Ghz
- GPU AMD Radeon E9260
- Dual Hot Swappable SATA + mSATA/M.2

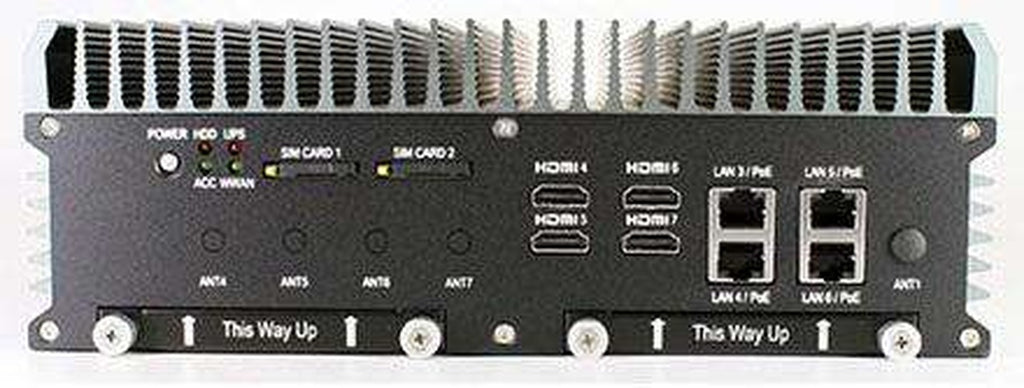

- Dual SIM card slot
- 4x USB3.0
- 3x RS232
- 6x LAN Gigabit
- 7x HDMI
- Watchdog
- Ready for GPS, WLAN and GSM/GPRS with external antennas
- 8x DI / 4x DO
- Tested for shock and vibration
Additional modules available:
The PC includes 4x antenna outputs and 3x Mini-PCIe slots.
Recommended:
- LTE / HSPA / UMTS / EDGE Mini-PCIe Modem (Huawei ME909s-120)
- Wireless LAN / Bluetooth Mini-PCI Express [Qcom Combo]
Specifications:
| System | |
|---|---|
| CPU | Intel Gen6 Core i7-6700TE (8M Cache 2.4GHz up to 3.4GHz) |
| Memory | 2 x DDR4 2133 MHz SO-DIMM, up to 32GB |
| Chipset | Intel Q170 Platform Controller Hub |
| LAN Chipset | 5 x Intel i210-AT and 1 x i219LM (iAMT support) Gb/s Onboard Ethernet controllers with PXE and WOL support |
| Watchdog | 1 ~ 255 Level Reset |
| I/O | |
| Serial Port | 4 x RS-232/422/485 (Auto Direction Control) |
| USB Port | 4 x USB 3.0 Ports |
| LAN | 6 x RJ45 Ports for GbE (Optional 4 x POE 15.4W per port) |
| Video Port | 7 x HDMI Ports |
| DIO Port | 8 x GPI and 4 x GPO |
| Audio | 1 x Line-out, 1 x Line-in and 1 x Mic-in |
| Expansion Bus | 3 x Full Mini-PCIe Slots and 1 x M.2 A-E Key 2280 Slot (2 x SIM Card Sockets for 3G/LTE) |
| Graphics | |
| Graphics |
AMD Radeon™ E9260 GPU |
| Resolution | Maximum resolution (HDMI 2.0b) : 5120x2880@60Hz |
| Storage | |
| Type | 2 x 2.5" drive bays for SATA HDD/SSD, RAID 0,1,5 1 x mSATA |
| Power requirements | |
| Power input | 9V -48V DC power input |
| Power protection | Automatic-recovery short-circuit protection |
| Power management | Vehicle power ignition for a variety of vehicles |
| Power-off control | Power-off delay time setting through software and BIOS |
| Backup battery | Internal battery kit for 10 Mins of operation (optional) Patent No. : M447854 - Built-in battery |
| Environmental | |
| Operating temp. | -40°C ~ 70°C |
| Storage temp. | -40°C ~ 80°C |
| Relative humidity | 0% RH – 95% RH |
| Certifications | CE, FCC Class A, E13 |
| Patent No. (Taiwan) | M447854, M448011 |
| Mechanical | |
| Construction | Aluminum |

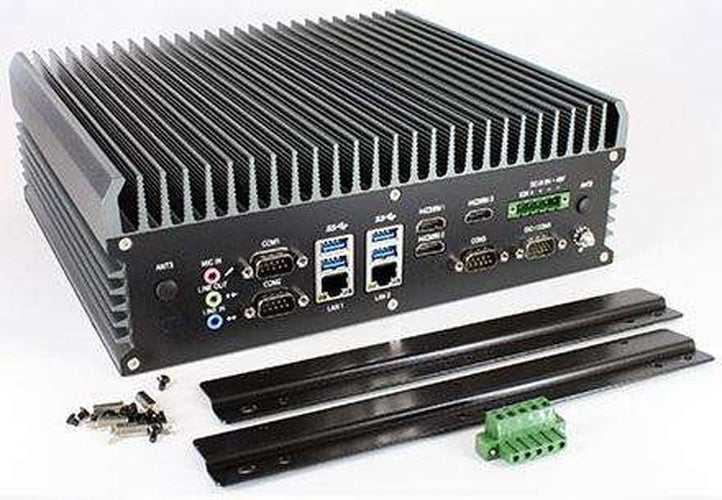

| Mounting | Wall-mount, VESA-mount, DIN Rail mounting kit |
| Weight | 3860g (Barebone) |
| Dimensions (LxWxH) | 240 x 226 x 79 mm |
| Ordering information | |
| Part number | ABOX-5000G-i7S Optional for i5S/i3S/C1S |
| Description | Intel 6th/7th-Gen Quad Core i7/i5/i3 CPU with 6 GbE/ 4 COM/ 7 HDMI/ 4 USB 3.0/ AMD Radeon™ E9260 GPU/ 9-48V/ in-vehicle fanless computer |
