Fanless industrial PC AMOS-825. Cortex-A9 1.0GHz i.MX 6Quad, 9-36VDC, 1GB RAM/16GB eMMC.
Improve commercial fleet safety and efficiency with the AMOS-825 system. Powered by a quad-core NXP i.MX 6Quad Cortex-A9 SoC running at 1,0 GHz, this compact, fanless system is specifically designed for compute-intensive fleet management, navigation, and infotainment applications. Featuring a quad-core NXP i.MX 6Quad ARM Cortex-A9 SoC running at 1,0 GHz, the VIA AMOS-825 provides a highly capable, low-power platform for compute- and multimedia-intensive in-vehicle entertainment and navigation applications.
With 3G network support, available separately through an optional expansion card, and extensive connectivity, the AMOS-825 can serve as a powerful mobile data collection and control centre inside vehicles. GPS, Wi-Fi, Ethernet, USB, COM and HDMI interfaces make it easy to connect devices. Its fully fanless construction, rugged design and vehicle-compatible power options make it a complete solution for in-vehicle applications.
Connectors
| Model Name | AMOS-825 |
| Processor | 1.0GHz NXP i.MX 6Quad Cortex-A9 quad-core SoC |
| System Memory | 1GB onboard DDR3 SDRAM |
| Storage | 16GB eMMC Flash memory |
| Boot Loader | 4MB SPI Flash ROM |
| Graphics | Vivante GC2000 GPU 3 independent, integrated 3D/2D and video graphics processing units Graphics engine supporting OpenGL® ES 2.0, OpenCL and OpenVG™ 1.1 hardware acceleration Supports MPEG-2, VC-1 and H.264 video decoding up to 1080p Supports SD encoding |
| LAN | Micrel KSZ9031RNX Gigabit Ethernet transceiver with RGMII support |
| Wi-Fi/Bluetooth/GPS | IEEE 802.11b/g/n Wi-Fi Bluetooth 4.0 MAX-7 u-blox 7 GPS/GNSS |
| Audio | NXP SGTL5000 low-power stereo codec |
| USB | SMSC USB2514 USB 2.0 high-speed 4-port hub controller |
| CAN | TI SN65HVD1050 EMC-optimized CAN transceiver |
| Expansion I/O | 1 miniPCIe slot |

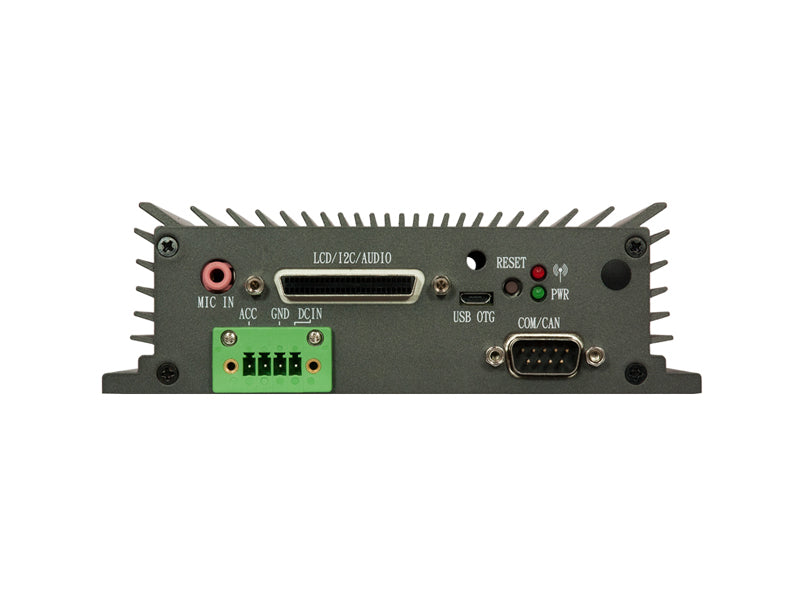

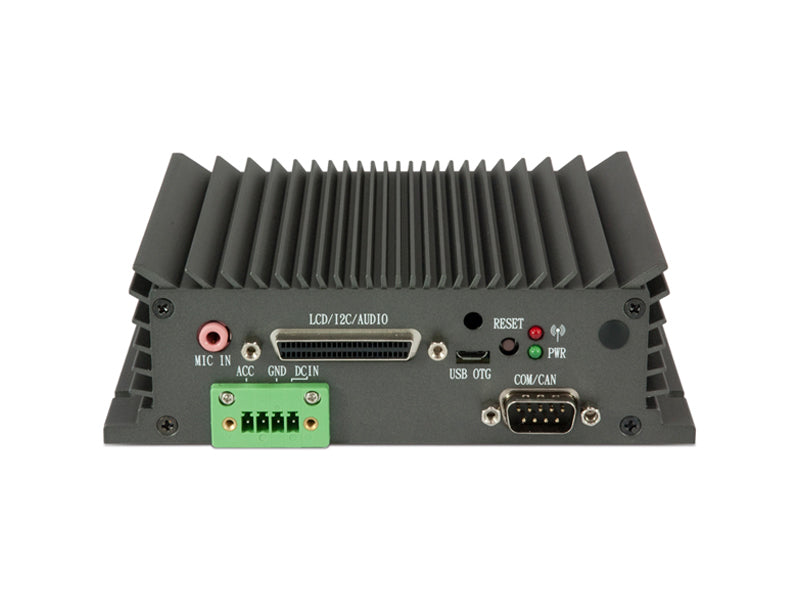

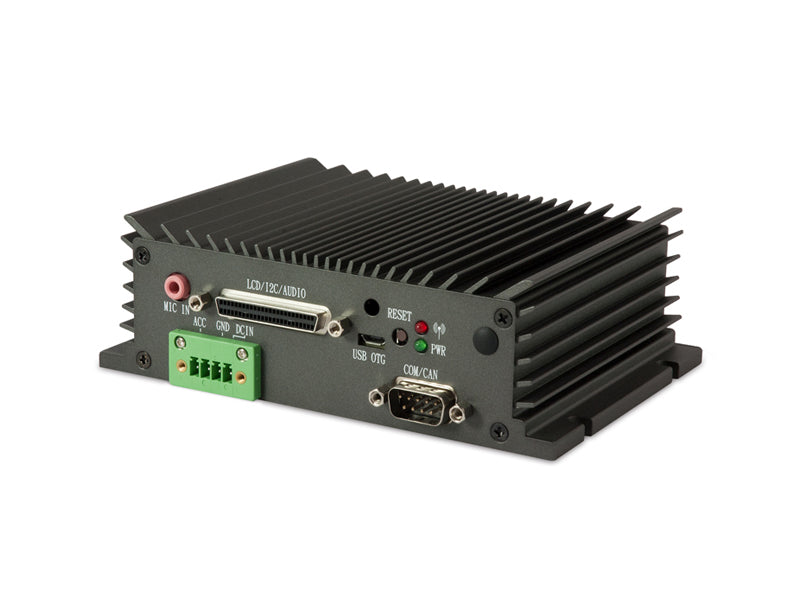

| Front Panel I/O | 1 Micro USB 2.0 OTG port 1 9-pin D-sub connector (supports 2 CAN buses and 1 COM TX/RX for debugging) 1 SCSI 50-pin D-sub connector (Backlight power, Dual-channel LVDS, 4 GPIO, I²C, Line-out and Mic-in) 1 Mic-in 1 Reset button 2 LEDs for power and WPAN/WWAN/WLAN status 1 antenna hole 1 4-pole Phoenix DC jack |

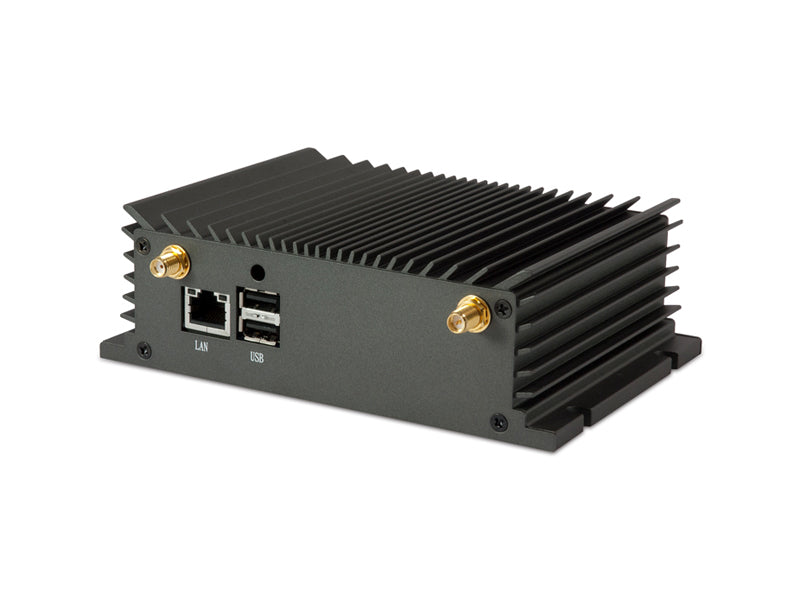

| Back Panel I/O | 2 USB 2.0 ports 1 Gigabit Ethernet port 2 antenna connectors for Wi-Fi/BT and GPS |
| Power Supply | 9 ~ 36V DC input (typical: 7W) |
| Operating System | Android 6.0 |
| VIA Smart ETK | Watchdog timer, CAN bus |
| Operating Temperature | 0°C ~ 60°C |
| Operating Humidity | 0% ~ 90% @ 45° C (non-condensing) |
| Vibration Loading During Operation | With onboard eMMC: 7Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 1hr/axis |
| Shock During Operation | With onboard eMMC: 70G, IEC 60068-2-27, half-sine, 11ms duration |
| Bottom Opening Covers | Open access window with removable cover plate for the Micro SD and miniPCIe slots |
| Mechanical Construction | Aluminium top chassis housing, metal chassis housing, and removable front and rear metal faceplates |
| Mounting | Wall/DIN Rail/VESA mountable |
