Arbor AEC-2000-4GB (NVIDIA® Orin Nano, 4GB LPDDR5, 512-core)
Price excludes VAT
955.00€
Sale price
Price excludes VAT
955.00€
Regular price
Total with VAT (23%): 1,174.65€
Shipping calculated at checkout.
AEC-2000-4

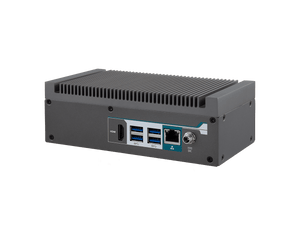

NVIDIA® Jetson Orin™ Nano AI Edge Computer
- Supports NVIDIA® Jetson Orin™ Nano with "Super Mode"
- Supports 1 GbE port
- 2 USB 3.2 ports
- 1 HDMI 2.0 port
- Wide-range 9 to 24 V DC input
- Operating temperature: -25°C to 50°C
System
| CPU | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU |
|---|---|
| Memory | 4GB LPDDR5 DRAM |
| GPU | 512-core NVIDIA Ampere™ architecture GPU with 16 Tensor cores |
| Storage | 1 x M.2 Key M (2280), 128GB NVMe SSD |
I/O Interface
| LAN | 1 x GbE port |
|---|---|
| USB Port | 1 x USB 2.0 Type C recovery port 2 x USB 3.2 ports with Type A connector |
| Expansion | 1 x M.2 M-Key 2280 socket (for NVMe SSD) 1 x M.2 E-Key 2230 socket (for WiFi module) 1 x 2x10-pin header for 2xI2C, 1 x UART, 9-bit DIO |
| Video Port | 1 x HDMI 2.0, 3840 x 2160 4K 30Hz |
Environmental
| Operating Temp. | -25°C to 50°C (-13°F to 122°F), with 0.63 m/s air flow |
|---|---|
| Storage Temp. | -40 ~ 85°C (-40 ~ 185°F) |
| Operating Humidity | 5 ~ 95% (non-condensing) |
| Relative Humidity | 95% @ 50°C |
| Shock | Operating, MIL-STD-810H, Method 516.8, Procedure I (TBA) |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Procedure I, Category 4 (TBA) |
| EMC | CE,FCC |
OS Support
| System | Linux / NVIDIA JetPack 6.2 |
|---|
Power Requirement
| Power Input | DC 9V ~ 24V |
|---|
Mechanical
| Button | 1 x Power Button, 1 x Force Recovery Button |
|---|---|
| Antenna | Antenna hole for WiFi |
| Mounting | Wall mount |
| Weight | 2 Kg(TBA) |
| Dimensions (W x D x H) | 130 mm x 82 mm x 49 mm |
