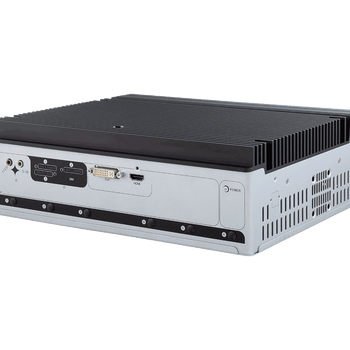

Arbor FPC-5211-P6 (Intel® 12 / 13 Gen. LGA1700, 64GB DDR5, 6 PoE)
Price excludes VAT
1,458.00€
Sale price
Price excludes VAT
1,458.00€
Regular price
Total with VAT (23%): 1,793.34€
Shipping calculated at checkout.
FPC-5211-P6
Edge AI GPU PC for 12 / 13 Gen. Intel® CPUs, Alder Lake-S / Raptor Lake-s, with 6 PoE ports
- Fanless design (embedded heat-pipe cooling solution)
- 12th / 13th Generation Intel Core™ i9/i7/i5/i3 Alder Lake-S / Raptor Lake-S
- MXM GPU 60W expansion module
- 4x Gigabit PoE 802.3af ports (15.4W) (FPC-5211-M4)
- Gigabit PoE 802.3af (15.4W) / 802.3at(25.5W) ports (FPC-5211-2M4/2P4)
- Dual DP + HDMI + DVI, supporting 4 independent displays
- ON-OFF control / power disable control / configurable ignition control
- Supports TPM 2.0 and Time-Sensitive Networking (TSN)
- 2 mPCIe slots for Wi-Fi/3G/4G/GPS modules or I/O expansion
- Easy-access front connectors
- 1x M.2 B-Key for storage or 5G/LTE and 1x M.2 E-Key for Wi-Fi / BT
- 1x M.2 M-Key para SSDs NVMe
System
| CPU | Intel® 12th / 13th generation Core™ i9/i7/i5/i3 processor in LGA1700 socket (Max 35W CPU) |
|---|---|
| Memory | 2 x 262-pin DDR5 SO-DIMM sockets, supporting 4800 MHz SDRAM up to 64GB (ECC/ Non-ECC) |
| Chipset | Intel® R680E |
| Graphics | Integrated Intel® HD Graphics 770 |
| ATA | 2 x Serial ATA ports with 600MB/s HDD transfer rate |
LAN Chipset | 1 x Intel® WGI219LM GbE controller with iAMT 16.0 3 x Intel® I226 2.5GbE controllers 2 x Intel® I226 2.5GbE controllers for PoE 2 x Marvell® 10GbE controllers for PoE |
LAN Chipset | 1 x Intel® WGI219LM GbE controller with iAMT 16.0 3 x Intel® I226 2.5G GbE controllers 2 x Inte® I210 GbE controllers for PoE 2 x Intel® I226 2.5G GbE controllers for PoE |
LAN Chipset | 1 x Intel® WGI219LM GbE controller with iAMT 16.0 3 x Intel® I226 2.5GbE controllers 6 x Intel® I210 GbE controllers for PoE |
| Watchdog Timer | Reset in 1~255 levels |
| TPM | Onboard TPM 2.0 |
I/O Interface
| Serial Port | 2 x RS-232 / 422 / 485 configurable ports via DB-9 connectors (RS232 by default, switchable via BIOS) 2 x RS-232 via DB-9 connectors |
|---|---|
| USB Port | 8 x USB 3.2 / 2.0 ports |
LAN Port (POE) | 4 x RJ-45 connectors for GbE 4 x M12 X-coded connectors 2 x Intel® I226(2.5GbE) + 2 x Marvell® 10GbE, max. 60W supports 802.3at POE+ |
LAN Port | 4 x RJ-45 connectors for GbE 2 x Intel® I226(2.5GbE) + 2 x Marvell® 10GbE, max. 60W supports 802.3at POE+ |
LAN Port | 4 x RJ-45 connectors for GbE 4 x M12 X-coded connectors 2 x Intel® I210(1GbE) + 2 x Intel® I225(2.5GbE) supports 802.3af POE |
LAN Port | 4 x RJ-45 connectors for GbE 6 x RJ-45 connectors by Intel® I210(1GbE) max. 60W, supports 802.3af POE |
| Video Port | 2 x DP 1.4a from the MXM module or Intel Graphics (Intel graphics by default, switching via BIOS) 1 x HDMI 2.0b female connector for digital video output 1 x DVI-I female connector for digital/analog video output * Supports 4 independent displays |
| Expansion Bus | 1 x MXM3.1 TYPE A/B GPU slot (PCIe Gen5 x16) with MXM A2000 support 2 x mPCIe slots interconnected with SIM card sockets for optional Wi-Fi/BT/3G/LTE/GPS (PCIex1 + USB2.0, full-size) 1 x M.2 B key (2242/3052/2280) with (PCIex2 + USB3.0 + SATA), interconnected with SIM for 5G / LTE expansion or storage (either one) 1 x M.2 E key ( 2230) with PCIex1+USB2.0+CNVi) for Wireless |
| Digital I/O port | 1 x DB15 connector for 8 x digital inputs (dry/wet contact), with 2KV isolation 1 x DB15 connector for 8 x digital outputs, with 2KV isolation |
| Audio | Mic-in / Line-out |
Environmental
| Operating Temp. FPC-5211-2M4 / FPC-5211-2P4 | -20 ~ 50°C (-4 ~122°F), ambient with airflow -20 ~ 60°C (-4 ~140°F), ambient with airflow (with external SMART FAN kit) *A2000 GPU at 100% load without throttling |
|---|---|
| Operating Temp. FPC-5211-M4 FPC-5211-P6 | -20 ~ 50°C (-4 ~ 122°F), ambient with airflow -20 ~ 65°C (-4 ~ 149°F), ambient with airflow ( with external SMART FAN kit) *A2000 GPU at 100% load without throttling |
| Storage Temp. | -40 ~ 85°C (-40 ~ 185°F) |
| Operating Humidity | 10 ~ 95% @ 60°C (non-condensing) (2M4/2P4) 10 ~ 95% @ 65°C (non-condensing) (M4/P6) |
| Vibration | 5~500Hz 3G rms on the X,Y,Z axes with SSD, according to IEC 60068-2-64 |
| Shock | 50 Grms, half-sine, 11 m sec. duration with SSD, according to IEC60068-2-27 |
OS support
| System | Windows 10 IOT Enterprise 64-bit Linux ( Ubuntu 20.04 ) |
|---|
Storage
| Type | 2 x externally accessible 2.5” drive bays 1 x M.2 B key (2242/2280) with (PCIex2 + USB + SATA) for storage or LTE expansion (either one) 1 x M.2 2280 M key supporting 2242, 2280 devices (PCIe x4 & SATA signal, with boot function support) |
|---|
Qualification
| Certification | CE, FCC Class A, E mark. |
|---|
Power Requirement
| Power Input | DC 9~36V input (with 4-pin DC input terminal block)(V+, V+, V-, V-) |
|---|---|
| Ignition Switch | 2-pin terminal block: IGN, GND |
| Power Consumption | Max. 180W |
Mechanical
| Construction | Aluminum alloy |
|---|---|
| Mounting | Wall-mount |
| Weight | 5.83 Kg (12.85lb) |
| Dimensions (W x D x H) | 285x230x 90mm (9.84” x11.50” x 3.54”), fanless 285x230x110mm (9.84” x11.50” x 4.33”), with FAN |
Ordering Information
| FPC-5211-2M4 | Edge AI GPU Computer Bare BOM, with 2x 10GbE PoEs, M12 type |
|---|---|
| FPC-5211-2P4 | Edge AI GPU Computer Bare BOM, with 2x 10GbE PoEs, RJ45 type (BTO) |
| FPC-5211-M4 | Edge AI GPU Computer Bare BOM, with 4x M12 PoEs |
| FPC-5211-P6 | Edge AI GPU Computer Bare BOM, with 6x POEs |
