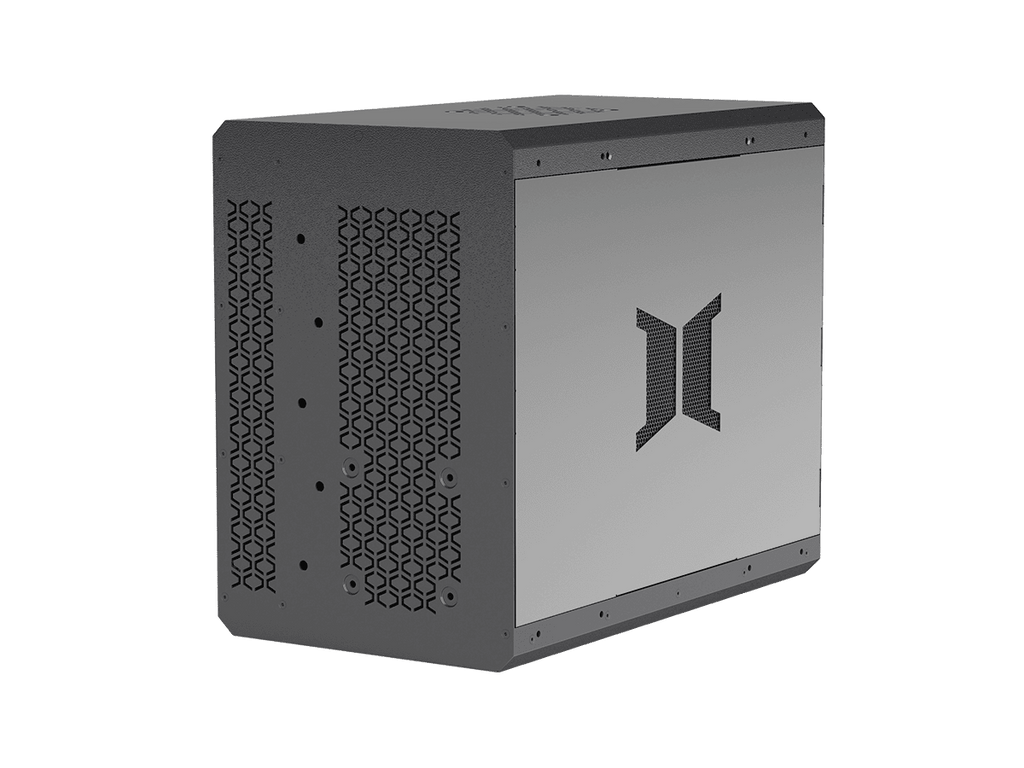

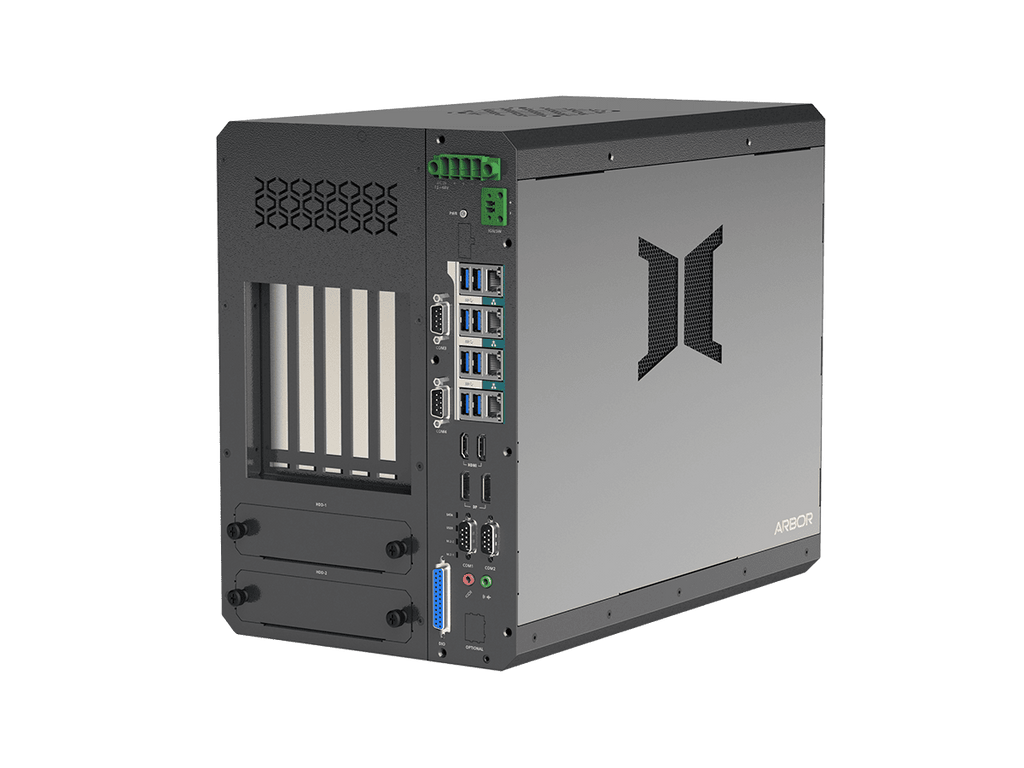

Arbor FPC-9309W-G5 (Intel® Core™ Ultra Series 2, NVIDIA® RTX-5090)
Price excludes VAT
1,438.00€
Sale price
Price excludes VAT
1,438.00€
Regular price
Total with VAT (23%): 1,768.74€
Shipping calculated at checkout.
FPC-9309W-G5
Edge AI computing platform with support for NVIDIA® RTX-5090 GPUs and Intel® Core™ Ultra (Series 2)
- Intel Core™ Ultra (Series 2)
- Supports NVIDIA® RTX-50 GPUs up to 575W (357.6mm)
- Wide-range DC power input (24~48V)
- 2x HDMI + 2x DP (2 independent monitors)
- Power-on/off delay control and configurable ignition power control
- Suporta TPM2.0
- 2x SATA SSD + 2x NVMe SSD, supports RAID 0,1,5
- 8x USB3.2 with support for data transfer rates up to 10Gbps
- Front I/Os for easy access
- PWM fan control
- 1x M.2 (NGFF) B-Key(2242/3052/2280)
- 1x M.2 (NGFF) E-Key(2230)
System | |
| CPU | Intel® Core™ Ultra processors (Series 2) in LGA1851 socket (35W / 65W CPU) |
|---|---|
| Memory | 4 x DDR5 U-DIMM sockets, supporting 5600MHz SDRAM up to 192GB (ECC /Non-ECC) |
| Chipset | Intel® W880E |
| Graphics | Integrated Intel® HD Graphics |
| ATA | 2 x Serial ATA ports with 600MB/s HDD transfer rate |
| LAN chipset | 4 x Intel® WGI226LM 2.5GbE LAN |
| Watchdog Timer | 1~255-level reset |
I/O interface | |
| Serial port | 2 x configurable RS-232/422/485 (default RS-232) 2 x RS-232 |
| USB port | 8 x USB 3.2 Gen2 (10Gbps) / 2.0 ports 1x USB 2.0 (internal pin header) |
| LAN | 4 x RJ-45 ports for GbE/2.5GbE |
| Video Port | 2 x HDMI 2.1 up to 4K@60Hz 2 x Display Port 2.1 up to 4K@60Hz |
| Digital I/O | 1x DB25 connector for DIO (8 in /8 out) port |
| Optional port | 1x RJ-45 for optional OOB port (option) |
| Audio | Mic-in / Line-out |
| Expansion Bus | 1 x mini-PCI Express slot interconnected with SIM card sockets for optional WiFi/BT/3G/LTE/GPS (PCIex1+USB2.0, full size) 1 x M.2 E key (2230) with PCIex1+USB2.0, for wireless connectivity 2 x M.2 B key (2242/3052) with (PCIex1+USB3.0+SATA), interconnected with SIM for 5G/LTE expansion or storage (either one) 2 x PCIe x16 slots for a 600W GPU card or dual 300W GPUs 3 x PCIe x 8 slots (via 4 lanes) |
Environmental | |
| Operating temperature | 65W TDP CPU: -20°C ~ 55°C (-4°F ~ 131°F) 35W TDP CPU: -20°C ~ 70°C (-4°F ~ 158°F) with NVIDIA® RTX-5090: -20°C ~ 45°C (-4°F ~112°F) |
| Storage Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
Environmental | |
| Operating Humidity | 10% ~ 95% @ 50°C (non-condensing) |
|---|---|
| Vibration | Complies with MIL-STD-810G, Method 514.6, Category 4 with SSD |
| Shock | Complies with MIL-STD-810G, Method 516.6,Table 516.6-II, 20G |
Qualification | |
| Certification | CE, FCC Class A |
Power Requirement | |
| Power Input | DC 24~48V input (with 4-pin DC input terminal block --++ ) |
| Ignition switch | 2-pin terminal block: IGN / Remote SW (default IGN) |
Storage | |
| Type | 2 x 2.5”/3.5” drive bays (externally accessible) 2 x M.2 M key NVMe SSD (2242/2280) with PCIe x 4 |
Mechanical | |
| Construction | Metal |
| Mounting | Wall-mount |
| Weight | 7.4 kg (16.31Ib) |
| Dimensions (W x D x H) | 220 x 380 x 320 mm |
OS support | |
| System | Windows 10/11 IOT Enterprise 2021 Linux (Kernel 6.11) |
Ordering Information | |
| FPC-9309W-G5 | Ruggedized Edge AI computing platform supporting NVIDIA® RTX-5090 GPU card, Intel® Core™ Ultra processor (Series 2) |
