• NVIDIA® Jetson AGX Xavier™ 64GB
  • 2x M.2 Key M 2280 ou 3x mPCIe
  • 2x GbE, 2x USB 3.0, 2x 4Kp60 HDMI
  • 1x CAN bus
  • DC 12V - 54V
com IVA
3,345.45€

sem IVA
2,719.88€
Sku: AG411B-64G
Product Type: AI Edge box PC
Vendor: AVerMedia

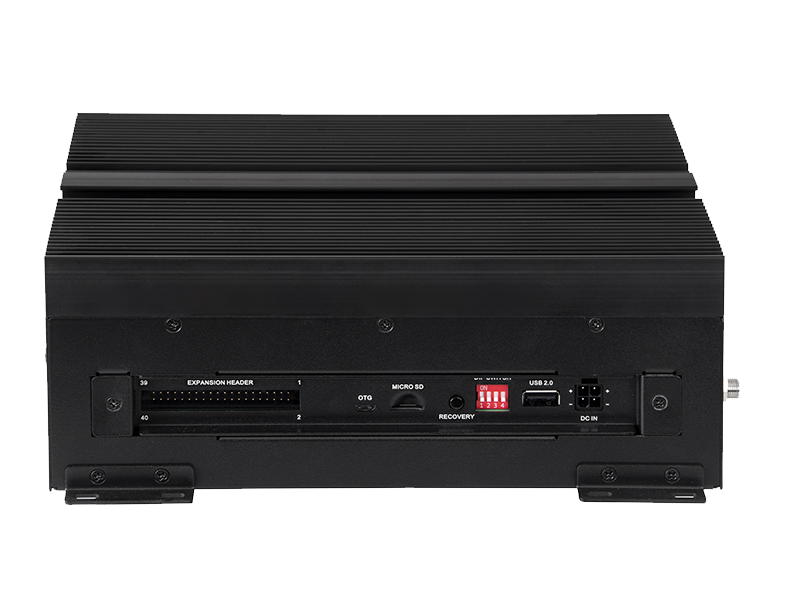

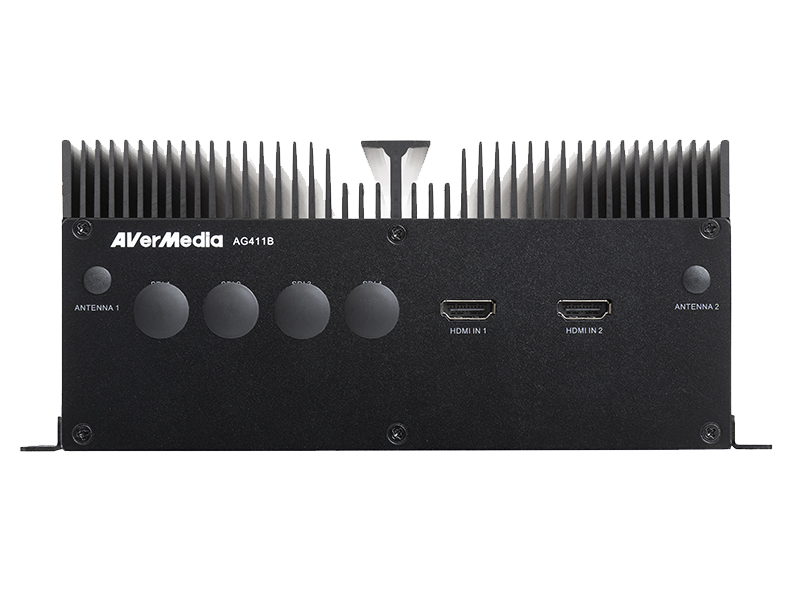

AVerAI Box PC AG411B-64G

Embedded Box PC AG411B-64G NVIDIA® Jetson™ AGX Xavier™ 64GB

  • Embedded NVIDIA® Jetson AGX Xavier™ 64GB module
  • 2x M.2 Key M 2280 or 4x mPCIe alternatively
  • 1x M.2 Key E 2230 for Wi-Fi module
  • 1x M.2 Key M 2280 for NVMe
  • 2x GbE, 2x USB 3.0, 2x 4Kp60 HDMI output
  • 1x CAN bus with transceiver
  • Wide input voltage: 15~54V DC Input
  • Easy to use with expansion I/O on one side.
  • Operating temperature: -10°C ~ 60°C
  • Dimension: W: 190mm x L: 239mm x H: 88.5mm
Vista Rápida

AVerMedia AVerAI Box PC AG411B-64G equips NVIDIA® Jetson AGX Xavier™ 64GB module which aims it at AI centric use cases for edge computing such as heavy industry and industrial automation with wide input voltage operation. AG411B is easy to use with expansion I/O on one side.

AG411B Box PC provides 2x M.2 Key M 2280 and 4x mPCIe slots alternatively for Xavier to receive various video inputs by using AVerMedia’s capture cards.

These 2x M.2 Key M 2280 and 4x mPCIe slots share PCIe Gen2 x4 lanes, so AG411B Box PC can provide three different combinations for developers to install video capture cards alternatively, such as 2x M.2 Key M 2280 slots, 4x mPCIe slots, and 2x mPCIe slots with 1x M.2 Key M 2280 slot.

By using AVerMedia’s extended video capture cards, Xavier is able to receive HDMI, VGA, SDI, composite video inputs, and even dual 4Kp30 HDMI video inputs for different application scenarios.

This highly integrated edge computer is a well prepared application ready system for developers to overcome the challenges timely and easily.

Compatible Video Capture Cards

ag411b_feature
Especificações

Model

AG411B

Type

Box PC

NVIDIA GPU SoC Module Compatibility

NVIDIA® Jetson AGX Xavier™ 64GB module

Networking

2x GbE RJ-45

Display Output

2x HDMI 2.0, maximum resolution: 3840 x 2160 at 60Hz

Temperature

Operating temperature -10°C~60°C

Storage temperature -40°C ~ 85°C

Relative humidity 40 °C @ 95%, Non-Condensing

USB

1x USB 2.0 Micro-B for RNDIS

2x USB 3.0 Type-A (USB3.1 x2)

3x USB 2.0

Storage

32GB eMMC 5.1 & 1x micro-SD card slot

RS-485

1x RS-485

CAN bus

1x CAN bus with transceiver

Audio

1x Mic-in

1x Speaker-out

Expansion Header

40 pins: 1x UART, 2x 12C, 1x CAN (W/O transceiver), 5x GPIO

User Expansion

1 x M.2 Key E 2230 for Wi-Fi module (PCIe Gen4x 1)

1 x M.2 Key M 2280 for NVMe (PCIe Gen4x 4)

2 x M.2 Key M 2280 (PCIe Gen2x 4) or 4x mPCIe Gen2 x1

1 x SATA

DIP Switch Expansion

1. Auto power on enable/Disable (External)

2. FAN PWM on enable/Disable (External)

3. RS485 Terminal ON/OFF (External)

4. CAN Bus Terminal ON/OFF (External)

Input Power

DC IN Plug (54V/2.78A)

Buttons

Power and Recovery (Power button with green LED)

RTC Battery

Support RTC battery and Battery Life Monitoring by MCU

Chassis Dimension/ Weight

W: 190mm x L: 239mm x H: 88.5mm

Weight:  3.6Kg

Certifications

CE, FCC

*All specifications are subject to change without prior notice.
