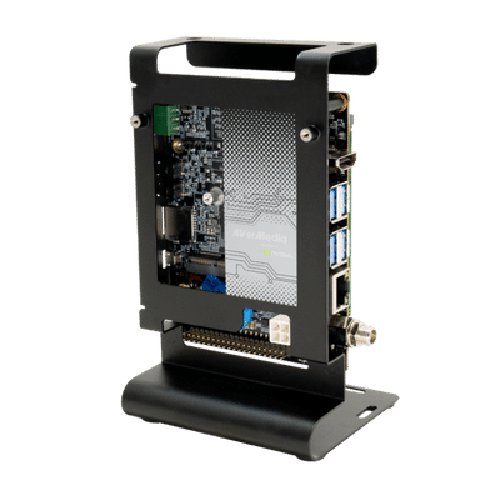

AVerMedia D131OXB Developement Kit (NVIDIA Jetson Orin NX, 16GB)
D131OXB
Engineering kit built with the NVIDIA® Jetson Orin™ NX module
- 2 x 2 Lane MIPI CSI-2 camera input
- 1 x 4 Lane MIPI CSI-2 camera input
- 2 x M.2. for Wi-Fi, SSD and capture card
- 1 x GbE RJ-45 (optional PoE), 40-pin expansion header
- 4 x USB3.2 Gen1 (5G) type A and 1 x 4Kp60 HDMI output
- Operating temperature: 0°C ~ 70°C (TBD)
- Dimensions: 157mm(W) x 105mm(L) x 85mm(H) with stand (without antenna)
AVerMedia Engineering Kit D131 built with the NVIDIA® Jetson Orin™ NX module. This efficient SoM enables advanced analytics while providing the capacity to handle a wide range of other embedded IoT applications.
D131 is a ready-to-use product that integrates cameras, SSD and thermal solutions to deliver an optimized user experience through its vertical mechanical design. The power input and expanded 40-pin header are positioned on the bottom to prevent cable interference. Its multi-camera support and compact design are also notable.
Model | D131OXB |
|---|---|
NVIDIA Jetson SoM | Jetson Orin NX |
Networking | 1x GbE RJ-45 (PoE option) 1xM.2. key E 2230 for Wi-Fi |
Display output | 1x HDMI 2.0 (3840 x 2160 at 60Hz) |
Temperature | Operating temperature 0°C~70°C (TBD) Storage temperature -40°C ~ 85°C Relative humidity of 95% at 40 °C, non-condensing |
MIPI camera inputs | 2x 2 lane MIPI CSI-2, 15 pin FPC connector with 1mm pitch 1x 4 lane MIPI CSI-2, 36 pin FPC connector with 0.5mm pitch |
USB | 1x USB 2.0 Micro-B for recovery 4x USB 3.2 Gen1 (5G) type A |
Storage | 1x M.2. key M 2280 for SSD |
Expansion Header | 40-pin: 1x UART, 2x SPI, 2x 12C, 1x I2S, GPIOs |
Input power | On-board DC input jack & ATX 4-pin 12V/5A, 9V~24V is recommended |
Power Cord | US/JP/EU/UK/TW/AU/CN |
Thermal solution | Fan |
Buttons | Power and Recovery |
RTC Battery | Supports RTC battery and battery-life monitoring by MCU |
Dimensions | 157mm(W) x 105mm(L) x 85mm(H) with stand (without antenna) |
Certifications | CE, FCC, KC |
Package Contents | 1 x Carrier Board 1 x 256G SSD |
Optional accessory |
|

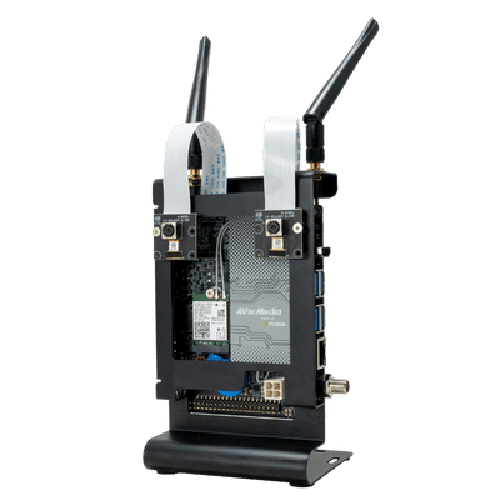

| D131OXB with optional accessories, as shown in the photo below. |
