1U Rack Chassis 10265
Price excludes VAT
134.00€
Sale price
Price excludes VAT
134.00€
Regular price
Total with VAT (23%): 164.82€
Shipping calculated at checkout.

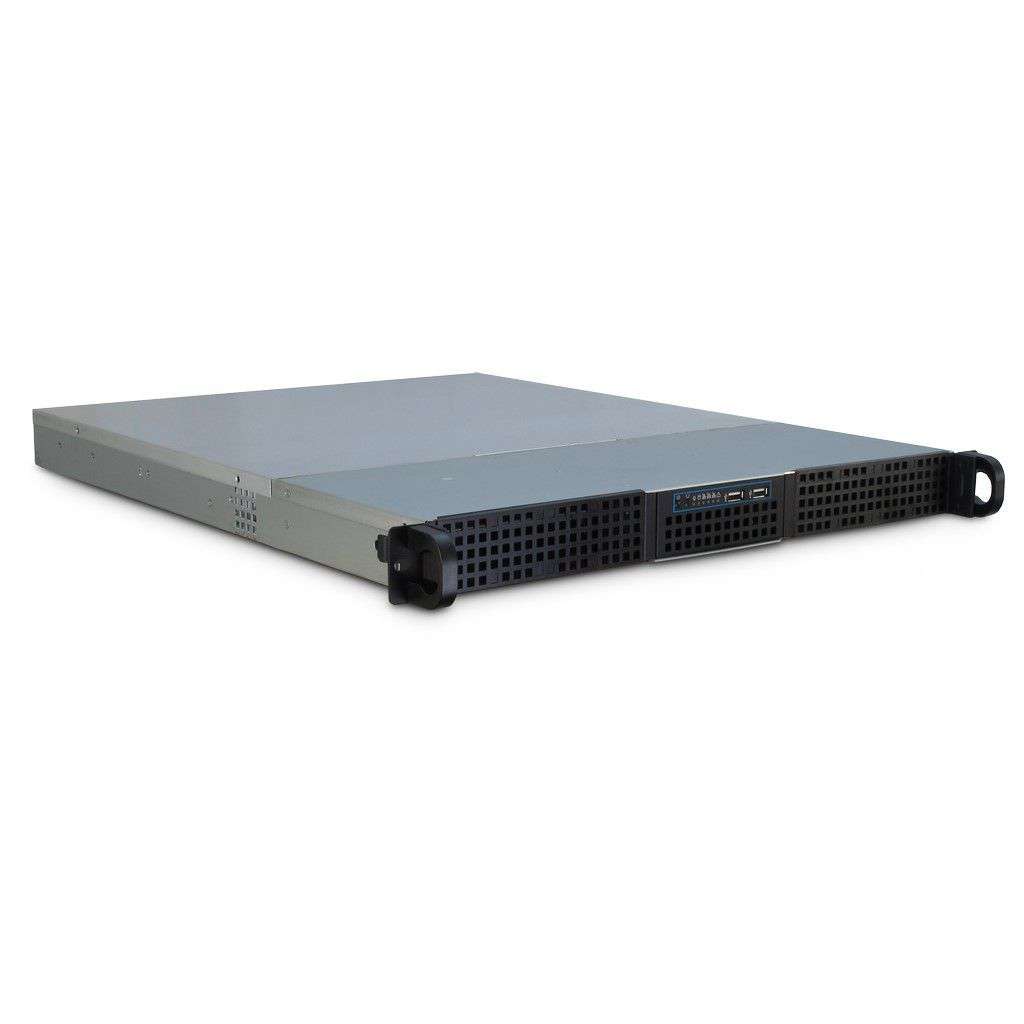

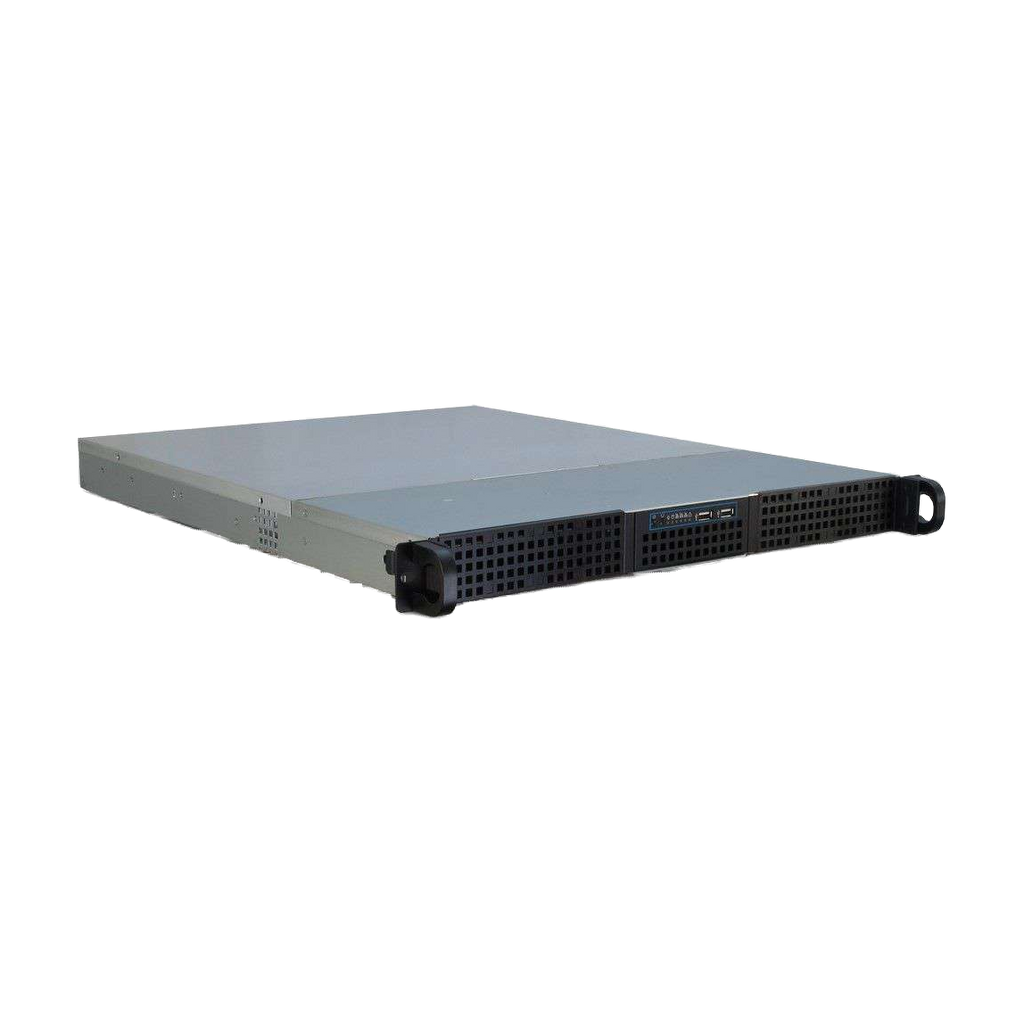

The 1U 10265 is the ideal rackmount case for a cost-effective server system.
The excellent material quality, combined with superb workmanship, provides the basis for a highly versatile chassis.

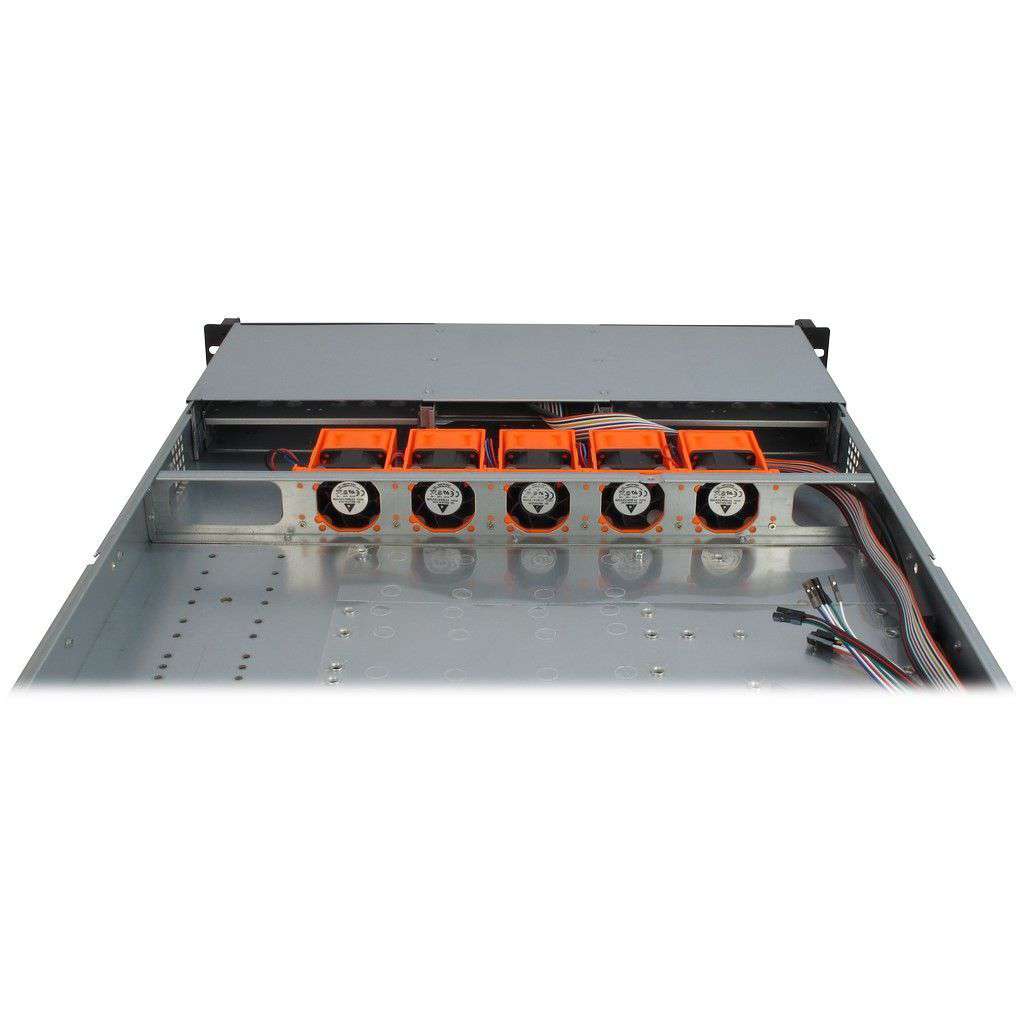

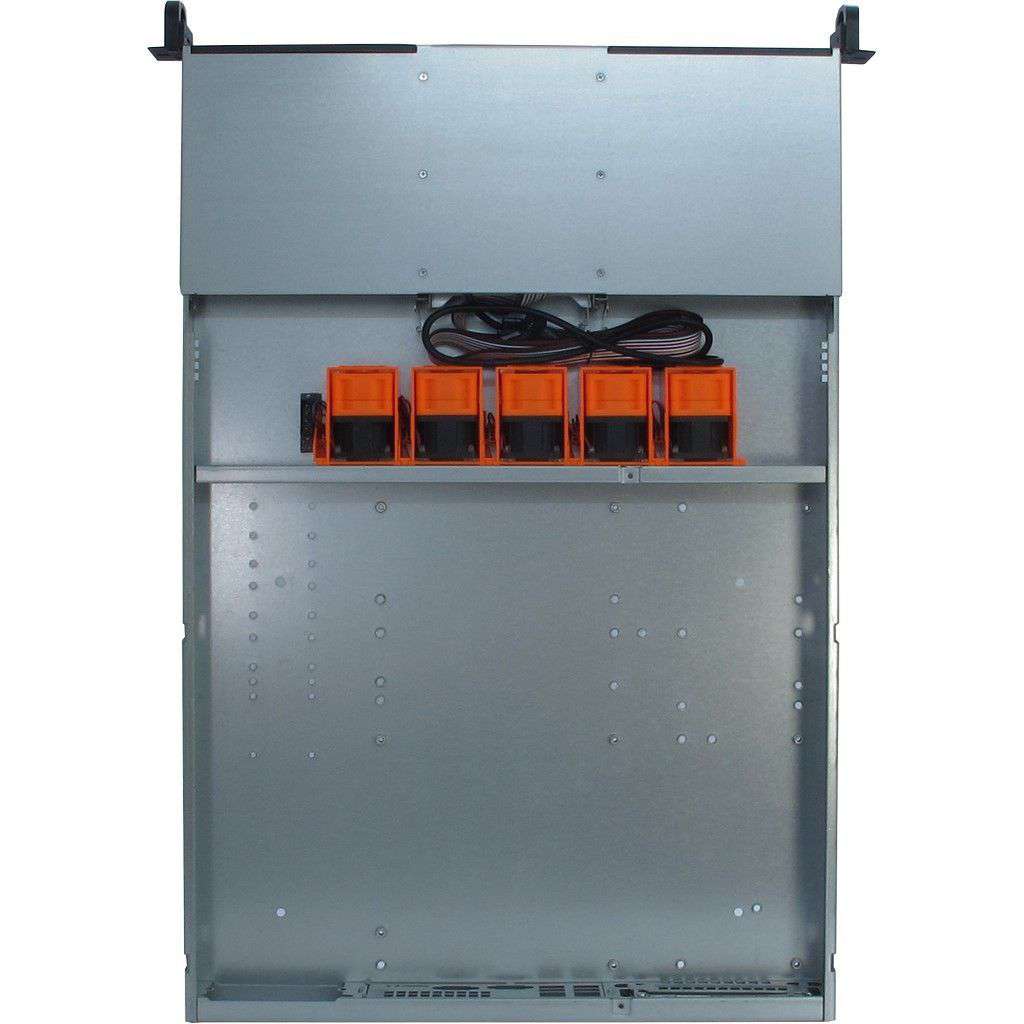

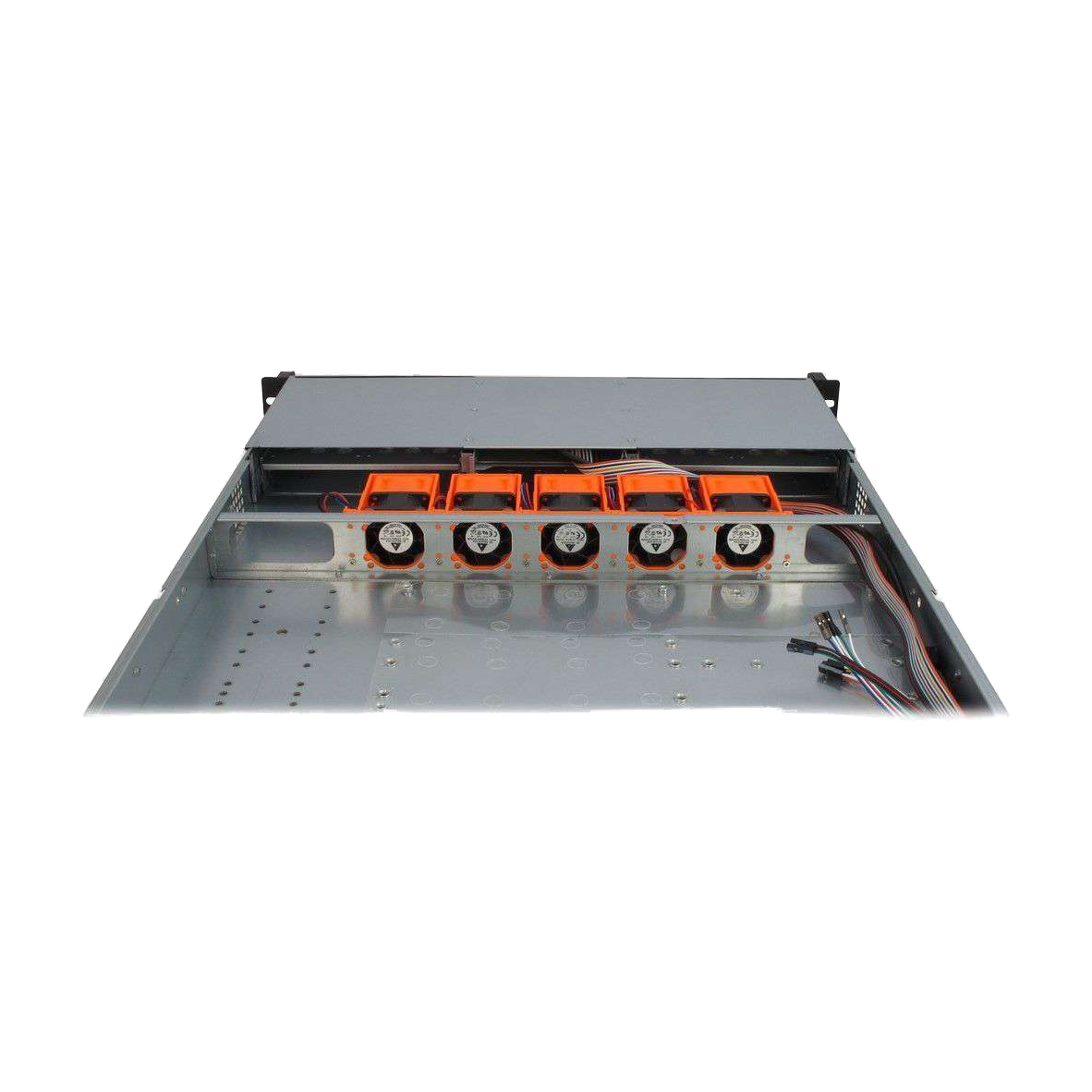

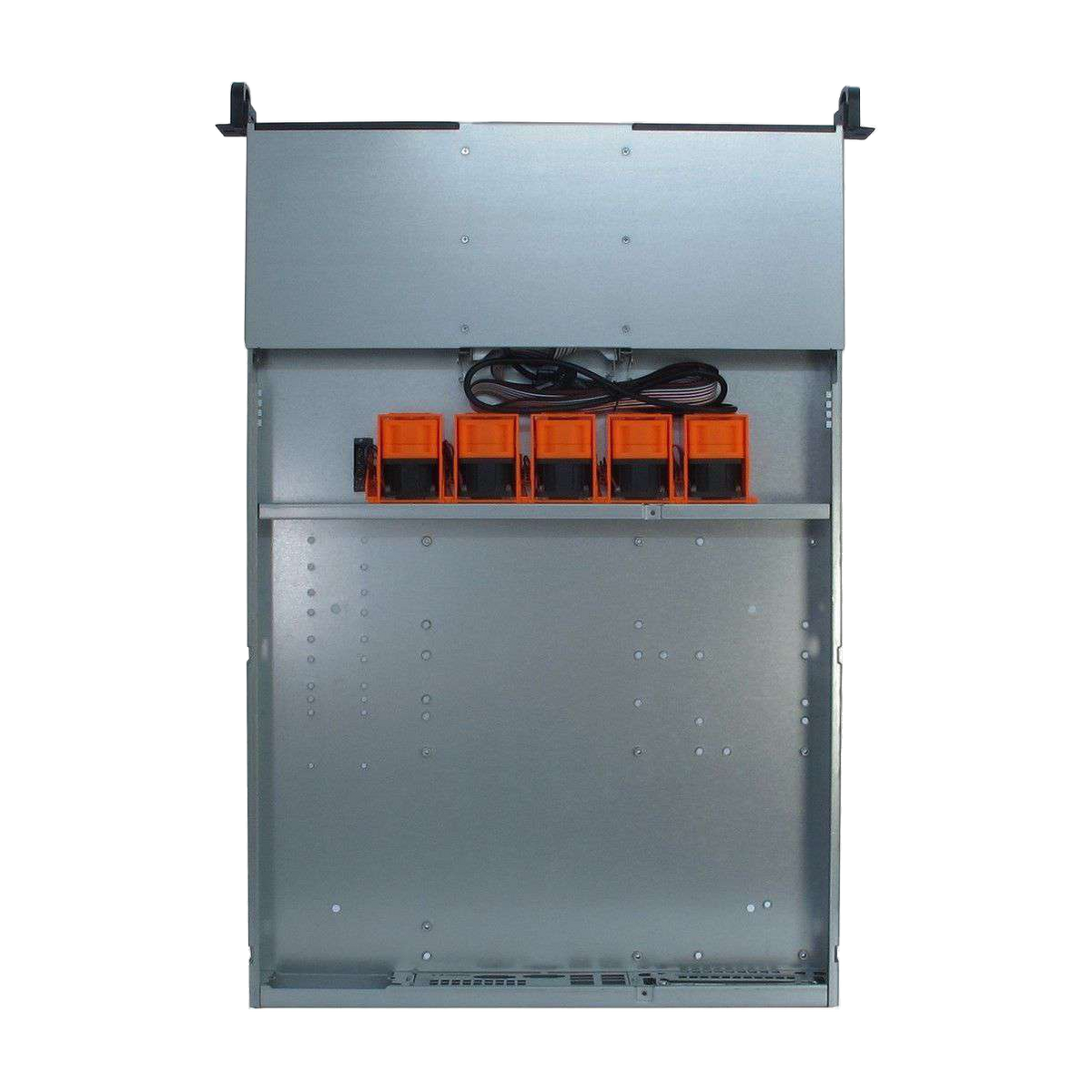

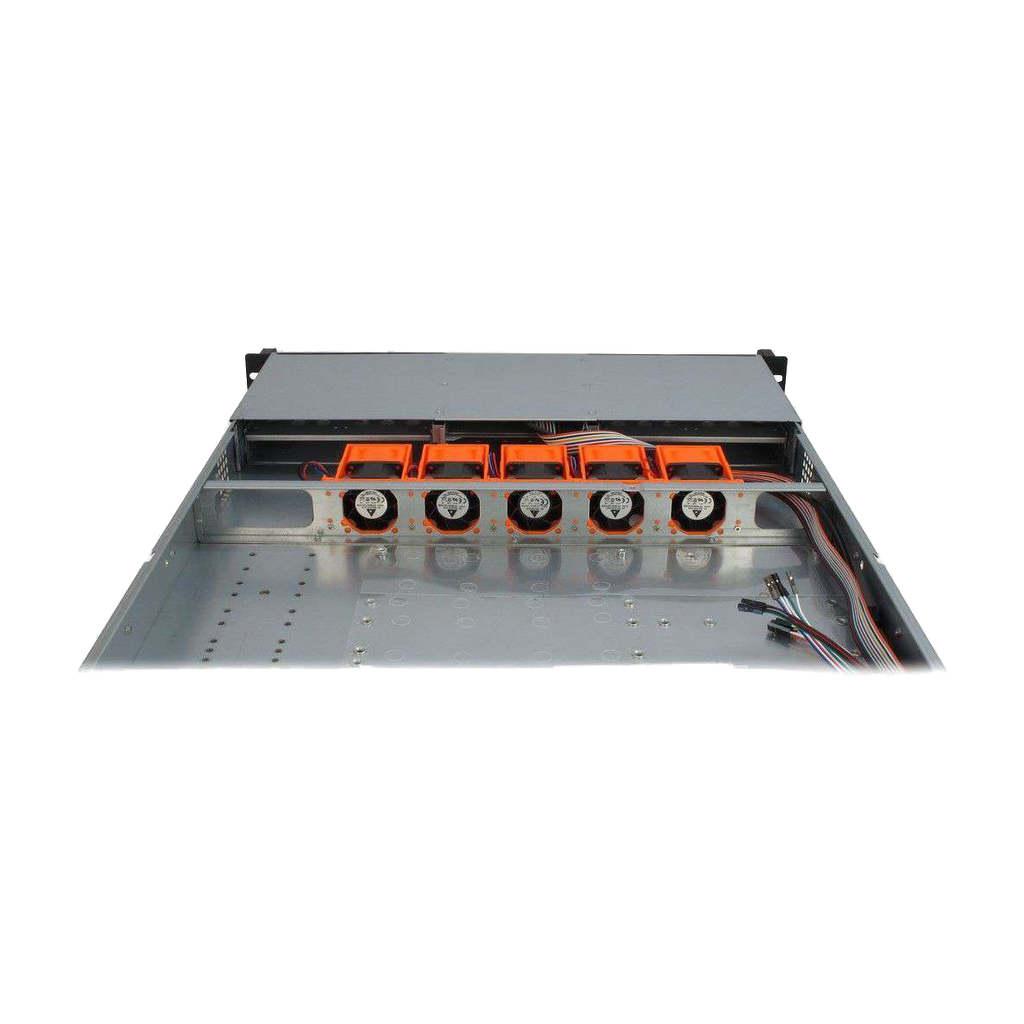

The 1U 10265 accommodates nine internal 2.5" hard drives and three internal 3.5" hard drives. Five standard 40mm fans ensure optimal cooling.

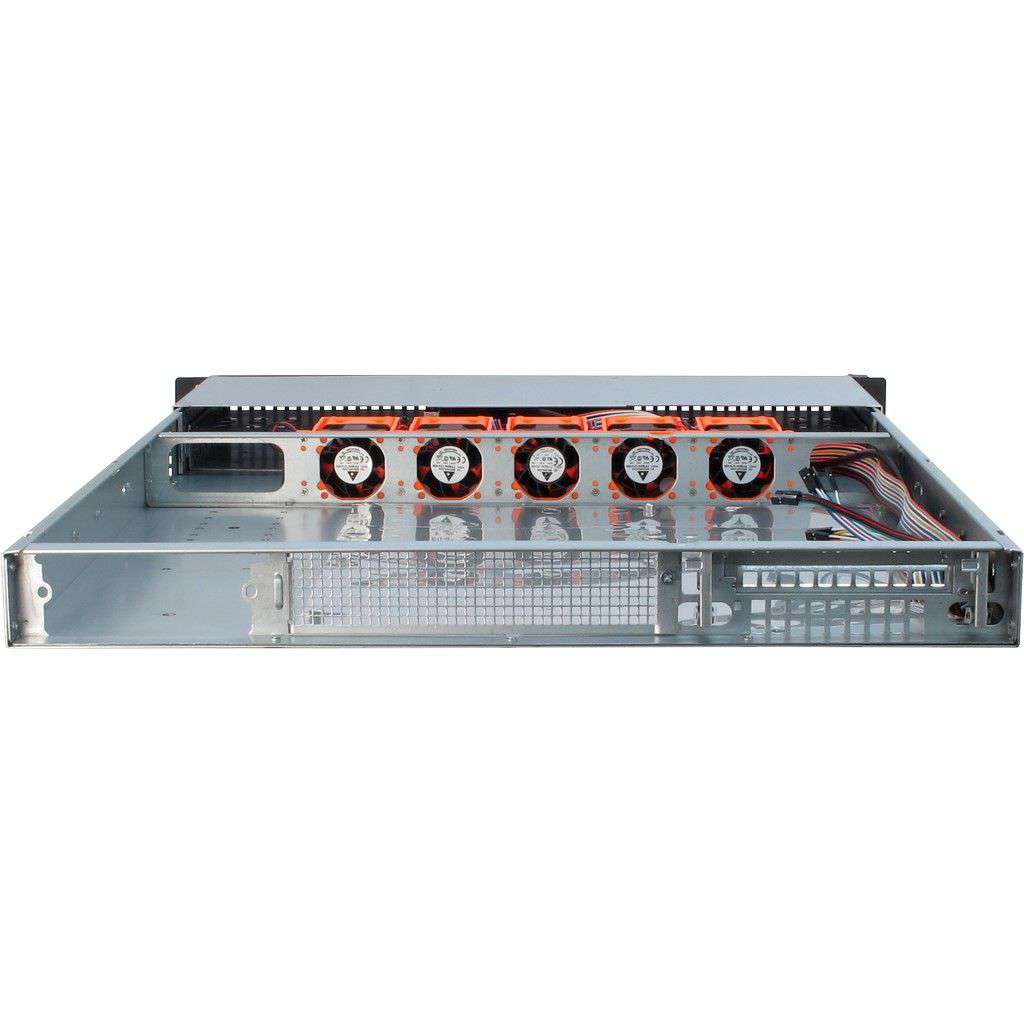

Additional features, such as easily accessible USB 2.0 connectors and the universal ATX I/O plate, complete the package.
- 5x 40mm fans included
- USB 2.0 as a block connector
- IPC I/O Shield 8 (universal cutout)
- 1x Riser slot, screwless mounting, convertible for left- or right-side mounting
| MOTHERBOARD | |
|---|---|
| Form factor | Mini ITX, mATX, μATX, ATX, eATX, SSI EEB |
| Max. motherboard size | 305mm x 340mm (12" x 13.3") |
| DRIVE BAYS | |
| 5.25" external | 2x¹ |
| 5.25" external (slim) | 1x¹ |
| 3.5" external | |
| 3.5" internal | 3x¹ |
| 2.5" internal | 9x¹ |
| FRONT CONNECTORS | |
| USB 3.0 | |
| USB 2.0 | 2x |
| POWER SUPPLY | |
| 1U Server PSU | |
| FlexATX PSU | |
| FAN MOUNTING OPTION | |
| Inside | 10x 40mm (5x included, Molex connector) |
| CONTROLS & LED | |
| Controls | Power Switch Reset Button |
| LED | Power HDD Activity 3x Network Activity Alert |
| OTHER DATA | |
| Dimensions (h/w/d) | 44.5 x 482 x 678mm |
| Material | 1.0-1.2mm Steel |
| Warranty | 24 months |

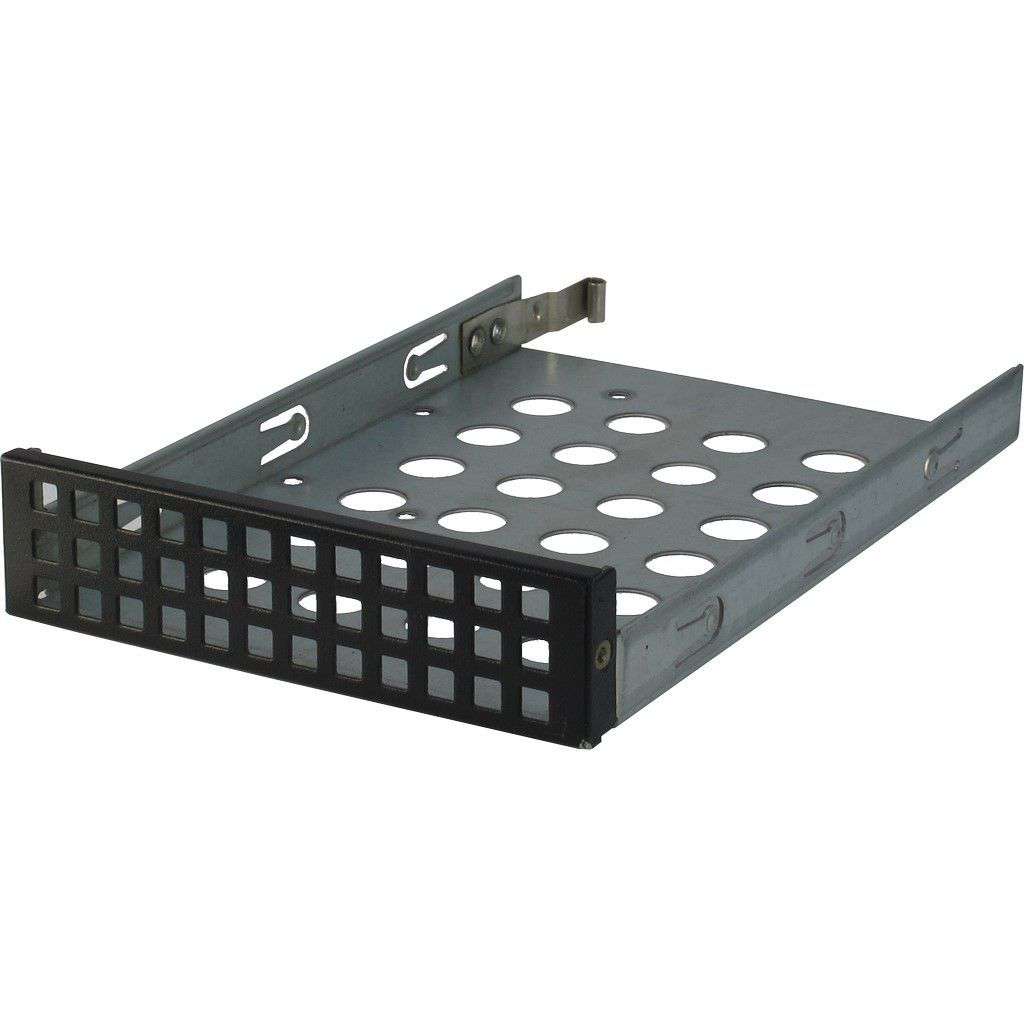

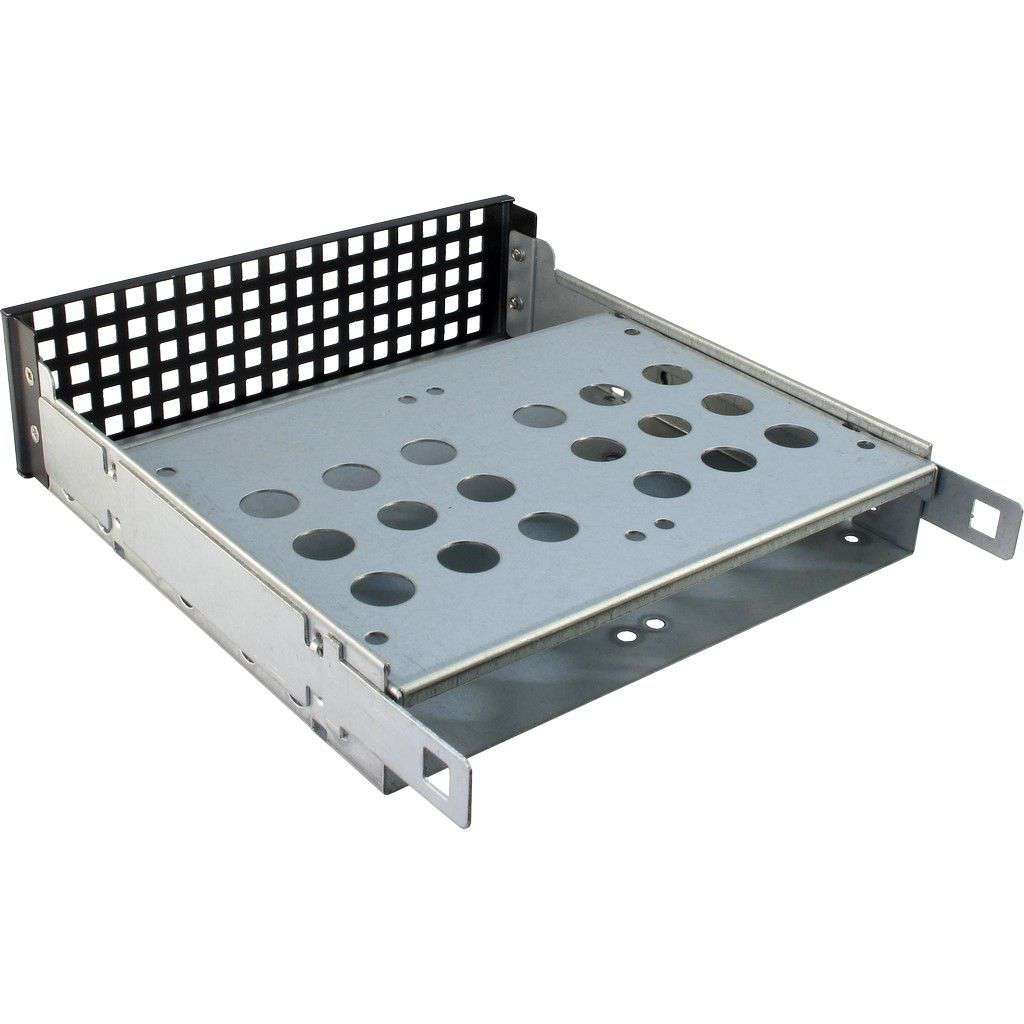

| Scope of delivery | Case Retail packaging Screw Set Mounting frame from 5.25" to Slim-DVD/3.5" |
