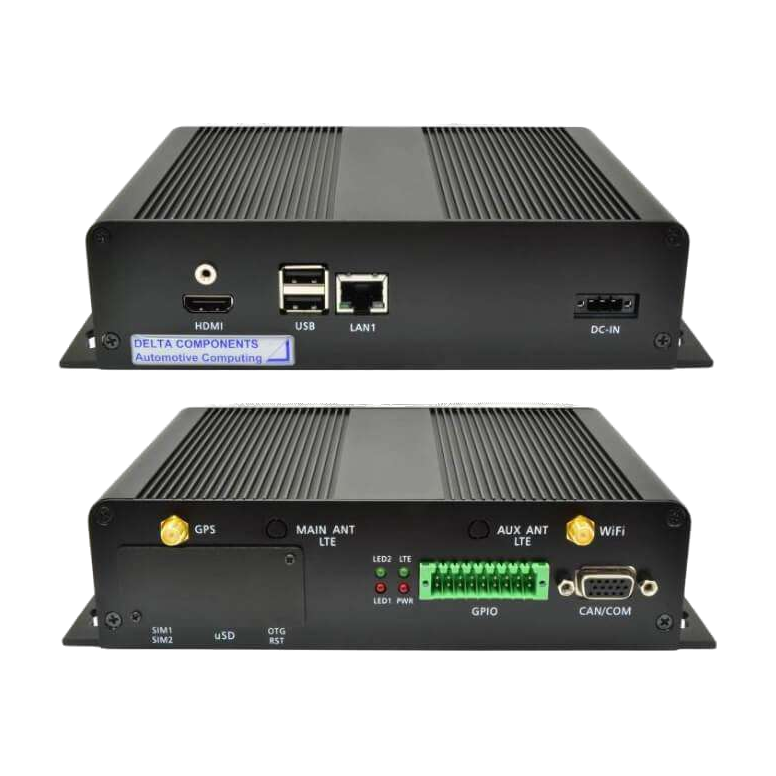

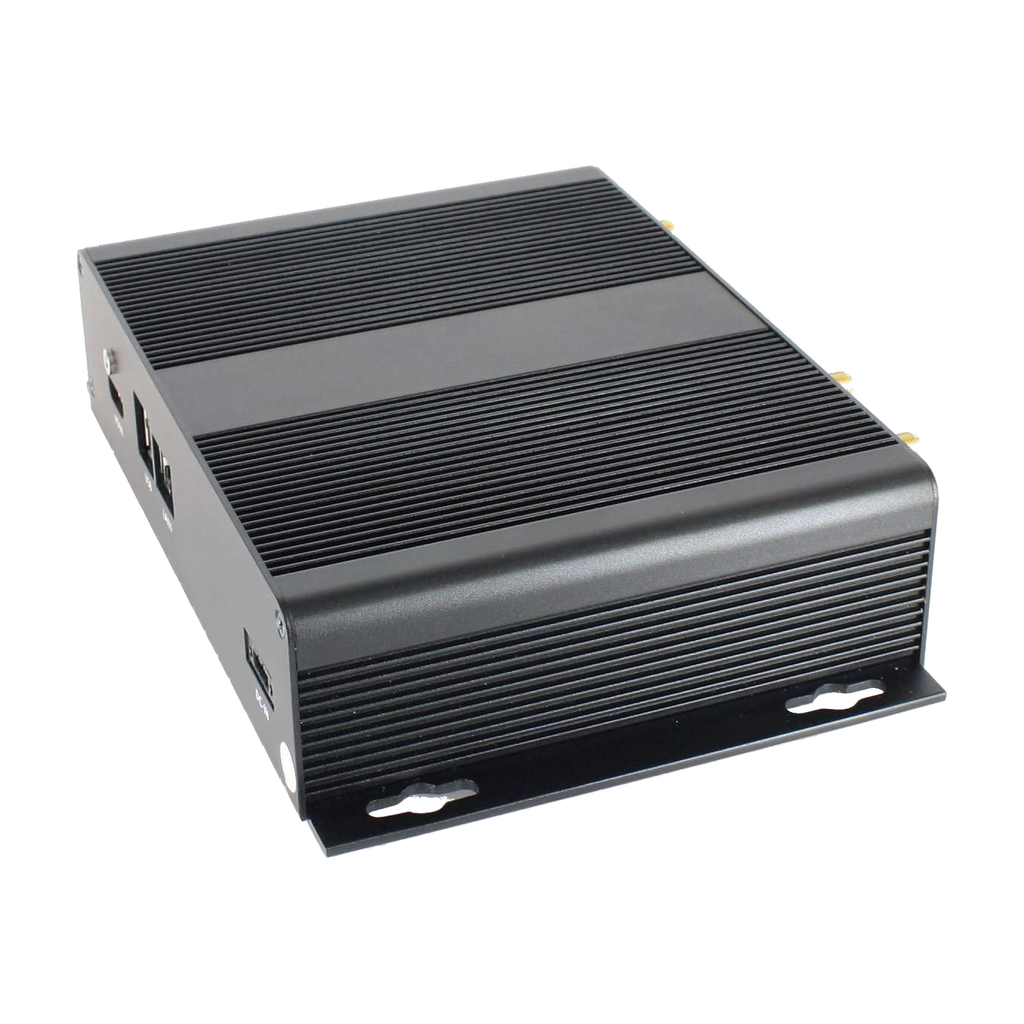

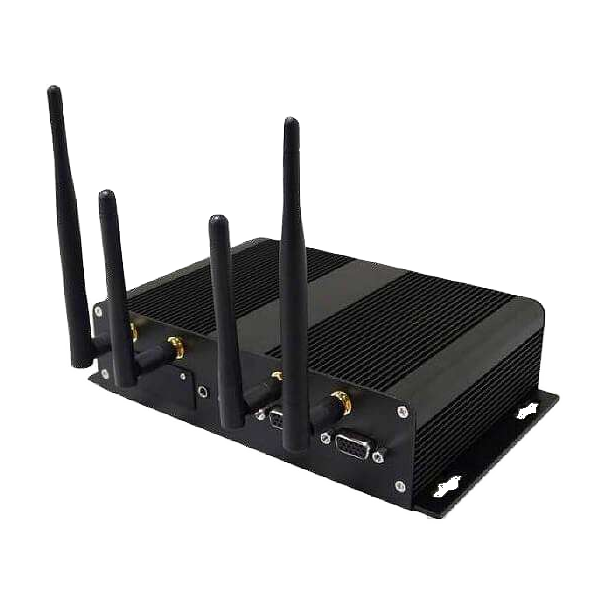

Mini-PC ARM-300 Automotive

The Automotive CarPC ARM 300 is a communication gateway designed for in-vehicle or IoT (Internet of Things) applications. It features a powerful iMX6 Cortex A9 1GHz Quad-Core, Android 6, 2GB RAM/4GB NAND, automatic start-up, a 9-36V automotive power supply and a wide range of communication interfaces: GPS / LTE / CAN / RS232 / WLAN / BT / LAN / HDMI.

• Fanless
• NXP iMX6 Quad-Core CPU
• Android 6.0+ (optional Linux 3.10 / Yocto 1.6)
• 3-axis G-Sensor for motion tracking
• Integrated Intelligent Automotive Power Supply
• CAN-BUS
• 2x RS232/485
• 2x USB Host(HS) ports + 1x OTH(HS)
• GPS/GLONASS (ublox)
• 1x Gigabit LAN (4x optional)
• HDMI
• 3G/4G/LTE(B1/3/7/8/20/38/40) module, 2x SIM slots
• WLAN 802.11b/g/n/ac + BT 4.0/BLE
• 9x DI (5-24V) / 3x DO





Specifications:

Dimensions	121mm W x 204mm D x 50mm H
CPU	NXP iMX6 Quad-core ARM Cortex™-A9 @ 1GHz
RAM	2GB RAM / 4GB NAND
OS	Android 6.0 (optional Linux 3.10 (Yocto 1.6))
GPS	ublox UBX-G7020 Chip GNSS engine: GPS / GLONASS
G-Sensor	3-axis motion tracking sensor
3G/4G modem	SIM7100E module Quad Band UMTS/HSPA: Speed: HSPA: 5.76Mbps (UL) / 14.4.6Mbps (DL) LTE (B1/3/7/8/20/38/40): Uplink up to 50Mbps, Downlink up to 100Mbps SIM card slot: dual / Antenna: external
I/O	1x CAN bus / 1x I2C bus 2x RS232 (or RS485) 3x photo-coupled digital outputs 9x photo-coupled digital inputs (5 – 24V)
Operating temperature	-20~70°C
USB port	2 x Host (HS) / 1x OTG (HS)
Wi-Fi / Bluetooth	Built-in (802.11 b/g/n/ac and Bluetooth 4.0/BLE)
Ethernet	1x (default) / 4x (optional) Gigabit Ethernet
Display interface	HDMI
Audio interface	Headphone output; MIC input
Power input	9-36V DC
Scope of supply	- FleetPC-ARM-300
	- Power adapter
	- GSM/LTE antenna
	- WLAN/BT antenna
