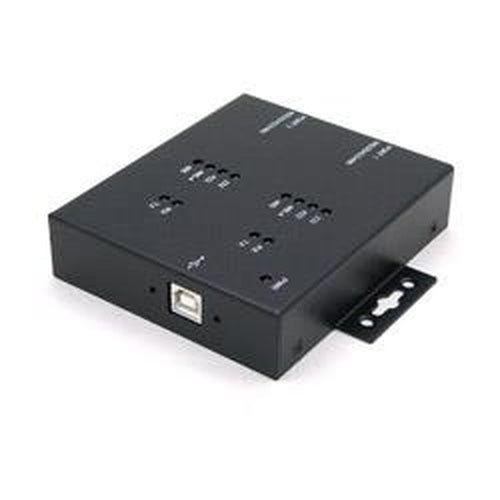

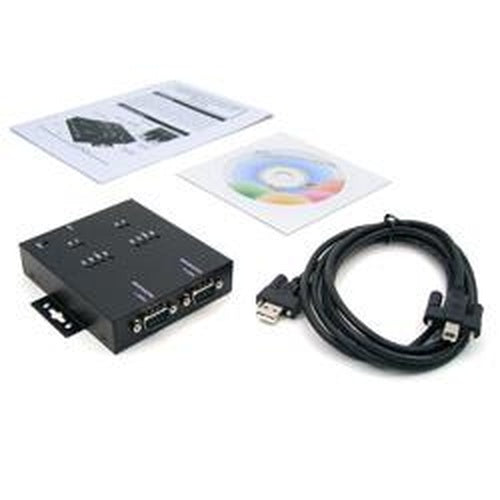

UTS-402CK-SI USB2.0 to 2* RS232/422/485 Converter
UTS-402CK-SI
Industrial 4-Port RS-232 to USB 2.0 High-Speed Converter with Locking Feature
The UTS-402CK-SI is a 2-port RS-232/422/485 combo-to-USB 2.0 serial adapter designed to provide PCs, thin clients or servers with instant COM port expansion via Universal Serial Bus (USB).

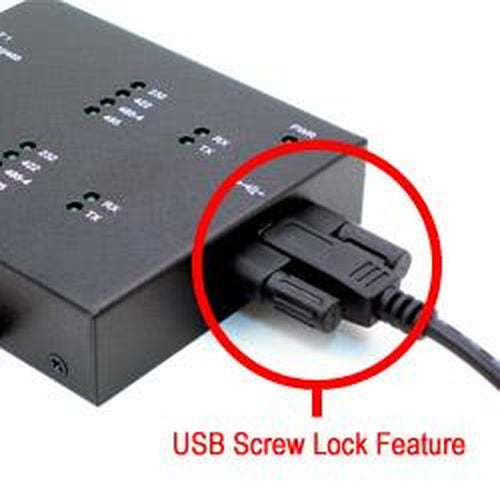

It supports a screw-locking feature on the upstream (USB type B) connector for use with screw-lock USB cables. This prevents the USB cable from being disconnected accidentally.
The UTS-402CK-SI provides the scalability needed to adapt quickly to new USB technologies. Multiple modules can be added to a single USB interface, allowing RS-232 connectivity to be added as needed.
With the USB Plug-and-Play feature, simply connect the device and follow the Install Wizard instructions. There is no need to configure card slots, I/O addresses, IRQ jumpers, DMA or other parameters when connecting the devices. The system recognises the device and installs the drivers automatically. The UTS-402CK-SI is an ideal solution for expanding applications.
- 2 RS-232/422/485 serial ports over a USB2.0 port
- Compatible with USB 2.0 High Speed (480Mbits/Second) and Full Speed (12Mbits/Second)

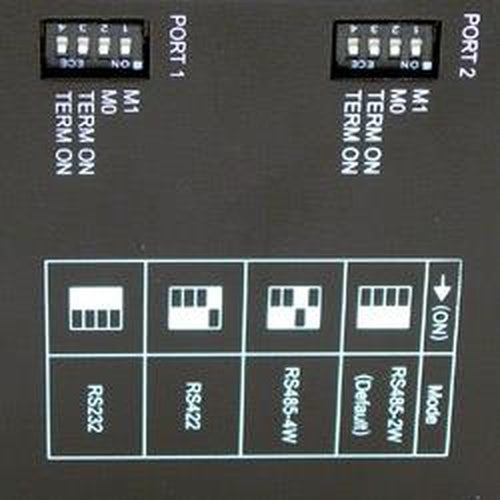

- 4 modes: RS-232, RS-422, 4-Wire and 2-Wire RS-485
- Provides 2 DSUB-9 connectors with TX/RX LEDs
- Supports 2,500Vrms isolation and 15KV ESD protection
- USB screw-lock mechanism enhances reliability
- Rigid metal enclosure for critical applications
- Baud rate up to 921.6Kbps
- Supports 7, 8 data bits
- Odd, Even, Mark, Space or None parity mode
- Supports 1 or 2 stop bits
- Supports USB bus power
- Supports optional DIN RAIL mounting kit
