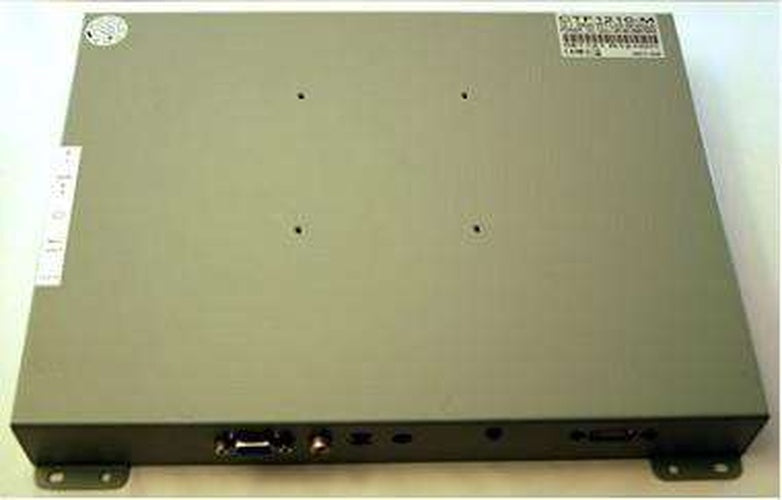

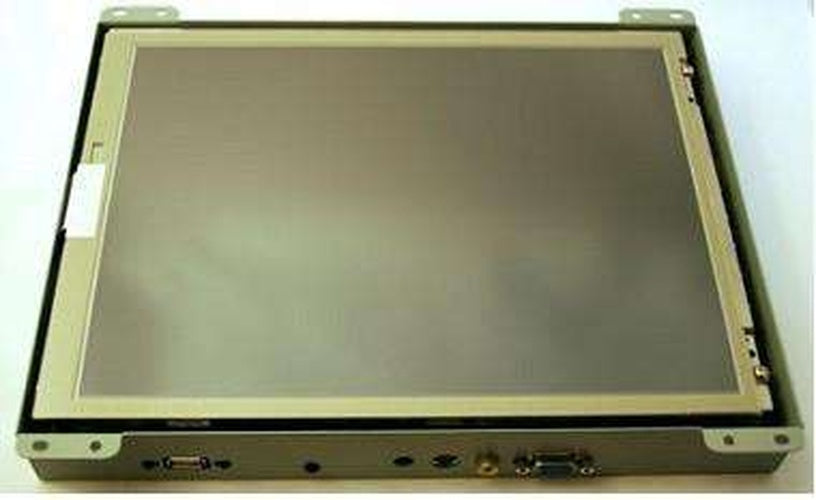

Monitor 12.1' CTF1210-M VGA
Price excludes VAT
529.00€
Sale price
Price excludes VAT
529.00€
Regular price
Total with VAT (23%): 650.67€
Shipping calculated at checkout.
Possible additional options (from 20 units):
- Speakers
- Different cable lengths
- Other monitor models / sizes
- RS232 touchscreen instead of USB
- Other connector types
- [...] Ask us!
Additional information:
The touchscreen functionality allows you to control your PC easily. The bright VGA display ensures maximum readability and exceptional sharpness.
An AC adapter for domestic use and a car cigarette-lighter adapter are included.
The CTF1210-M can be used with any PC / MAC equipped with VGA and USB ports.
Includes a CD with drivers, compatible with:
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..
Specifications:
| Screen size | 12.1" digital |
| Aspect ratio | 4:3 wide TFT screen |
| Dot resolution | 2400x600= 1,440,000 dots |
| Physical resolution | 800x600 |
| Supported resolutions | 640x480-1024x768 |
| Color configuration | RGB stripe |
| Brightness | 400 nits |
| Contrast | 500:1 |
| Operating temperature | -30°C to 85°C |
| Power input | DC 12V |
| Power consumption | max. 13W |
| Video system | 2x video inputs (PAL/NTSC) 1x VGA input |
| Dimensions | Display: 246.0 x 184.5 mm |
| Video input signal | 1.0Vp-p, composite video |
| Features | Full-function OSD control (English) |
| Automatic Power On/Off | |
| VESA 75 | |

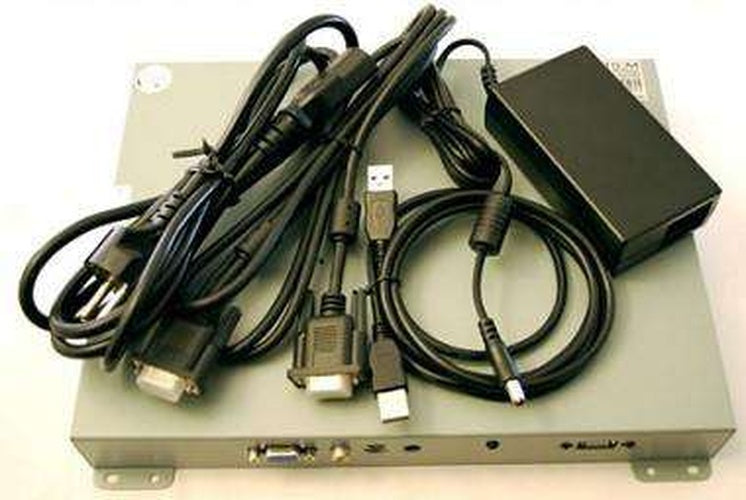

| Included items: | - 12.1" VGA Open-Frame TFT touchscreen with video support |
| - Power adapter for the EU 230V | |
| - VGA and USB connection cable | |
| - Touchscreen driver CD | |
| - Manual |
