Monitor 8.4' CTF840-MSH VGA
Price excludes VAT
530.00€
Sale price
Price excludes VAT
530.00€
Regular price
Total with VAT (23%): 651.90€
Shipping calculated at checkout.

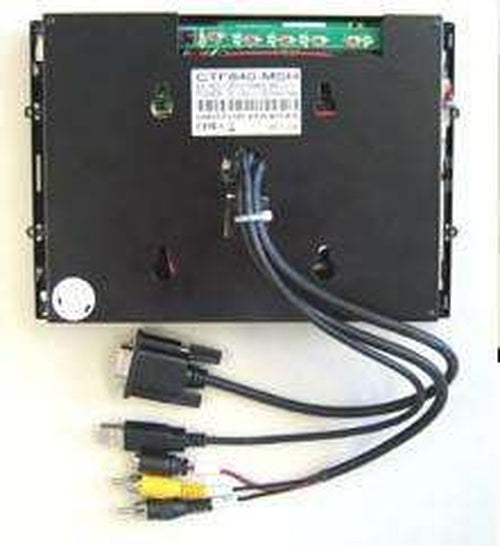

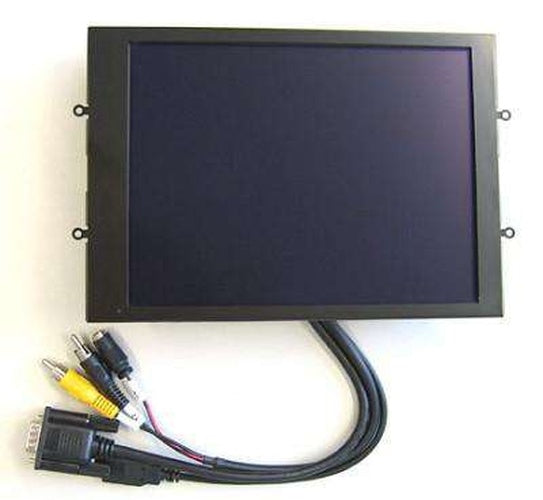

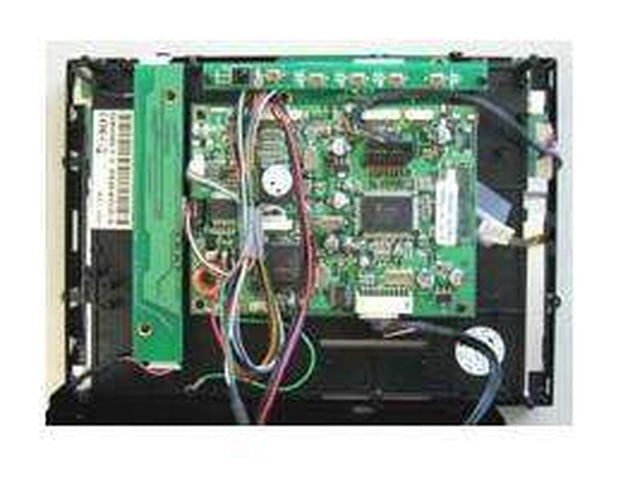

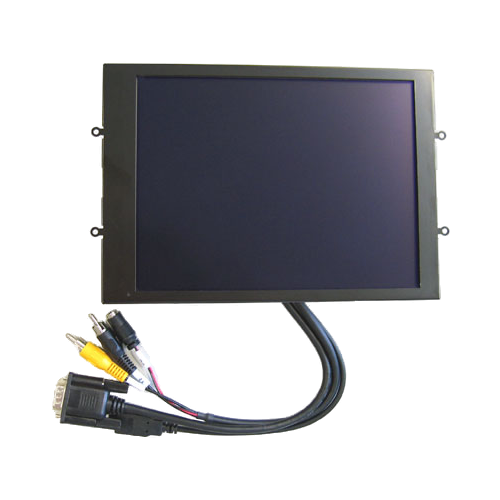

8.4" 4:3 CTF840-MSH TFT monitor Open-Frame with TRANSFLECTIVE PRO technology, designed with a robust metal frame for stable installation. The individual modules (mainboard, touchscreen controller, power inverter and button frame) can be mounted away from the rear, allowing them to be positioned elsewhere. This makes it easier to install the connection cables and reduces the display thickness.
Additional information:
The touchscreen functionality allows you to control your PC easily. The bright VGA display ensures maximum readability and exceptional clarity.
An AC adapter for domestic use and a car cigarette-lighter adapter are included.
The CTF800-WMSL can be used with any PC / MAC equipped with VGA and a USB port.
The touchscreen functionality allows you to control your PC easily. The bright VGA display ensures maximum readability and exceptional clarity.
An AC adapter for domestic use and a car cigarette-lighter adapter are included.
The CTF800-WMSL can be used with any PC / MAC equipped with VGA and a USB port.
Includes driver CD, compatible with:
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..
Specifications:
| Screen size | 8.4" digital |
| Aspect ratio | 4:3 wide TFT screen |
| Dot resolution | 2400x600= 1,440,000 dots |
| Physical resolution | 800x600 |
| Supported resolutions | 640x480-1600x1024 |
| Colour configuration | RGB stripe |
| Brightness | 450 nits |
| Contrast | 600:1 |
| Operating temperature | -30°C to 85°C |
| Power input | DC 9-30V |
| Power consumption | Max. 10W |
| Video system | 2x video inputs (PAL/NTSC) 1x VGA input |
| Dimensions | 205 x 145 x 35 mm Display: 170 x 130 mm |
| Video input signal | 1.0Vp-p, composite video |
| Features | Full-function OSD control (English) Auto Power On/Off |
| Package contents | - 8.4" VGA Open-Frame TFT touchscreen with video support |
| - Power adapter for EU 230V | |
| - Cigarette-lighter adapter | |
| - Touchscreen driver CD | |
| - Manual |
