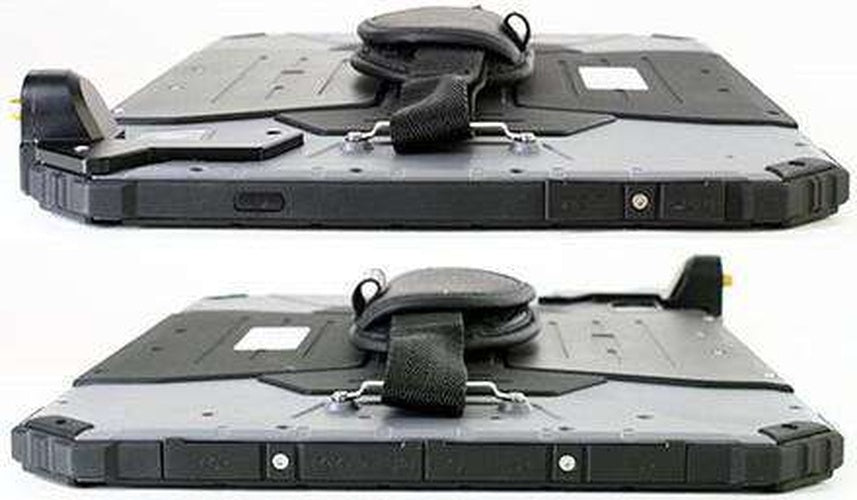

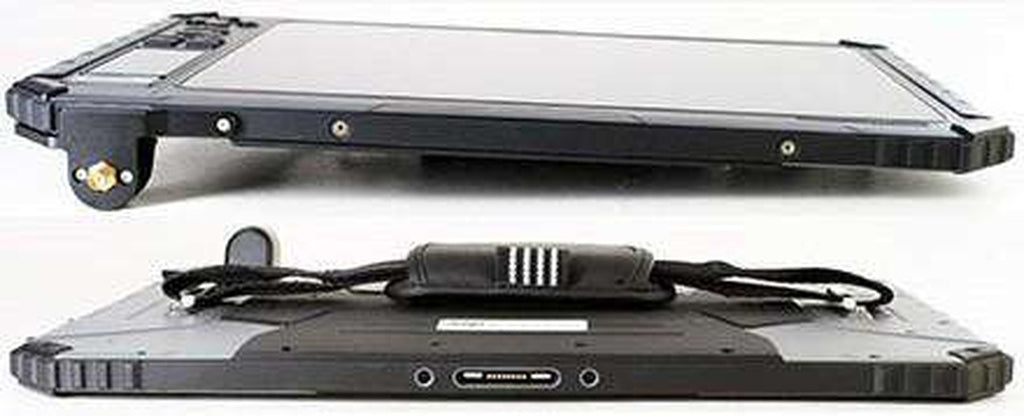

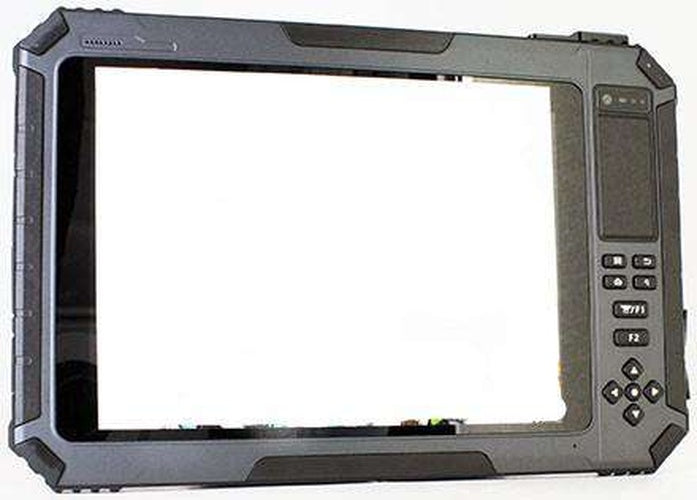

Tablet 10.1' CTFPND-10C-8GB128GB (IP67, DecaCore, Android 10)
CTFPND-10C-4GB128GB
10.1' IP67 DecaCore tablet
● CPU Deca-Core (10x) de 1,4 a 2,4 GHz de 64 bits, 4 GB de RAM, 128 GB de ROM!
● High-performance Tablet PC with a rugged design and IP67 protection
● 1M drop-resistant
● Dual camera (13MP / 5MP)
● Speakers for high-quality audio playback
● 10,1" 1200nit capacitive touchscreen, readable in direct sunlight
● 1080p HD video playback
● High-capacity battery for all-day use
● Support for Android 8.1
● GPS / WLAN / BT / 3G / 4G!
Introducing the new IP67 water-resistant tablet PC with a 10,1” capacitive Multi Touch display. The CTFPND-10C-4GB64GB features a robust, modern industrial design and high performance, making it ideal for outdoor applications. For an enhanced audio and video experience, the CTFPND-10C-4GB128GB supports high-definition (HD) content playback.
For projects that can be developed under an NDA, the Androis-OS system build kit can be supplied, allowing you to create your own Android operating system image (for example: a custom startup logo, pre-installed applications and settings, etc ...)!
| Dimensions | 320 x 228 x 12 mm |
| Weight from | 760 g |
| Protection level | 1M drop-resistant & rugged design with IP67 rating |
| CPU | MediaTek Helio X20 (MT6797) [2x ARM-A72@2.4GHz, 2x ARM-A53@2GHz, 2x ARM-A53@1.4GHz] |
| GPU | Mali-T720 |
| OS | Android 8.1 (older version available on request) |
| Memory | 4 GB |
| Storage | 128 GB ROM EMCP |
| Memory slot | MicroSD (max. 64GB) |
| GPS chipset | Built-in |
| Colour display | 10.1" TFT LCD with multi-capacitive touchscreen |
| Panel resolution & brightness | 1200 x 1920 Pixels IPS/AFFS 1200nits, sunlight readable |
| Battery type | Rechargeable lithium type |
| Battery capacity | 14600mAh |
| Speaker | Yes |
| Sensors | Axis accelerometer, orientation, gravity, linear acceleration, rotation vector, magnetic field, gyroscope, ambient light sensor |
| Cameras | 13.0 Megapixels (rear) [AF/Flash] 5.0 Megapixels (front) |
| Wireless interface | WLAN 802.11a/b/g/n (2.4Ghz/5Ghz) Bluetooth 4.0 LE (A2DP+EDR) GSM/EDGE/GPRS/WAP (B2/B3/B5/B8) WCDMA [HSDPA+/HSUPA+] (B1/B2/B5/B8) TDSCDMA (B34/B39) TD-LTE (B38/B39/B40/B41) FDD LTE (B1/B3/B7) |
| I/O ports | USB Type-C 24pin (OTG support) 2x USB Host DC port RS232 port 3.5mm headphone output with Mic-in Built-in microphone MicroSD reader Buttons (Menu, Back, Home, Search, Scan, Defined, Direction, Confirm, On/Off) SIM card slot SMA antenna port (passive, female) |
| Environment | Shock resistance: 1-19Hz/1.0mm; 19-200Hz/1.0g Drop resistance: MIL-STD-810G/Method516.6/Procedure IV Dust/water protection: Class 6/7 Reliability: MTBF>50000h;MTTR<0.5h Operating ambient temperature: -20° to 60°C Non-operating temperature: -40° to 80°C Relative humidity: 5% to 95%, non-condensing Maximum operating altitude: 15,000 feet (4500 m) |
| Optional modules available (on request) | - UHF RFID (902-928Mhz or 865-868Mhz) - HF RFID/NFC (13.56M) - LF RFID (125k or 134K with animal tag support) - Barcode scanner (M3296/M3096/E203) - Fingerprint module (G2010) - GNSS GPS module with external antenna (RTK, 0.025m accuracy) - RTD module with external antenna (GPS, Galileo, QZSS) |
| Scope of supply | - CTFPND-10C-4GB64GB Android PND (grey colour. Green/orange available for orders of 100++ units) - Quick start manual - USB cable - AC USB power adapter |
