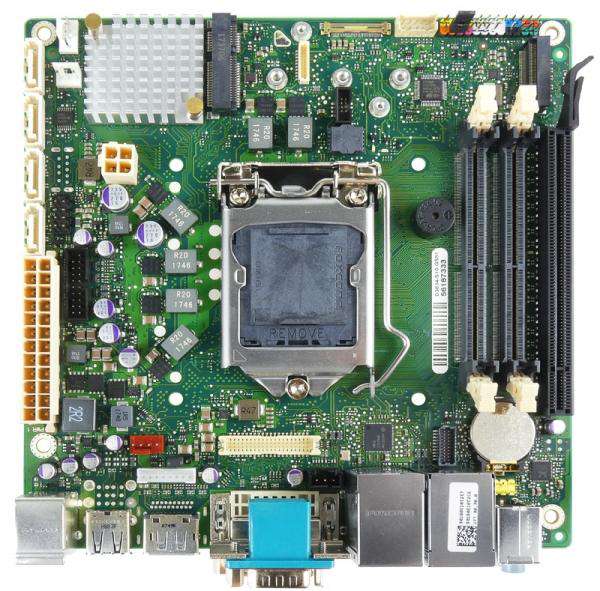

Coffee Lake Chipset H310; 8th Generation Intel® Cereron / Pentium; Intel® Core / i3 / i5 / i7
- Intel® H310 Express Chipset
- Intel® Core™ i7 / i5 / i3 – (8th gen.) processor series
- Intel® Pentium® / Intel® Celeron® processor series
- Socket LGA1151 – up to 95W TDP
- DDR4-2666, Dual Channel
- 2 SO DIMM sockets, up to 32GB memory
- PCI Express x16 (Gen.2)
- 2x Intel® GbE LAN (incl. Teaming)
- Intel® UHD Graphics (DX12)
- 1x DVI-D, 1x DP V1.2, eDP V1.4 and Dual Channel LVDS
- Intel® High Definition 5.1 Audio; integrated Intel TPM V2.0
- 8 Bit GPIO; 2 x COM ports (incl. RS-422/RS-485 support)
- 5x USB 2.0, 4x USB 3.1 Gen1
- 2x - 4x (tbd) SATA 6G/s & M.2 (PCIe-based SSD modules 2242, 2260, or 2280)
- Mini-PCIe socket (halfsize/fullsize support)
- Dual power supply (ATX compliant or single 12V DC)
- BIOS-POST/-Boot & OS – onboard HW watchdog
Power Supply+Mainboard+Accessories
Customized complete solutions from a single source!
Combined with our expertise in the power supply sector, we offer a compelling overall concept for developing reliable IPC and embedded systems: our in-depth analysis and design-in advice, extensive Power+Board testing, four mainboard manufacturers, numerous form factors, industrial-grade accessories, and professional service & support help you achieve sustainable, cost-effective system development. Once the mainboard and accessories for your specific application have been defined, we identify the appropriate power supply in terms of performance, design, safety standards, lifetime, energy efficiency, and features. Standard power supply or a new customized development? We will find the best solution for your system!
