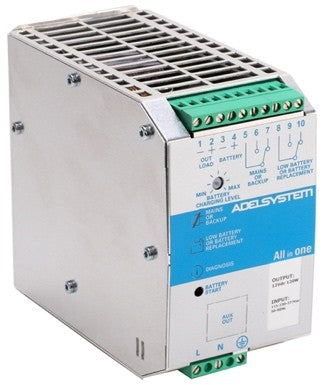

DC-UPS CBI243A All In One (Input 115-230VAC Output 24V 3A)
Price excludes VAT
151.08€
Sale price
Price excludes VAT
151.08€
Regular price
Total with VAT (23%): 185.83€
Shipping calculated at checkout.
CBI243A
DC-UPS all-in-one, input 115-230Vac, output 24V 3A
- Input: Single-phase 115 – 277 Vac
- Output load: 24 Vdc power supply; 3 A
- Battery output: charging at 24 Vdc; 3 A
- Suitable for the following battery types: Open Lead Acid, Sealed Lead Acid, Lead Gel, Li-Ion and Ni-Cd
- Automatic battery status diagnostics. IUoU charging curve, constant voltage and constant-current Battery Life Test function (Battery Care)
- Switching technology, output voltage 22-28.8Vdc
- Three charging levels: Boost, Float and Recovery
- Protected against short circuits and reverse polarity
- Potential-free signal output for a discharged or damaged battery
- Signal output (contact-free) for mains or Back-UP
- Protection degree IP20 - DIN rail; Space-saving design
Main features
- Output current 2,5 A ÷ 20 A, even in the event of a power outage (shortage)
- Automatic allocation of available power between the load and battery charging, up to twice the rated output current
- Power output: 120W, 240W, 280W, 500W, 600W
- Visual indication of "power shortage", "defective battery", "battery voltage< 30%" and "battery charging level"; self-diagnostics with flashing LED code
- Warning relays for "mains or back-up" and "defective/flat battery", with galvanically isolated NO-NC output contacts
- 3 charging levels: "boost", "trickle" and "recovery"
- Self-diagnostics for "overload", "battery sulfation", "reverse-polarity connection", "short-circuited elements" and "short-circuit protection"
- Compatible with a remote connection for selecting "boost" or "trickle" charging mode
- Accessories available upon request: external temperature sensors; voltage-drop compensation; remote LED display
- Compact dimensions
- Ambient operating temperature: -25 ÷ 70°C
- IP 20
START BATTERY button feature
- AC MAINS FAILURE
- The DC-UPS continues to supply backup power through the BATTERY
- AC power failure lasting longer than expected.
- Replace the battery with a new one
- Press the START BATTERY button for 3 seconds
- Production continuity is guaranteed
Functional Diagram
