Monitor 15.6' FT156TMCAPOFHBOB Open Frame Capacitive Touch
Price excludes VAT
638.00€
Sale price
Price excludes VAT
638.00€
Regular price
Total with VAT (23%): 784.74€
Shipping calculated at checkout.
FT156HDKTMBHBCAPOB

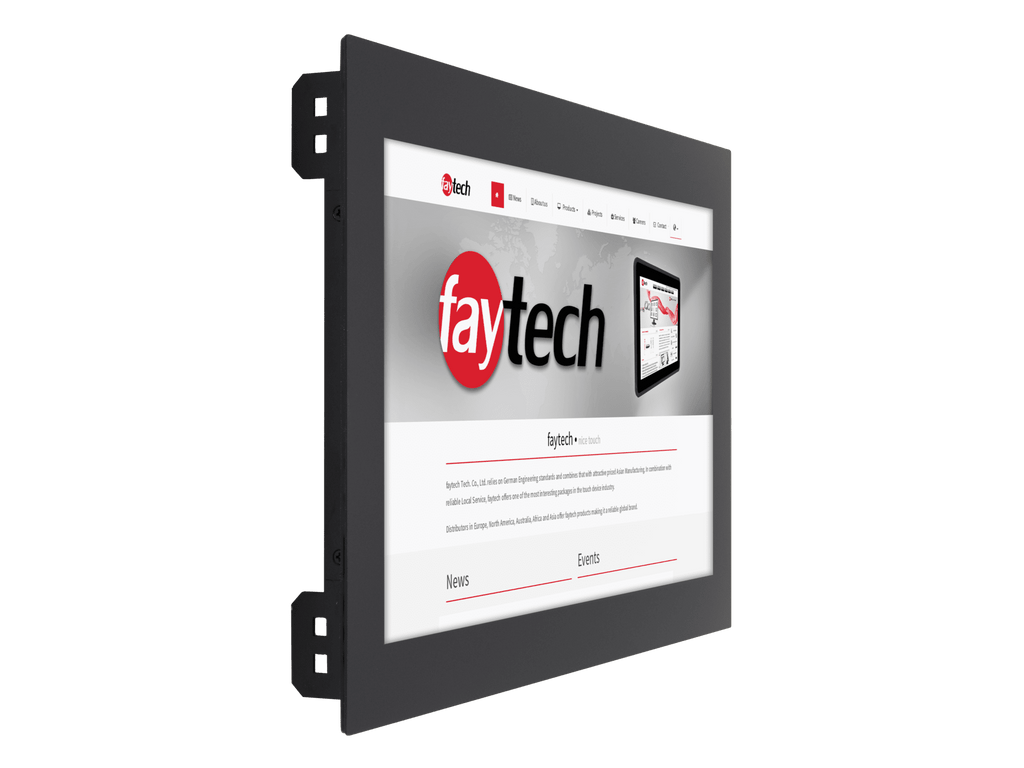

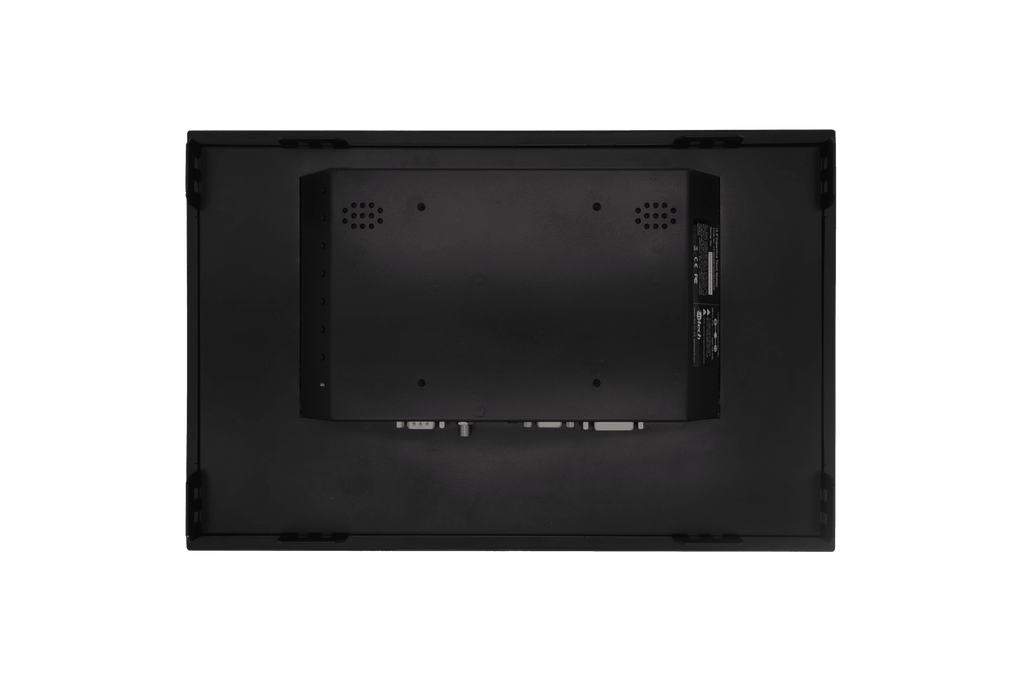

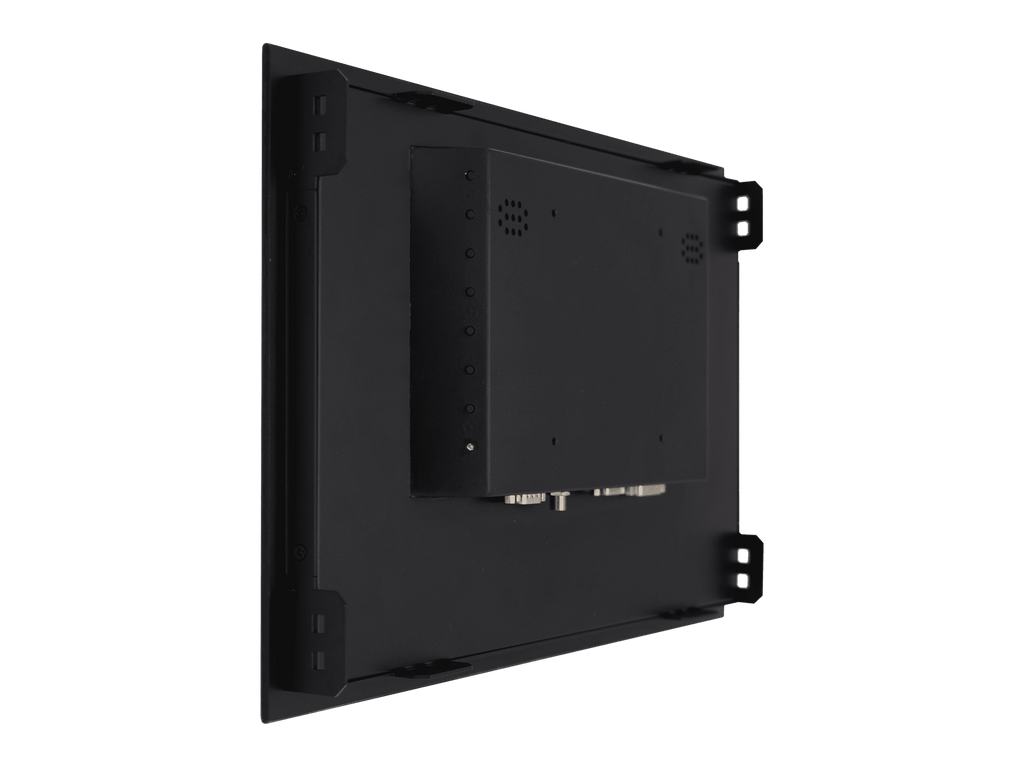

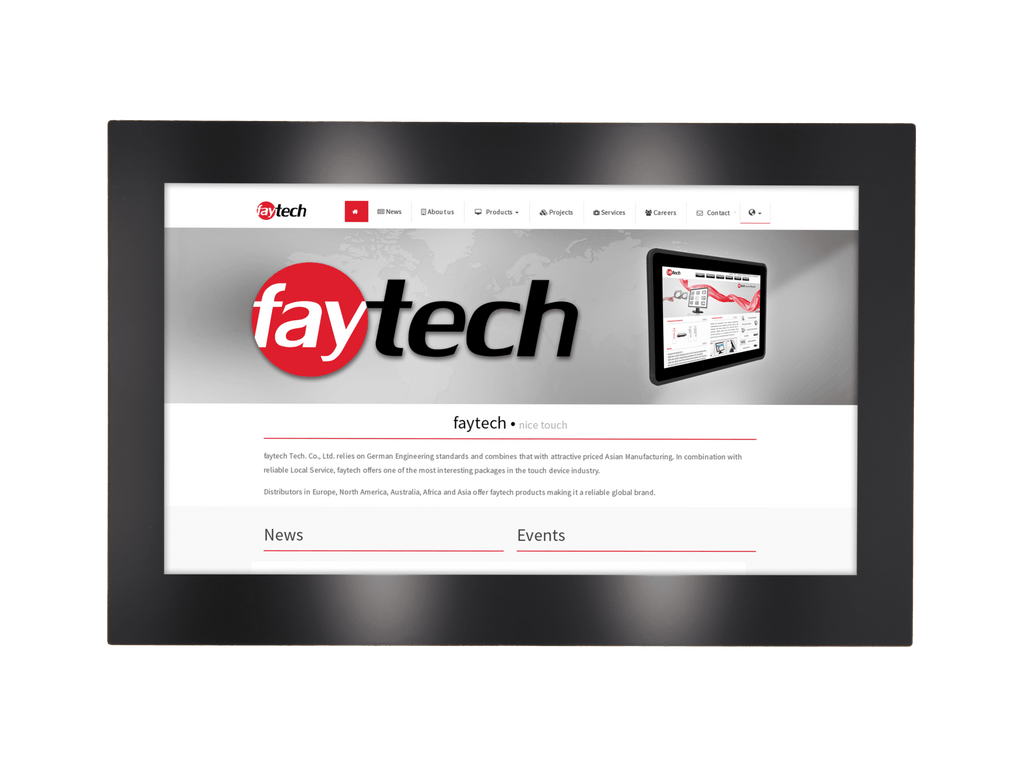

15.6' Open Frame capacitive touch monitor with optical bonding
- Covered with 1,1 mm glass featuring a surface hardness of 7H.
- Touch panel optically bonded to the LCD.
- Anti-reflective treatment (chemical etching).
- Capacitive multi-touch with 10 touch points.
- Monitor with A+ quality LED backlighting and a 100k-hour service life.
- 1000+ cd/m² brightness for excellent visibility.
- Integrated audio (2x2w).
- 2-year warranty.
IP Rating
Protection
IP65 Front/ IP40 Back
LCD Panel
Display Size
15,6"
Display Format
16:9
Physical Resolution
1920x1080
Brightness
1000 cd/m²
Optical bonding
Optical Bonding
Coverglass
Operation / Mechanical
Housing
Open Frame
Backlight type
Edge backlight
Touch panel
Touch technology
Capacitive
Cover glass surface
Power
Power supply
12V
External connections
HDMI
1
VGA
1
DP
0
USB 2.0
0
USB 3.0
0
| Product name | 15.6'' Open Frame capacitive touch monitor |
| Model number / EAN number | FT156HDKTMBHBCAPOB / 6920734016112 |
| IP65 front / IP40 rear |
| Screen diagonal (inch/cm) | 15.6/39.6 |
| Active display area size (cm) | 34.42×19.36 |
| Aspect ratio | 16:9 |
| Physical resolution | 1920×1080 |
| Maximum supported resolution | 1920×1200 |
| Displayed colours | 262K |
| Brightness (cd/m²) | 1000 |
| Contrast | 800:1 |
| Typical response time Tr/ Tf (ms) | 15/15 |
| Horizontal/vertical viewing angle (°) | 170/170 |
| Backlight / Backlight lifetime (hours) | LED / 30,000 |
| Touch technology | Projected Capacitive 10-point Multitouch |
| Touch panel drivers | Windows; Linux; Mac; Android |
| Touch life (contacts) | Unlimited |
| Surface hardness | 7H |
| Surface treatment | Anti-glare (chemically etched) |
| Operating temperature (°C) | -10 ~ +60 |
| Humidity range (RH) | 10% - 90% |
| Net weight (kg) | 2.05 |
| Gross weight (kg) | 4.05 (incl. carton packaging) |
| Housing material (open frame) | Aluminum |
| Housing (mm) L × W × H | 400.0 × 260.0 × 40.1 |
| Required cut-out (mm) L × H | 384.0 × 244.0 |
| Number of clamps required | 8 |
| (optional) Required tape length (mm) | 1276.0 (2× 394.0 + 2× 244.0) |
| (optional) Required amount of glue (ml) | 6.38 |
| Mounting | VESA 100 |
| Power supply | 100-240V ACDC active switching; 12V DC-Out |
| Operating voltage (V) | 12 |
| Power consumption (W) | 17 |
| Stand-By Consumption (W) | <1 |

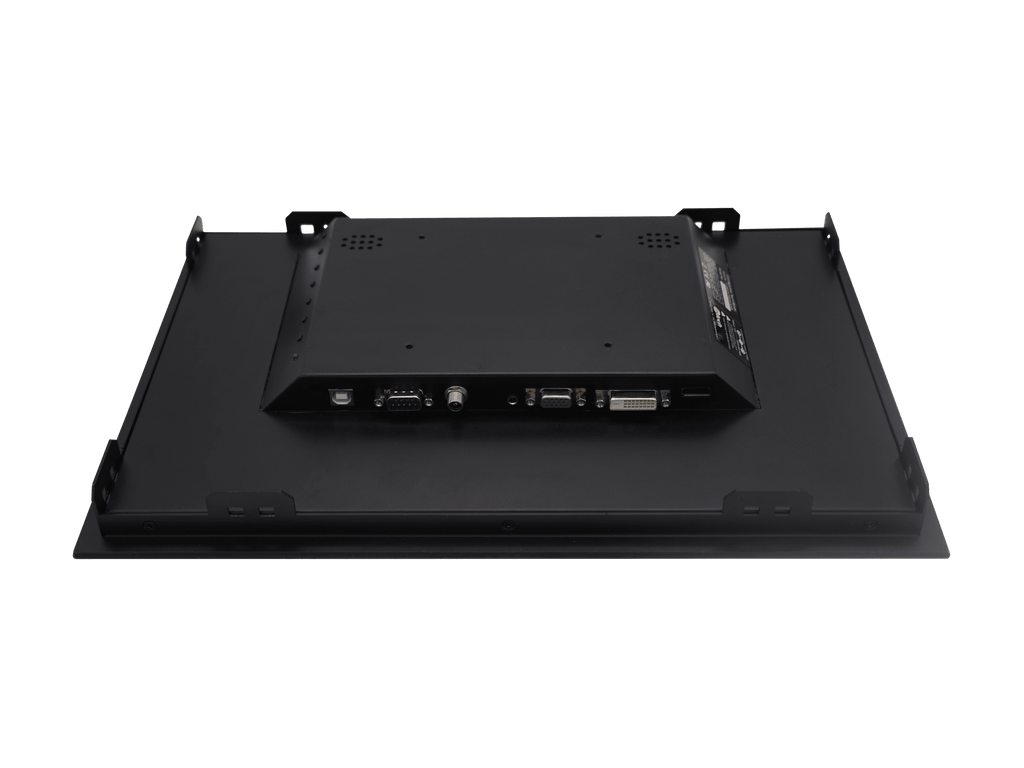

| Video | 1x HDMI 1.3 (incl. HDCP) |
| 1x DVI-D | |
| 1x VGA | |
| Audio | 1x PC-Audio |
| Touch connector | 1x USB |
| Connectors | 1x Serial |
| 1x 12V DC power input |
| Power supply (see Power section) |
| Quick installation manual |
| HDMI cable |
| USB cable |
