Monitor 15 'FT15TMBCAPOB Capacitive Touch OB
Price excludes VAT
475.00€
Sale price
Price excludes VAT
475.00€
Regular price
Total with VAT (23%): 584.25€
Shipping calculated at checkout.
FT15TMBCAPOB

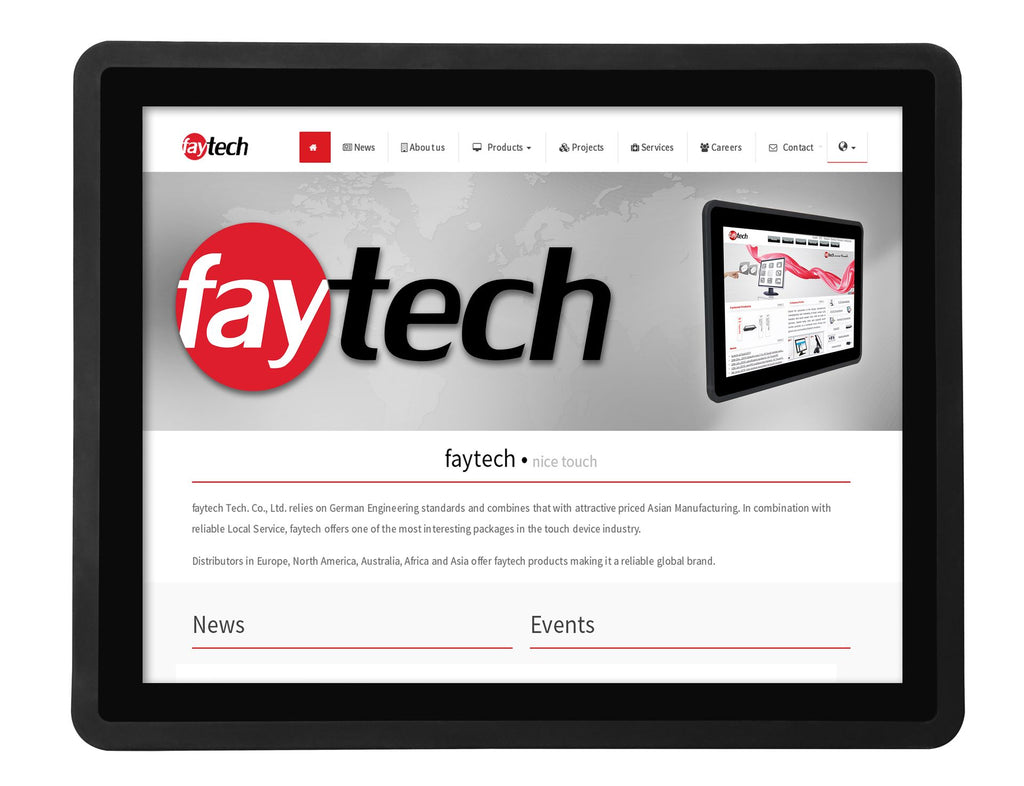

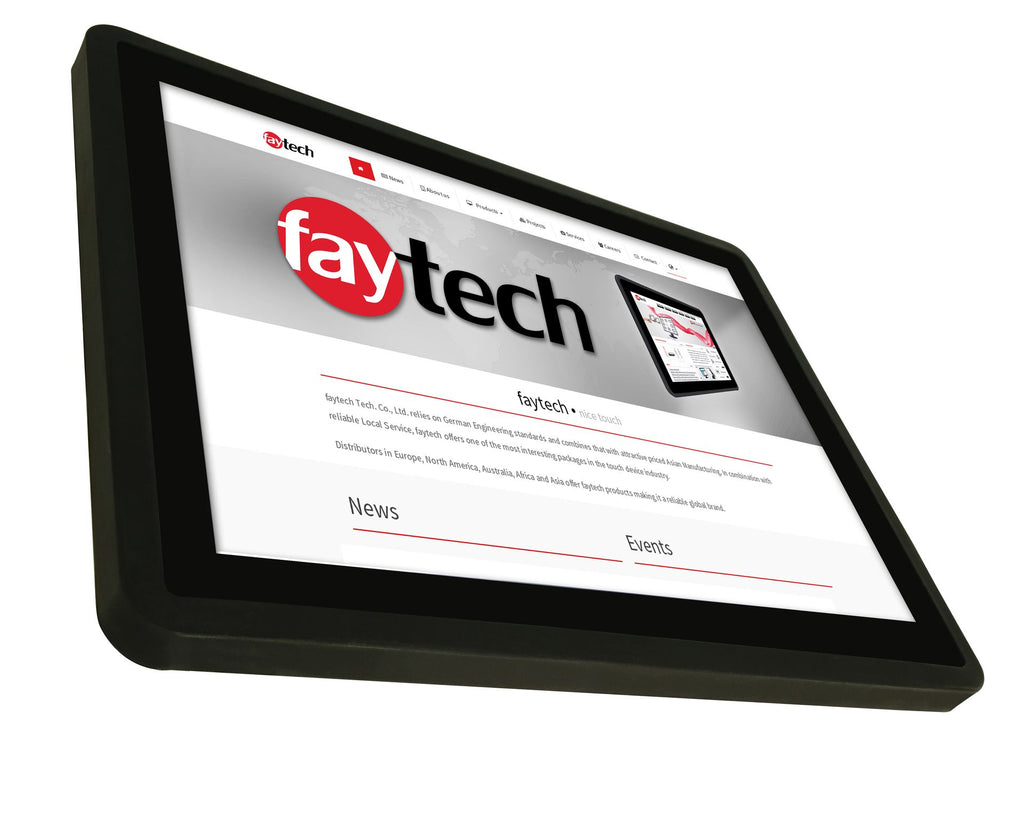

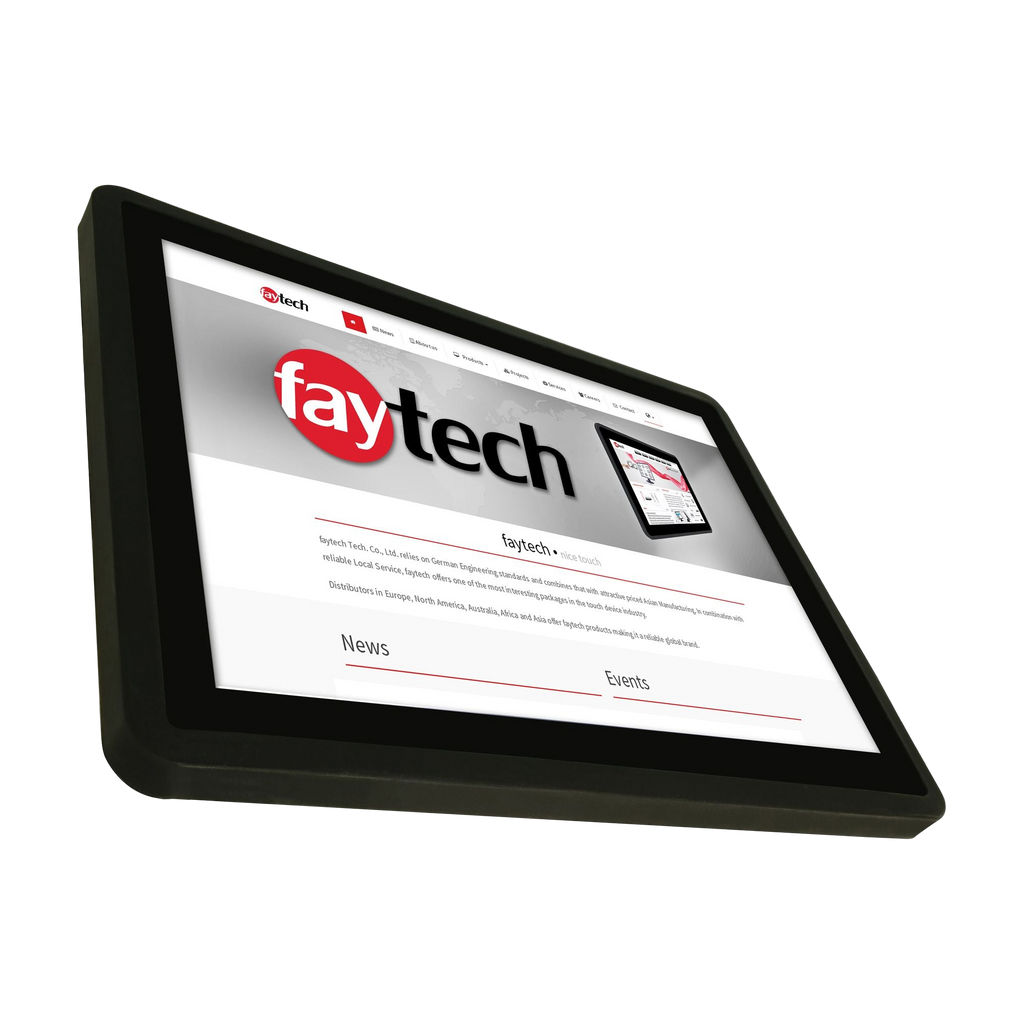

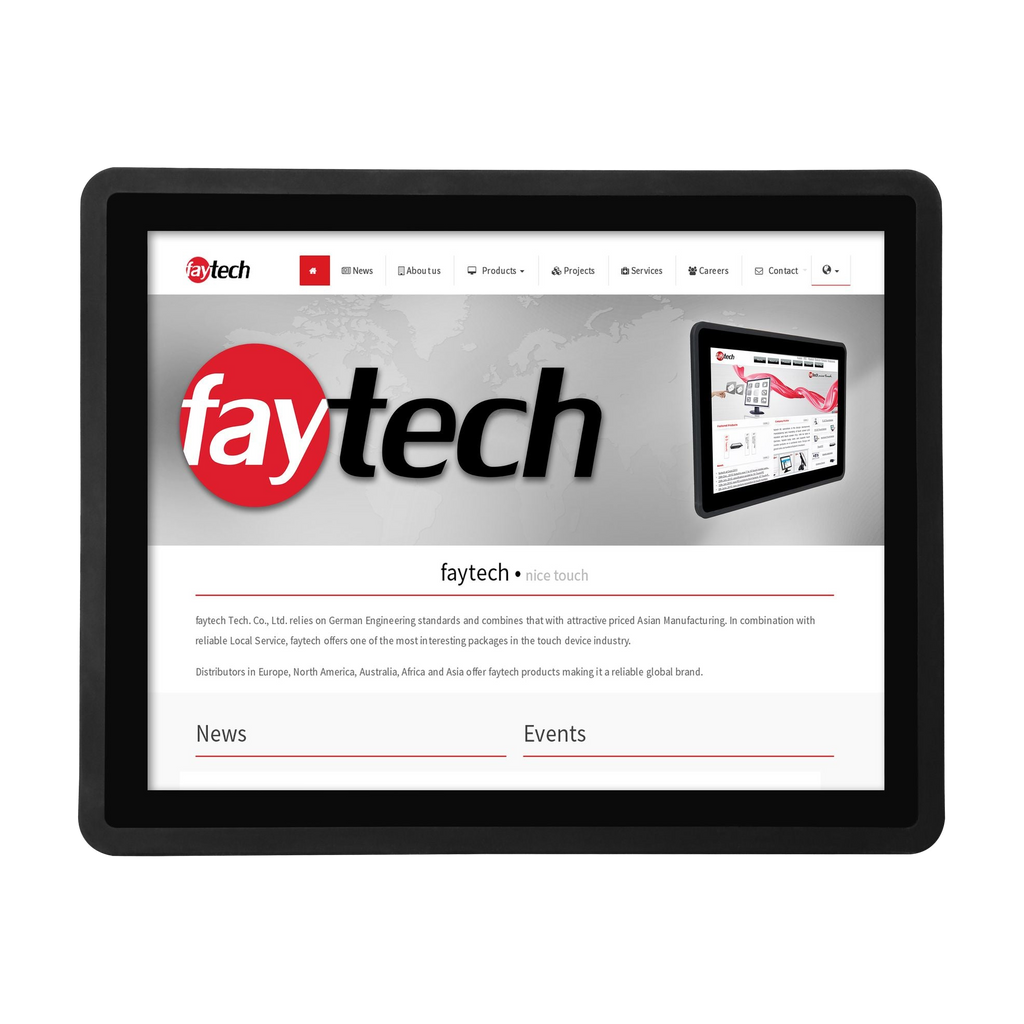

15' optically bonded capacitive touch monitor
- Anti-reflective surface treatment (chemical etching).
- 10-touch capacitive multi-touch.
- 1,1 mm cover glass with 7H surface hardness.
- Touch panel optically bonded to the LCD panel.
- Patented IP65 front protection with silicone seal
- Integrated audio (2x2w)
- 2-year warranty
IP Rating
Protection
IP65 Front/ IP40 Back
LCD Panel
Display size
15"
Display format
4:3
Physical resolution
1024x768
Optical Bonding
Optical bonding
Coverglass
1,1mm
Operation / Mechanical
Housing
Rubber Frame
Backlight Type
Edge Backlight
Touch Panel
Touch Technology
Capacitive
Coverglass Surface
Anti-glare
Power
Power supply
12V
External connections
HDMI
1
VGA
1
DP
0
USB 2.0
0
USB 3.0
0
| Product name | 15" capacitive touch monitor |
| Article Code / EAN Number | FT15TMBCAPOB / 6920734015146 |
| IP65 front / IP40 rear |
| Screen diagonal (inch/cm) | 15/38.10 |
| Active display area size (cm) | 30.40×22.80 |
| Aspect ratio | 4:3 |
| Physical resolution | 1024×768 |
| Maximum supported resolution | 1920×1200 |
| Displayed colours | 16.7M |
| Brightness (cd/m²) | 300 |
| Contrast | 700:1 |
| Typical response time Tr/ Tf (ms) | 8/12 |
| Horizontal/vertical viewing angle (°) | 160/160 |
| Backlight / Backlight lifetime (hours) | LED / 30,000 |
| Touch technology | Projected Capacitive 10-point Multitouch |
| Touch panel drivers | Windows; Linux; Mac; Android |
| Touch life (contacts) | Unlimited |
| Surface hardness | 7H |
| Surface treatment | Anti-glare (chemical etching) |
| Operating temperature (°C) | -10 ~ +60 |
| Humidity range (RH) | 10% - 90% |
| Net weight (kg) | 4.10 |
| Gross weight (kg) | 5.10 (incl. carton packaging) |
| Housing material | Rubber front case, plastic back case |
| Housing (mm) L × W × H | 359.0 × 298.0 × 45.0 |
| Cut-out for clamp supports (mm) L × H | 335.0 × 274.0 |
| Number of clamps required | 6 |
| Mounting | VESA 100 |
| Power indicator | Green LED |
| Power supply | 100-240V ACDC active switching; 12V DC output |
| Operating voltage (V) | 12 |
| Power consumption (W) | 15 |
| Stand-By Consumption (W) | <1 |

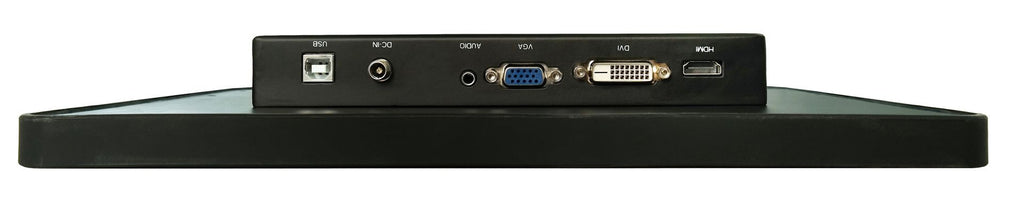

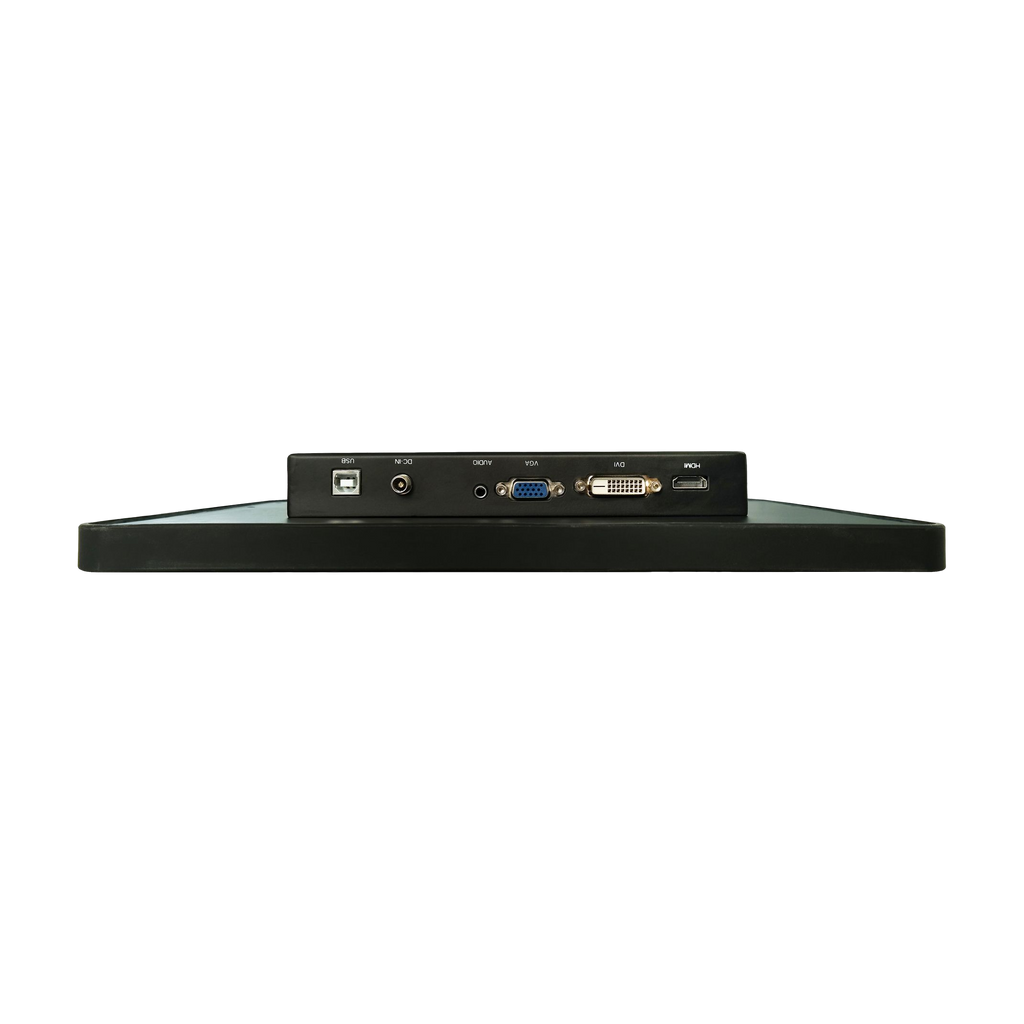

| Video | 1x HDMI 1.3 (incl. HDCP) |
| 1x DVI-D | |
| 1x VGA | |
| Audio | 1x PC-Audio |
| Touch connector | 1x USB |
| Connectors | 1x 12V DC-In (screw-locking) |
| Power supply (see Power section) |
| Quick installation guide |
| Cables — VGA, USB Touch, audio cable |
| Standard stand |
