19 'FT19TMB Resistive Touch Monitor
Price excludes VAT
436.00€
Sale price
Price excludes VAT
436.00€
Regular price
Total with VAT (23%): 536.28€
Shipping calculated at checkout.
FT19TMB
FT19TMB 19" resistive touch monitor
- Driver support for all current operating systems
- Supports touchscreen connection via USB or Serial
- 5-point resistive touch
- Power supply included
- 2-year warranty
IP Rating
Protection
IP40 Front/ IP40 Back
LCD Panel
Display Size
19"
Display Format
16:10
Physical Resolution
Optical Bonding
Air Gap
Coverglass
Operation / Mechanical
Housing
Backlight Type
Edge Backlight
Touch Panel
Touch Technology
resistive
Cover Glass Surface
Power
Power Supply
12V
External Connections
HDMI
0
VGA
1
DP
0
USB 2.0
0
USB 3.0
| Product name | 19" Resistive Touch Monitor |
| Model Number / EAN Number | FT19TMB / 6920734019113 |
| IP Rating | IP40 |
| Screen diagonal (inch/cm) | 19/48.26 |
| Active display area size (cm) | 41.22×25.91 |
| Aspect ratio | 16:10 |
| Physical resolution | 1440×900 |
| Maximum supported resolution | 1920×1200 |
| Displayed colours | 16.7M |
| Brightness (cd/m²) | 250 |
| Contrast | 1000:1 |
| Typical response time Tr/ Tf (ms) | 1.5/3.5 |
| Horizontal/vertical viewing angle (°) | 170/160 |
| Backlight / Backlight lifetime (hours) | LED / 30,000 |
| Touch technology | 5-Wire Resistive |
| Touch panel drivers | Windows; Linux; Mac; Android |
| Touch life (contacts) | 10 million touchs in 1 location |
| Surface hardness | 3H |
| Surface treatment | Anti-glare |
| Operating temperature (°C) | -10 ~ +60 |
| Humidity range (RH) | 10% - 90% |
| Net weight (kg) | 4.98 |
| Gross weight (kg) | 6.60 (incl. carton packaging) |
| Housing material | Plastic |
| Housing (cm) L × W × H | 44.80 × 29.00 × 5.30 |
| Mounting | VESA 100 |
| Power indicator | Green LED |
| Power supply | 100-240V ACDC active switching; 12V DC-Out |
| Operating voltage (V) | 12 |
| Power consumption (W) | 20 |
| Stand-By Consumption (W) | <1 |

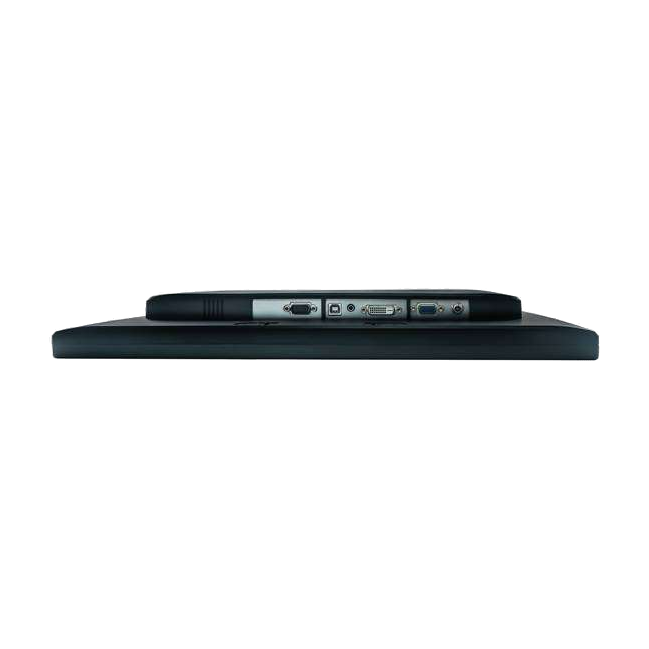

| Video | 1x VGA |
| 1x DVI-D | |
| Audio | 1x Audio-In |
| Touch Connector | 1x USB |
| 1x Serial | |
| Connectors | 1x 12V DC-IN |
| Power supply (see Power section) |
| Stylus |
| Quick Installation Manual |
| Cables - VGA, USB Touch, Audio Cable |
| Standard Stand |
