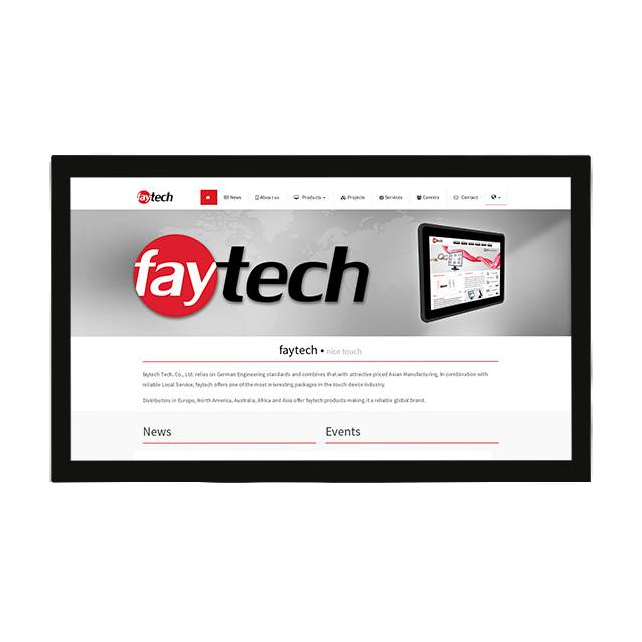

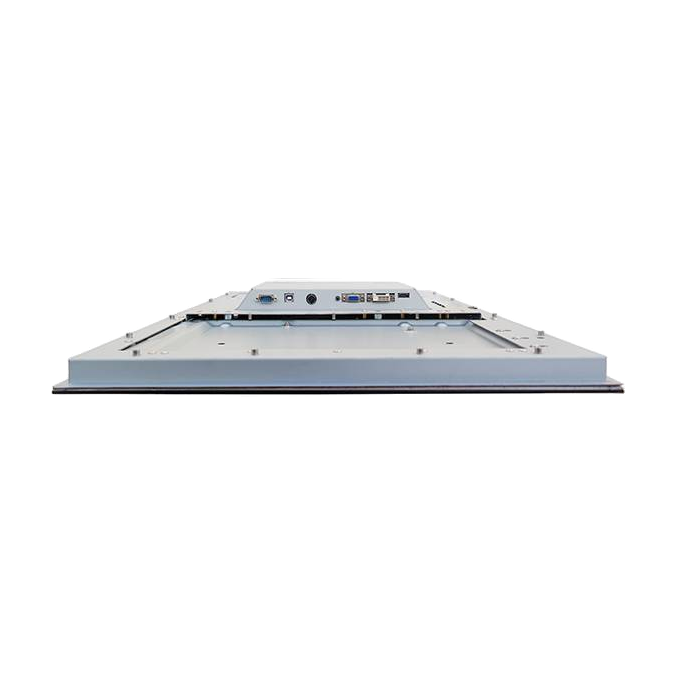

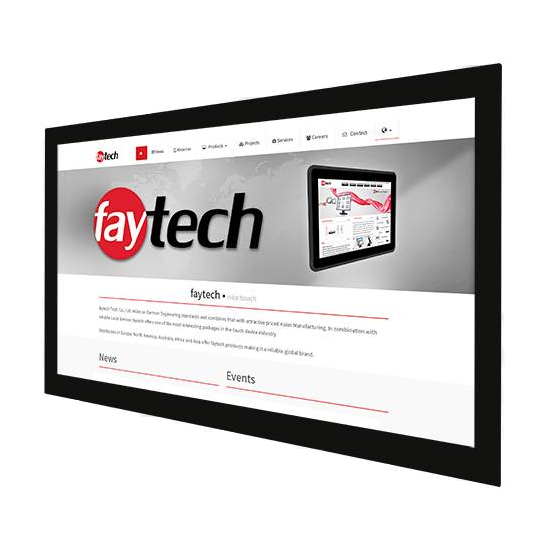

Monitor 43' FT43HDKTMCAPHBOB Open Frame Capacitive Touch
Price excludes VAT
2,550.00€
Sale price
Price excludes VAT
2,550.00€
Regular price
Total with VAT (23%): 3,136.50€
Shipping calculated at checkout.
FT43TMCAPOFHBOB4K
43' Open Frame capacitive touch monitor
- Touch panel optically bonded to the LCD.
- Anti-reflective treatment using chemical etching.
- Capacitive Multi-Touch with 10 touch points.
- Monitor with A+ quality LED backlighting and a service life of 100k hours.
- Brightness of 1000+ cd/m² for excellent visibility.
- Integrated audio (2x2w).
- 2-year warranty.
IP rating
Protection
IP65 front / IP40 rear
LCD panel
Display size
43"
Display format
16:9
Physical resolution
1920x1080
Brightness
1000 cd/m²
Coverglass
Operation / mechanical
Housing
Open Frame
Backlight type
Edge backlight
Touch panel
Touch technology
Capacitive
Cover glass surface
Power
Power supply
24V
External connections
HDMI
VGA
DP
USB 2.0
USB 3.0
| Product name | 43'' Open Frame capacitive touch monitor |
| Model number / EAN number | FT43TMCAPOFHBOB4K / 6920734043125 |
| IP65 front / IP40 rear |
| Screen diagonal (inch/cm) | 42.5/107.95 |
| Active display area size (cm) | 94.09×52.92 |
| Aspect ratio | 16:9 |
| Physical resolution | 1920×1080 |
| Maximum supported resolution | 1920×1080 |
| Displayed colours | 16.7M |
| Brightness (cd/m²) | 1000 |
| Contrast | 3000:1 |
| Typical response time Tr/ Tf (ms) | 4/4 |
| Horizontal/vertical viewing angle (°) | 179/179 |
| Backlight / Backlight lifetime (hours) | LED / 60,000 |
| Touch technology | Optically bonded 10-point projected capacitive multitouch |
| Touch panel drivers | Windows; Linux; Mac; Android |
| Touch life (contacts) | Unlimited |
| Surface hardness | 7H |
| Surface treatment | Anti-glare (chemically etched) |
| Operating temperature (°C) | -10 ~ +60 |
| Humidity range (RH) | 10% - 90% |
| Net weight (kg) | 23.00 |
| Gross weight (kg) | 35.00 (including carton packaging) |
| Housing material (open frame) | Aluminum |
| Housing (mm) L × W × H | 1020.0 × 608.5 × 64.1 |
| Required cut-out (mm) L × H | 1006.0 × 594.0 |
| Number of clamps required | 16 |
| (optional) Required tape length (mm) | 3220.0 (2× 1016.0 + 2× 594.0) |
| (optional) Required amount of glue (ml) | 16.10 |
| Mounting | VESA 400 |
| Power supply | 100-240V ACDC active switching; 24V DC output |
| Operating voltage (V) | 24 |
| Power consumption (W) | 96 |
| Standby consumption (W) | <1 |
| Video | 1x HDMI 1.3 (including HDCP) |
| 1x DVI-D | |
| 1x VGA | |
| Audio | 1x PC-Audio |
| Touch connector | 1x USB |
| Connectors | 1x Serial |
| 1x 24V DC-In |
| Power supply (see Power section) |
| Quick installation manual |
| HDMI cable |
| USB cable |
