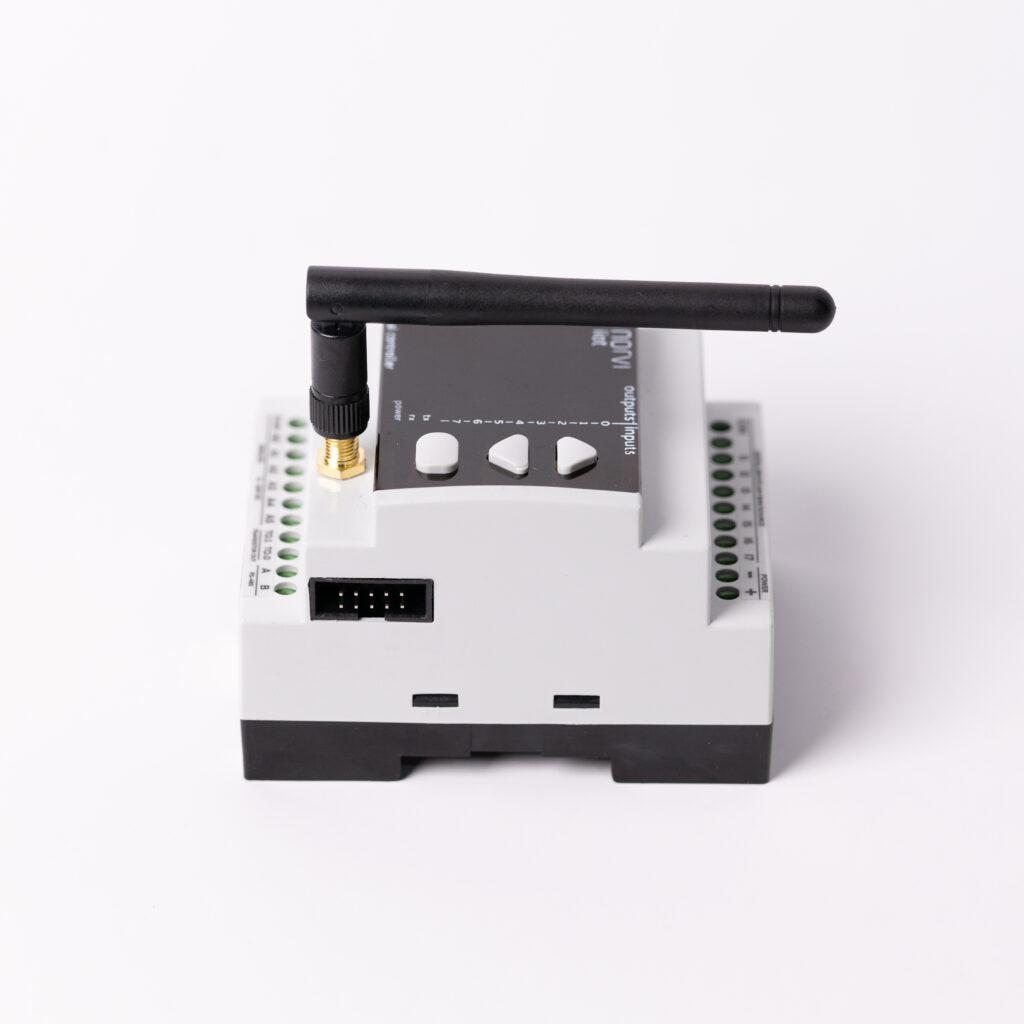

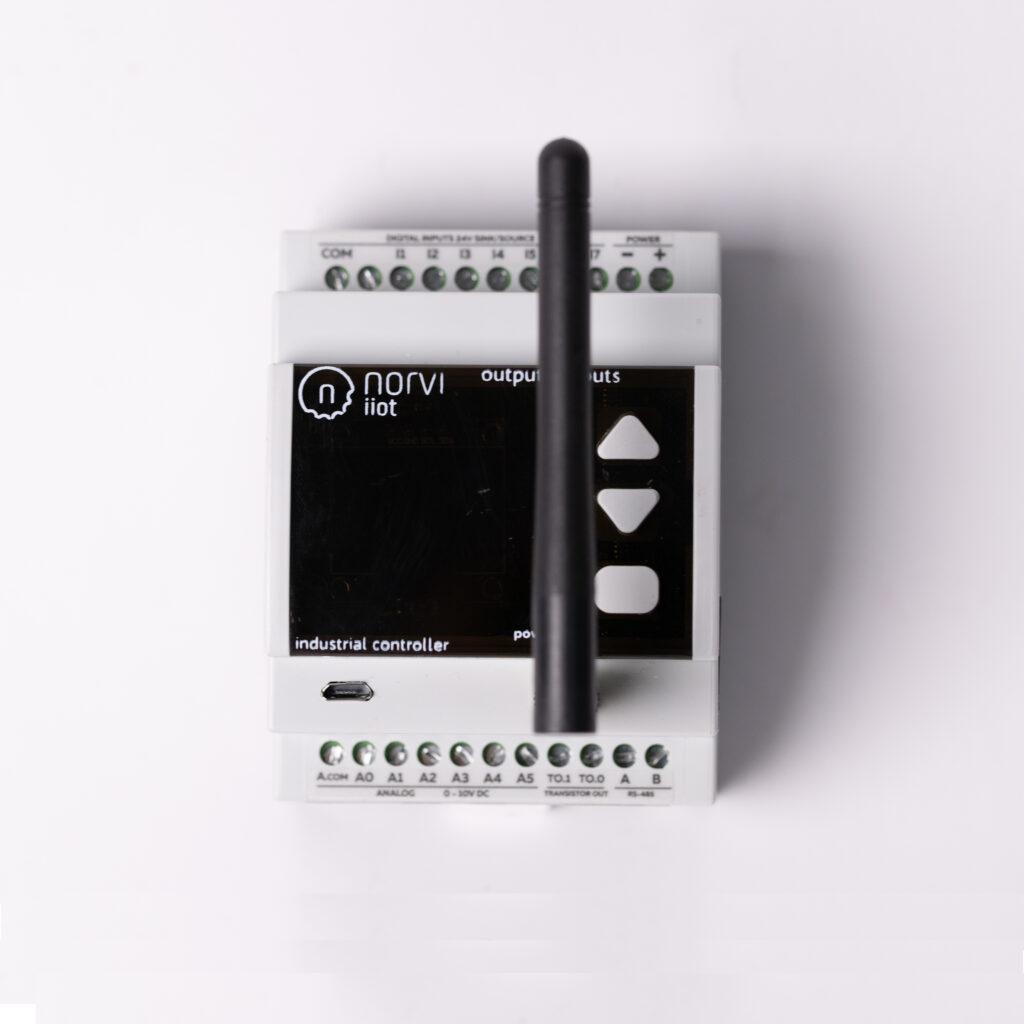

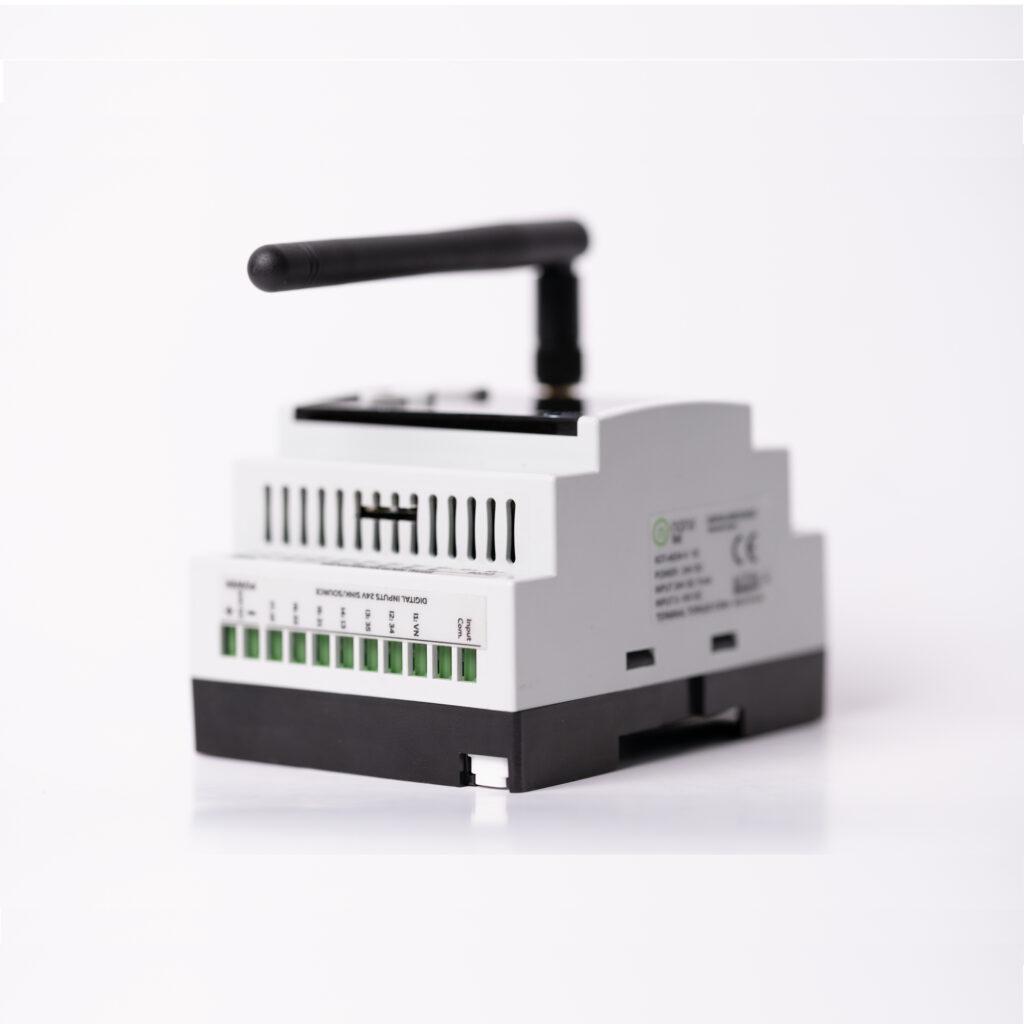

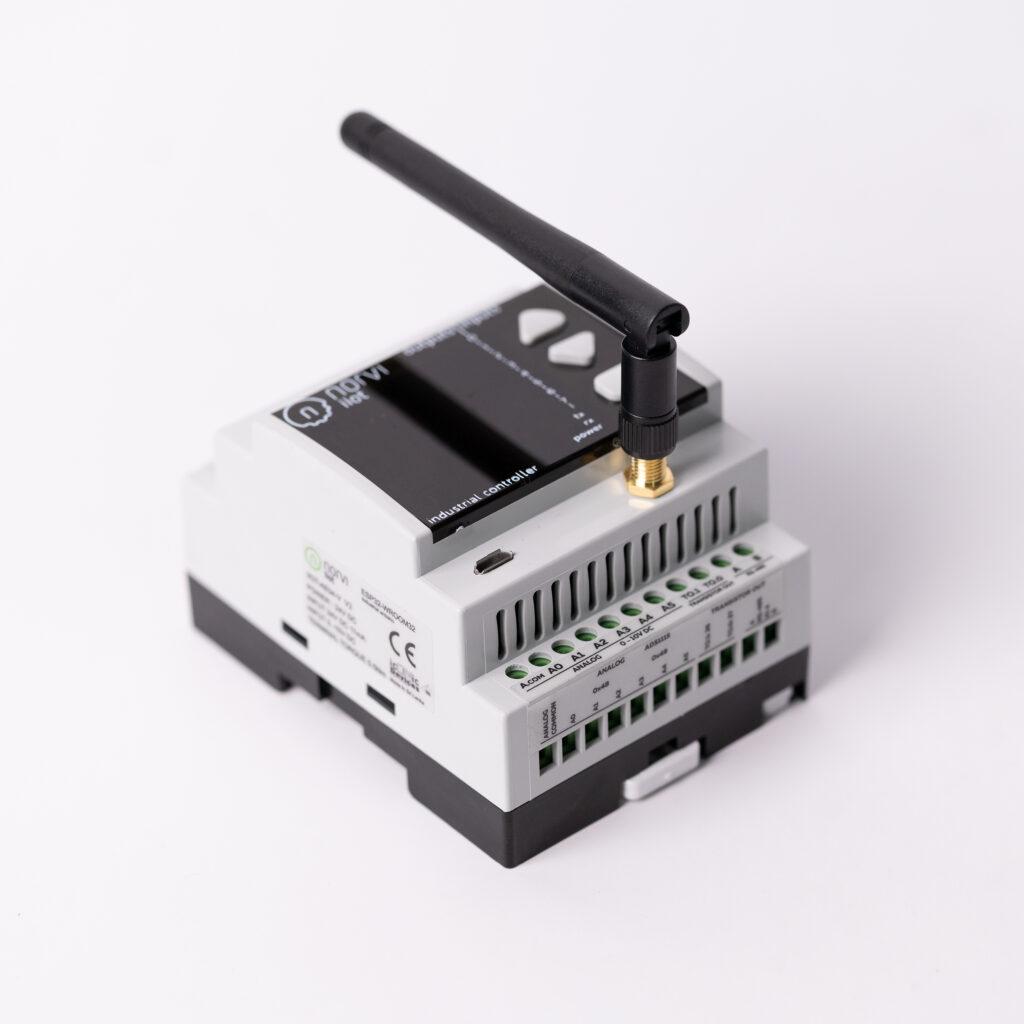

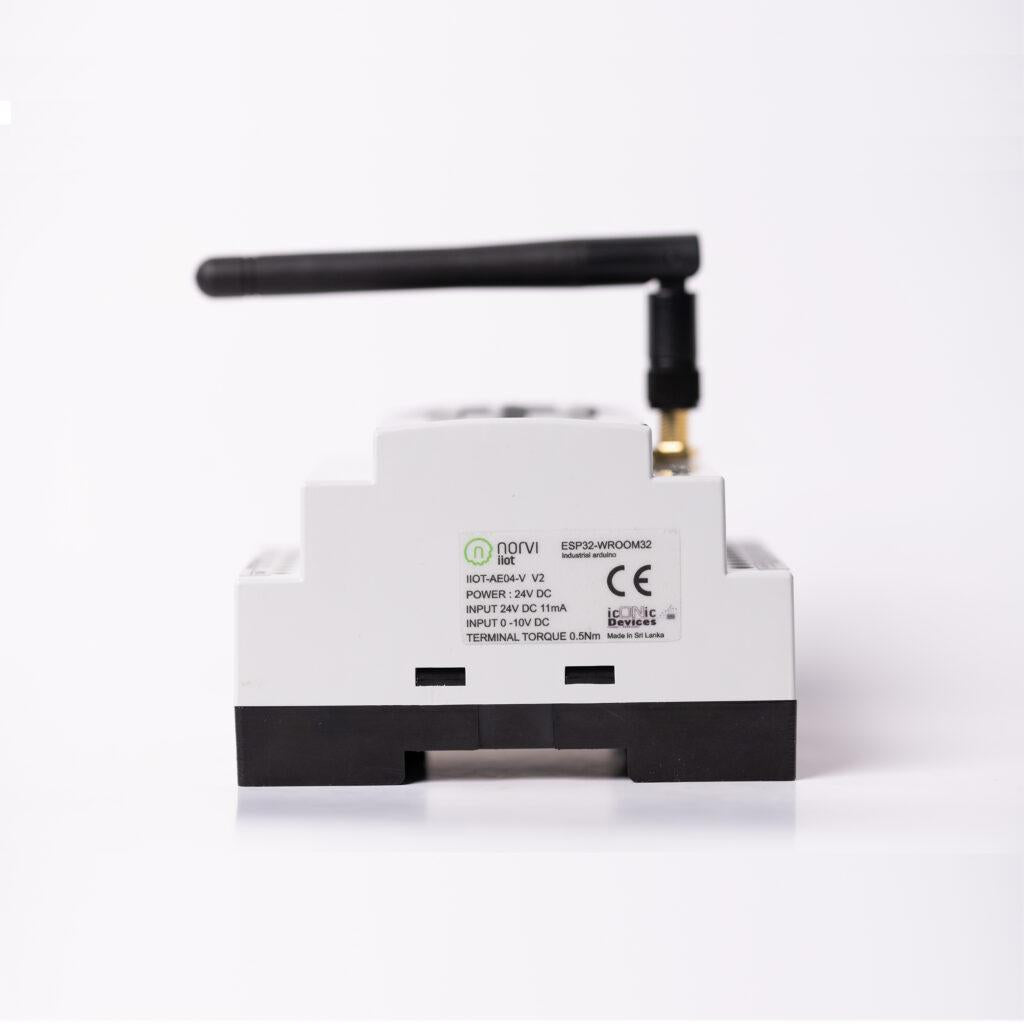

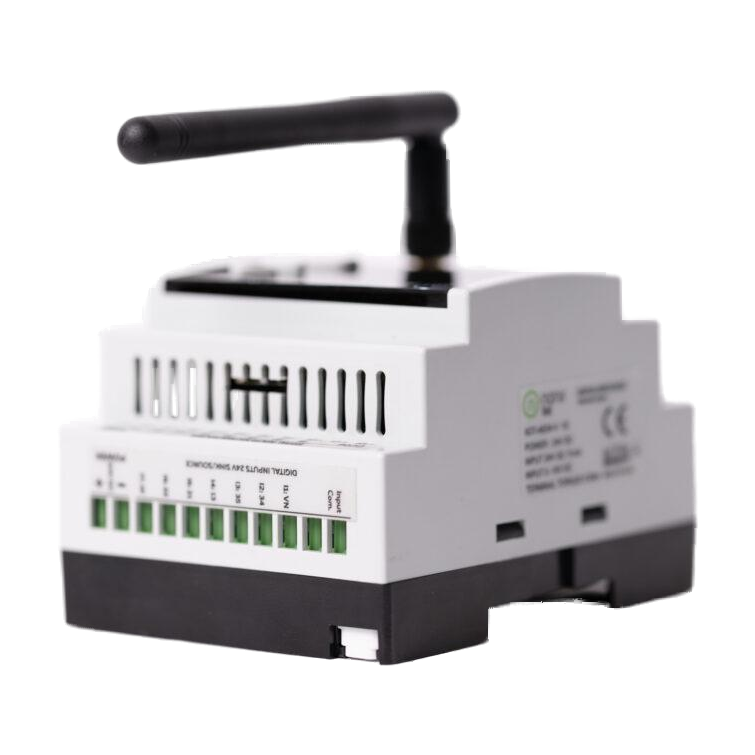

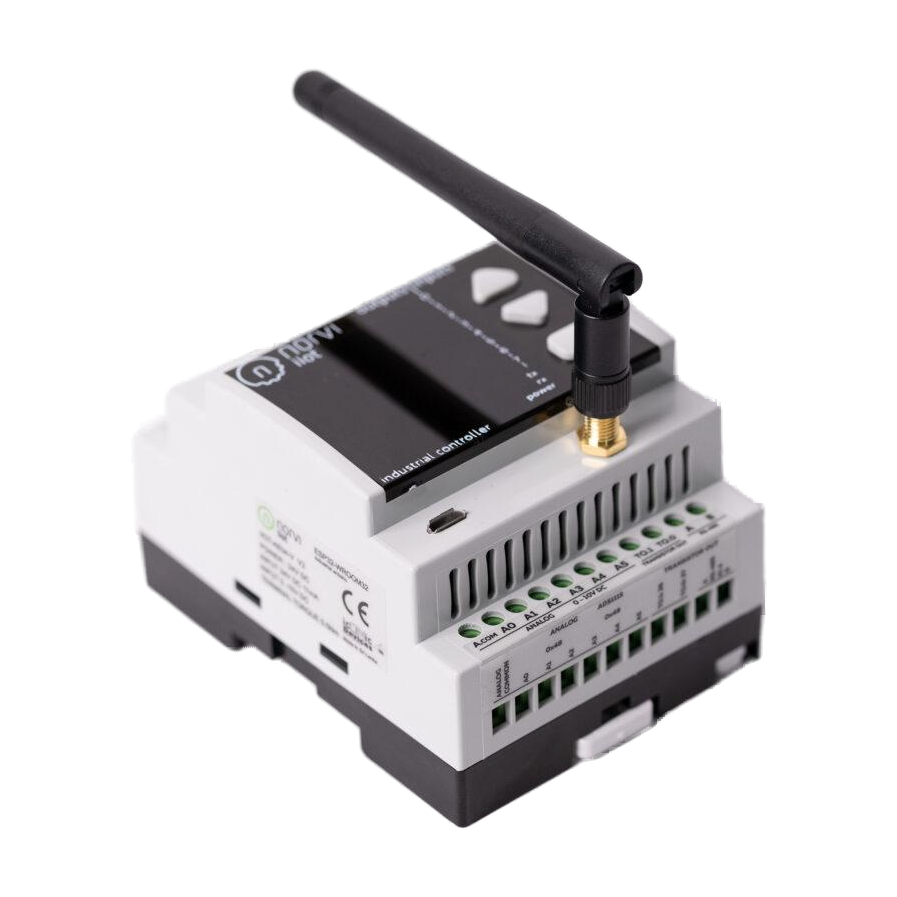

GSM-AE08-T (4* Transistor Out, 4* Digital In, SD, GSM)
Price excludes VAT
260.25€
Sale price
Price excludes VAT
260.25€
Regular price
Total with VAT (23%): 320.11€
Shipping calculated at checkout.
GSM-AE08-R
Industrial controller with GSM + WiFi
- GSM
- 4x transistor outputs
- 6x digital inputs
- OLED display
Industrial ESP32, ready for industrial environments: Arduino and ESP-IDF
- ESP32-WROOM32 module
- GSM / LTE connection
- Built-in 0.96 OLED Display
- Built-in button on the front panel
- Digital inputs
- Analog inputs
- Relay outputs
- Ethernet connectivity
- DIN-rail mounting
Applications
- Wireless IoT gateways
- Data transmission over a cellular network
- WiFi-to-GSM bridge
- MQTT Gateway
USB-programmable controller with multiple connectivity channels. Ideal for IoT gateway or data transmission applications.
The device is based on the ESP32-WROOM32 SoC with GSM connectivity.
It features I/O compatible with industrial voltage levels, with additional protection. Models are available with different input and output configurations. In addition, the NORVI GSM Industrial ESP32 can be expanded using expansion modules.
ESP32-WROOM32
- Dual Core 32bit 160-Mhz CPU
- 520 Kbytes SRAM / 4 Mb Flash
- WIFI 802.11 b/g/n Bluetooth v4.2
- Two timer groups, including 2 x 64-bit timers and 1 x main timer
- watchdog in each group
SIM800L
- Quad-band GSM/GPRS module
- DTMF, MMS, MUX Fuctions
- Embedded TCP/UDP protocols
- Frequency bands: 850/900/1800/1900MHz
- GPRS multi-slot class: 12/10
QUECTEL EC21
- Worldwide LTE, UMTS/HSPA(+) and GSM/GPRS/EDGE
- DTMF, MMS, MUX Fuctions
- Embedded TCP/UDP protocols
- Frequency bands: 850/900/1800/1900MHz
- GPRS multi-slot class: 12/10
| Main | |
| Product range | NORVI GSM |
| Product type | Programmable controller |
| Certifications | EN 61131-2:2007 EN 61010-1:2010+A1:2019 EN IEC 61010-2-201:2018 2014/30/EU — Electromagnetic Compatibility (EMC) Annex III, Part B, Module C |
| Rated supply voltage | 24V DC |
| Communication | Wi-Fi / Bluetooth LTE / EDGE - Quectel EC21 RS485 |
| OLED display protocol | I2C |
| Transistor output rating | 500mA 300mW |
| Complementary | |
| Number of expansions | ----- |
| Supply voltage limits | 20.4....28.8V |
| Inrush current | <=50A |
| Power consumption in W | 32.6......40.4 with all outputs ON |
| Discrete logic input | Sink or source |
| Discrete input voltage | 24V |
| Discrete input voltage type | DC |
| Guaranteed voltage state 1 | >=15 V for input |
| Guaranteed voltage state 0 | <=5 V for input |
| Discrete input current | 5 mA for input |
| Input impedance | 4.7k Ohm for input |
| Memory capacity | Refer to the ESP32-WROOM32 datasheet |
| Battery type | ----- |
| Backup time | ----- |
| Local signalling | 1 green LED for PWR |
| Electrical connection | Removable screw terminal block for inputs and outputs (pitch 5.08 mm) |
| Mounting support | Top-hat rail type TH35-15 conforming to IEC 60715 Top-hat rail type TH35-7.5 conforming to IEC 60715 Plate or panel with fixing kit |
| Height | 90.50 mm |
| Depth | 56.60 mm |
| Width | 60.60 mm |
| Product weight | 0.43 Kg |
| Environment | |
| Resistance to electrostatic discharge | 4kV on contact 8kV in air |
| Resistance to electromagnetic fields | 10 V/m (80 MHz ...... 1GHz) 3 V/m (1.4 MHz ...... 2 GHz) 1 V/m (2 MHz ...... 3 GHz) |
| Immunity to microbreaks | 10 ms |
| Relative humidity | 10....95% non-condensing during operation |
| IP degree of protection | IP20 |
| Operating temperature | –10 … +85° C (14...185 °F) |
| Storage temperature | –25 … +85° C (–13...185 ° F) |
| Operating altitude | 0...2000m |
| Storage altitude | 0...3000m |
| Shock resistance | 15 gn for 11 ms |
