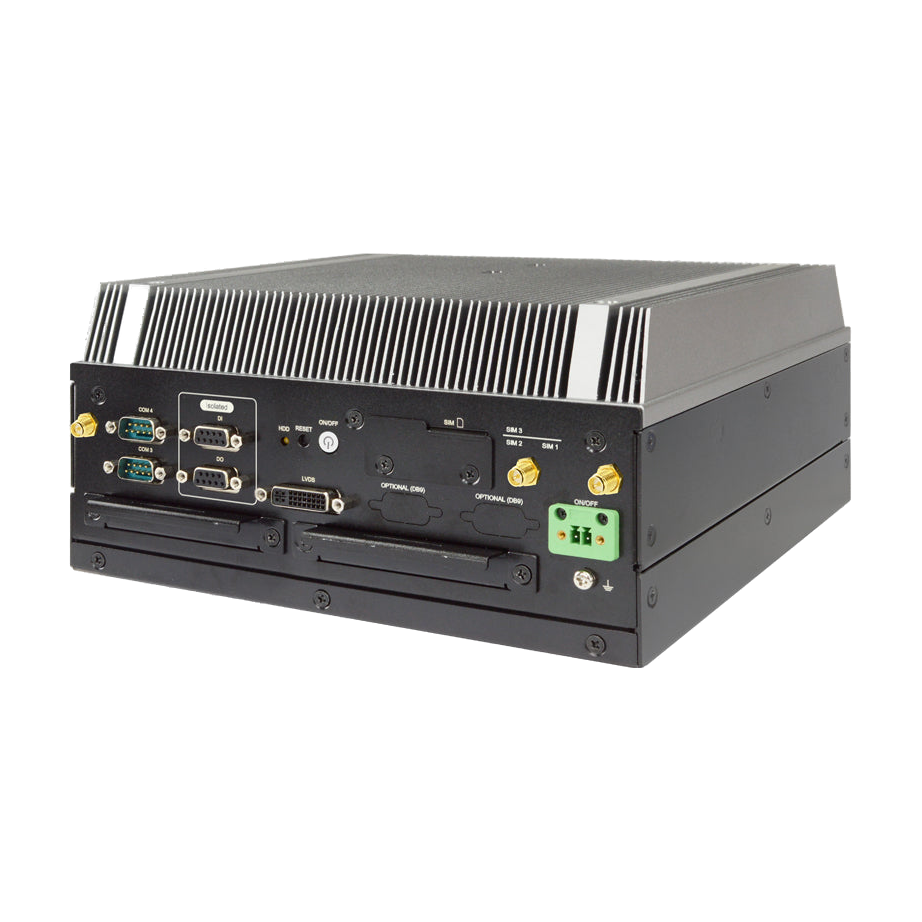

Jetway HBFEF752W-7100-B (Intel i3 Kaby Lake, WLAN)
Intel® Kabylake-U embedded industrial PC, supports an ITPS power supply (9 ~ 36V DC-in), 8 * PoE ports
Intel® Kabylake-U i3-7100U processor
Supports an ITPS power supply (9~36V DC-in)
8* PoE ports

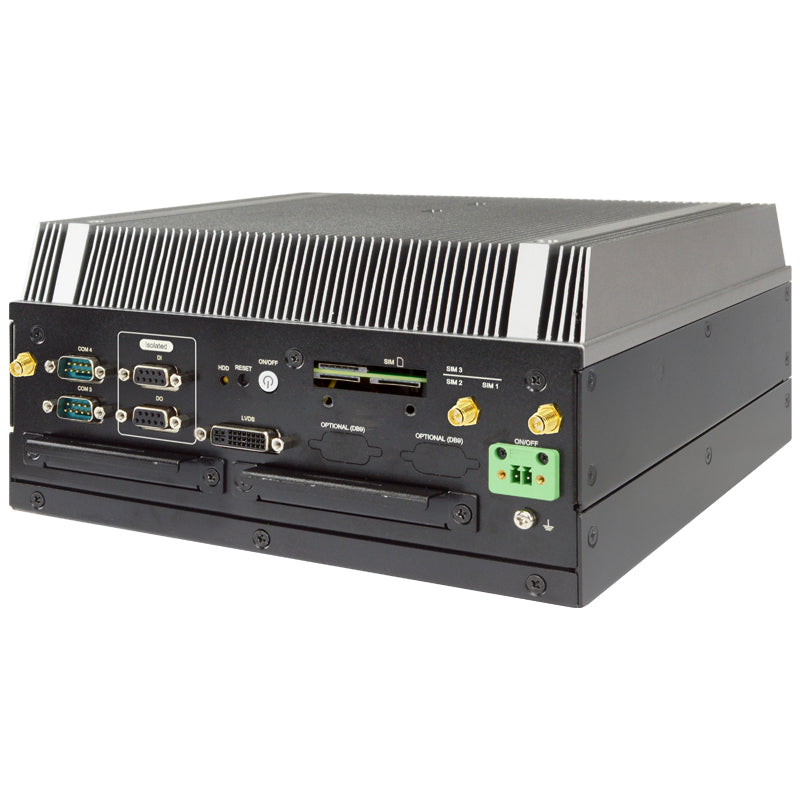

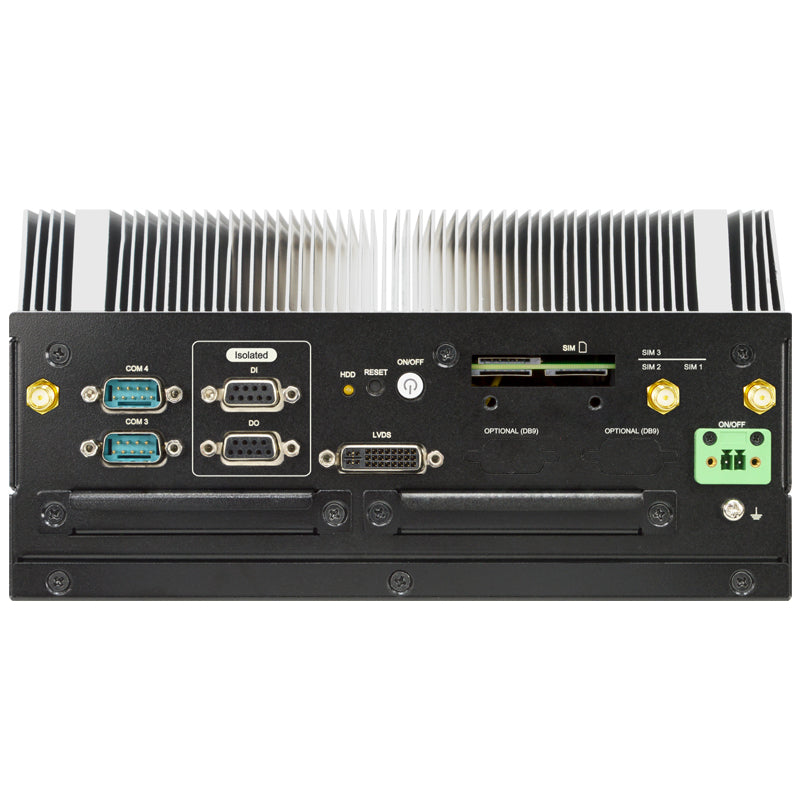

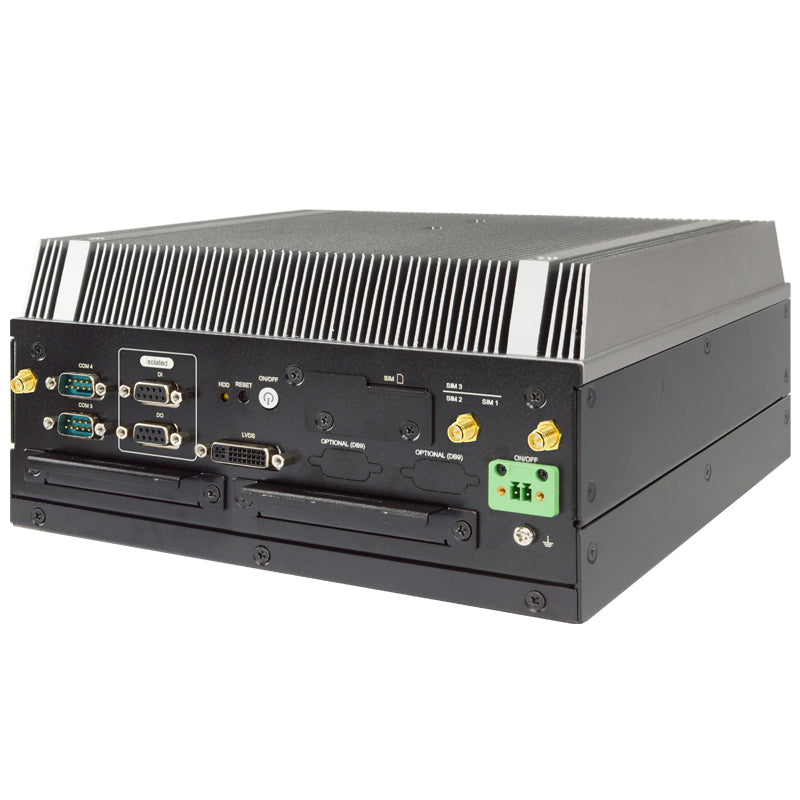

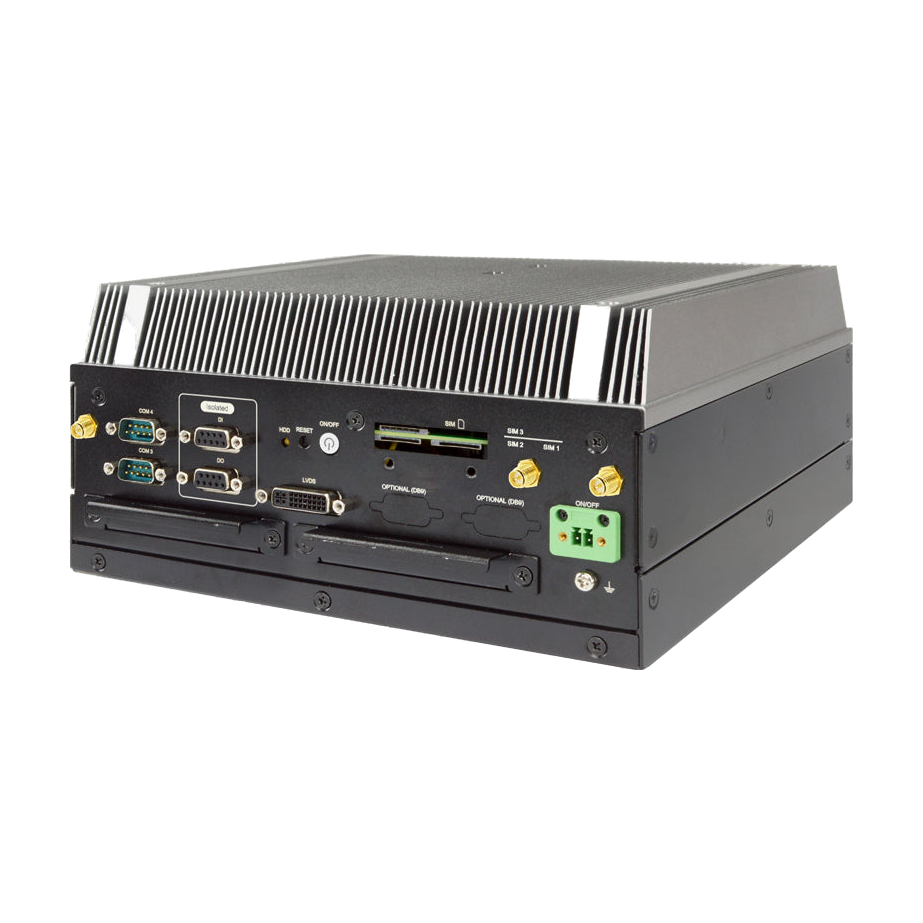

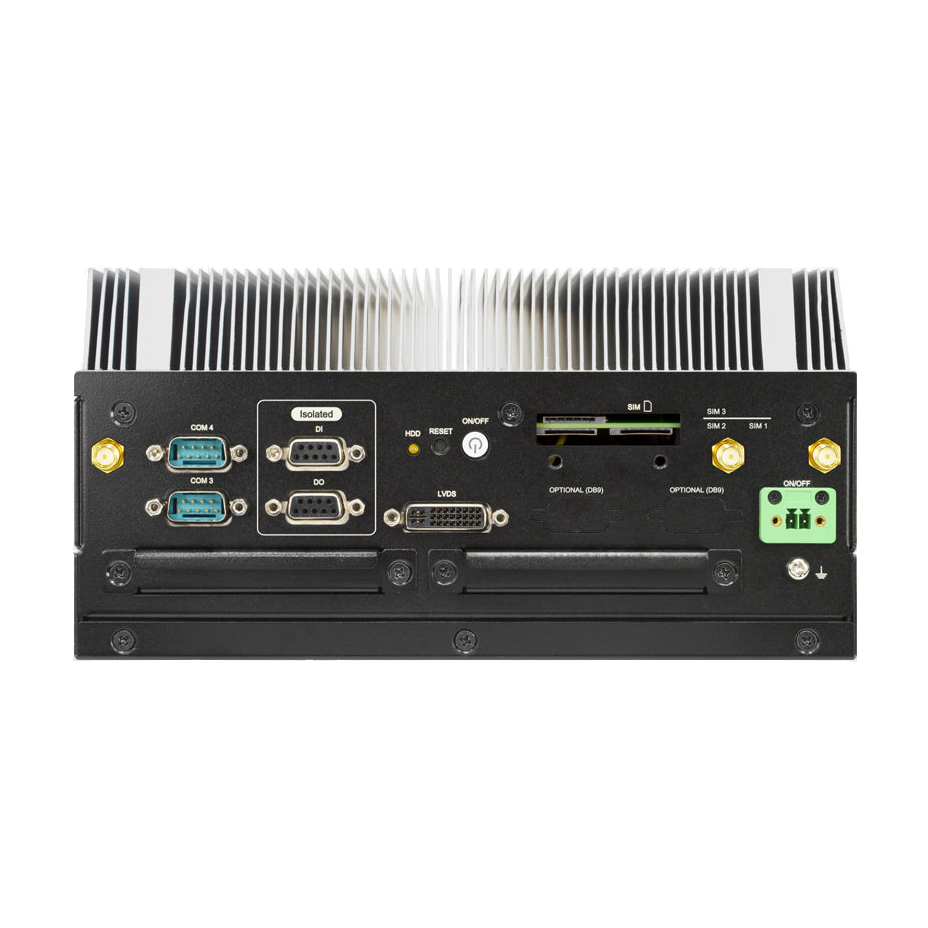

Front I/O connectors

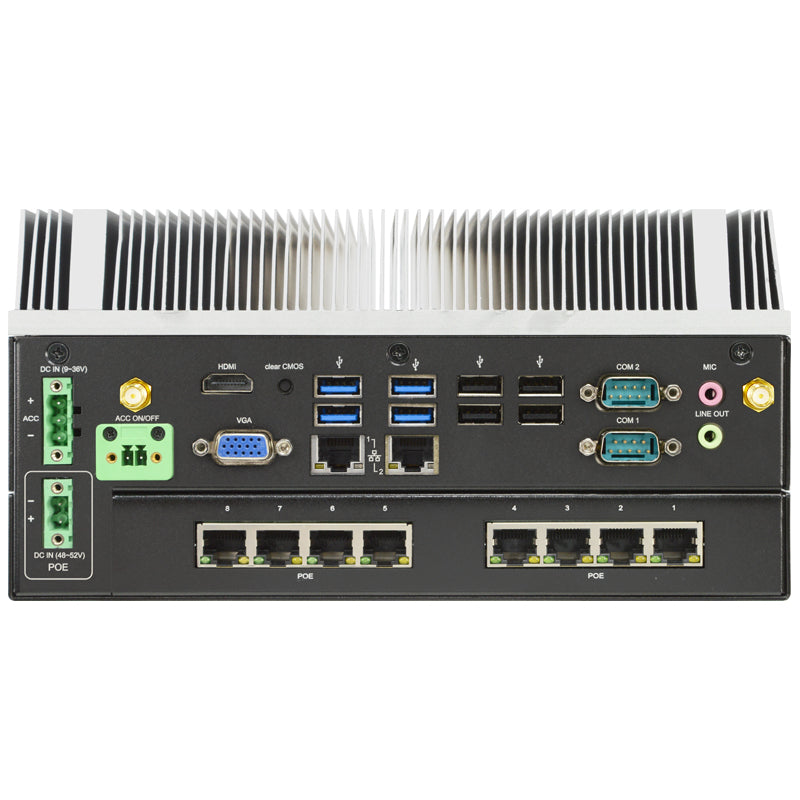

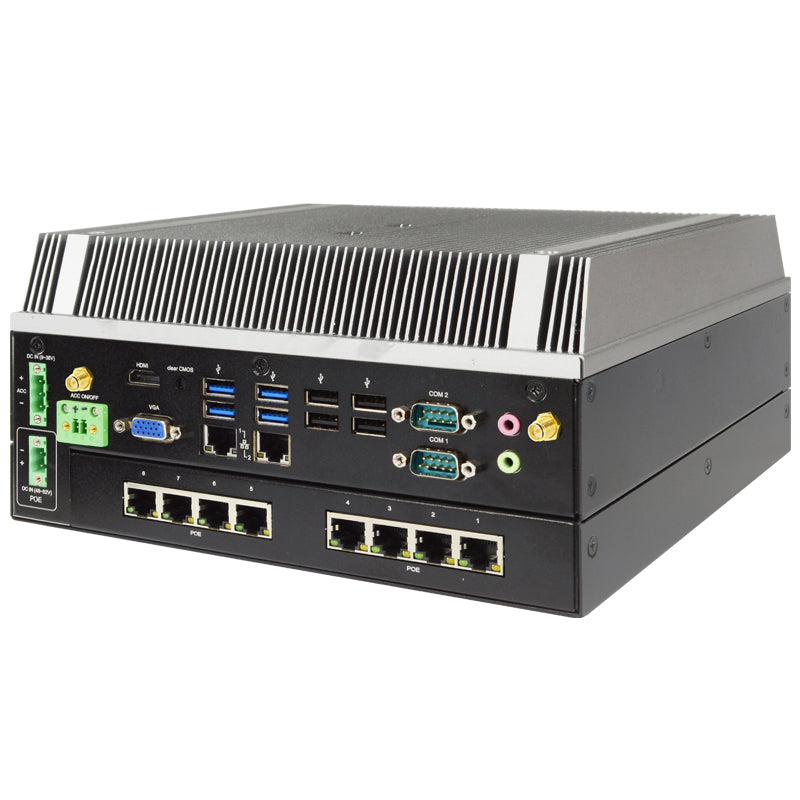

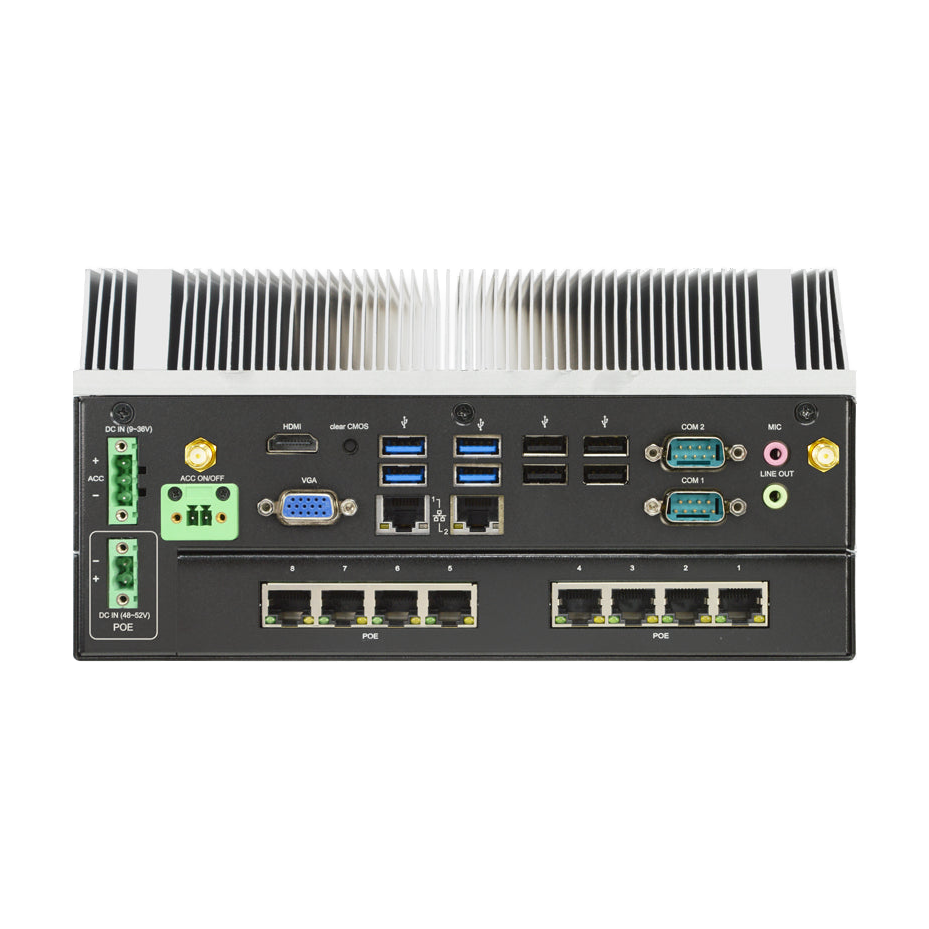

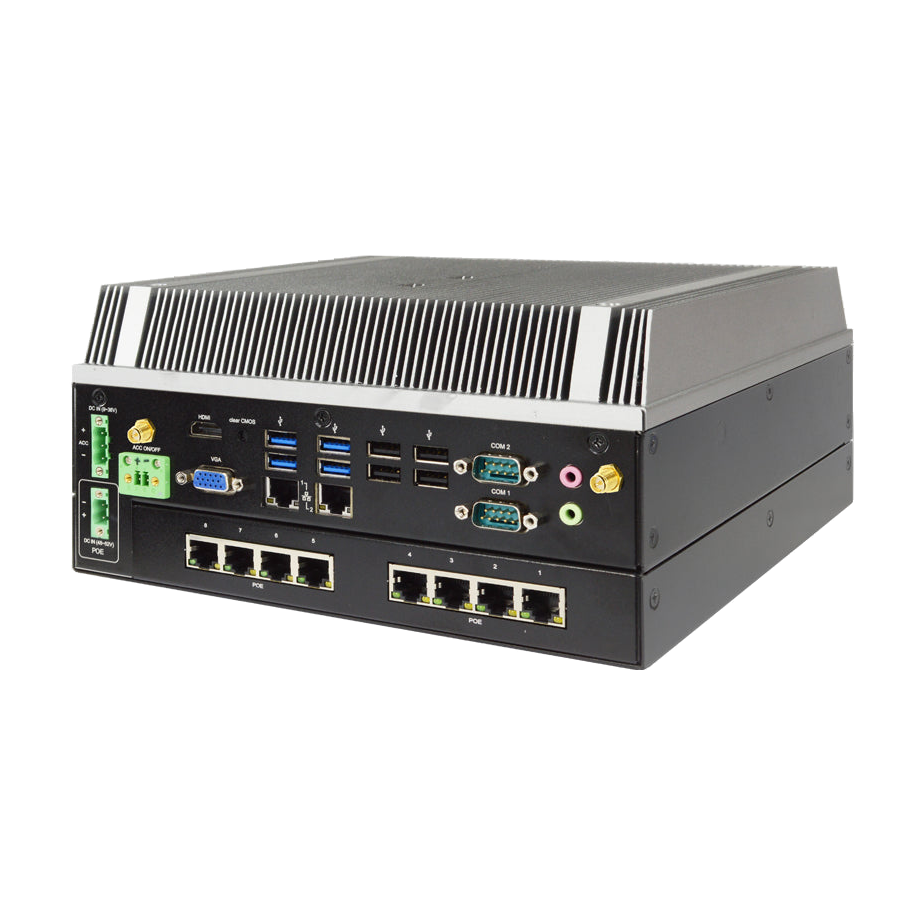

Rear I/O connectors
Diagram / Dimensions
Motherboard model | – JNF752-7100U (Core i3) / (TDP 15W) |
Part No | – HBFEF752-7100-B (non-WIFI)/HBFEF752W-7100-B (WIFI) |
BIOS | – AMI Flash ROM |
CPU/Chipset | – Intel® Kabylake-U Core-i SoC processor |
Memory | – Supports 2 * DDR4 2133MHz SO-DIMM slots, up to 32GB |
Storage | – Supports 2 * 2.5” SATA device trays (removable hard drive) |
Network | – 1 * Intel® i219LM & 1 * Intel® i210AT GbE |
Expansion | – 2 * Mini PCIe (full-size, for WiFi/3G/4G/ Capture Card module expansion) |
Rear Panel I/O | – 4 * USB 2.0, 4 * USB 3.0 |
Front Panel I/O | – 1 * power button + LED, 1 * reset button, 1 * HDD LED |
Power Source | – DC 9~36V INPUT for SYSTEM (supports boot & shutdown delay function_ITPS) |
Compliance | – CE, FCC, LVD, RoHS |
Temperature | – Operating temperature: -20 ~ 70° C |
Dimensions | – 232 (W) x 231.4 (D) x 103 (H) mm |
Packaging | – Net weight: 2.7KG |
OS Support | – Windows 10, Linux |
Warranty | – 2-year limited warranty |
* Specifications are subject to change without notice. The manufacturer is not responsible for typographical errors. HDD and OS are not included.
Part Number | Description | Part Number | Description |
CAN BUS Module (Please contact sales for details) |
| Mini PCIe Capture Card Module (Please contact sales for details) | |
HNSCOMWFAWNB159-F | Mini PCIe WIFI B/G/N+BT 4.0 Module / AW-NB159H Half MPCIE | L01AS056-F | AC Adapter_120W_19V_6.32A / FSP120-ABBN5 |
HNSCOMWFAC3160-F | Mini PCIe WIFI AC+BT 4.0 Module / AC3160 Half MPCIE |
| POE DC Converter_192W_DC12V in_DC48V_4A out / WG-12S4804 |
| Mini PCIe 3G/4G Module (Please contact sales for details) |
|
