Jetway HBJC130F533MS Series (J1900, 4/6 Intel GLAN, Wifi)

MB Model

– JNF533MS-1900 / 3.5” SBC

Part No.

Non-Wifi

Wifi

– HBJC130F533MS4-19
– HBJC130F533MS6-19

– HBJC130F533MS4Z-19
– HBJC130F533MS6Z-19

BIOS

– AMI 64Mb Flash ROM

CPU/Chipset

– Intel® Bay Trail Processor J1900 (2.0 GHz) Quad Core

Memory

– 1* DDR3L 1333 MHz SDRAM up to 8GB

Expansion

– 1 * full-size Mini-PCIe slot (for 2* LAN expansion)
– 1 * M.2-2230 , E-key (for Wi-Fi)

Storage

– 1 * 2.5” SATA HDD
– 2 * USB 2.0 Drives
– 1 * M.2 (M-key, 2242)

Ethernet

– 4 / 6 * Intel i211AT GbE

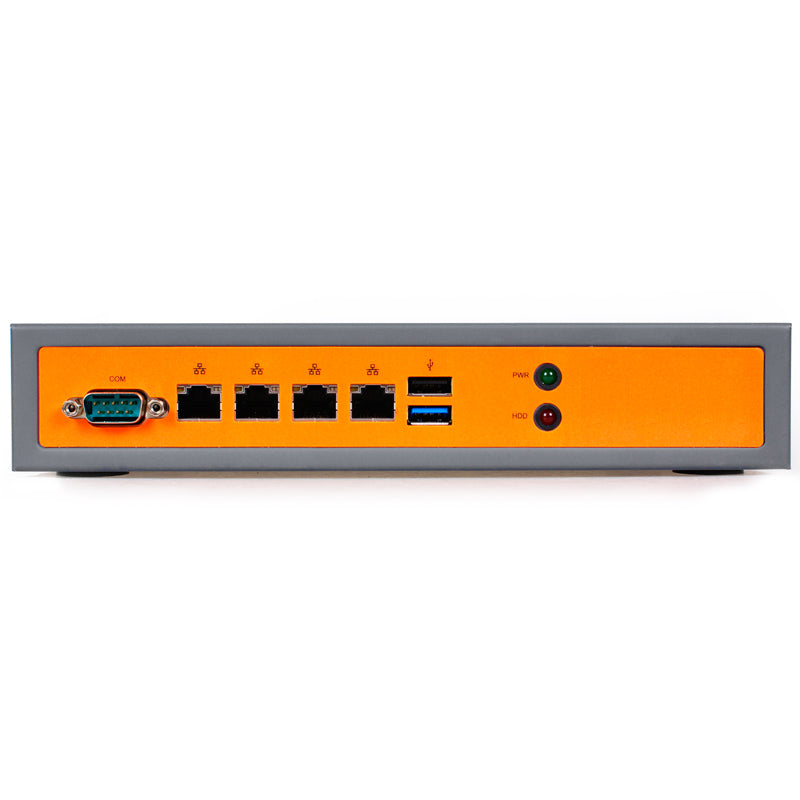

Front Panel I/O

– 1 * Power LED
– 1 * HDD LED
– 4 * RJ-45
– 1 * USB 2.0
– 1 * USB 3.0
– 1 * COM

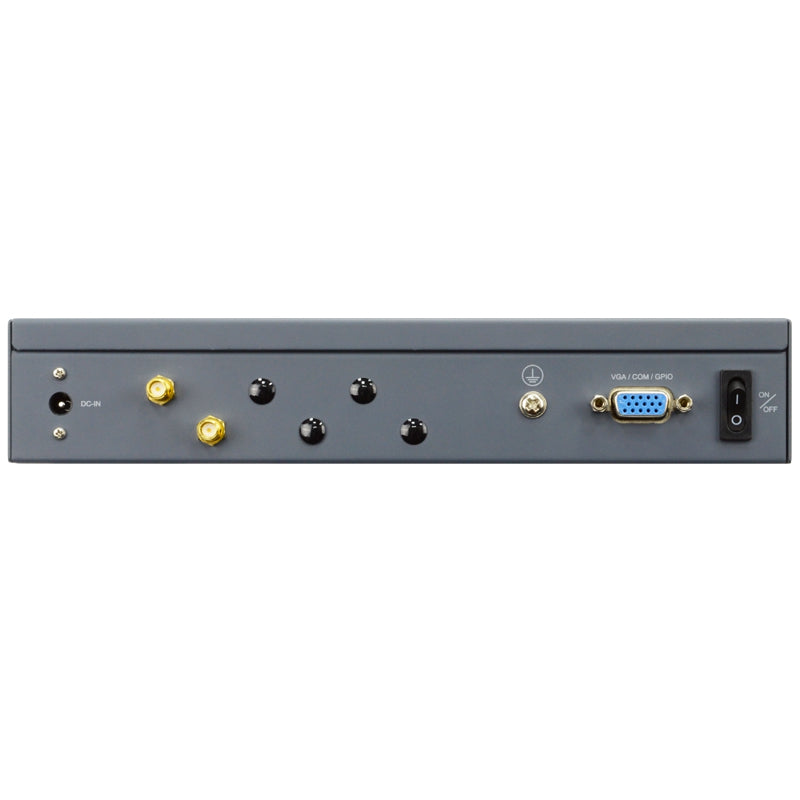

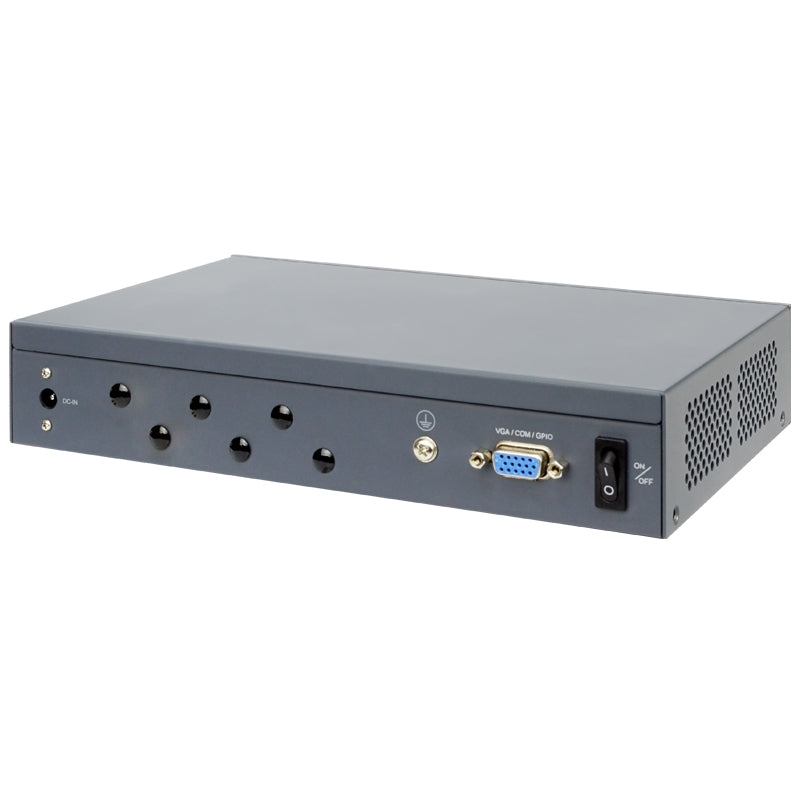

Rear Panel I/O

– 1 * PW SW
– 1 * DC-IN
– 2 * Wi-Fi (option)
– 1 * VGA (option, Max. Resolution: 1920×1080@60Hz)
– 1 * GND Holder

Power Source

– MB : DC-in 12V
– Adapter: AC_90~240V / DC_12V / 60W

Compliance

– CE, FCC, RoHS, ErP

Temperature

– Operating Temperature: 0 ~ 50° C
– Storage Temperature: -40 ~ 85° C
– Humidity: 10%~95% @40° C (non-condensing)

Dimensions

– System: 232 (W) x152 (D) x 44 (H) mm
– Color Box: 250 (W) x 115 (D) x 365 (H) mm

Warranty

– 2-Year limited warranty
