Rackmount PC HBJC150F592-Q170-B (Intel Q170, LGA1151)
Price excludes VAT
628.00€
Sale price
Price excludes VAT
628.00€
Regular price
Total with VAT (23%): 772.44€
Shipping calculated at checkout.

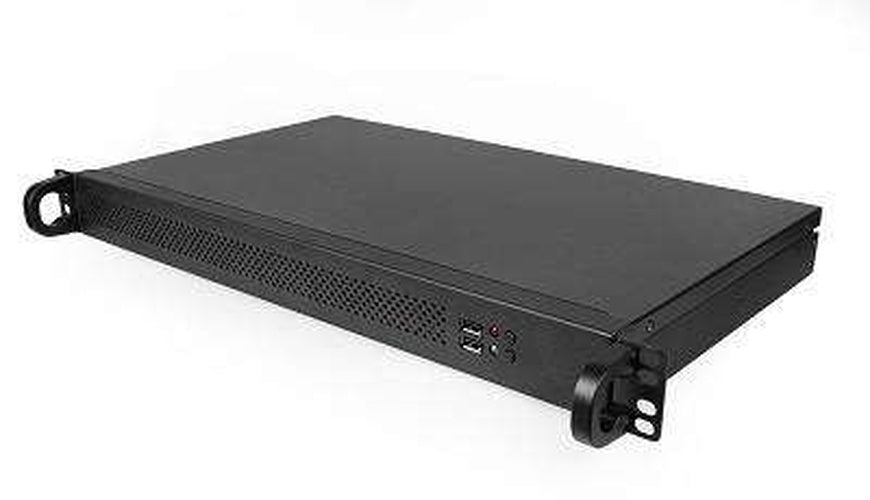

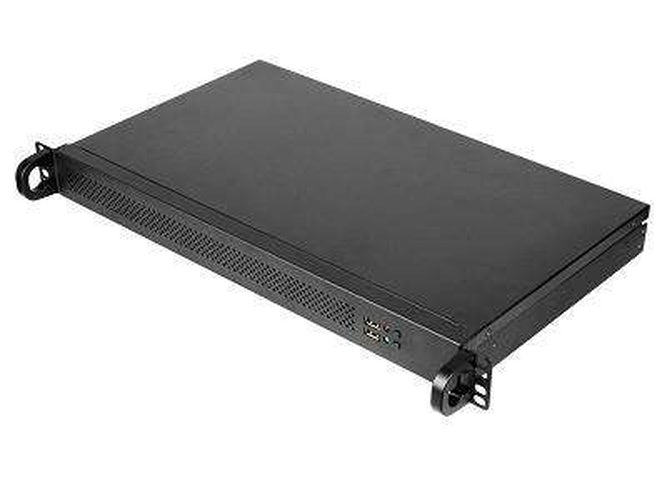

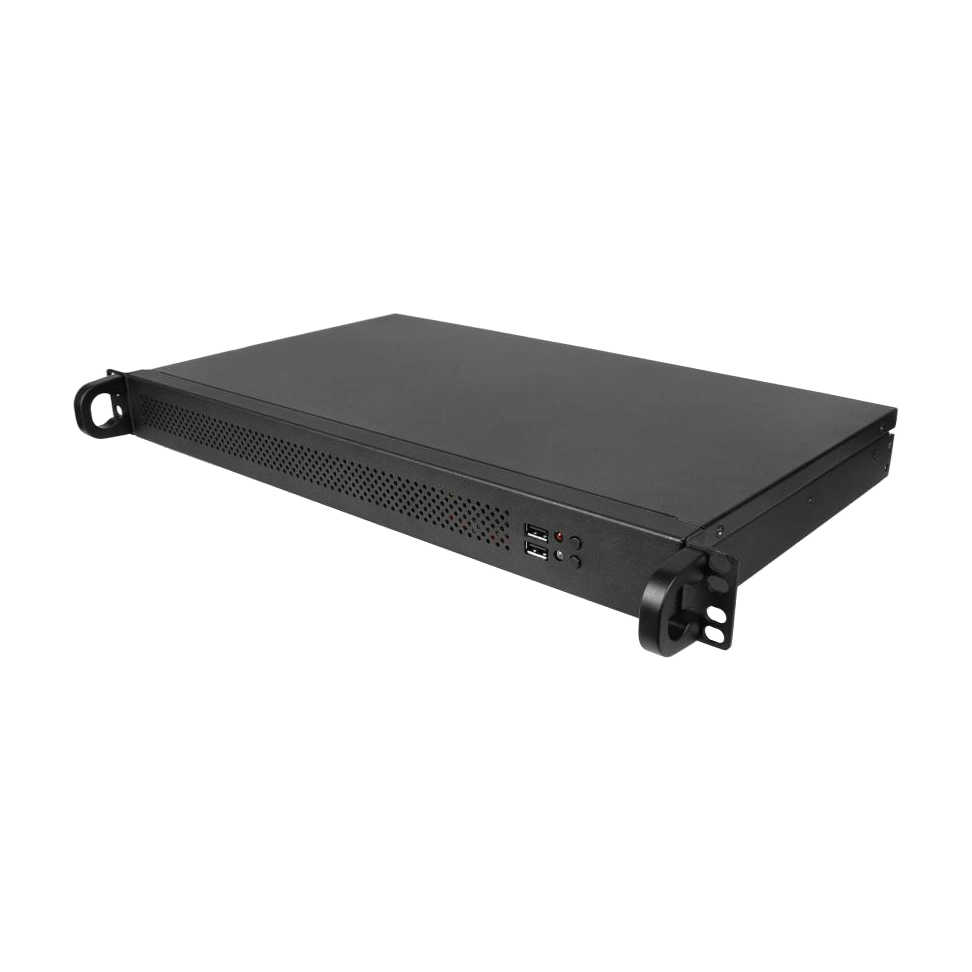

Barebone Jetway JBC150F592-Q170-B. 19" rackmount Mini-PC for applications in networking and security. Designed with the Intel Q170 Express chipset and support for Intel Core™ i3, i5, i7, Pentium CPUs with LGA1151 socket. Integrated FLEX 200W power supply with input AC 90~240V.
- INTEL® Core™ i3, i5, i7 and Pentium CPUs with LGA 1151 socket
- Intel® Q170 Express chipset
- 2 SO-DIMM DDR3L 1333/1066MHz (Max 16GB)
- 8 Giga LAN ports
- Supports 1 HDMI , 1 GPIO (optional)
- Supports 1 COM port , 1 RJ-45 port
- Supports 2 USB 2.0 ports + 2 USB 3.0 ports
- Power supply: FLEX 1U 200W, AC 90~240V input
- Ideal for networking and security applications
Specifications:
| Product dimensions | 430 (W) * 251 (D) * 43 (H) mm |
| Product model | JBC150F592-Q170-B |
| MB model & size | JNF592-Q170 / MINI-ITX |
| BIOS | AMI 128MB SMT Flash ROM |
| CPU | Intel® LGA 1151 Socket Core i7/i5/i3/Pentium Processor |
| Memory | SO-DIMM DDR3L 1333/1066MHz * 2 (Max 16GB) |
| Storage | 2.5” SATA HDD * 2 (RAID-1 support) or 3.5” SATA HDD * 1 |
| Expansion | Full-size Mini-PCIE * 1 SIM card slot * 1 TPM support (optional) |
| Fan | DC-12V / 4020 fan * 3 |
| Front I/O port | Power LED * 1, HDD LED * 1 PW-SW * 1, RESET SW * 1 USB 2.0 * 2 |

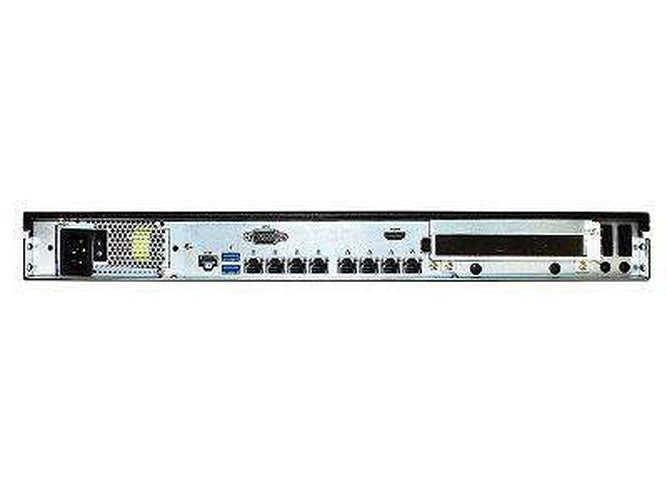

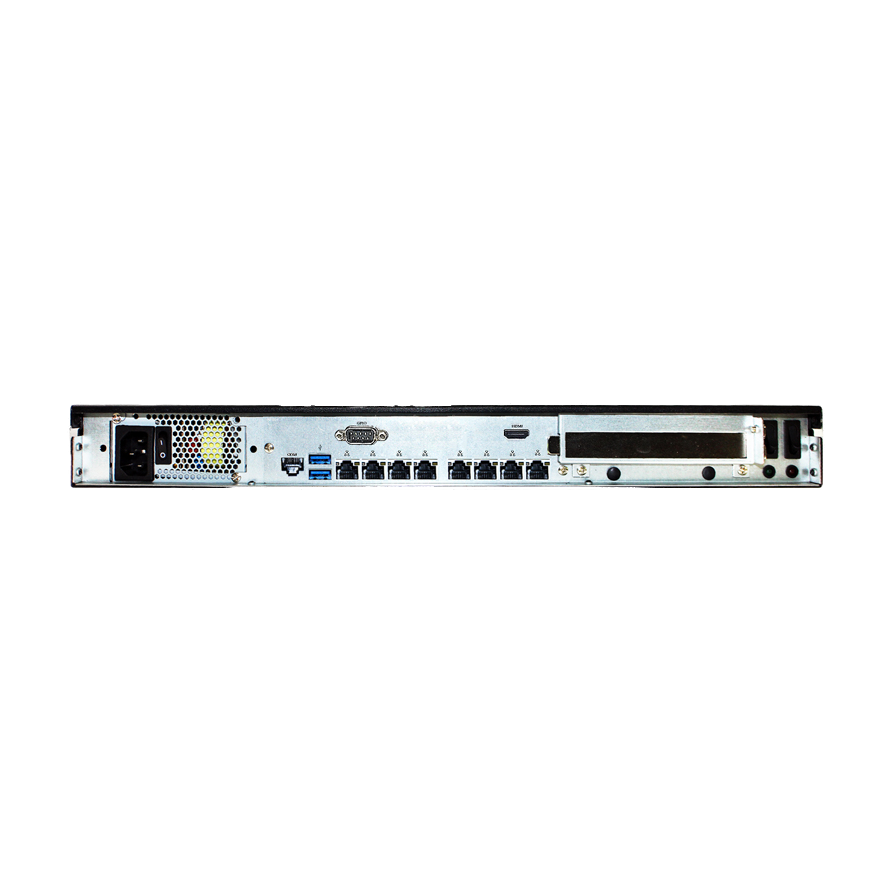

| Rear I/O Port | AC input * 1 PW SW * 1 & RESET SW * 1 Giga LAN * 8 USB 3.0 * 2 HDMI * 1, GPIO * 1 (optional) COM * 1 (RJ-45 type) |
| Power source | 1U 200W FLEX power supply with AC 90~240V input |
| Accessories | AC cable * 1 , screw package * 1 user manual * 1 , CD * 1 |
| Packing | Net weight：4.2KG Gross weight：5KG Colour box dimensions：560 (W) x 400 (D) x 380 (H) mm |
| Temperature | Operating temperature : 0°C~50°C Storage temperature : -10°C~70°C |
| Certification | CE, FCC, RoHS, ErP |
| Applications | Network surveillance |
