Rackmount PC HBJC150F594-Q170-B (Intel Q170, LGA1151)

Rackmount PC HBJC150F594-Q170-B (Intel Q170, LGA1151)

Price excludes VAT 658.00€
Price excludes VAT 658.00€
Total with VAT (23%): 809.34€
Shipping calculated at checkout.
SKU: HBJC150F594-Q170-B
Product type: PCs Rackmount
Manufacturer: Jetway

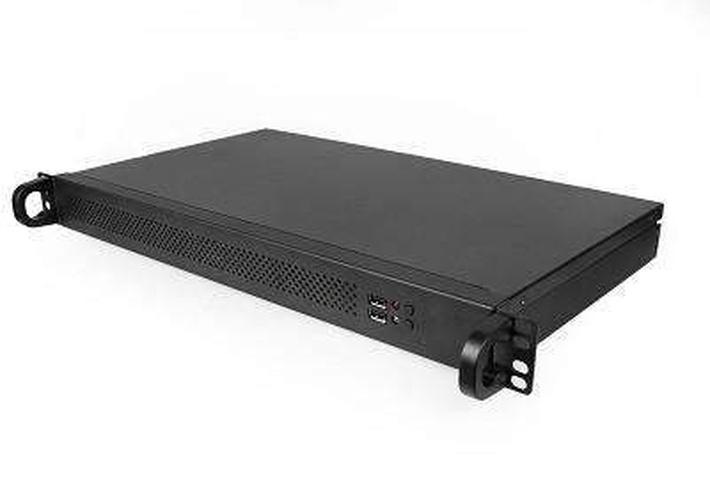

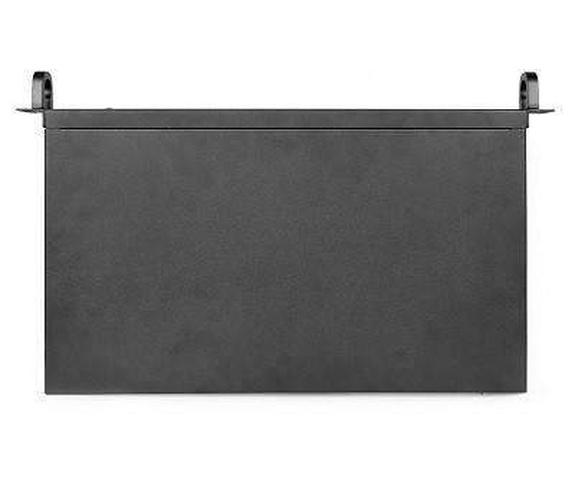

Jetway JBC150F594-Q170-B barebone. 19" rackmount Mini-PC for applications in network and security. Designed with the Intel Q170 Express chipset, it supports Intel Core™ i3, i5, i7 and Pentium CPUs with an LGA1151 socket. Integrated FLEX 200W power supply with input AC 90~240V.



  • INTEL® Core™ i3, i5, i7 and Pentium CPUs with LGA 1151 socket
  • Intel® Q170 Express chipset
  • 2 SO-DDR4 2133MHz slots, max. 32GB
  • 2 Gigabit LAN ports (INI219LM + i211AT)
  • 1 DVI-I port + HDMI + DisplayPort
  • Supports 2 COM ports (1 RS232, 1 RS232/422/485)
  • 6 USB 3.0 ports
  • Applications: industrial management systems, network servers and workstations



Jetway-JBC150F594-Q170-B-datasheet



Specifications:

Dimensions 430 (W) * 250 (D) * 44 (H) mm
Model JBC150F594-Q170-B
Motherboard model and form factor NF594-Q170 (Mini-ITX)
CPU Intel LGA 1151 socket for Core™ i3, i5, i7 and Pentium CPUs
Chipset Intel® Q170 Express chipset
Memory DDR4-2133MHz / SO-DIMM *2 / Max.: 32GB
Drive bays 3.5” SATA device * 1 or 2.5” SATA device * 2
Color Black

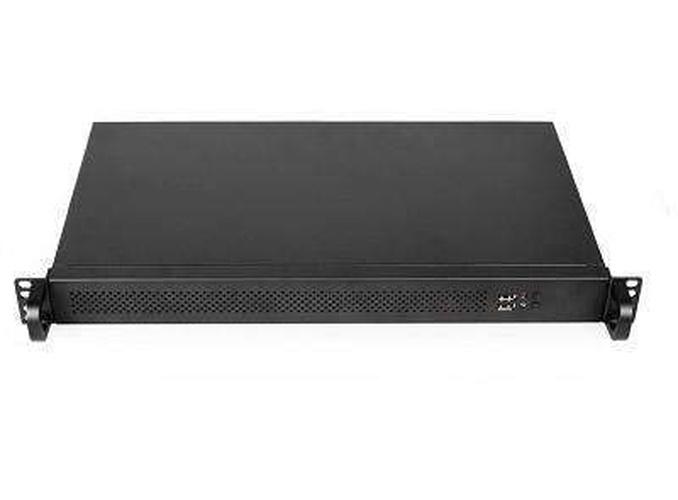

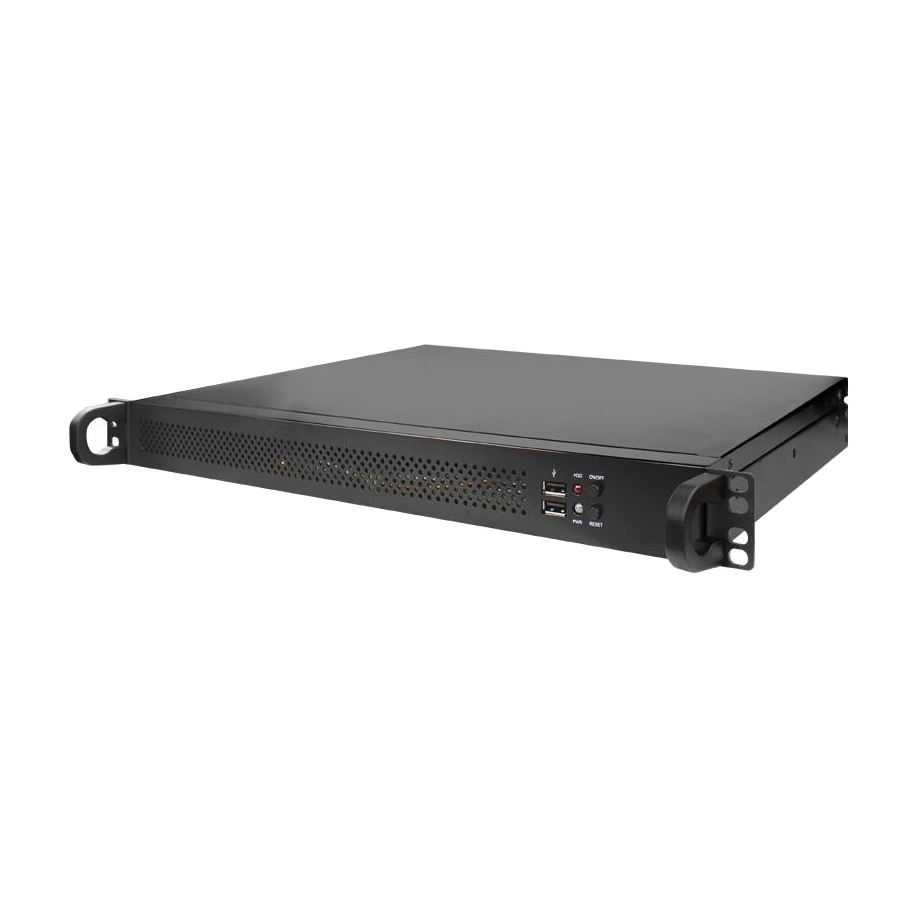

Front I/O Power SW * 1 Reset SW * 1 Power LED * 1 HDD R/W LED * 1 USB 2.0 * 2

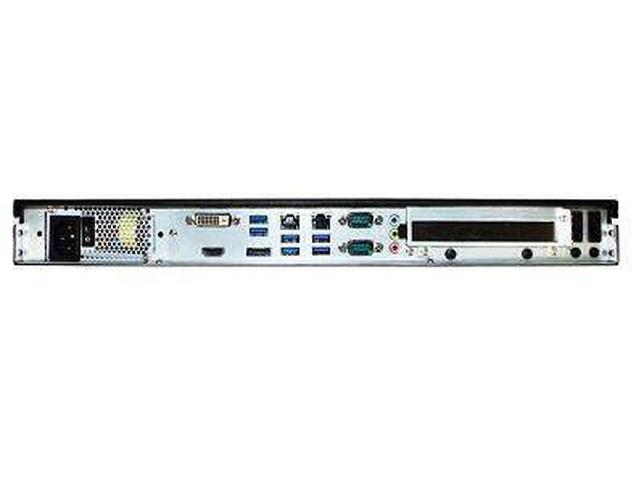

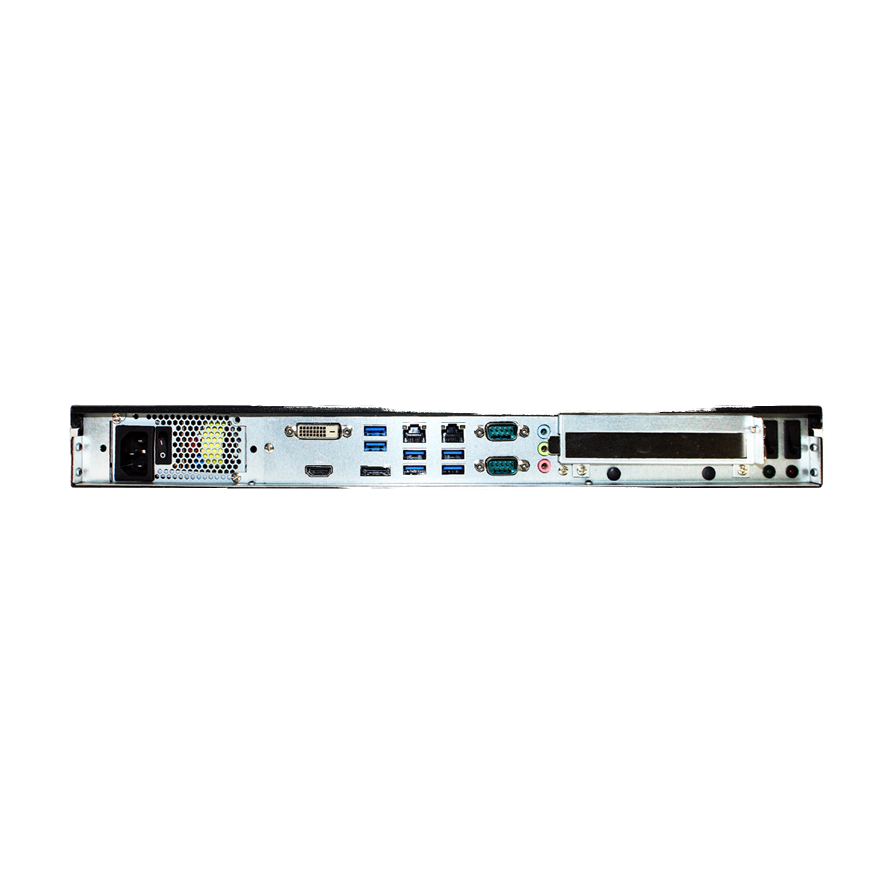

Rear I/O Power SW * 1, Reset SW * 1, Power LED * 1, HDD R/W LED * 1, Intel Giga LAN port * 2 (INI219LM + i211AT), DVI-I port * 1, HDMI * 1, DP * 1, COM port * 2 (1*RS232, 1* RS232/422/485), USB 3.0 port * 6, MIC * 1, line input * 1, line output * 1, AC input * 1
PSU 1U-200W / PFC support / 150 (L) *81.5 (W) *40.5 (H) mm (FLEX)
Fan 4020 fan * 3 / 7000 rpm / DC-12V-0.1A / 8 CFM
Expansion PCI-E x 16 slot * 1
Storage 3.5” HDD * 1 or 2.5” HDD * 2 (SATA 3 support)
Accessories Power cord * 1 Quick Installation Guide * 1 User Manual * 1 CD * 1 Screw Package * 1
Packaging Weight: 3.5KG; packaged weight: 4.5KG; color box dimensions: 530 (W) x 352 (D) x 142 (H) mm
Certifications CE, FCC, RoHS, REACH
Applications Industrial control system, network server or workstation
