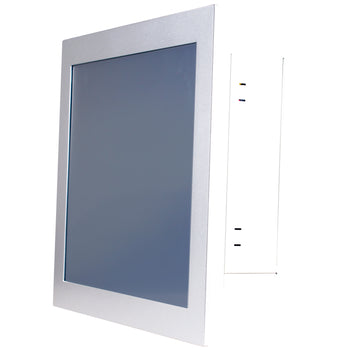

Panel PC 17' HPC-170SR-ITQ170 (LGA1151)

Display

Front bezel

– IP65, NEMA 4 rugged protection, metal front bezel

Display type

– 17.0″ with LED backlight

Brightness (cd/m²)

– 350 nits

Display colors

– 262K

Resolution

– 1280 x1024 @ 60Hz

Viewing angle (H/V)

– 170°/160°

Aspect Ratio

– 4:3

Contrast Ratio

– 1000:1

Response Time

– 3.5 ms

 Touch Screen

Type

– 5-wire analog resistive type

Active Area

– 337.00 x 269.50mm ±0.2mm

Operating Force

– ≦ 80g

Transparency

– 80 ±3%

Surface hardness

– ≧3H (ASTM D3363, pressure of 750g/45°)

Touch Test

– 10,000,000 keystrokes

 Main System

CPU

– Intel® LGA1151 Socket

RAM

– DDR4 2133MHz, Max 32GB

BIOS

– 128MB SPI Flash ROM

Storage

– 1* 2.5” SATA HDD
– 1* M.2 connector

Watchdog Timer

– 256 levels, 0~255 sec.

OS Support

– Windows 7 / 8.1 / 10 / Linux (Option)

 I/O Connector

I/O Ports and Switches

– 6 * USB3.0
– 2 * RS232
– 2 * RS232/422/485
– 1 * DVD-D,HDMI,DP
– 2 * LAN (Intel® I211AT+I219LM Gigabit LAN)
– 1 * 110~240V AC input
– 1 * Audio Jack
– 1 * Expansion card
– 1 * Power button

 Expansion Interface

Expansion

– 2 * PCI-E mini cards for WIFI or 4G/3G

 Power

Power Input

– AC version: 100~240V AC

 Dimensions

Case Dimensions

– 421*354*91mm

 Certifications

Certifications

– CE, FCC, IP65 (Front)

 Environment

Temperature

– Operating Temperature: -10 ~ 60° C (with W.T. DRAM/HDD under airflow conditions)
– Operating Temperature: -10 ~ 60° C (with W.T. DRAM/HDD)
– Storage Temperature: -20 ~ 65° C

Shock

– Operating: 15G，11ms duration

Vibration

– Operating: 5~500Hz/1 Grms

 Warranty

Warranty

– 2-Year Limited Warranty (Panel and Touch are covered by a 1-Year Warranty only)
