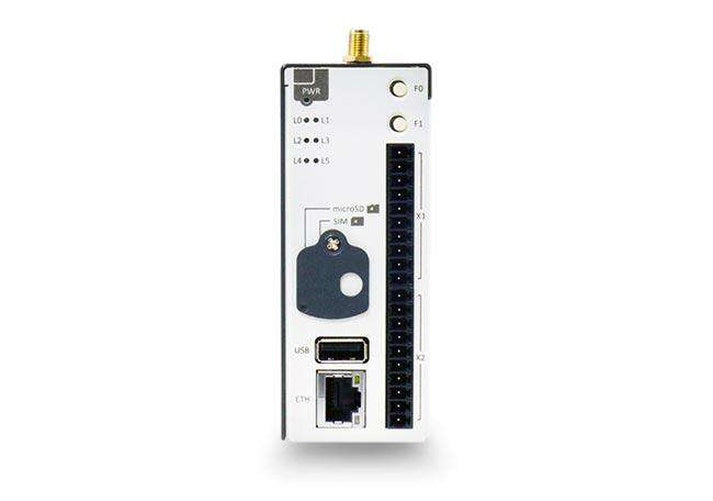

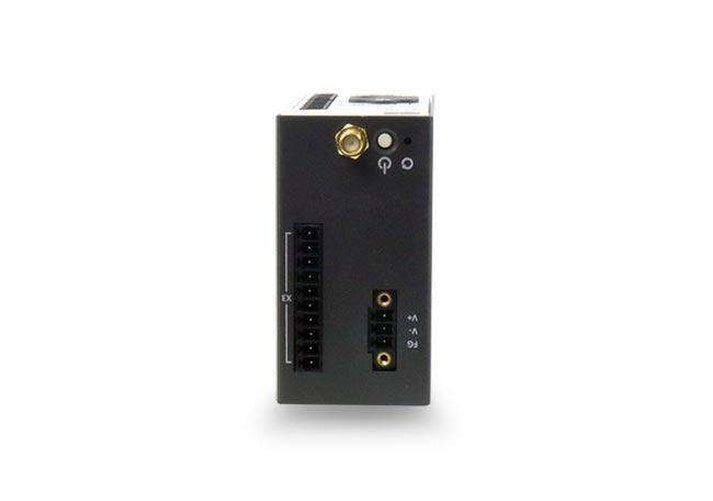

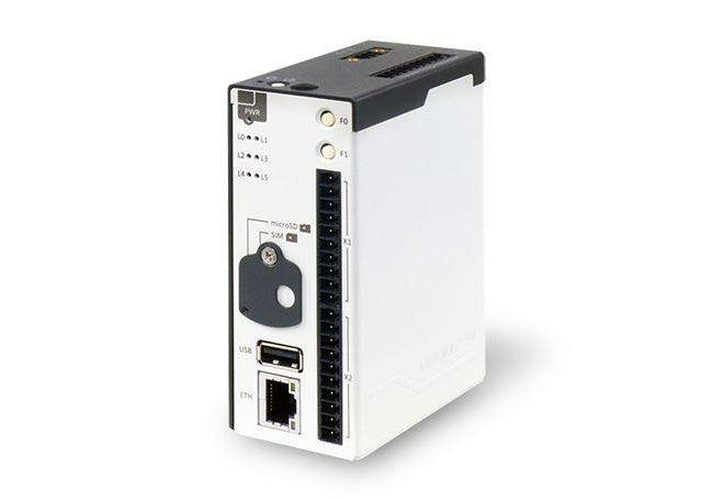

Gateway IoT IGT-21 ARM (CAN bus)

IGT-21

Microsoft Azure Certified for IoT

• Industrial-grade ARM-based system with Debian pre-installed
• Compact design for wireless gateway applications
• Operating temperature from -25℃ to 70℃
• Wide-range 8 to 25V DC input
• Rich local I/Os, including a USIM slot, USB, 10/100M LAN, and RS-232/422/485
• Microsoft Azure Certified for IoT
• Operating temperature: -25~70°C
• Wide-range DC input: 8-25VDC
• Shock: 50G
• Vibration: 5G
• EMC: CE/FCC Class A

The Neousys IGT-21 ARM-based Box PC is a fanless industrial IoT (Internet of Things) gateway for in-vehicle communication. Unlike a System on Module (SoM), which is commonly supplied as a barebone component, the IGT-21 is based on the AM3352 from Texas Instrument's Sitara AM335x family and is supplied as a ready-to-use system with Debian pre-installed. The industrial design of the IGT-20 means that it complies with common industrial certifications and requirements such as CE/FCC, shock, and vibration. Another advantage of the IGT-20 over a SoM is that it accepts a wider range of power inputs, from 8 to 25 VDC (a SoM usually accepts 5 VDC).

As an industrial IoT gateway for in-vehicle communication, the IGT-21 provides I/Os suitable for a wide range of industrial-grade sensors. It features one USB2.0 port, one 10/100M LAN port, two configurable COM ports (RS-232/422/485), and an optional CAN bus port. In addition to these ports, there are 4 built-in isolated digital input channels that accept discrete signals from various sensors, buttons, or switches. There are also four built-in isolated digital output channels for controlling actuators and indicators.

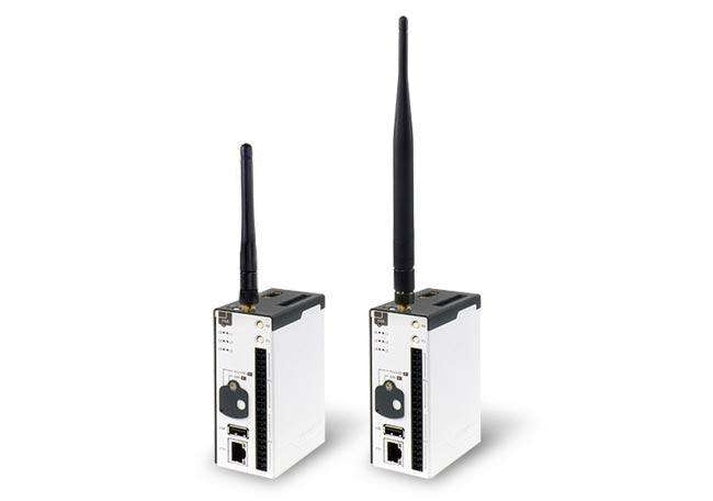

For communications, the IGT-21 features a mini PCIe slot and a USIM holder, allowing it to transmit acquired data and system status through vehicle-to-vehicle communication (V2V) via 3G, 4G, or WiFi (mini PCIe WiFi module). An opening on top of the IGT-21 allows users to mount the wireless module's SMA connector. For storage, the IGT-21 has dual microSDHC slots, one internal and one external. This design allows users to separate system and user data and can accelerate OS deployment for mass production. As a gateway, the IGT-21 can be operated without a keyboard or mouse using six programmable status LED indicators and two control buttons.

Applications:

Rich local I/O

Rich connectivity

Dual microSD
