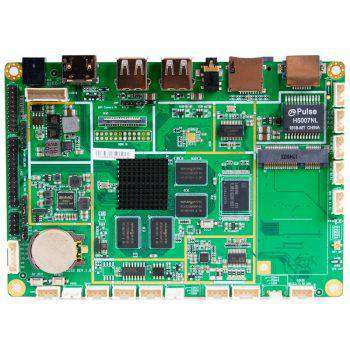

Jetway ARM-R3288-2N (ARM Cortex A17, Android 5)
3.5″ ARM SBC board for Android solutions.
-
Rockchip RK3288 quad-core processor.
-
2GB DDR3 DRAM and 8GB onboard flash ROM.
-
Supports HDMI.
-
Supports 1x Mini PCIe and 1x TF card slot.
-
Supports 6x USB2.0, 1x OTG and 4x COM.
-
3.5" SBC form factor.
Specifications:
|
Form factor |
|
|
Dimensions |
–3.5” SBC (102 * 146mm) |
|
System |
|
|
CPU |
– Rock chip® ARM Cortex A17 RK3288 1.8GHz |
|
Number of cores |
– Quad-core |
|
Maximum speed |
– 1.8G |
|
L2 cache |
– 0 |
|
Chipset |
– Rock chip® ARM Cortex A17 RK3288 SoC |
|
BIOS |
– 0 |
|
PMU |
– Rock chip® RK808‐B |
|
Expansion slots |
|
|
PCI |
– 0 |
|
Mini-PCIe |
– 1 (full-size, via USB interface) |
|
SIM card holder |
– 1 |
|
Technology |
– Onboard DDR3L 1333MHz 2GB |
|
Max. |
– 4GB |
|
Socket |
– |
|
Flash ROM |
– 8GB (Max. 32GB) |
|
Graphics |
|
|
Controller |
– (by CPU) |
|
VRAM |
– Shared memory |
|
VGA |
– 0 |
|
LVDS |
– 1 * 24 bit dual-channel connector |
|
eDP |
– 1 * eDP support up to 3840*2160@60Hz |
|
HDMI |
– 1 (2.0) |
|
DVI‐D |
– 0 |
|
MultiDisplay |
– Dual display |
|
Ethernet |
– 10/100/1000 Mbps |
|
Controller |
– 1 * Realtek RTL8211E‐VB Gigabit LAN |
|
Connector |
– 1 * RJ 45 |
|
Audio |
|
|
CODEC |
– HD Audio: ES8316 |
|
Channel |
– 2 channels |
|
Special features |
|
|
Wi-Fi |
– 802.11 b/g/n, 2.4G |
|
Wi-Fi chip |
– RTL8723BS |
|
Bluetooth |
– BT‐V4.0 BLE |
|
3G |
– WCDMA, EVDO,CDMA,GSM (Option) |
|
LTE |
– LTE‐TDD/LTE‐FDD/TD‐SCDMA/EDGE/GPRS/GSM (Option) |
|
OS |
– Android 5.1 |
|
VGA |
– 0 |
|
DVI‐D |
– 0 |
|
DisplayPort |
– 0 |
|
Ethernet |
– 1 |
|
Audio |
– 1 (Line-Out, MIC) |
|
Serial |
– 0 |
|
SIM socket |
– 1 |
|
TF card socket |
– 1 |
|
LVDS / inverter |
– 1 (24 bit) |
|
USB |
– 4 ( 4 * USB 2.0) |
|
Other |
– 1 * I2C |
|
SATA |
– 0 |
|
Interval |
– 256 segments, 0,1,2…255sec/min |
|
Power |
|
|
Power input |
– 12V DC input (PWR connector) |
|
Power-on |
AT/ATX supported |
|
Certified |
|
|
Certifications |
– CE, FCC, RoHS, REACH |
|
Warranty |
|
|
Warranty |
– 2-Year Limited Warranty |
|
Temperature |
– Operating: 0°C ~ 45°C |
|
– Storage: -20°C ~ 65°C |
|
|
Packaging |
– Net Weight: |
* Specifications are subject to change without notice. We are not responsible for typographical errors. HDD and OS are not included.
