Jetway BFBLZ38 (Intel Elkhart Lake J6412, 7x 2.5GbE LAN)

CPU

Intel® Celeron® J Series processor (formerly Elkhart Lake)

CHIPSET

Intel® J6412 (TDP 10W)

SYSTEM MEMORY

1 x DDR4 3200MHz SODIMM, up to 32GB

DISPLAY INTERFACE

1 x HDMI 2.0b (maximum resolution: 4096×2160@60Hz)

STORAGE DEVICE

1 x M.2 M-key 2242/2280 (SATAIII interface)
1 x M.2 M-key 2280 (PCIe Gen.3 x2 interface) with NVMe support

ETHERNET

7 x Intel® I225-V, 2.5GbE (LAN1/2/3/4 support the BY PASS function)

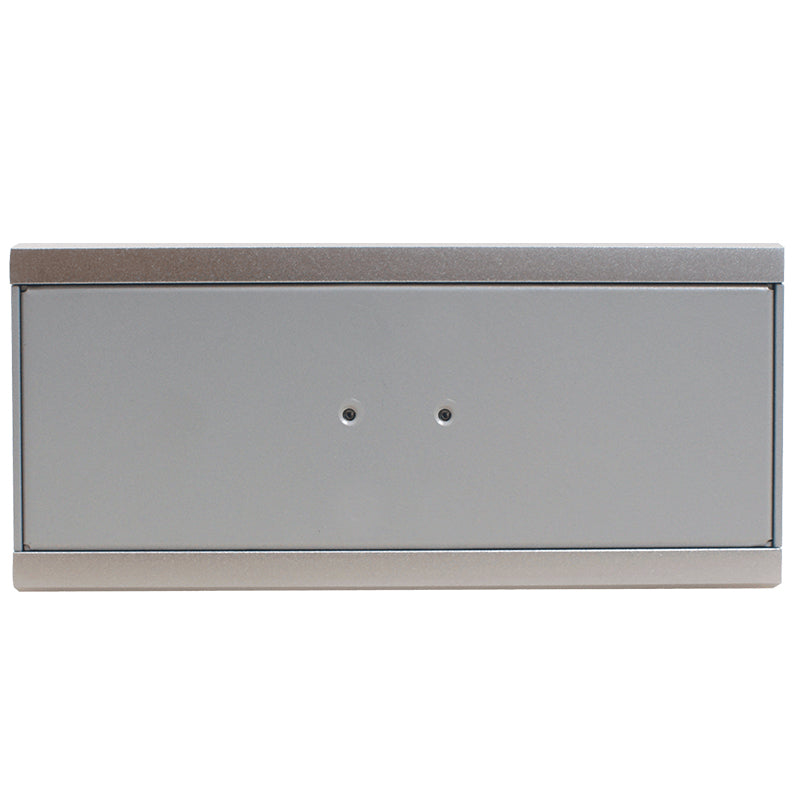

Front I/O

DIN rail screw mounting

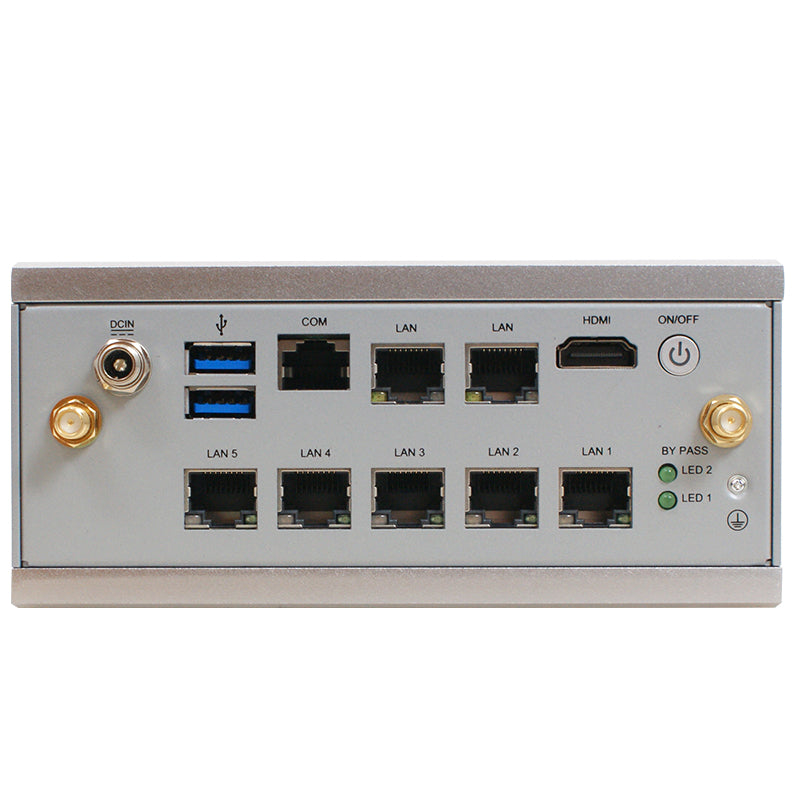

Rear I/O

2 x SMA antenna holes
DC jack (Lockable)
2 x USB3.2 Gen.1
7 x RJ45 (LAN1/2/3/4 support the Bypass function)
1 x Console (RS232/422/485)
1 x HDMI
1 x power button, power LED
2 x Bypass LED
GND hold

EXPANSION

1 x M.2 E-Key 2230 for Wi-Fi module

INDICATOR

1 x Power LED
2 x Bypass LED

OS SUPPORT

Windows® 10
Windows® 11
Linux

POWER REQUIREMENT

MB: DC Input 12V
Adapter: AC100~240V / DC12V 5A 60W

MOUNTING

Desktop, wall mount, DIN rail

Dimensions (W x H x D)

161.0(W) x 89.0(D) x 67.0(H) mm (6.3″ x 3.5″ x 2.6″)

GROSS WEIGHT

—

NET WEIGHT

—

Operating Temperature

-10°C ~ 50°C (14°F ~123°F)
(When using an SSD with an M.2 interface)

Storage Temperature

-20°C ~ 60°C (-4°F ~141°F)

OPERATING HUMIDITY

10 ~ 90% @ 40°C, non-condensing

ANTI-VIBRATION

—

ANTI-SHOCK

—

CERTIFICATION

CE/FCC Class A , LVD

Part Number

Description

QTY per Board

—

BFBLZ38

1

HCSFB38MWM01S-F

Wallmount

2

L01AS052-F

Adapter DC12V_60W

1

LCSCHBFDXXX-F

Screw Pack

1

Varies by shipping region

Power cord (region-specific)

1

J05-ANT-GX57245-F

Antenna 2.4G/5G 2.8dBi

2
