Jetway HBFBZ10 Series (Elkhart Lake J6412, 4 Intel i225V 2.5GbE)
  • Jetway HBFBZ10 Series (Elkhart Lake J6412, 4 Intel i225V 2.5GbE)
  • Jetway HBFBZ10 Series (Elkhart Lake J6412, 4 Intel i225V 2.5GbE)
  • Jetway HBFBZ10 Series (Elkhart Lake J6412, 4 Intel i225V 2.5GbE)
Jetway HBFBZ10 Series (Elkhart Lake J6412, 4 Intel i225V 2.5GbE)

Jetway HBFBZ10 Series (Elkhart Lake J6412, 4 Intel i225V 2.5GbE)

Price excludes VAT 348.00€
Price excludes VAT 348.00€
Total with VAT (23%): 428.04€
Shipping calculated at checkout.
SKU: HBFBZ10-6412-B-1
Product type: Desktop Network PCs
Manufacturer: Jetway
VERSIONS:

HBFBZ10 Series

Intel® Elkhart Lake SoC Processor, 4* 2.5GbE, 1* COM (RJ45 type), 1* HDMI, 2* USB3.1

  • Intel® Elkhart Lake J6412
  • DDR4 3200MHz SODIMM up to 32GB
  • 4x Intel i225V 2.5GbE
  • Suporta TPM2.0
  • 2x USB, 1x HDMI, 1x COM (RJ45 type)
  • 1x M.2-2242, 1x M.2-2230, 1x M.2-3042
  • 12V DC-in

 Model

 – HBFBZ10-6412-B
– HBFBZ10I-6412-B
– HBFBZ10-6412-E (EMMC)
– HBFBZ10I-6412-E (EMMC)
– HBFBZ10-6412-T (EMMC&TPM)
– HBFBZ10I-6412-T (EMMC&TPM)

 CPU/Chipset

 – Intel® Elkhart Lake SoC Processor (J6412)

 BIOS

 – AMI Flash ROM

 Memory

 – 1* DDR4 3200MHz SO-DIMM up to 32GB

 Network

 – 4* Intel i225V 2.5GbE

 Graphics

 – Intel® HD Graphics, shared memory
– 1* HDMI 2.0 (Max Resolution: 4096×2160@60Hz)

 Storage

 – 1* M.2 M-key (2242, PCIe Gen.3 x2/SATA interface) supporting NVME, (co-layout M.2 B-key)

 Expansion slot

 – 1* M.2 E-key (2230, PCIe Gen.3 x1/USB2.0 interface)
– 1* M.2 B-key (3042/3052, USB3.1 interface) co-layout M.2 M-key
(If an M.2 B-key type-3042/3052 card is used, the M.2 M-key type-2242 is unavailable; and vice versa)

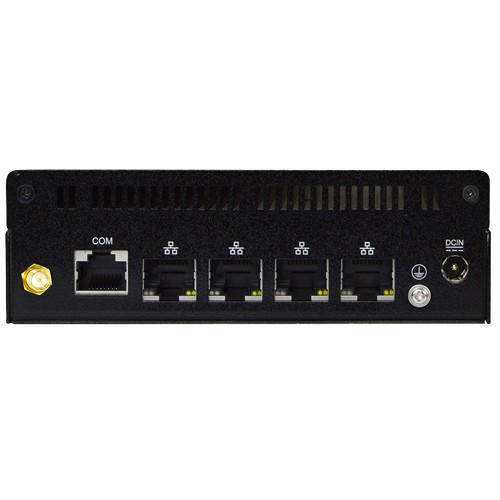

 Rear Panel I/O

 – 4* RJ45
– 1* COM (RJ45 type)
– 1* DC-in jack

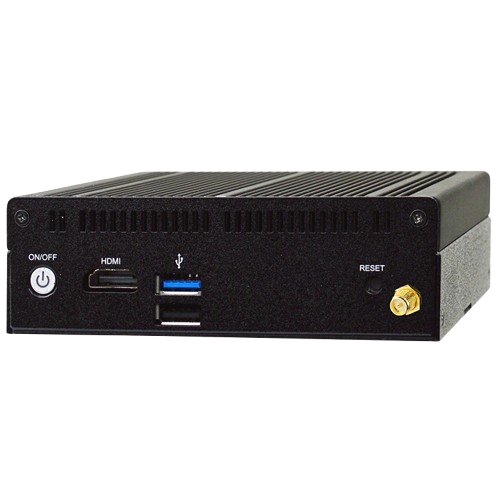

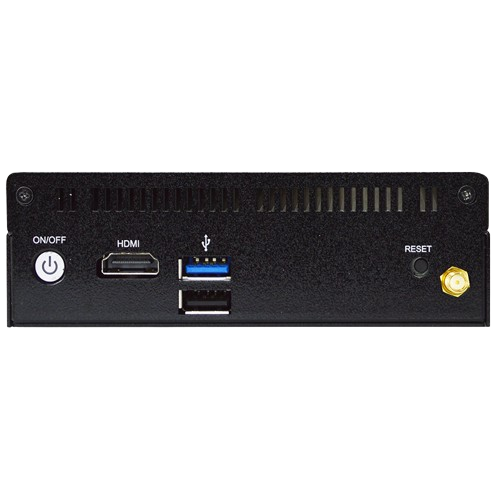

 Front Panel I/O

 – 1* Power button + Power LED
– 1* Reset
– 1* USB3.1
– 1* USB2.0
– 1* HDMI (Max. resolution: 4096×2160@60Hz)

 Internal Connector

 – 64GB onboard eMMC (depending on model)
– 1* SIM card holder

 Compliance

 – CE, FCC, RoHS, ErP Ready

 Power Source

 – MB: DC12V input
– Adapter: AC 90~240V input / DC12V-3.3A-40W output

 Compliance

 – CE, FCC, LVD, RoHS, ErP Ready

 Temperature

 – Operating Temperature: -20 ~ 60° C (when using an SSD with an M.2 interface)
– Storage Temperature: -40 ~ 85° C
– Humidity: 10% ~ 95% RH @40°C (non-condensing)

 Dimensions

 – System: 125 (W) x 109 (D) x 39.5 (H) mm
– Color Box: 158 (W) x 167 (D) x 123.6 (H) mm

 OS Support

 – Windows 10, Windows 11, Linux

 Warranty

 – 2 Year limited warranty

  * Specifications are subject to change without notice. We are not responsible for typographical errors. HDD and OS are not included.
