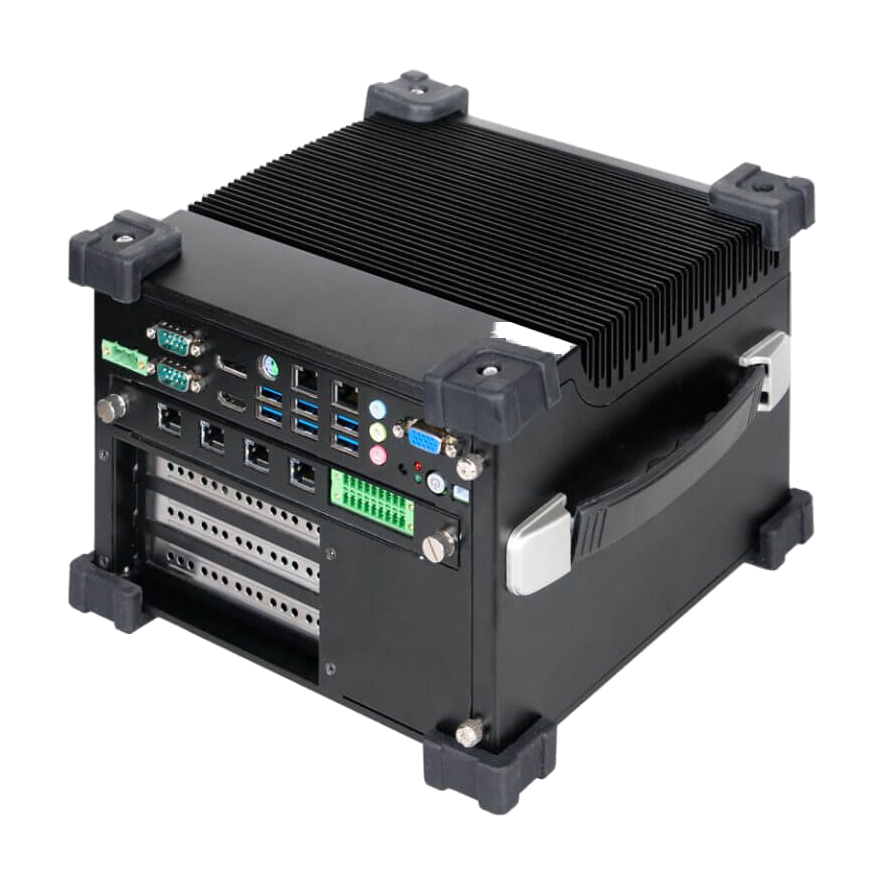

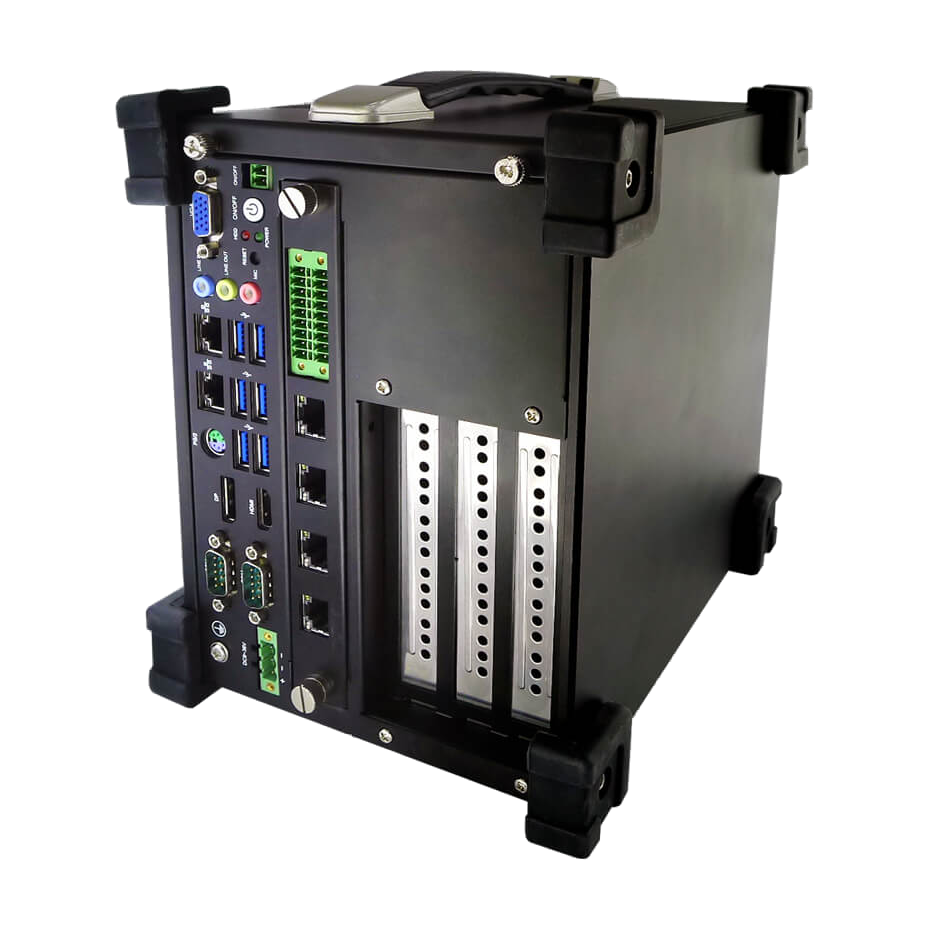

Jetway HM-1300 (Intel® SkyLake Q170)
HM-1300
Intel® Q170 chipset, LGA1151 processor, 1* PCI-E expansion slot, 2* PCI slots, 1* extension slot and 1* Mini PCIe slot
- Intel® LGA 1151 Socket Core i7/i5/i3 Processor (Max 54W)
- Supports 2*DDR4 2133/1866 SO-DIMM (Max 32GB)
- 2 x Intel® 10/100/1000Base-T Ethernet (i219LM +i211AT)
- 2 x RS-232/422/485 ports with automatic flow control
- VGA, HDMI and DP support 3 x independent displays
- 6 x USB3.0, 1 x PCI-E x16 slot, 2 x PCI slots, 1 x extension slot
- The extension slot can be used to add 14 x USB3.0, 4 x GbE or other functional interfaces
- Thumbscrew for easy maintenance and expansion card installation
- The wired switch facilitates on-site operation
- Supports Intel® vPro (CPU-dependent)
- The 9~36V wide input-voltage range meets the needs of different industries
The HM-1300 system was designed with a 9 ~ 36V wide input-voltage range and overvoltage and overcurrent protection. It supports up to 32g of memory with 2* SO-DIMM DDR4 2133 memory modules. In addition, it supports the simultaneous connection of 3 displays and includes a front switch function.
The HM-1300 system features a durable aluminum structure with a thickness of 5 mm, providing strength, stability and an attractive appearance. Its fanless and cable-free design, together with the battery fastening assembly, further enhances system stability.
To meet various customer requirements, the HM-1300 system offers a range of expansion and extension options. Jetway can design expansion cards based on specific customer needs. The standard interface includes 1*PCI-E x16 + PCI slots, and additional extension daughter cards can be supplied upon request. For example, a daughter card with 5*PCI slots is available. A vertical USB interface is provided on the extension card to support a watchdog function.
Finally, the HM-1300 system heat sink features protective covers on both sides, ensuring safe operation without the risk of burns. With its strong performance and safe design, we believe the HM-1300 system will exceed your expectations!

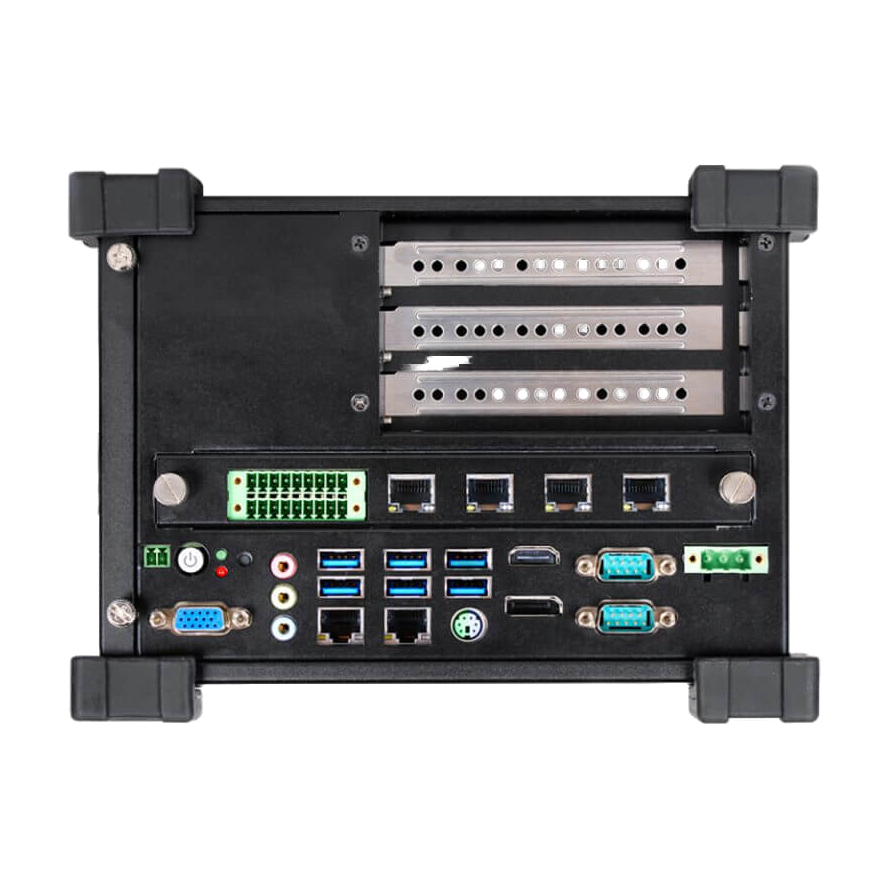

I/O
Dimensions
Model No. | – HM-1300 | – HM-1400 |
Part No. | – HM-1300 | – HM-1400 |
General | |
Certification | – FCC, CE, ROHS |
Dimensions (W x D x H) | – 212x150x220mm (W x D x H) |
Mounting | – Stand mount, enclosure mount |
Weight (net) | – 6.4Kg |
Power Requirements | – 9~36VDC |
Power Consumption | – Varies according to CPU |
OS support | – Windows 7/8.1/10, Linux |
Hardware | |
BIOS | – AMI 128Mbit Flash BIOS |
CPU | – Intel® LGA 1151 Socket Core i7/i5/i3 Processor (Max 54W) |
System Chipset | – Intel® SkyLake Q170 (HM-1300) |
Memory | – 2* SO-DIMM DDR4 2133 DRAM (Max 32GB) |
Graphics | – Intel® HD Graphics 530 (CPU-dependent) |
Ethernet | – 1* Intel® i219LM + i211AT GbE |
Storage | – 1* built-in 2.5” SATA HDD bracket |
Expansion | – 1* full-size Mini PCI-e |
Extension | – 1* extension card |
I/O Interface | |
Power Connector | – 1* 3 Pin terminal block with lock |
| Serial Port | – 2* RS-232/422/485 with DB9 connectors and automatic RS-485 data flow control |
Display | – 1* VGA, supports 1920×1080@60Hz |
| LAN Port | – 2* RJ45, 10/100/1000 Mbps |
| PS/2 Port | – 1* PS/2 keyboard and mouse port |
USB Port | – 6* USB3.0 |
| Audio | – MIC, Line-in, Line-out |
| Power Button | – 1* Power Button |
Reset Button | – 1* Reset Button |
LED | – 1* Power LED, 1 x HDD LED |
Front Power Button | – 1* 2Pin power connector |
Environment | |
Temperature | – Operating: -10 ~ 60°C |
Relative Humidity | – 10 ~ 90% RH, non-condensing |
Vibration Protection | – Operating, IEC 60068-2-64-2008 |
Shock Protection | – Operating, EN 50155: 2017 |
CE Protection | – EN 55032 : 2015 |
Warranty | |
Warranty | -2 Years Limited Warranty |
* Specifications are subject to change without notice. We are not responsible for typographical errors. HDD and OS are not included.
