Jetway N11-1115 (Tiger Lake-UP3 i3-1115G4, 5* USB 3.2, 2* LAN)
Jetway N11-1115 (Tiger Lake-UP3 i3-1115G4, 5* USB 3.2, 2* LAN)
Jetway N11-1115 (Tiger Lake-UP3 i3-1115G4, 5* USB 3.2, 2* LAN)

Jetway N11-1115 (Tiger Lake-UP3 i3-1115G4, 5* USB 3.2, 2* LAN)

com IVA
541.20€

sem IVA
440.00€
Sku: N11-1115
Product Type: PCs Industriais
Vendor: Jetway

N11-1115

Embedded NUC PC Intel® Tiger Lake-UP3 i3-1115G4

  • Intel® 11th Gen. Tiger Lake-UP3 SoC Processor
  • 2* DDR4 3200MHz SO-DIMM up to 64GB
  • Rich and complete connection interface, supports 4 sets of 4K HDR output
  • 3* internal M.2 expansion slots for various applications
Caraterísticas

I/O Frontal

N11-1115_Front_diagram

I/O Traseiro

N11-1115_Rear_diagram

Dimensões

N11-1115_size-1131x800
Especificações

 Model

 – N11-1115 (CPU: i3-1115G4)

 CPU/Chipset

 – Intel® Tiger Lake-UP3 Processor

 BIOS

 – AMI Flash ROM

 Memory

 – 2* DDR4 3200MHz up to 64GB

 Network

 – 1* Intel i219-LM GbE
– 1* Intel i225-V 2.5GbE

 Graphics

 – Intel® UHD / Iris Xe Graphics, shared memory
– 2* HDMI 2.0b (Max Resolution: 4096×2160@60Hz)
– 2* DP1.4 (Max Resolution: 4096×2304@60Hz) from Type-C
– Support Four independent 4K HDR Displays

 Storage

 – 1* M.2 M-key 2242/2280 (PCIe4.0 x4/SATAIII interface) support NVMe
– 1* 2.5” SATA Device (support 2.5” HDD with a height ≤ 10mm)

 Expansion slot

 – 1* M.2 E Key 2230 for WiFi module
– 1* M.2 B Key 3042/3052 for 4G/5G module

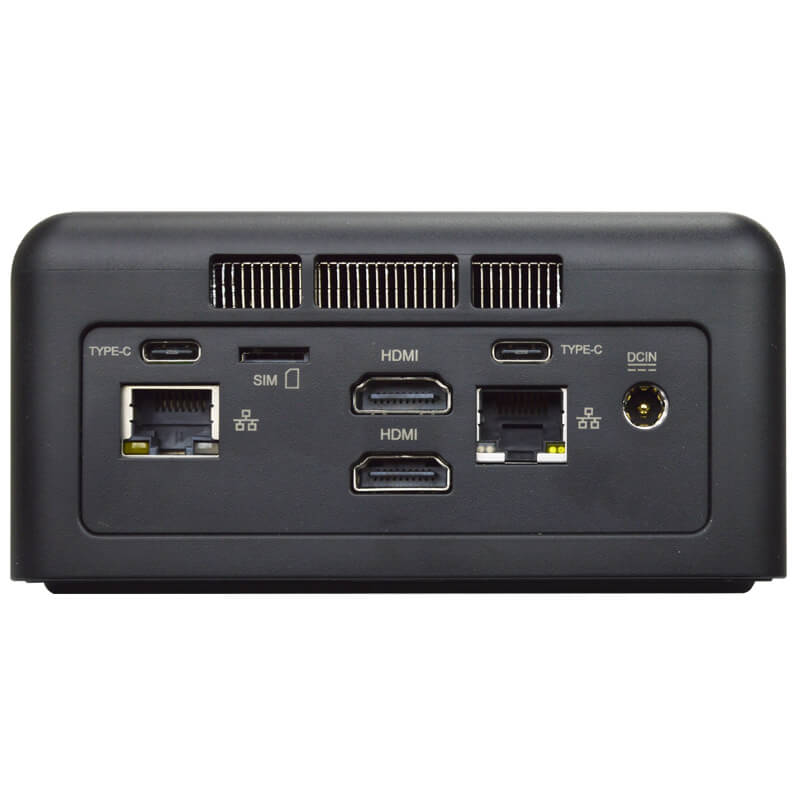

 Rear Panel I/O

 – 2* USB3.2 (Gen.2) Type-C support DP1.4 display output
– 1* SIM Card slot
– 2* HDMI 2.0
– 2* RJ45
– 1* DC Jack

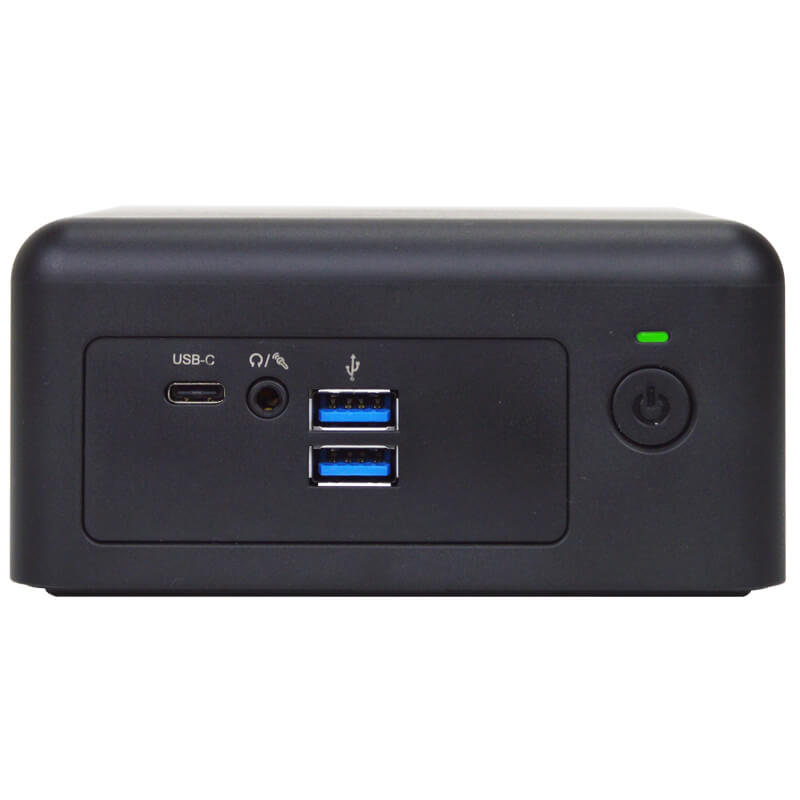

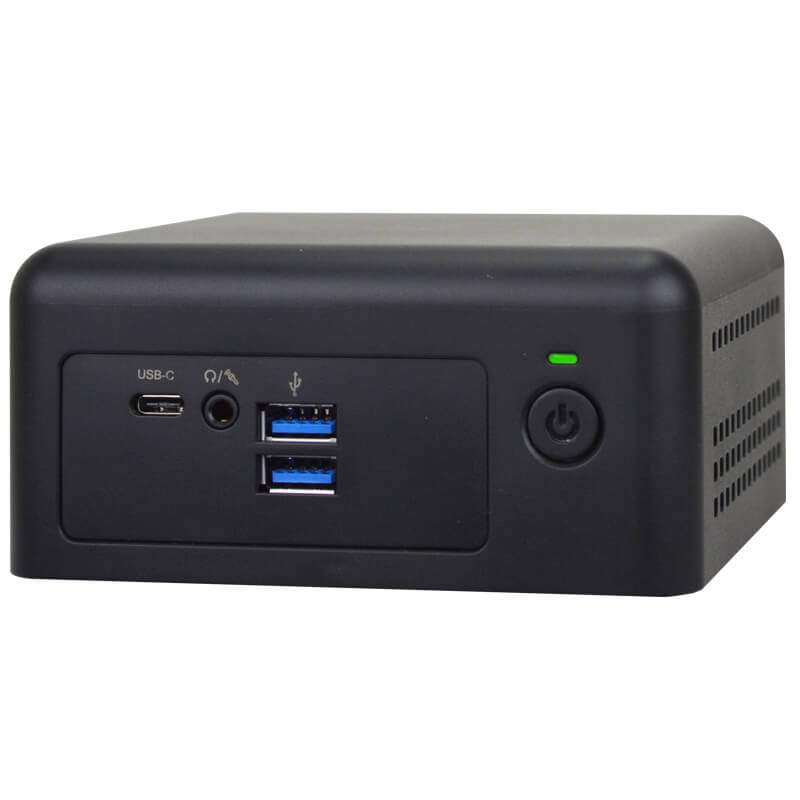

 Front Panel I/O

 – 1* Audio (Line out +MIC combo)
– 2* USB3.2 / A type (Gen.2)
– 1* USB3.2 / C type (Gen.2)
– 1* Power Button
– 1* Power LED

 Internal Connector

 – 1* SATAIII
– 1* AT/ATX mode jumper
– Onboard TPM2.0 (option)

 Compliance

 – CE, FCC, RoHS, ErP Ready

 Power Source

 – MB : DC12~24V input
– Adapter : DC12V_90W

 Compliance

 – CE, FCC, LVD, RoHS

 Temperature

 – Operating Temperature: -10 ~ 50° C
– Storage Temperature: -20 ~ 60° C

 Dimensions

 – System: 121 (W) x 113.4 (D) x 59 (H) mm
– Box: 244 (W) x 183 (D) x 118 (H) mm

 OS Support

 – Windows 11, Linux

 Warranty

 – 2 Year limited warranty

  * Specifications subject to change without notice, not responsible for typographical errors. Does not include HDD or OS.

Downloads
Datasheet
