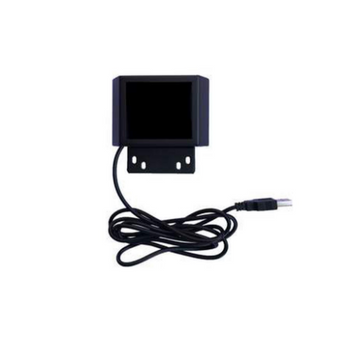

Leitor RFID
Price excludes VAT
189.00€
Sale price
Price excludes VAT
189.00€
Regular price
Total with VAT (23%): 232.47€
Shipping calculated at checkout.
- Integrated Easyident-Legic Module
- Easily attachable to the device using screw holes.
- Compatible with a wide range of faytech devices
- Solid design with an aluminum frame
- Provides 3 different data fields (System Identification, Application Number, Chip Serial Number)
| Product name | RFID Reader |
| Model number | FTRFIDV1 |
| Serial Interface | With TTL Output |
| Baud Rate | 19200, 8, n, 1 |
| Carrier Frequency (MHz) | 13.56 |
| Detection Time (ms) | 50 |
| Operating Temperature (°C) | -10 ~ +40 |
| Weight (g) | 150 |
| Housing Material | Aluminum with Plexiglass Front |
| Dimensions (cm) L × W × H | 5.60 × 8.10 × 2.80 |
| Cable Length (cm) | 1.20 |
| Power Supply | + 5v DC +/- 5% |
| Current Consumption (mA) | ~40 |
| Capacitive Touch PC | 10 - 21.5" (excluding 15.6") |
| Embedded Touch PC | 13.3 - 21.5" |
| Capacitive Touch Monitor | 13.3 - 21.5" (excluding 15.6") |
The RFID Reader provides 3 different data, these data are stored in 1 datastring and transmitted this way.
The user can select the individual values from the data string.
The following data is read and transmitted:
System identification (8 bytes)
Application number (6 bytes)
Chip serial number (8 bytes)
Checksum
CR and LF are then output.
The output is provided in ASCII-HEX format as follows.
Example: 01020304123456AABBCCDDZ <0xD> <0xA>
More information is available in the downloadable datasheet.
The user can select the individual values from the data string.
The following data is read and transmitted:
System identification (8 bytes)
Application number (6 bytes)
Chip serial number (8 bytes)
Checksum
CR and LF are then output.
The output is provided in ASCII-HEX format as follows.
Example: 01020304123456AABBCCDDZ <0xD> <0xA>
More information is available in the downloadable datasheet.
