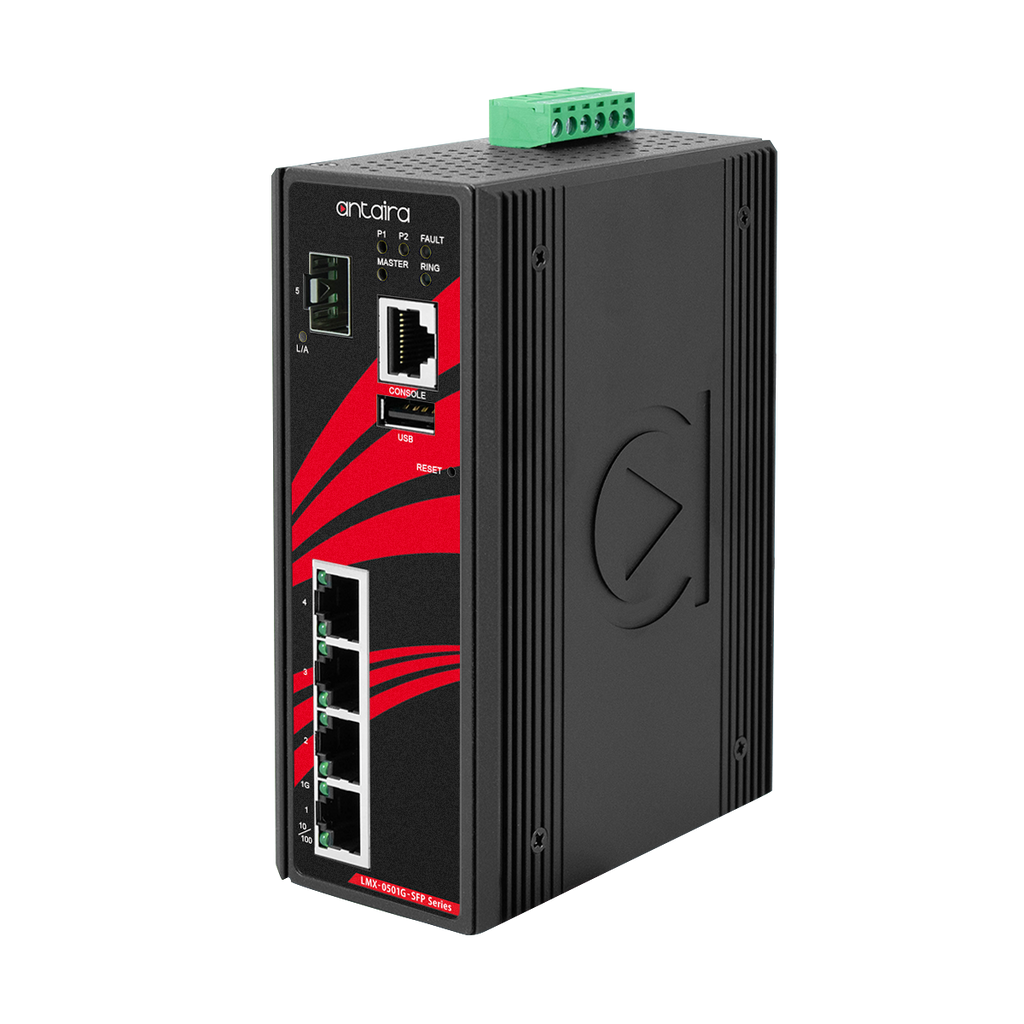

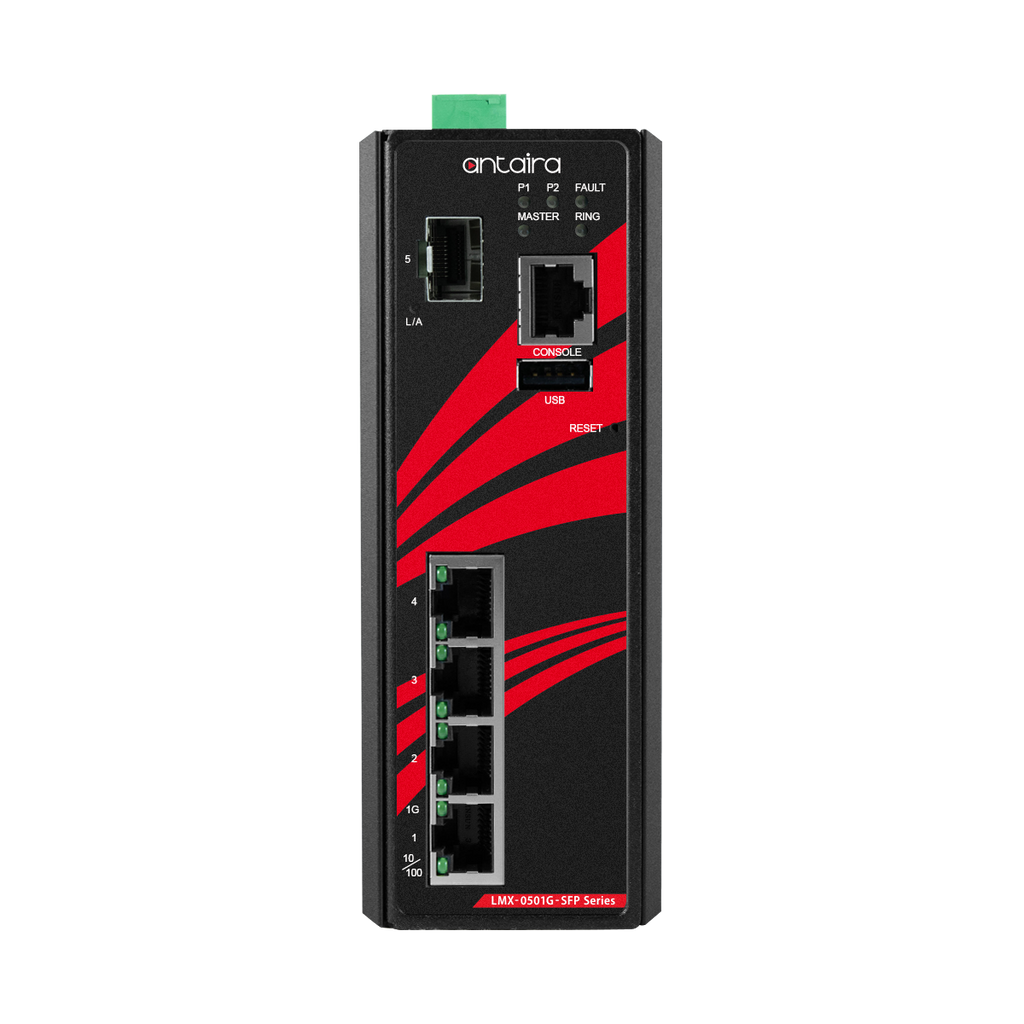

Switch LMX-0501G-SFP-V2 (4*10/100/1000Tx + 1*100/1000 SFP)

LMX-0501G-SFP-V2

LMX-0501G-SFP-T-V2 (EoT: -40~75C)

5-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch, with 4*10/100/1000Tx + 1*100/1000 SFP Slot - Version 2 Hardware

Antaira’s LMX-0501G-SFP series is a 5-port industrial Gigabit Light Layer 3 managed Ethernet switch equipped with four Gigabit Ethernet ports and one dual-rate (100/1000) SFP slot for fiber connectivity. This series is a fully manageable industrial Ethernet switch pre-loaded with standard Light Layer 3 network management software and supports a user-friendly web console interface for easy configuration.

The LMX-0501G-SFP series is IP30 rated, DIN-rail mountable, and is available in two wide-operating-temperature models: a standard temperature range (STD: -10°C to 70°C) or an extended temperature range (EOT: -40°C to 75°C). It also provides high EFT and ESD protection for industrial networking applications in factory automation, ITS, power/utilities, water and wastewater, and any other outdoor or harsh environment.

• Supports 4*10/100/1000Tx Fast Ethernet Ports and 1*100/1000 SFP Slot
• Network Redundancy Support: RSTP/MSTP and G.8032 ERPS (Recovery Time <50ms)
• Configuration: Web Console, Telnet, CLI Commands
• Supports IGMP v1/v2, up to 256 Groups
• Supports QoS (IEEE802.1p) and CoS/ToS
• Supports IEEE802.1Q VLAN, SNMP v1/v2c
• System Warning Settings for Automatic E-Mail Alerts
• Redundant Power Input Design – 12~48VDC

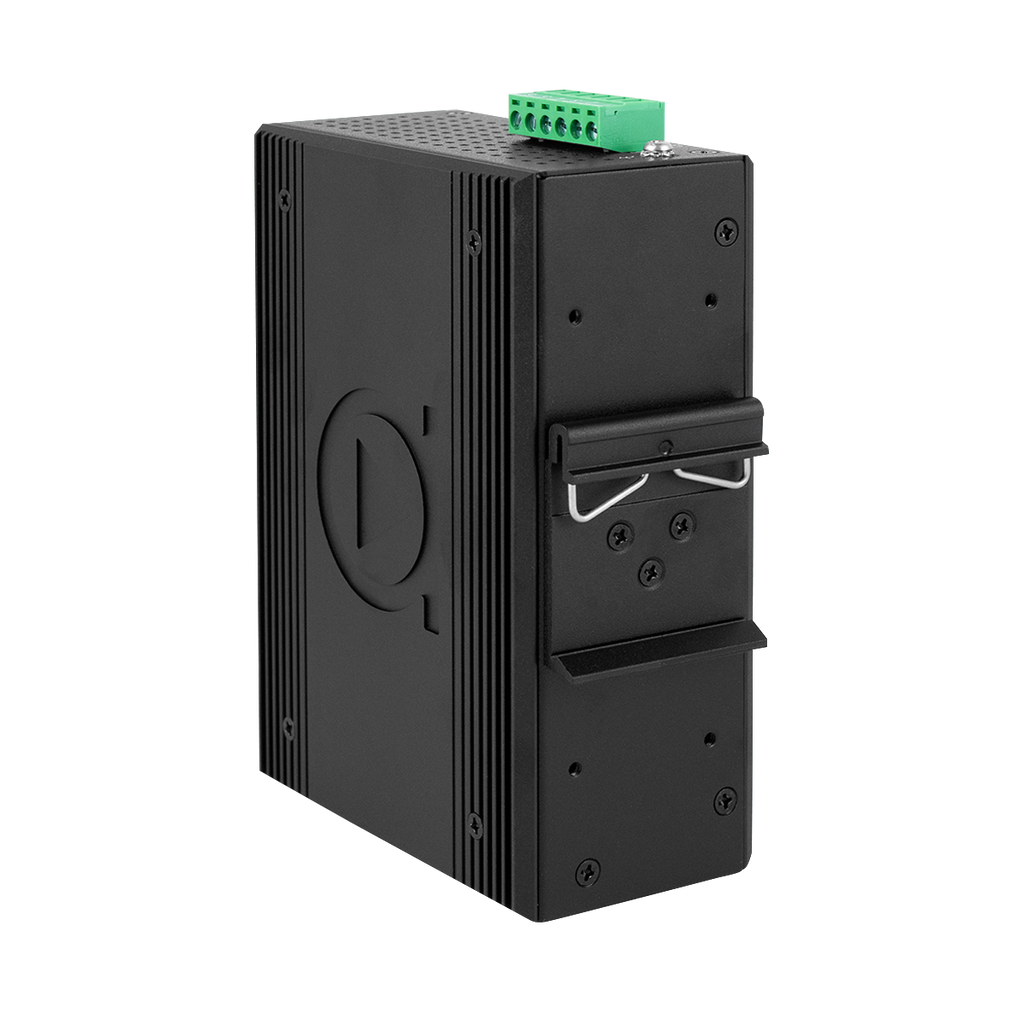

• Housing: IP 30 Rated Metal; DIN-Rail and Wall-Mount Support
• Operating Temperature - STD: -10~70C / EOT -40°~75°C
• 5-Year Warranty

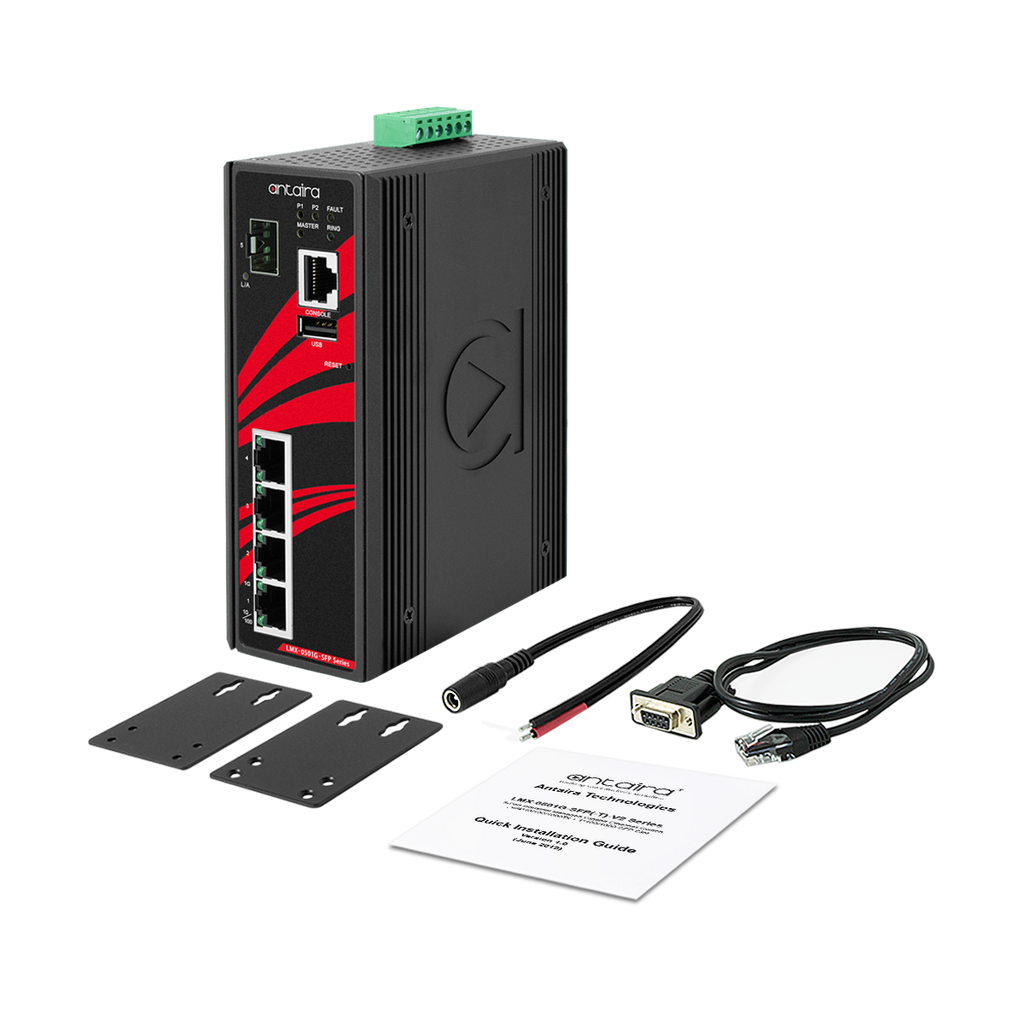

Included

• 1 - DC cable - 18 AWG & 5.5 x 2.1mm DC jack
• 1 - LMX-0501G-SFP-V2
• 1 - Quick Installation Guide
• 1 - RJ45 dust cover set
• 1 - RJ45 to DB9 Serial Console cable
• 1 - Wall-mounting bracket set with screws
