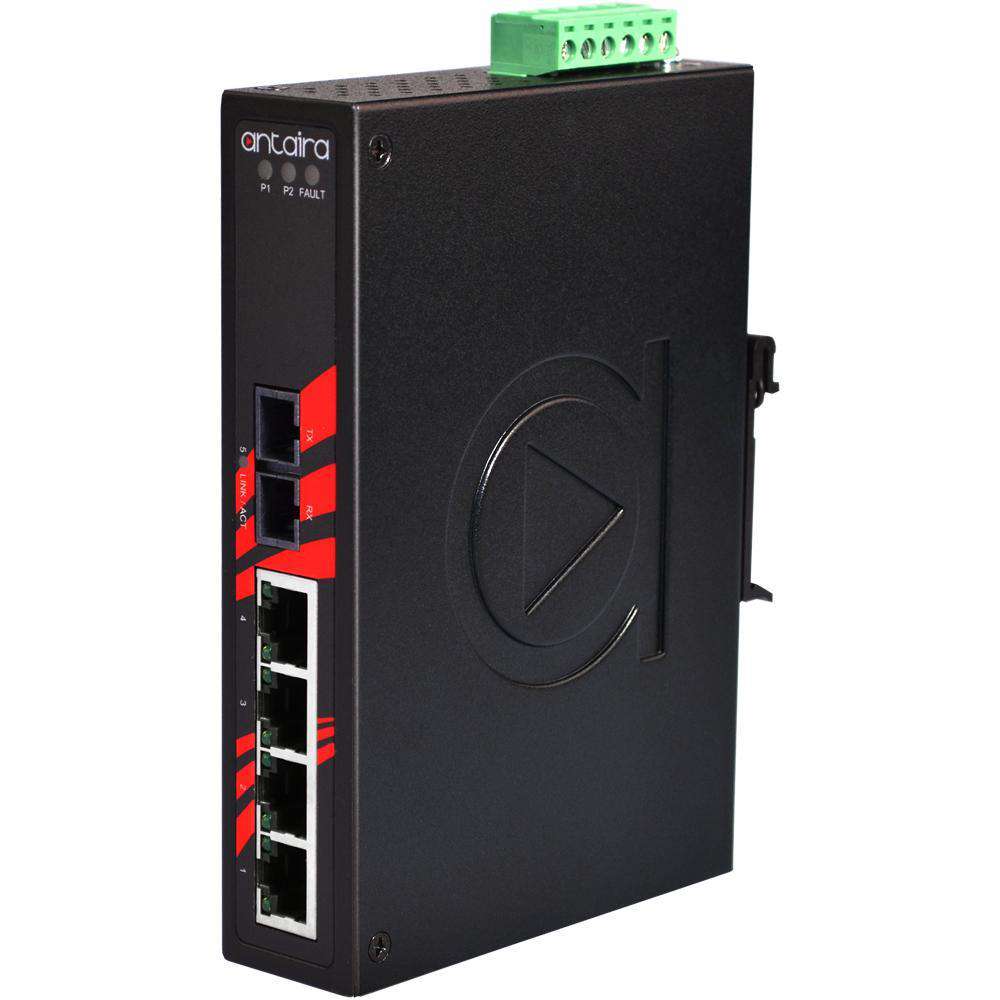

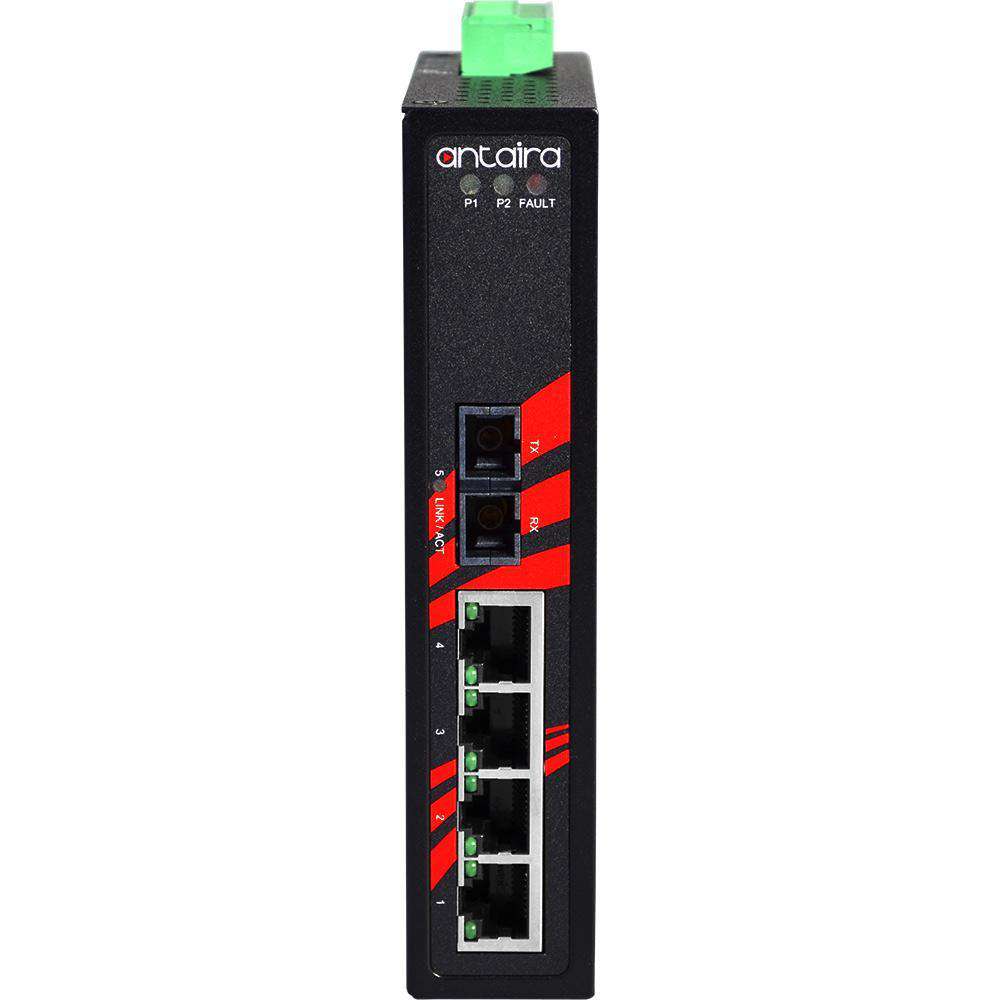

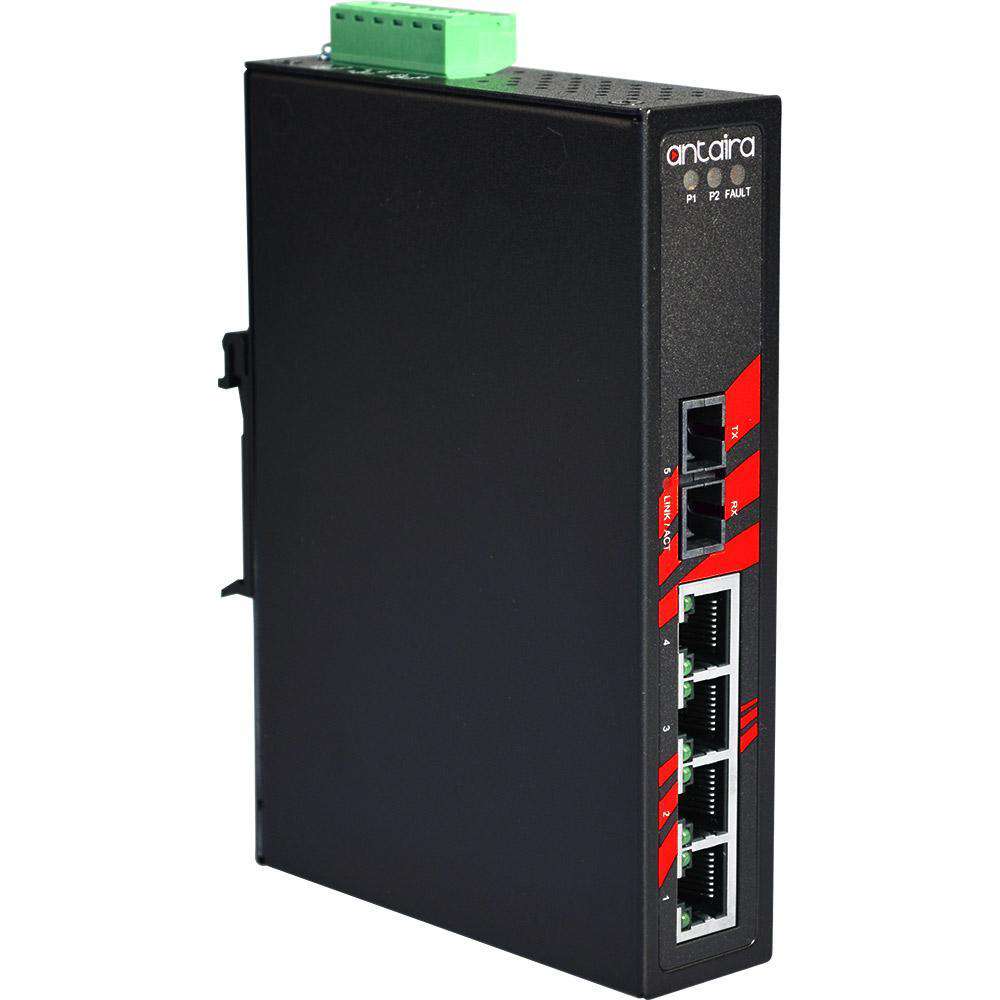

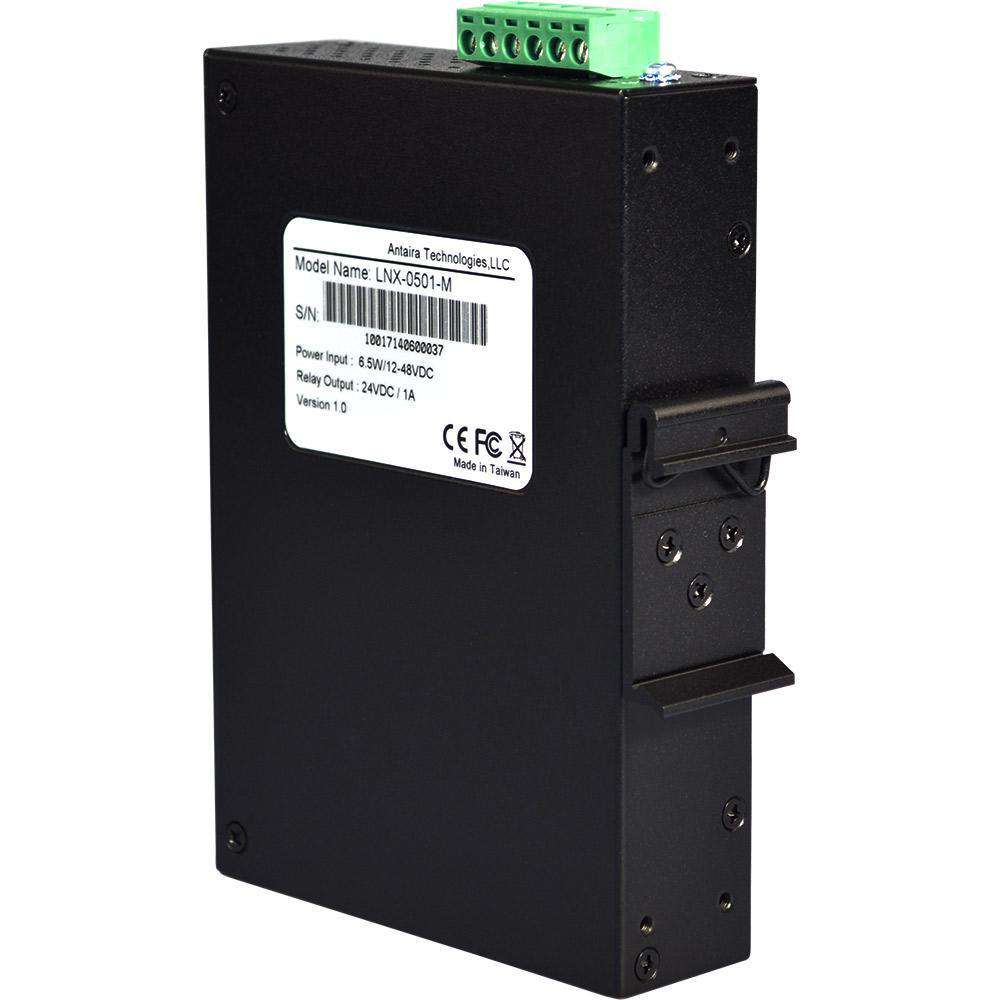

Switch LNX-0501-M (4* 10/100Tx + 1* 100Fx (SC) MM 2Km)
Price excludes VAT
183.90€
Sale price
Price excludes VAT
183.90€
Regular price
Total with VAT (23%): 226.20€
Shipping calculated at checkout.
LNX-0501-M
Antaira’s LNX-0501 series switches are smart 5-port industrial unmanaged Ethernet switches supporting 4-Port 10/100Tx Fast Ethernet and 1-Port 100Fx with an SC- or ST-type connector, with Multi-mode support at 2Km or Single-mode support at 30Km.
The LNX-0501 series switches support 12~48VDC power inputs. This switch series offers an Extended Operating Temperature model (w/-T) that supports -40°C ~ 75°C. It supports IEEE 802.3/802.3u/802.3x with 10/100BTx, full or half duplex, and MDI/MDI-X auto-sensing, providing an economical solution for industrial Ethernet networks.
In addition, Network Broadcast Storm Protection and the built-in relay warning function alert network engineers when power failures or port disconnections occur.
- Network broadcast storm protection
- 4-Port 10/100Tx Fast Ethernet
- Supports Auto MDI/MDI-X function
- Store-and-Forward switching architecture
- 2K MAC Address Table
- Surge Protection: 2,000 VDC support
- ESD Protection: 6,000 VDC support
- Redundant Power Input Design – 12~48VDC
- 1 built-in relay output for port break alarm
- IP30 Rugged Aluminum Case Design

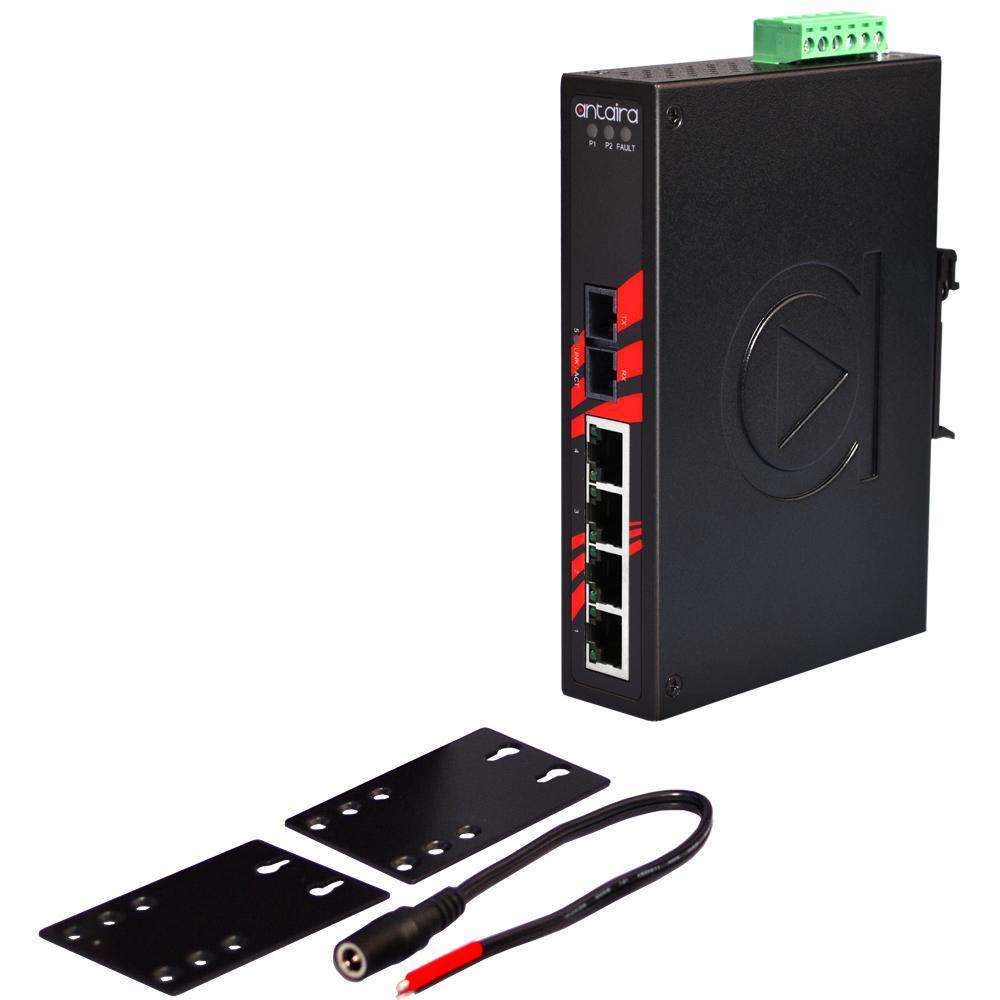

- DIN-Rail and Wall Mount support
- Operating temperature range: -10° to 70° C
- 5-Year Warranty
- 1-Port 100Fx SC Connector (Multi-mode)
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| PROCESSING TYPE | Store and Forward |
| Protocols | CSMA/CD |
| Switching Architecture | Back-Plane (Switching Fabric): 1.0Gbps |
| Transfer Rate | 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port |
| MAC TABLE SIZE | 2K |
| Ethernet Port | 10/100BaseT(X) auto-negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection 4*10/100 |
| Fiber | 1*100Fx SC-type connector, Multi-mode (2Km) - 50/125um ~ 62.5/125um |
| Wavelength | 1310nm (Multi-mode) |
| Input Voltage | 12~48VDC, Redundant Input |
| Overload Current Protection | Slow-Blow Fuse |
| Connector | 1 removable 4-contact terminal block |
| Reverse Polarity Protection | Yes |
| Power Consumption | 6.5 Watts |
| Housing | Metal, IP30 protection |
| Dimensions | 30 x 142 x 99 mm (1.18 x 5.59 x 3.90 in.) |
| Weight | Unit Weight: 1.1 lbs. Shipping Weight: 1.45 lbs |
| Mounting | DIN-Rail mounting, wall mounting (optional) |
| Operating Temperature | STD: -10° to 70° C (14° to 158° F) |
| Storage Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| Humidity | 5 to 95%, (non-condensing) |
| EMI | IEC60068-2-32 |
| EMS | IEC60068-2-27 |
| Free Fall | IEC60068-2-6 |
| Shock | RoHS Compliant |
| Vibration | FCC, CE, UL508 |
| Green | 5 Years |
| Certifications | Liquid error: Index was outside the bounds of the array. |
| Warranty | Liquid error: Index was outside the bounds of the array. |
