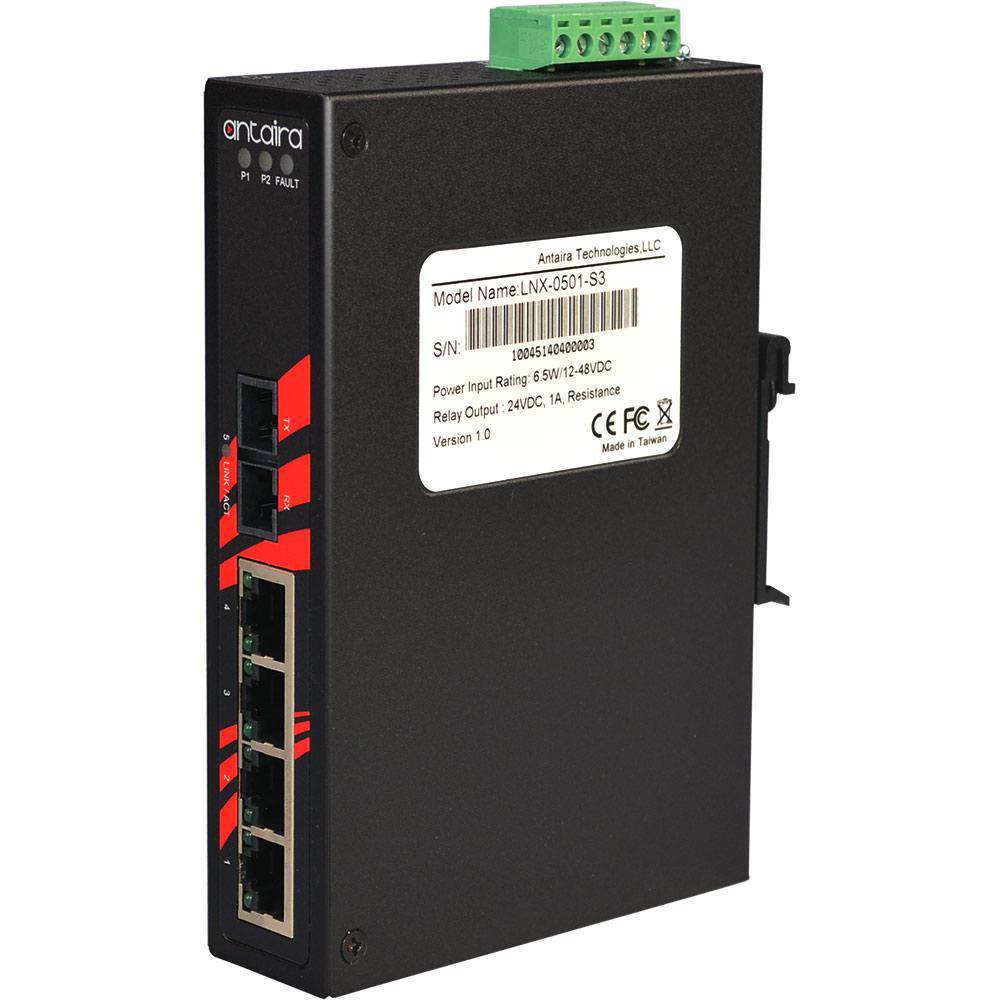

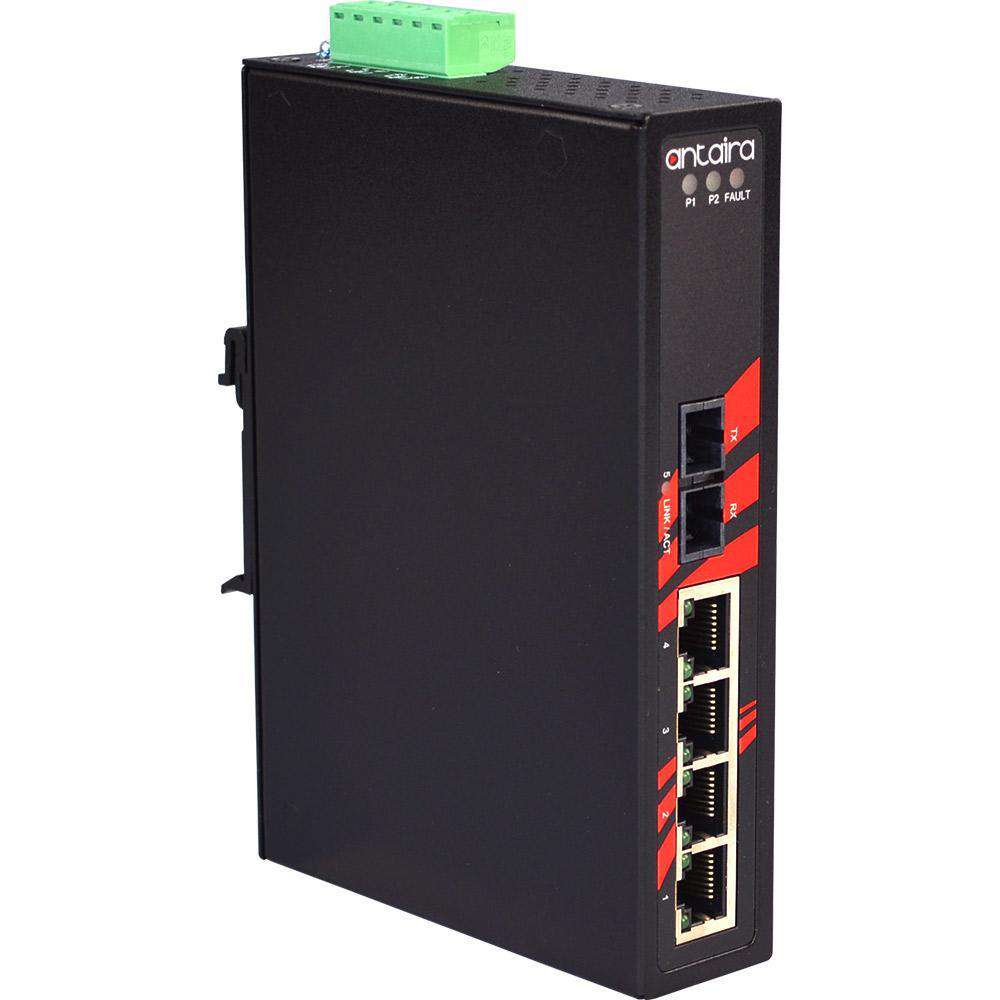

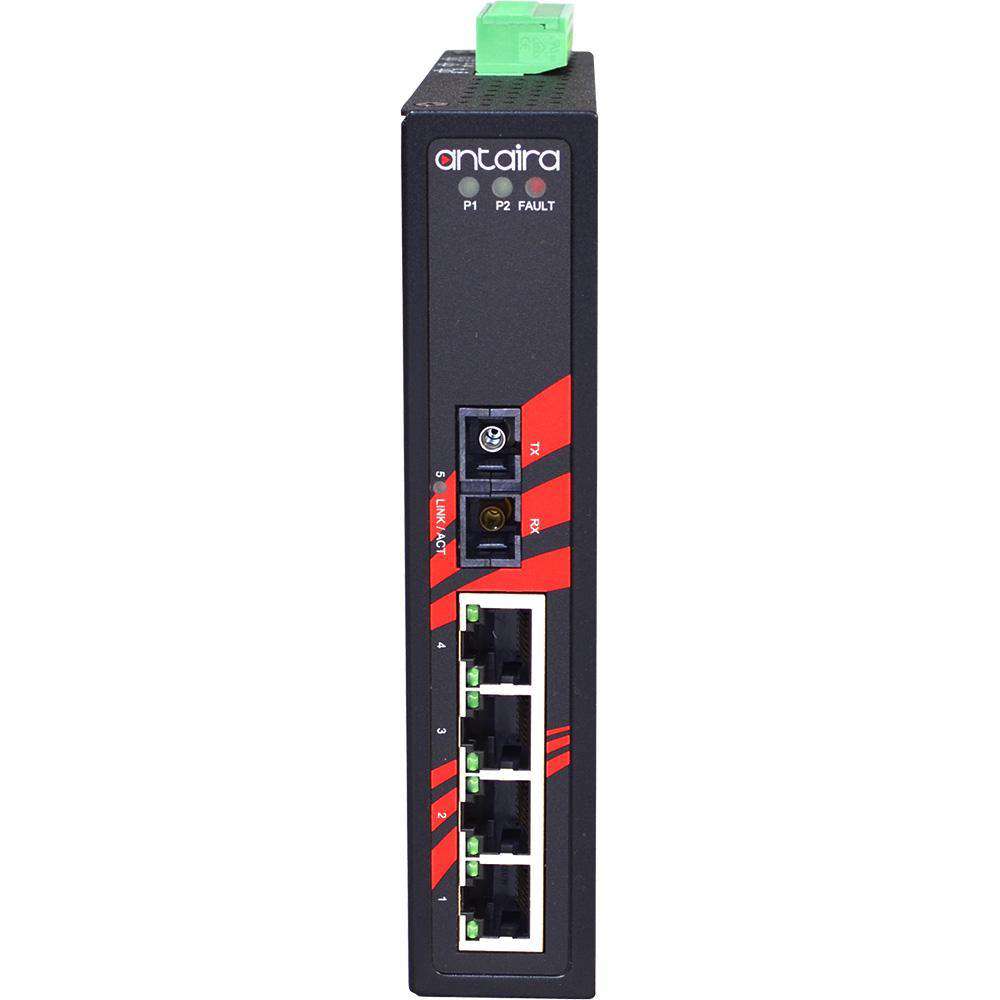

Switch LNX-0501-S3 (4*10/100Tx + 1*100Fx (SC) SM 30Km)
Price excludes VAT
240.43€
Sale price
Price excludes VAT
240.43€
Regular price
Total with VAT (23%): 295.73€
Shipping calculated at checkout.
LNX-0501-S3
Antaira’s LNX-0501 series switches are smart 5-port industrial unmanaged Ethernet switches supporting 4-Port 10/100Tx Fast Ethernet and 1-Port 100Fx with an SC- or ST-type connector, with Multi-mode support at 2Km or Single-mode support at 30Km.
The LNX-0501 series switches support 12~48VDC power inputs. This switch series offers an Extended Operating Temperature model (w/-T) supporting -40°C ~ 75°C. It supports IEEE 802.3/802.3u/802.3x with 10/100BTx, full or half duplex, and MDI/MDI-X auto-sensing, providing an economical solution for industrial Ethernet networks.
In addition, Network Broadcast Storm Protection and the built-in relay warning function alert network engineers when power failures or port disconnections occur.
- Network broadcast storm protection
- 4-Port 10/100Tx Fast Ethernet
- 1-Port 100Fx SC Connector (Single-mode)
- Supports Auto MDI/MDI-X function
- Store-and-Forward Switching Architecture
- 2K MAC Address Table
- Surge Protection: 2,000 VDC support
- ESD Protection: 6,000 VDC support
- Redundant Power Input Design – 12~48VDC
- Built-in 1 relay output for port break alarm
- IP30 Rugged Aluminum Case Design

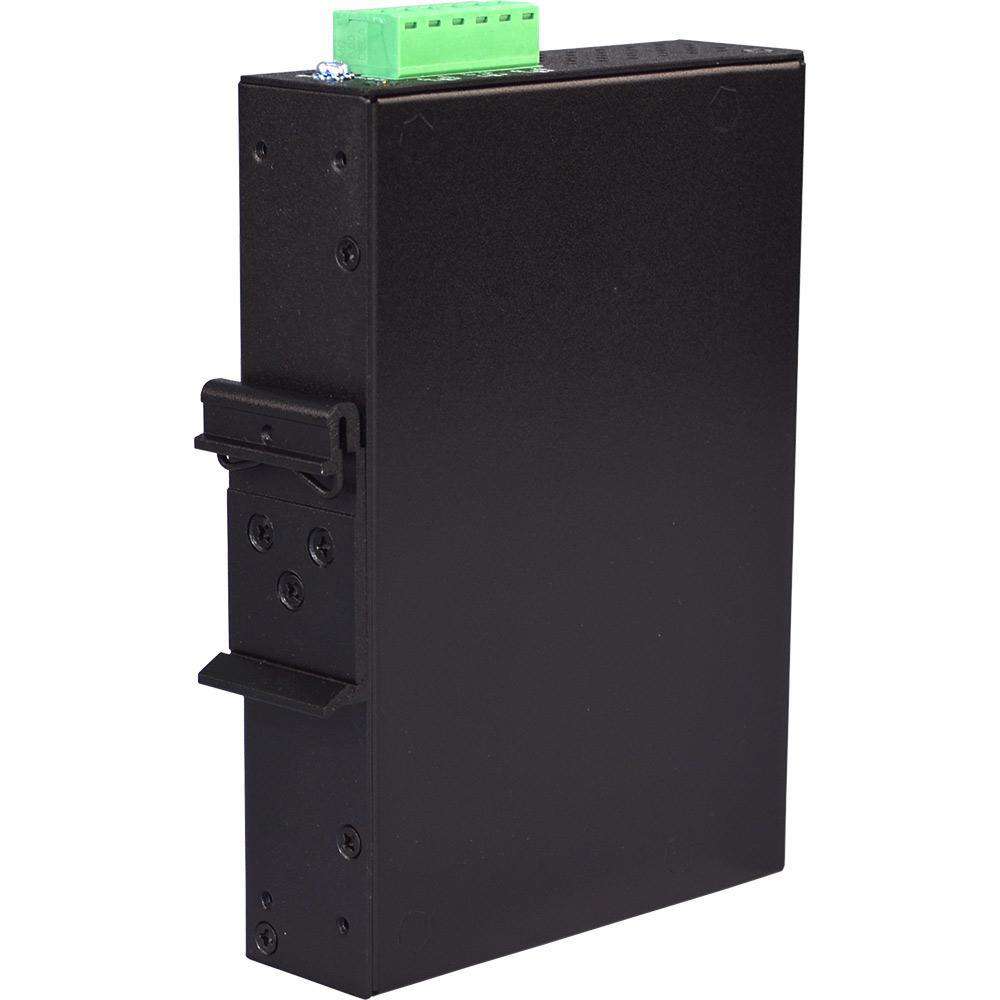

- DIN-Rail and Wall Mount support
- 5-Year Warranty
| Ambient relative humidity | 5 to 95%, (non-condensing) |
| Certifications | FCC, CE, UL 508, Class 1 Div 2 |
| Certifications | FCC, CE, UL508 |
| Dimensions | 30 x 142 x 99 mm (1.18 x 5.59 x 3.90 in.) |
| EMI | FCC Class A |
| EMS | EN6100-4-2; EN6100-4-3; EN6100-4-4; EN6100-4-5; EN6100-4-6; EN6100-4-8 EN6100-6-2; EN6100-6-4 |
| Fiber Port | 1*100Fx SC Connector, Single-mode (30Km) - 9/125um ~ 10/125um |
| Flow Control | IEEE 802.3x flow control, back-pressure flow control |
| Free fall / shock / vibration | IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6 |
| Green | RoHS Compliant |
| Housing | Metal, IP30 protection |
| Input Voltage | 12~48VDC, Redundant Input |
| Mounting | DIN-Rail mounting, wall mounting (optional) |
| Operating Temperature | STD: -10° to 70° C (14° to 158° F) |
| Overload Current Protection | Slow-Blow Fuse |
| Power consumption | 6.5 Watts |
| PROCESSING TYPE | Store and Forward |
| Reverse Polarity Protection | Yes |
| Ethernet Port | 10/100BaseT(X) Auto-Negotiation Speed, Full/Half Duplex Mode, and Auto MDI/MDI-X Connection 4*10/10 |
| Shock | IEC60068-2-27 |
| Standards | IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet |
| Storage Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| Switching Architecture | Back-Plane (Switching Fabric): 1.0Gbps Packet Throughput Capacity (Full-Duplex): 1.488Mpps @ 64bytes |
| Transfer Rate | 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port |
| Vibration | IEC60068-2-6 |
| Warranty | 5 Years |
| Wavelength | 1310nm (Single-mode) |
| Weight | Unit Weight: 1.1 lbs. Shipping Weight: 1.45 lbs |
