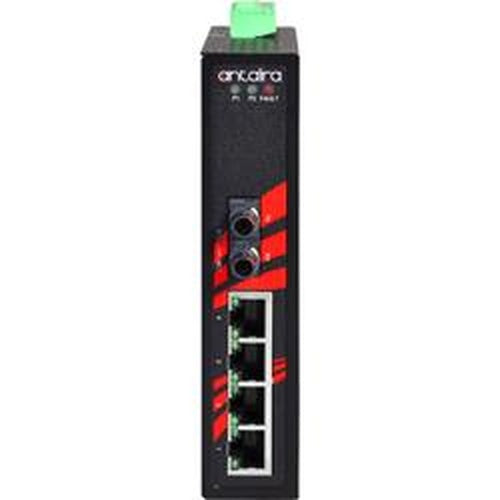

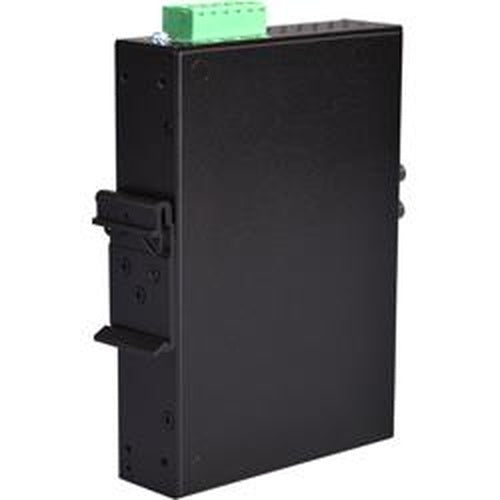

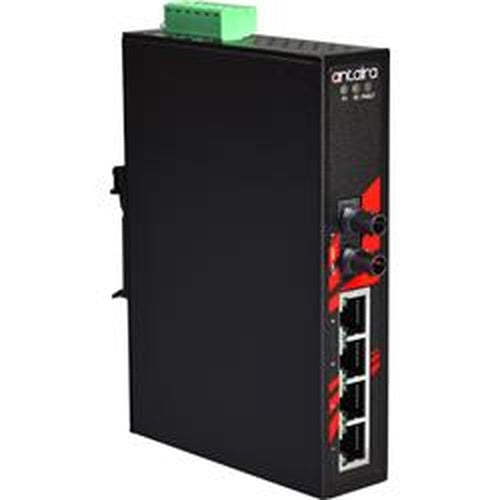

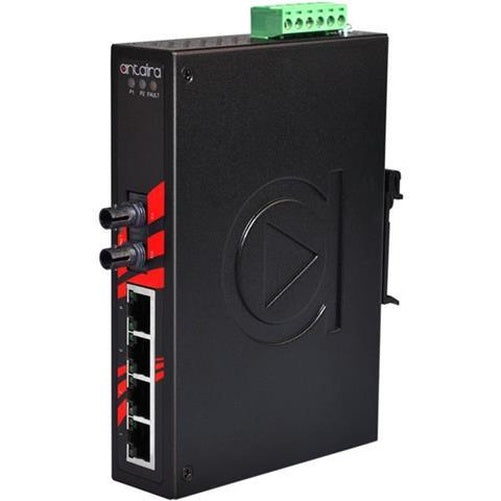

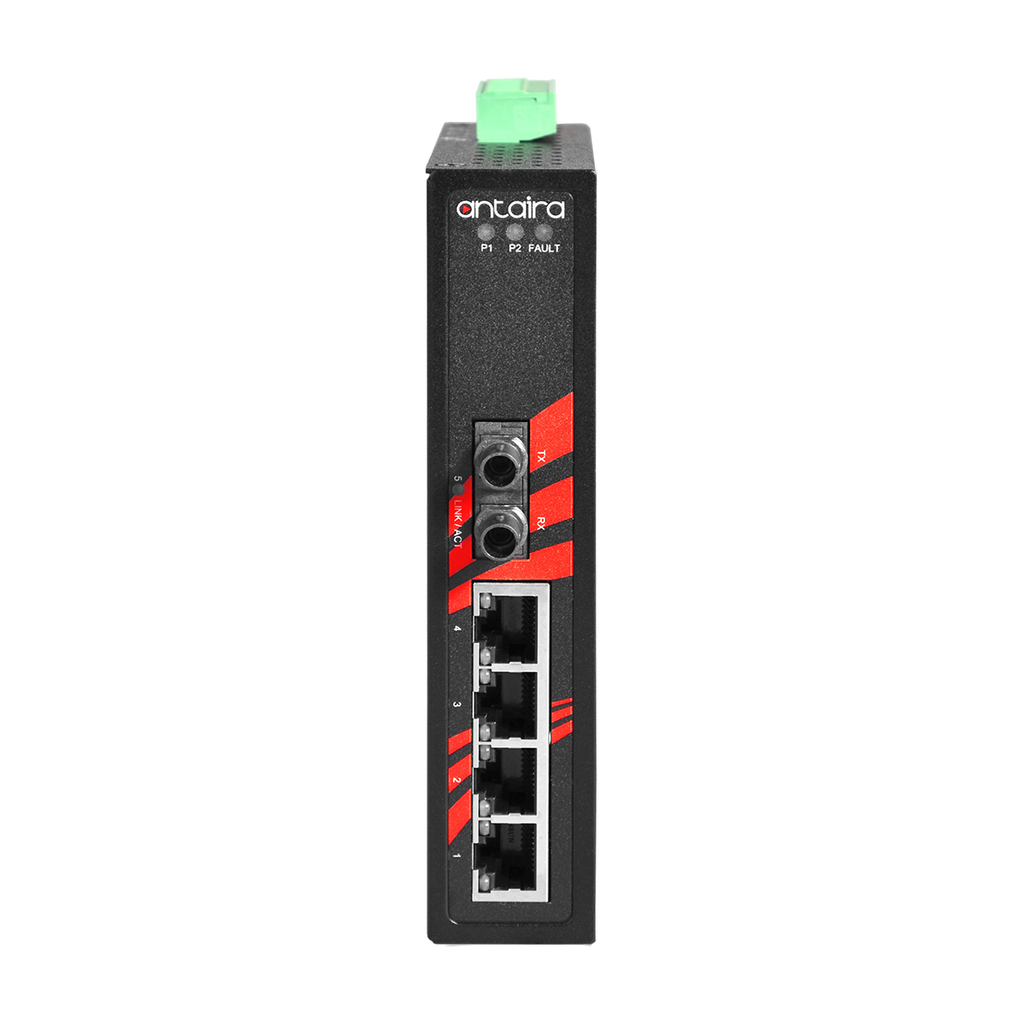

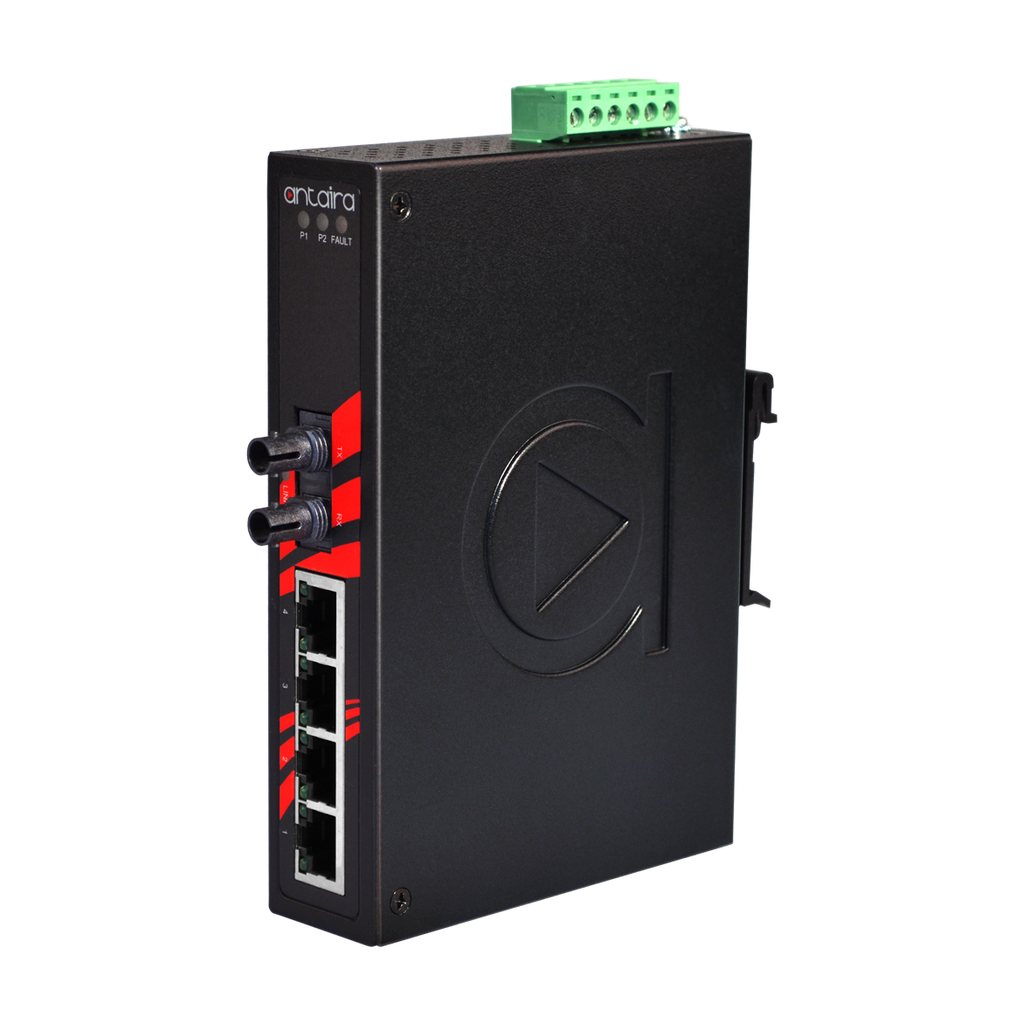

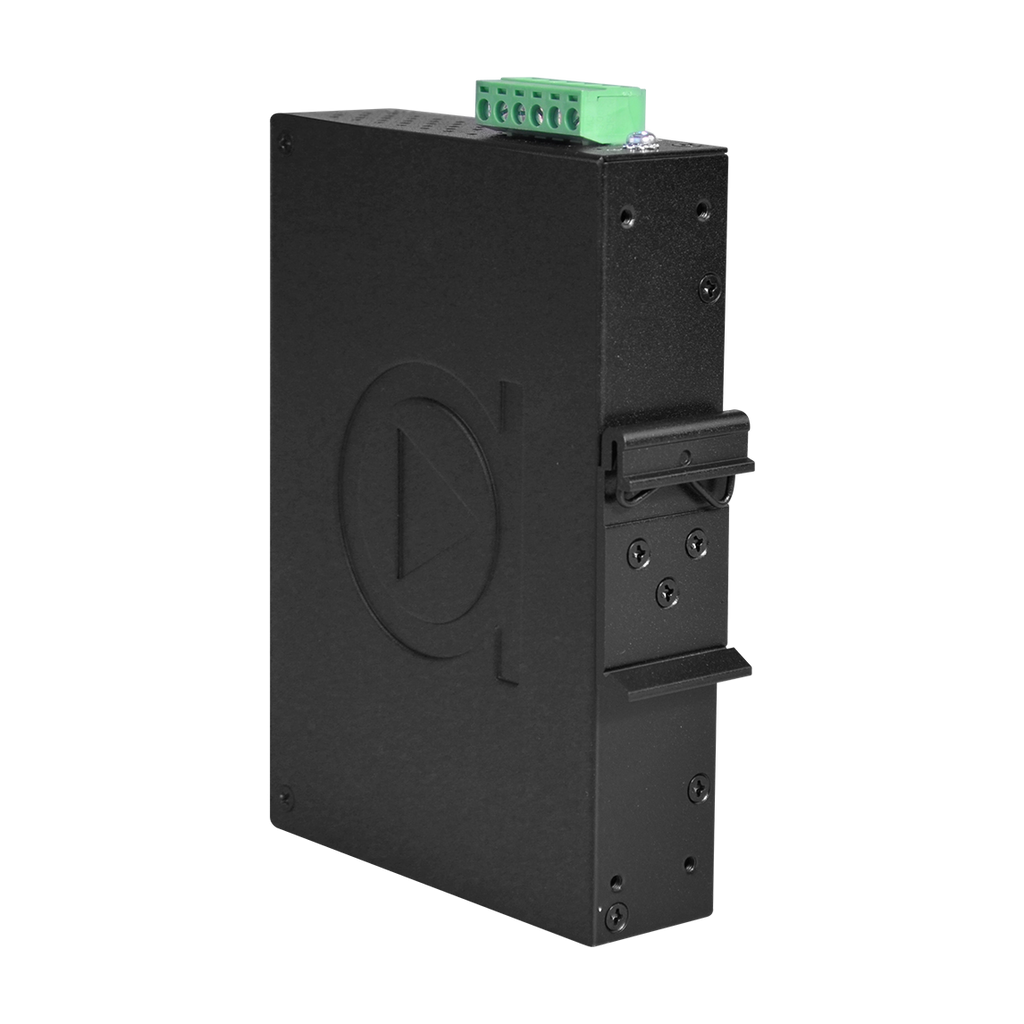

Switch LNX-0501-ST-S3-T (4*10/100Tx + 1*100Fx ST)
Price excludes VAT
246.33€
Sale price
Price excludes VAT
246.33€
Regular price
Total with VAT (23%): 302.99€
Shipping calculated at checkout.
LNX-0501-ST-S3-T
Antaira’s LNX-0501 series comprises smart 5-port industrial unmanaged Ethernet switches with 4-Port 10/100Tx Fast Ethernet and 1-Port 100Fx using an SC or ST type connector, supporting Multi-mode up to 2Km or Single-mode up to 30Km. The LNX-0501 series switches support 12~48VDC power inputs. This series offers an Extended Operating Temperature model (w/-T) supporting -40°C ~ 75°C. It supports IEEE 802.3/802.3u/802.3x with 10/100BTx, full or half duplex, and MDI/MDI-X auto sensing, providing an economical solution for Industrial Ethernet Networks. In addition, Network Broadcast Storm Protection and the built-in relay warning function alert network engineers when power failures or port interruptions occur.
- Network broadcast storm protection
- 4-Port 10/100Tx Fast Ethernet
- Supports the Auto MDI/MDI-X function
- Store-and-Forward switching architecture
- 2K MAC address table
- Surge protection: 2,000 VDC support
- ESD protection: 6,000 VDC support
- Redundant power input design – 12~48VDC
- 1 built-in relay output for port break alarm
- IP30 rugged aluminium enclosure design
- DIN-Rail and wall-mounting support
- Operating temperature range: -40° to 75° C
- 5-Year Warranty
| Ambient relative humidity | 5 to 95% (non-condensing) |
| Certifications | FCC, CE, UL 508, Class 1 Div 2 |
| Dimensions | 30 x 142 x 99 mm (1.18 x 5.59 x 3.90 in.) |
| EMI | FCC Class A |
| EMS | EN6100-4-2; EN6100-4-3; EN6100-4-4; EN6100-4-5; EN6100-4-6; EN6100-4-8 EN6100-6-2; EN6100-6-4 |
| Fiber port | 1*100Fx ST type connector, Single-mode (30Km) - 9/125um ~ 10/125um |
| Flow control | IEEE 802.3x flow control, back-pressure flow control |
| Free fall | IEC60068-2-32 |
| Free fall / shock / vibration | IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6 |
| Green | RoHS Compliant |
| Housing | Metal, IP30 protection |
| Input Voltage | 12~48VDC, Redundant Input |
| MAC TABLE SIZE | 2K |
| Mounting | DIN-Rail mounting, wall mounting (optional) |
| Operating Temperature | EOT: -40° to 75° C (-40° to 167° F) |
| Overload Current Protection | Slow-Blow Fuse |
| Power Consumption | 6.5 Watts |
| PROCESSING TYPE | Store and Forward |
| Protocols | CSMA/CD |
| Reverse Polarity Protection | Yes |
| Ethernet Port | 10/100BaseT(X) auto-negotiation speed, Full/Half duplex mode. |
| Standards | IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet. |
| Storage Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| Switching Architecture | Backplane (Switching Fabric): 1.0Gbps Packet Throughput Capacity (Full-Duplex): 1.488Mpps @ 64bytes |
| Transfer Rate | 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port |
| Warranty | 5 Years |
| Wavelength | 1310nm (Single-mode) |
| Weight | Unit Weight: 1.1 lbs. Shipping Weight: 1.45 lbs |
