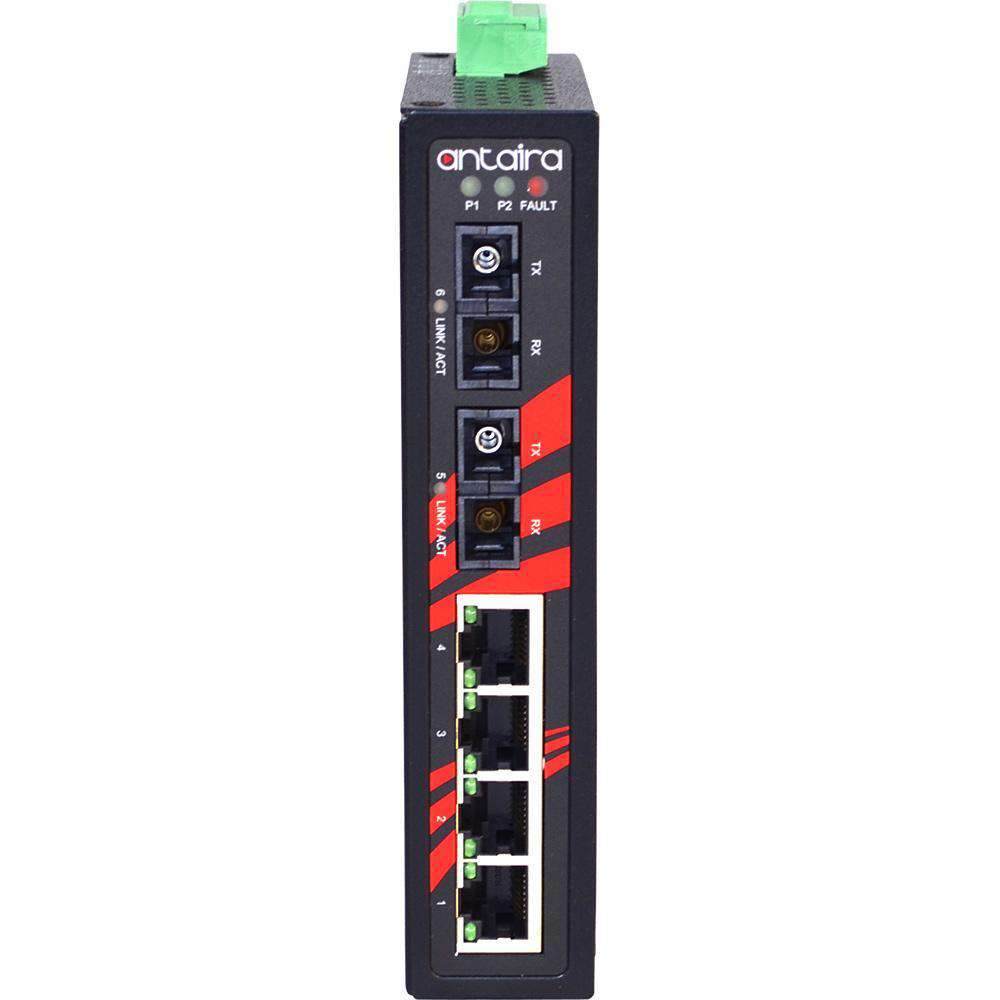

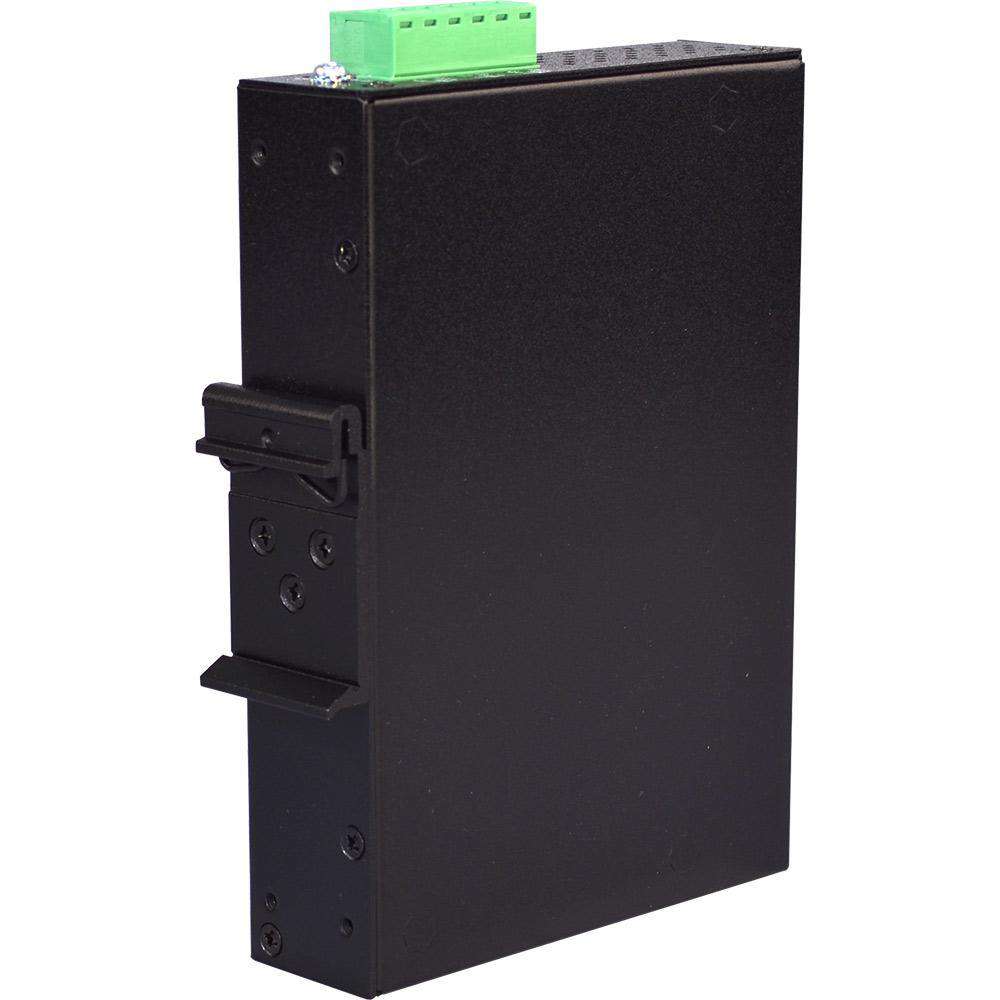

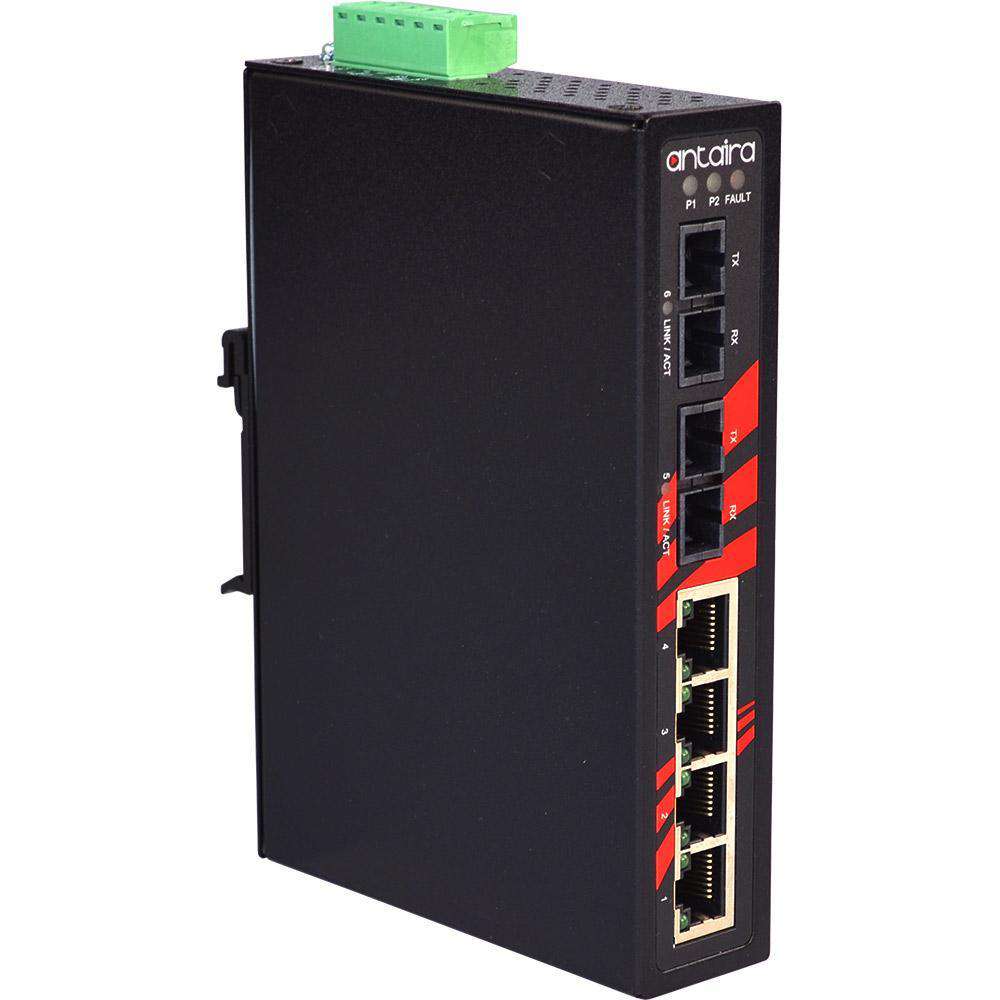

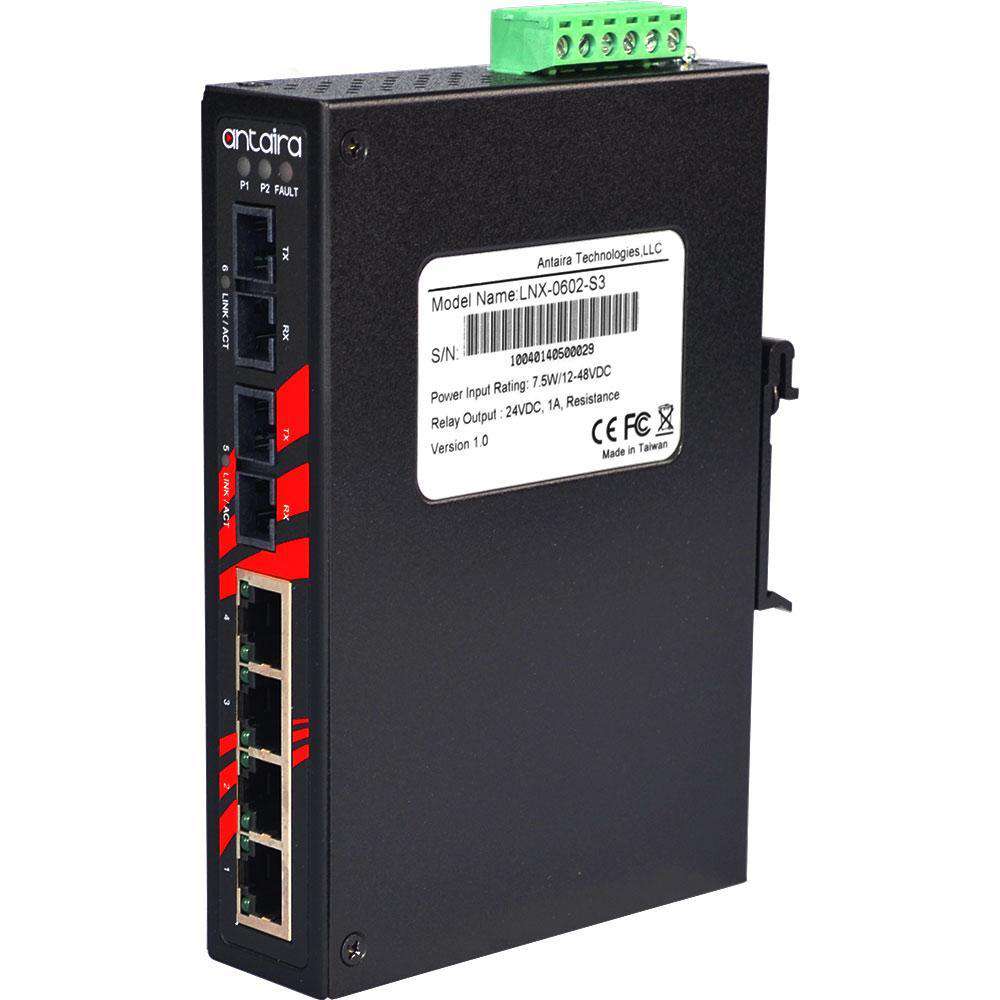

Switch LNX-0602-S3 (4*10/100Tx + 2*100Fx SC, SM 30KM)
Price excludes VAT
262.36€
Sale price
Price excludes VAT
262.36€
Regular price
Total with VAT (23%): 322.70€
Shipping calculated at checkout.
LNX-0602-S3
Antaira’s LNX-0602 series switches are smart 6-port industrial unmanaged Ethernet switches supporting 4-Port 10/100Tx Fast Ethernet and 2-Port 100Fx with SC- or ST-type connectors, with Multi-mode support up to 2Km or Single-mode support up to 30Km.
The LNX-0602 series switches support 12~48VDC power inputs. This switch series offers an extended operating temperature model (w/-T) that supports -40°C ~ 75°C. It supports IEEE 802.3/802.3u/802.3x with 10/100BTx, full or half duplex, and MDI/MDI-X auto-sensing, providing a cost-effective solution for industrial Ethernet networks.
In addition, Network Broadcast Storm Protection and the built-in relay warning function alert network engineers when power failures or port disconnections occur.
- Network broadcast storm protection
- 4-Port 10/100Tx Fast Ethernet
- 2-Port 100Fx SC-type connector (Single mode)
- Supports Auto MDI/MDI-X function
- Store-and-Forward Switching Architecture
- Store-and-Forward Switching Architecture
- 2K MAC Address Table
- Surge Protection: 2,000 VDC support
- ESD Protection: 6,000 VDC support
- Redundant Power Input Design – 12~48VDC
- Built-in 1 relay output for Port Break Alarm
- IP30 Rugged Aluminum Case Design
- DIN-Rail and Wall Mount support
- Operating temperature range: -10° to 70° C
- 5-Year Warranty
| Ambient relative humidity | 5 to 95%, (non-condensing) |
| Certifications | FCC, CE, UL 508, Class 1 Div 2 |
| Certifications | FCC, CE, UL508 |
| Dimensions | 30 x 142 x 99 mm (1.18 x 5.59 x 3.90 in.) |
| EMI | FCC Class A |
| EMS | EN6100-4-2; EN6100-4-3; EN6100-4-4; EN6100-4-5; EN6100-4-6; EN6100-4-8 EN6100-6-2; EN6100-6-4 |
| Fiber port | 2*100Fx SC-type connector, single-mode (30Km) - 9/125um ~ 10/125um |
| Flow control | IEEE 802.3x flow control, backpressure flow control |
| Free fall / shock / vibration | Vibration IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6 |
| Green | RoHS compliant |
| Housing | Metal, IP30 protection |
| Input voltage | 12~48VDC, redundant input |
| Mounting | DIN-Rail mounting, wall mounting (optional) |
| Operating Temperature | STD: -10° to 70° C (14° to 158° F) |
| Overload Current Protection | Slow-blow fuse |
| Power Consumption | 7.5 Watts |
| PROCESSING TYPE | Store and Forward |
| Reverse polarity protection | 10/100BaseT(X) speed with auto-negotiation, Full/Half duplex mode, and auto MDI/MDI-X connection 4*10/100 |
| Shock | IEC60068-2-27 |
| Standards | EEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet IEEE 802.3x flow control and Back-Pre |
| Storage Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| Switching Architecture | Back-Plane (Switching Fabric): 1.0Gbps Packet Throughput Capacity (Full-Duplex): 1.488Mpps @ 64bytes |
| Transfer Rate | 14,880pps for Ethernet port 148,800pps for Fast Ethernet port 14,880pps |
| Vibration | IEC60068-2-6 |
| Warranty | 5 Years |
| Wavelength | 1310nm (Single-mode) |
| Weight | Unit Weight: 1.1 lbs. Shipping Weight: 1.45 lbs |
