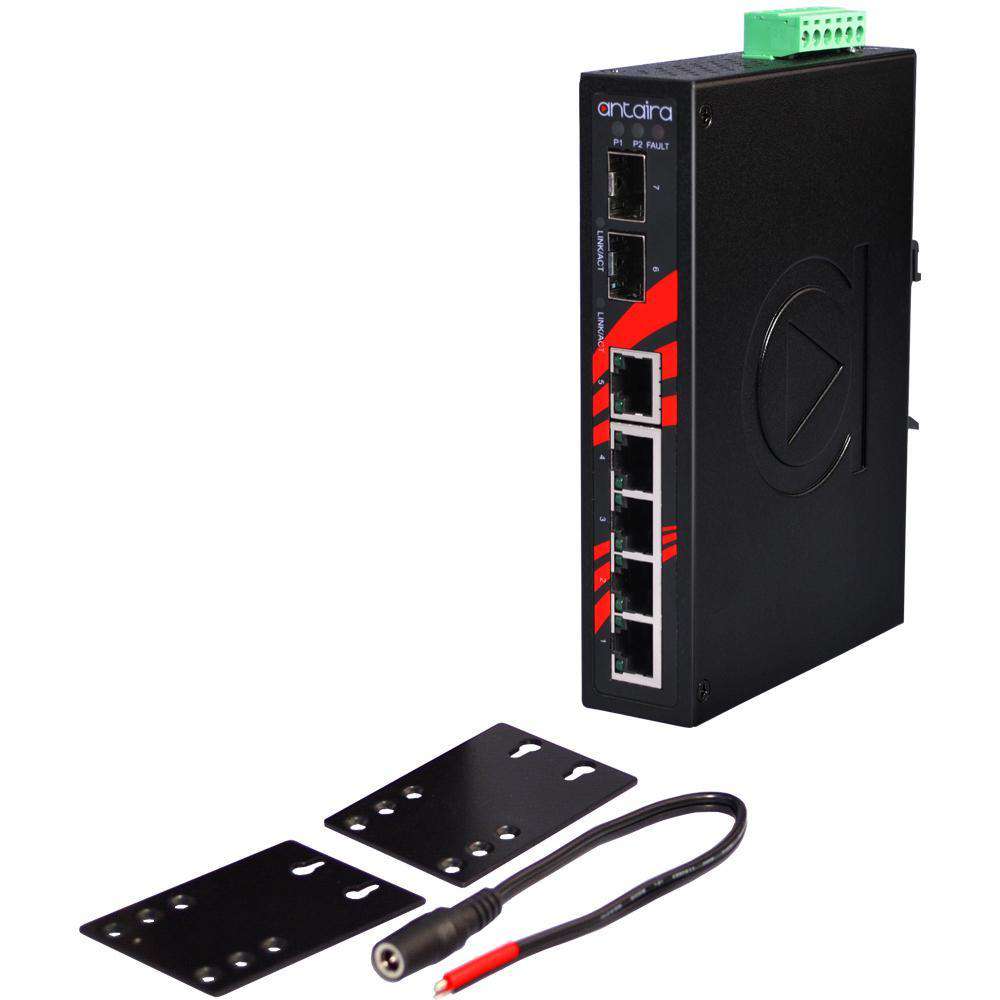

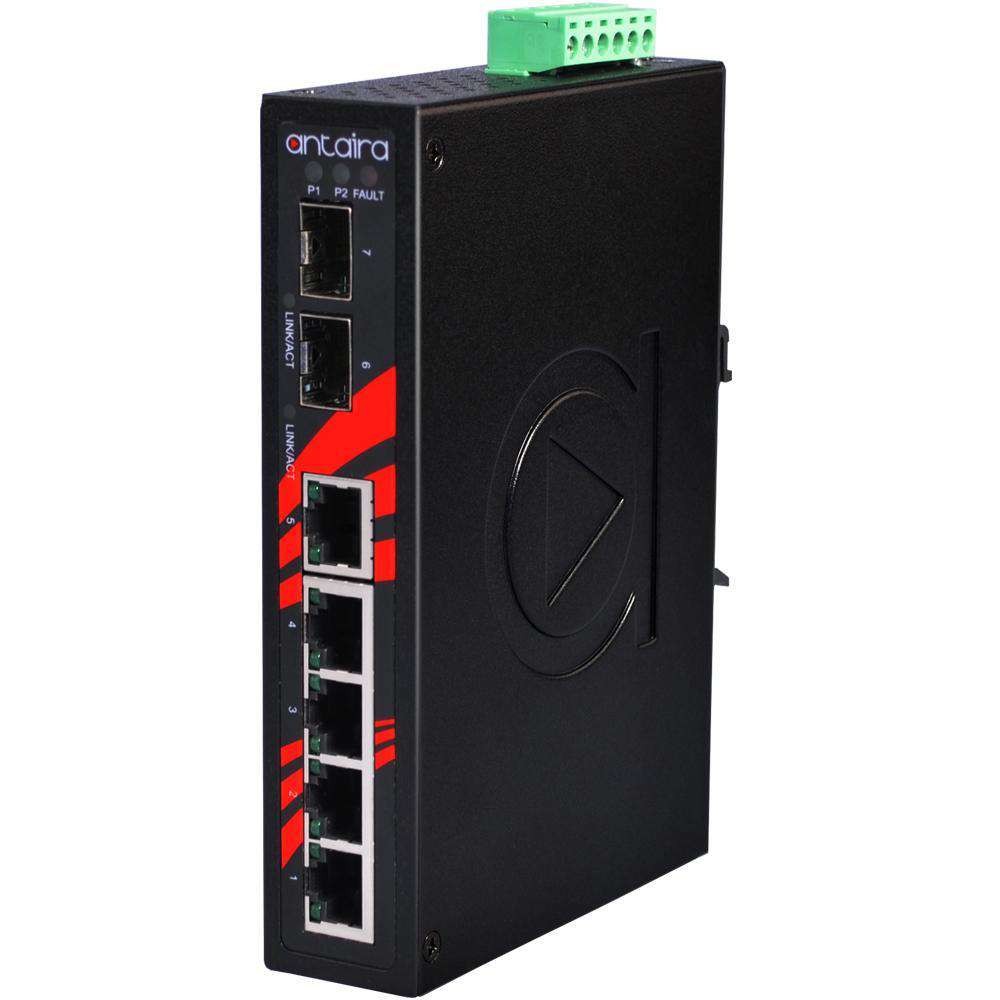

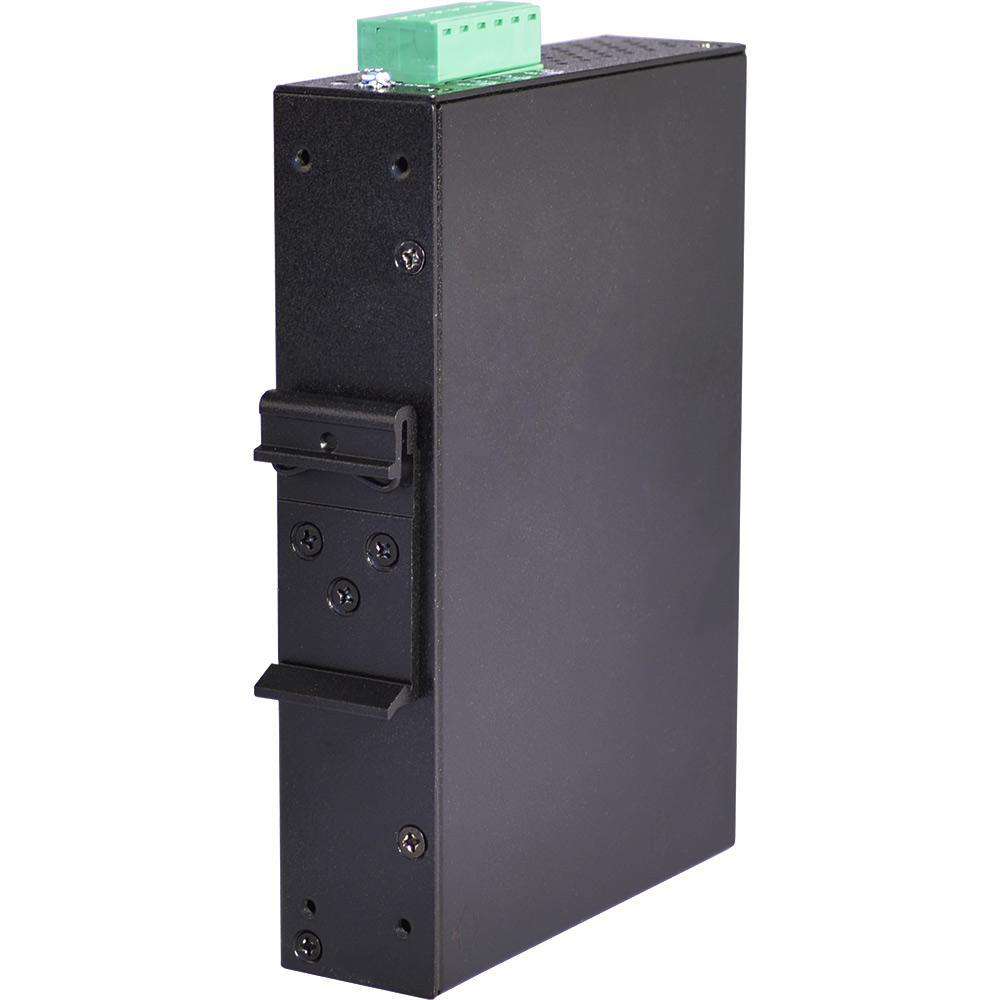

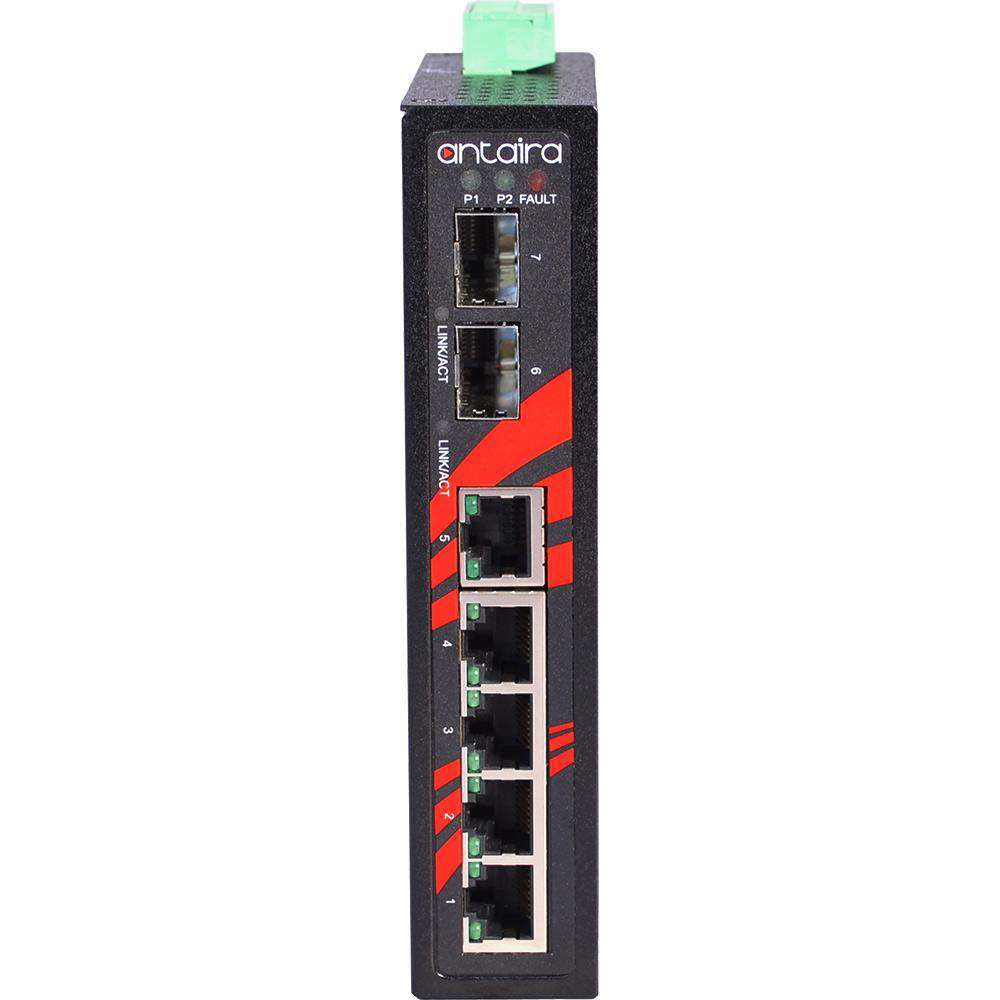

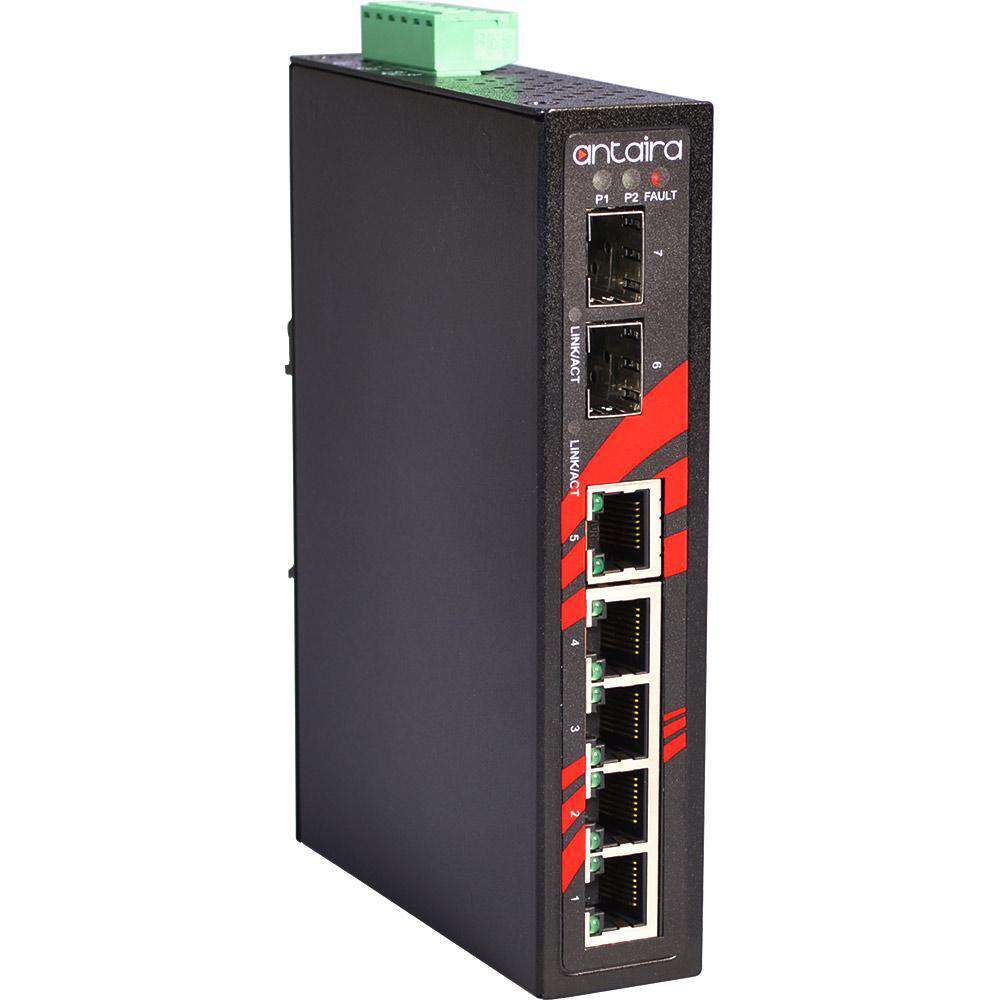

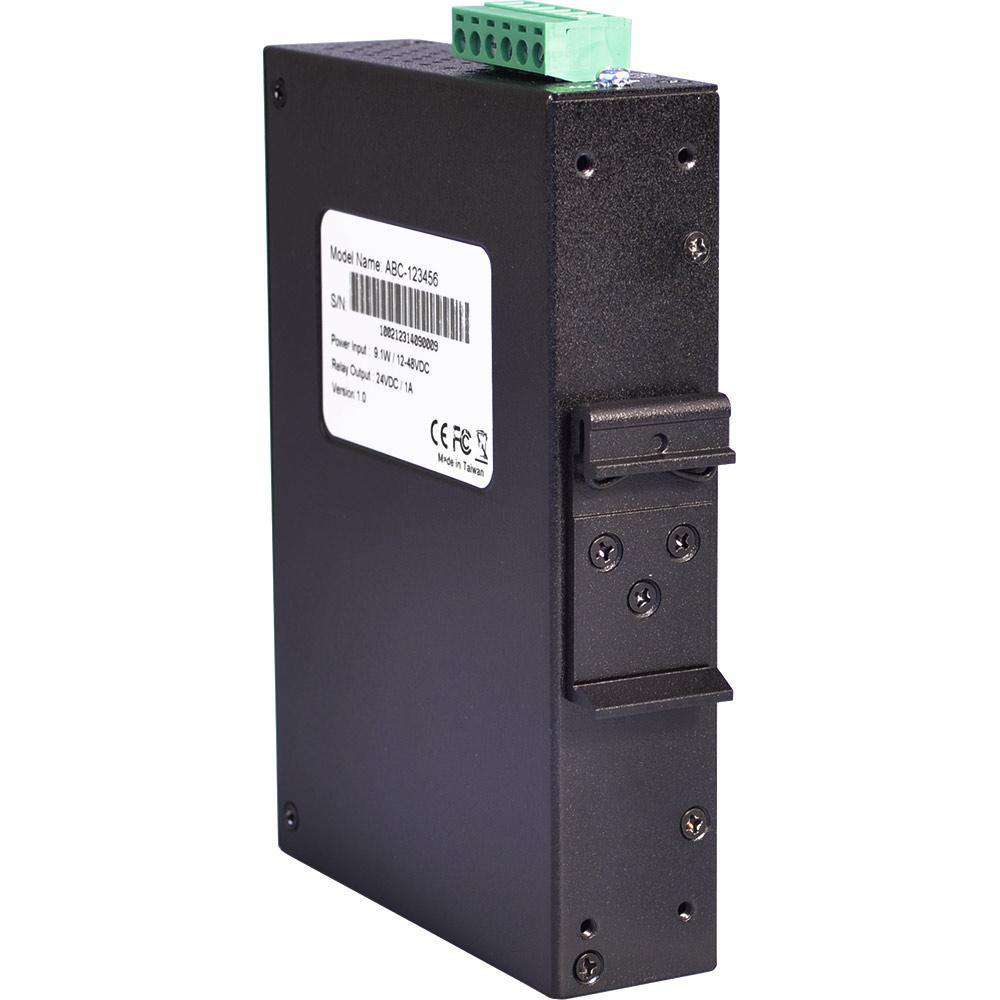

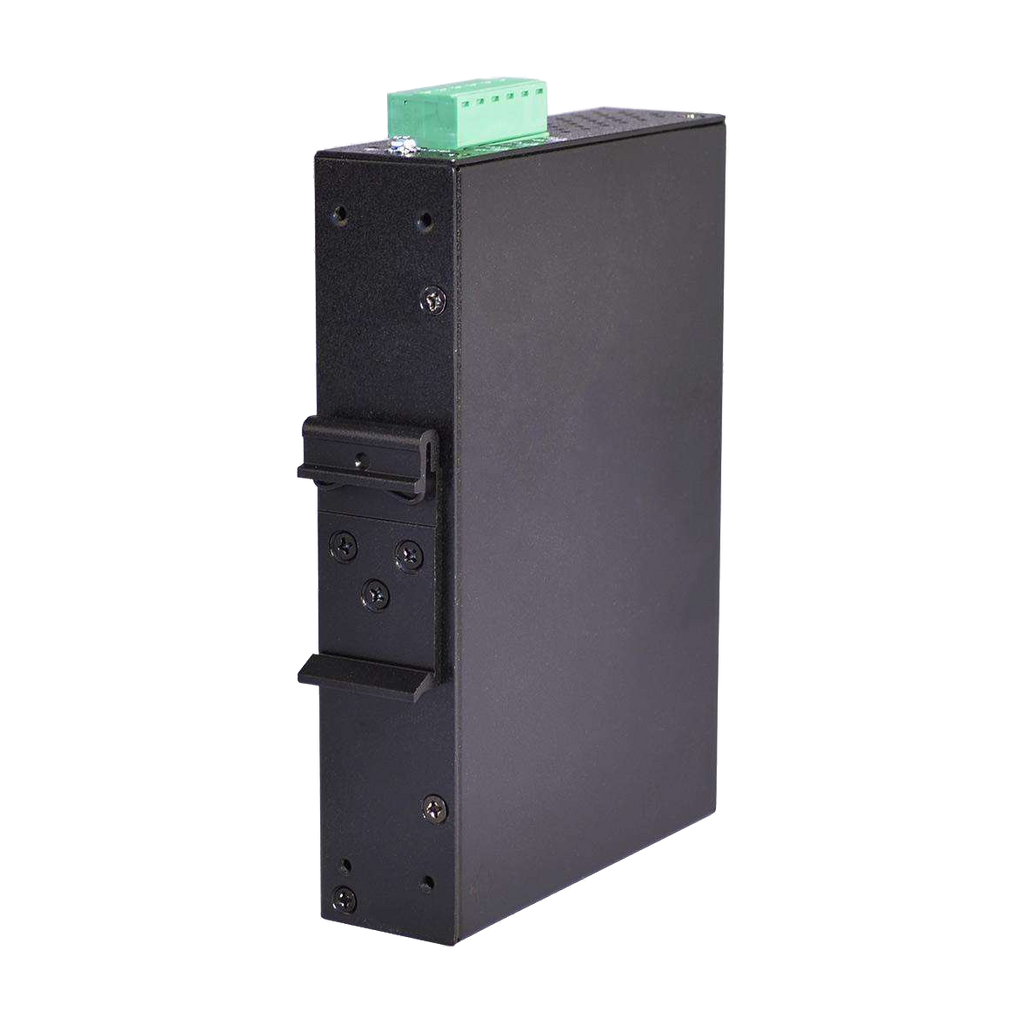

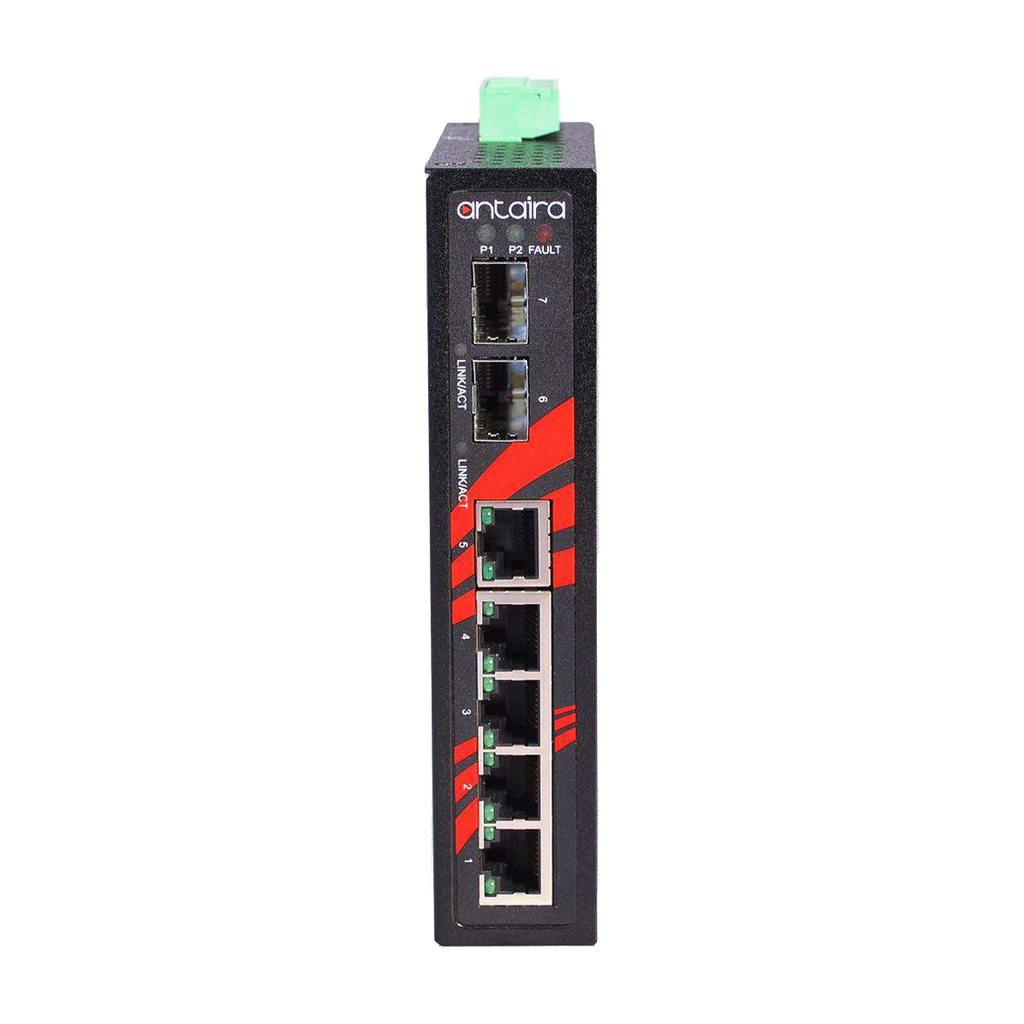

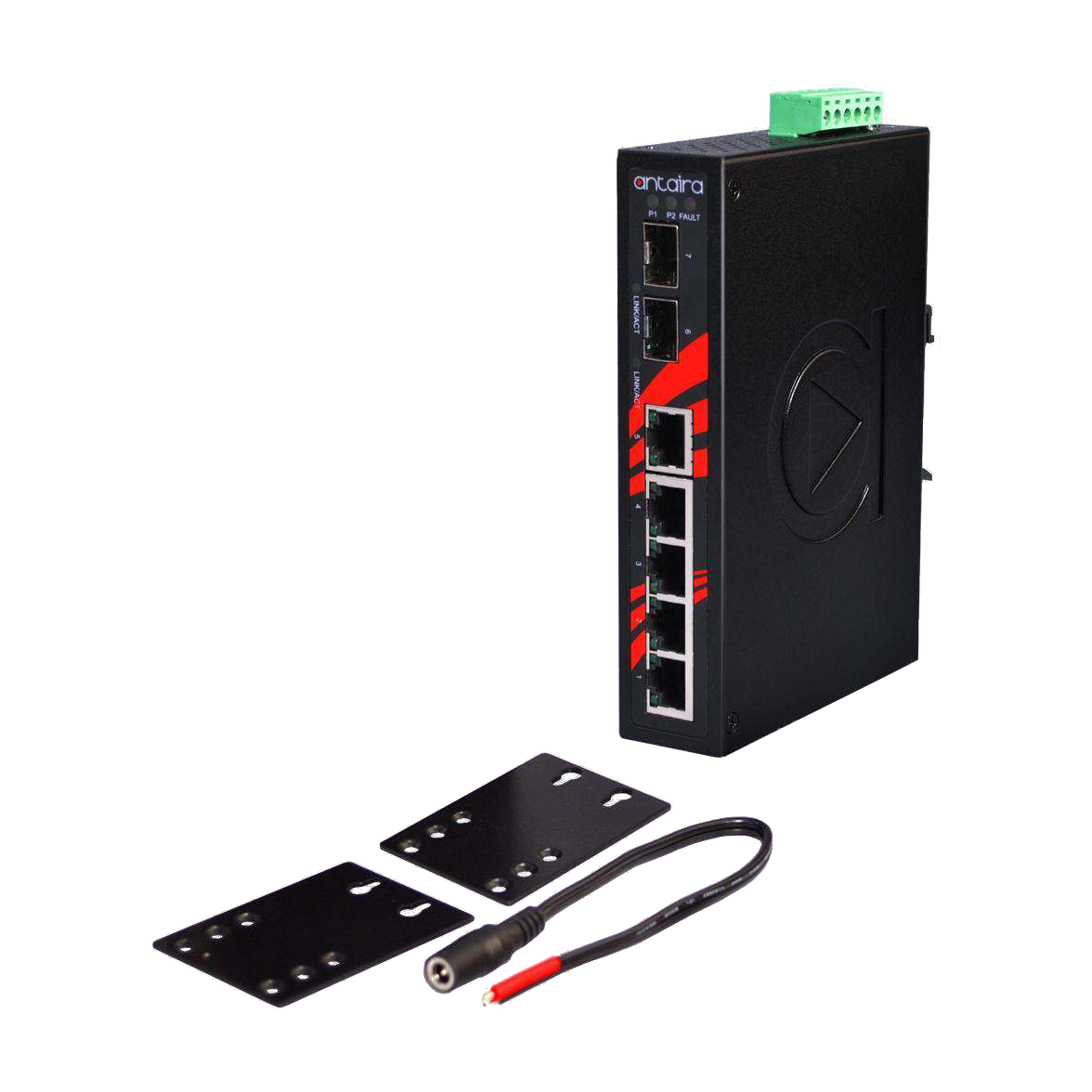

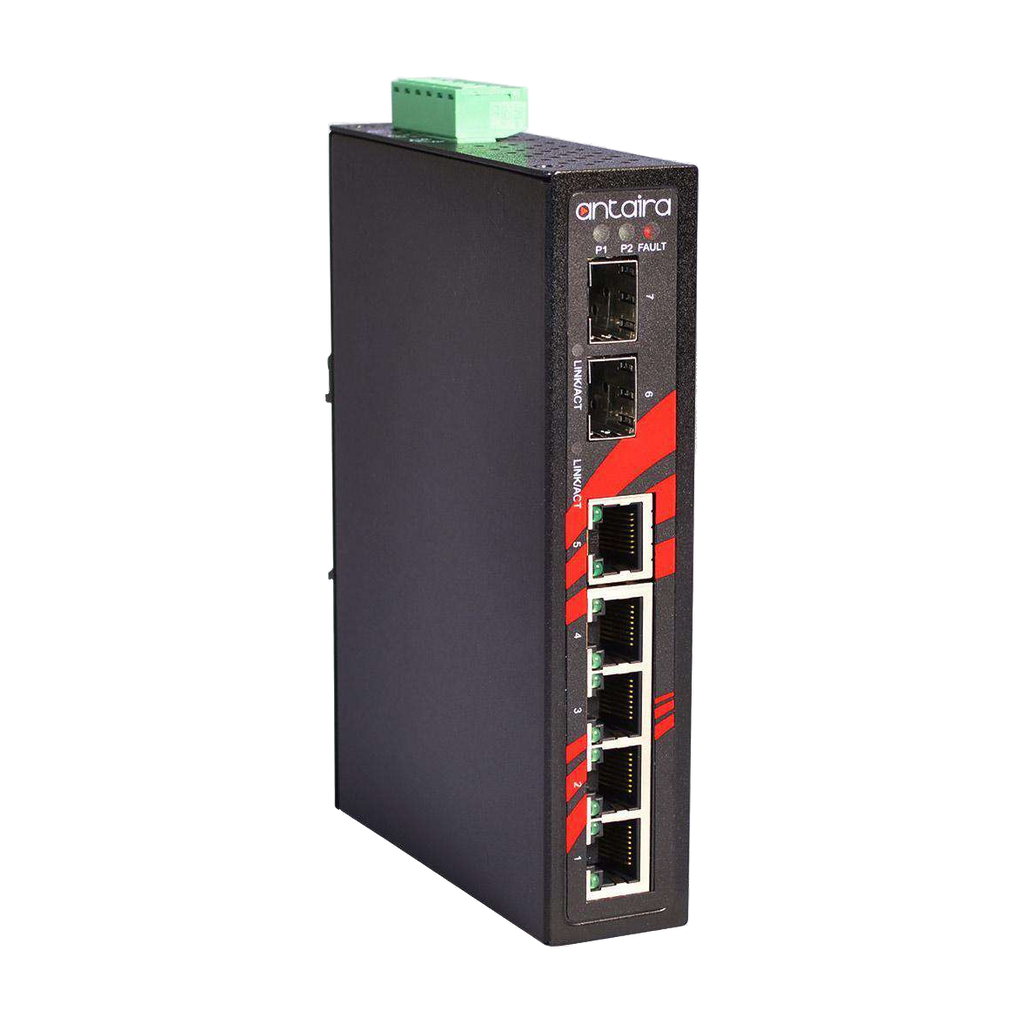

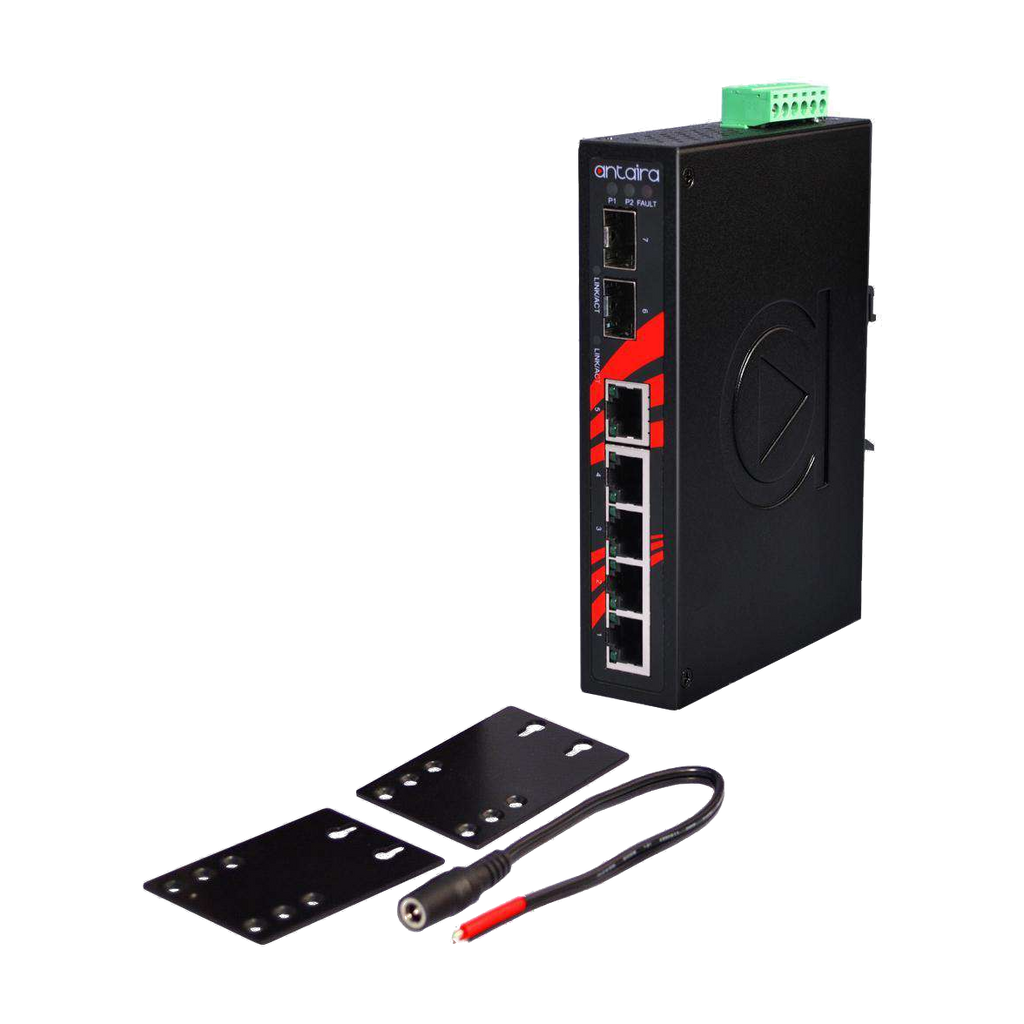

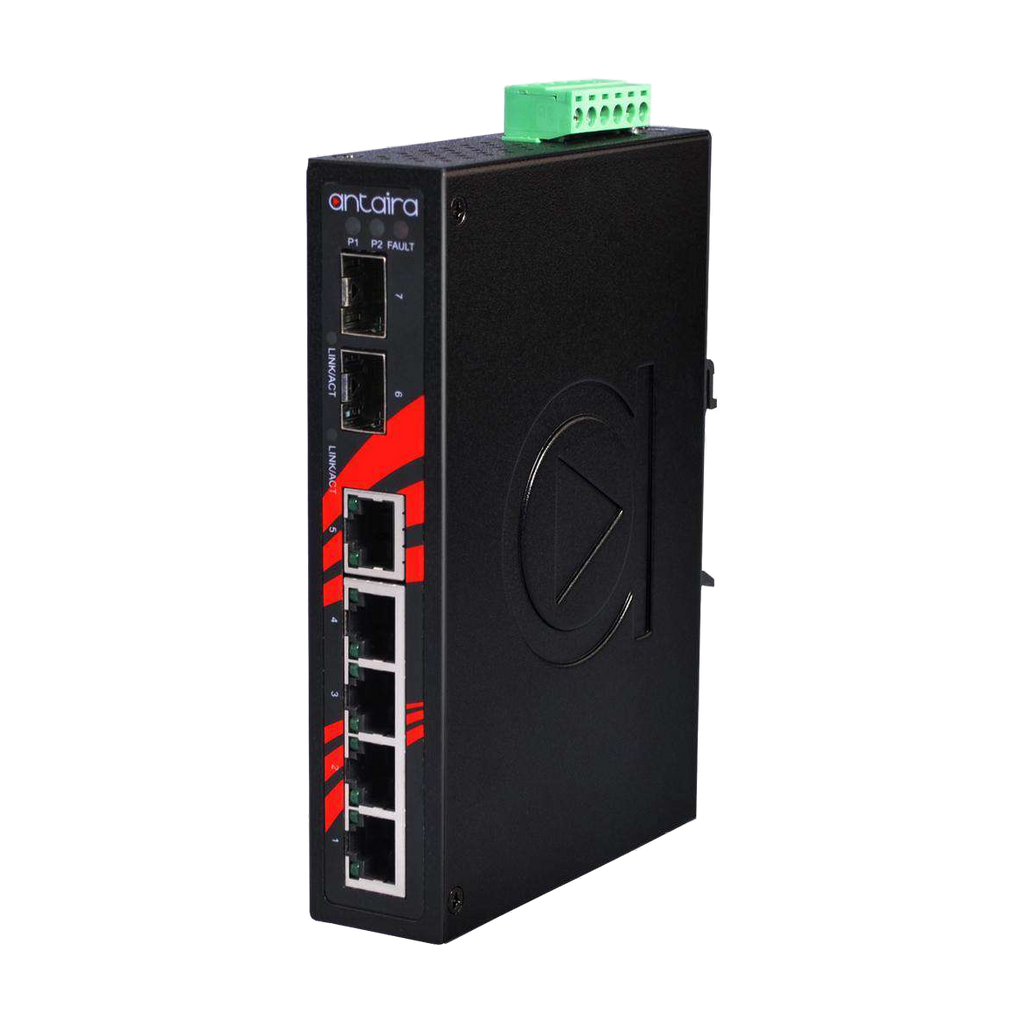

Switch LNX-0702C-SFP (5* 10/100Tx + 2* 100/1000 SFP)
Price excludes VAT
236.21€
Sale price
Price excludes VAT
236.21€
Regular price
Total with VAT (23%): 290.54€
Shipping calculated at checkout.
LNX-0702C-SFP
The Antaira Technologies’ LNX-0702C-SFP series industrial Gigabit unmanaged Ethernet switch features five 10/100Tx ports and two dual-rate 100/1000Fx SFP slots. This product series supports a wide power input from 12 to 48VDC and provides high EFT and ESD protection against unregulated voltage. It also offers wide operating-temperature models in either the standard range: – 10 to 70C or the extended range: - 40 to 75C. The LNP-0702C-SFP series is an ideal solution for harsh environments and industrial applications.
- Supports 5-Port 10/100Tx and 2-Port 100/1000 SFP Slots
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 10Gbps Backplane (Switching Fabric)
- 8K MAC address table
- Surge protection: 2,000 VDC support
- ESD protection: 6,000 VDC support
- Redundant power input design: 12~48VDC
- Built-in 1 relay output for power failure warning
- IP30 rugged metal enclosure design
- DIN-rail and wall-mount support
- Operating Temperature Range - STD: -10° to 70° C
- 5-Year Warranty
| Standards | IEEE 802.3, u, az |
| Switching Architecture | Backplane (Switching Fabric): 10Gbps |
| Transfer Rate | 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port |
| MAC TABLE SIZE | 8K |
| Ethernet Port | 5*10/100Tx Fast Ethernet |
| Fiber port | 2*100/1000 SFP Slot |
| Input Voltage | 12~48VDC, redundant input with 1* removable 6-contact terminal block |
| Overcurrent Protection | Present |
| Reverse Polarity Protection | Present |
| Power Consumption | 6W |
| Housing | Metal, IP30 protection |
| Dimensions | 30 x 99 x 142 mm |
| Weight | Unit: 1.3 lbs. Shipping: 1.7 lbs. |

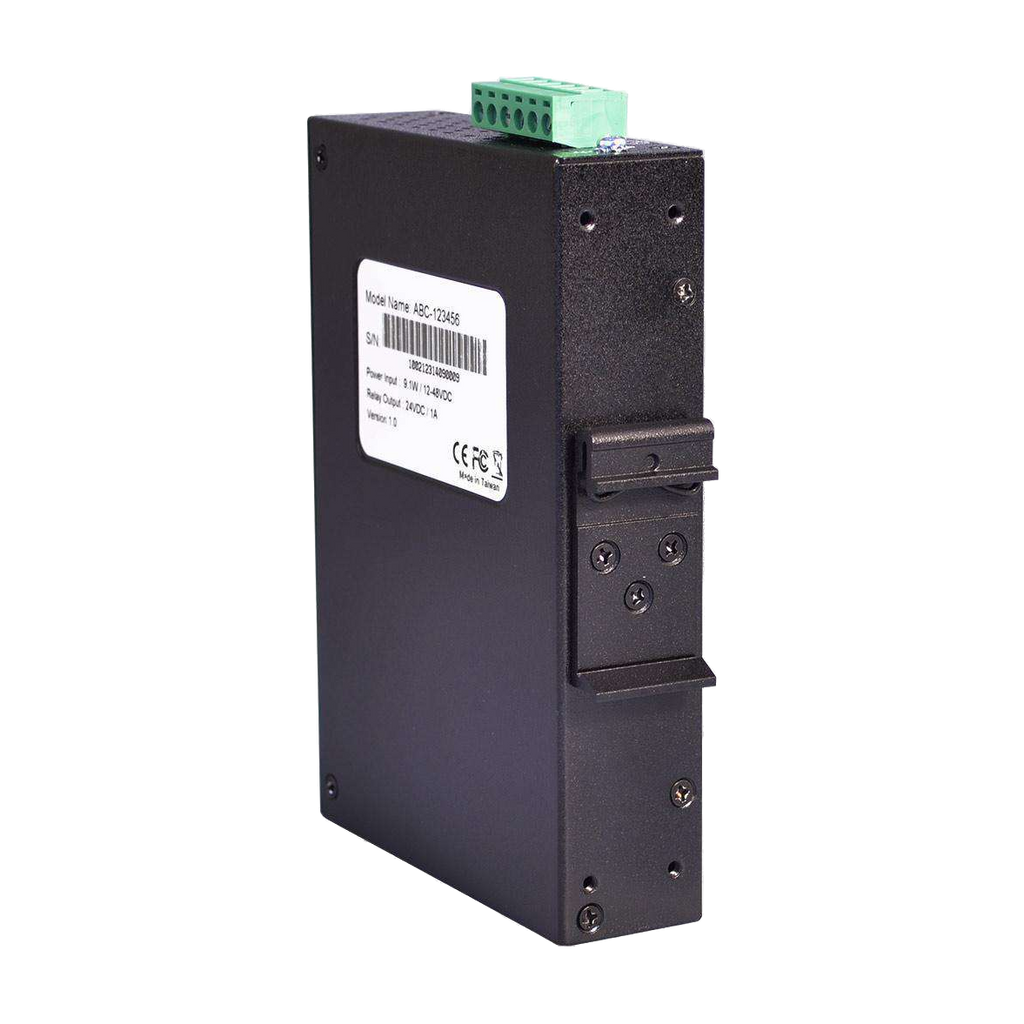

| Mounting | DIN-rail, wall mounting (optional) |
| Operating Temperature | STD: 0° to 70° C |
| Free Fall | IEC60068-2-32 / 2-27 / 2-6 |
| Environmental | RoHS Compliant |
| Certifications | FCC, CE, UL 61010-1, 61010-2-201 |
| Warranty | 5 Years |
