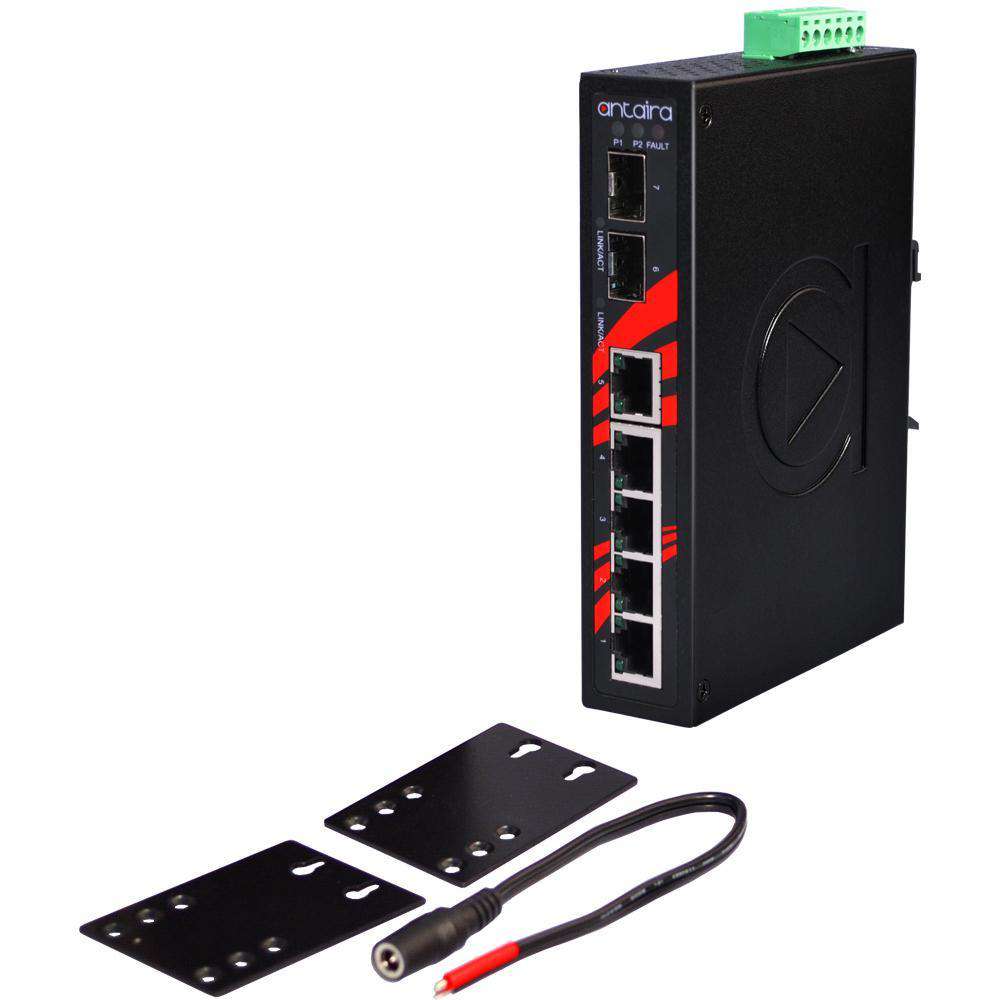

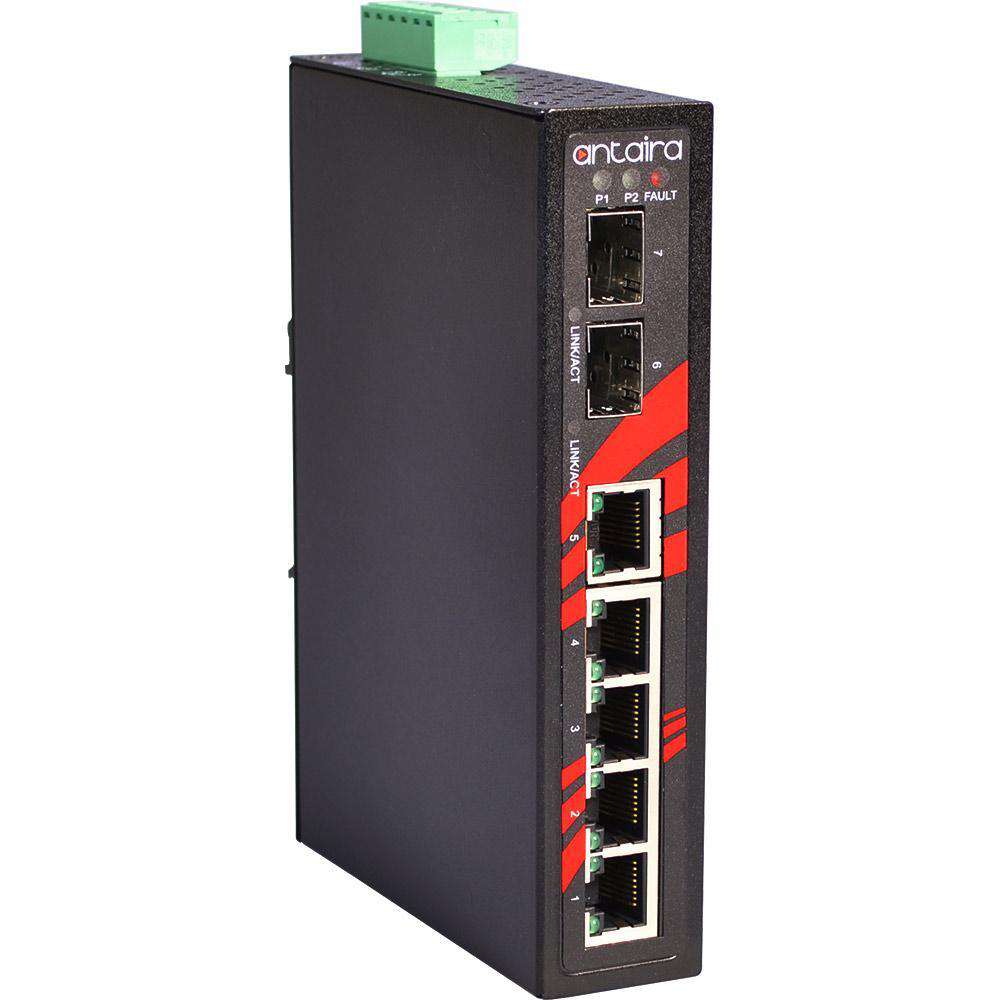

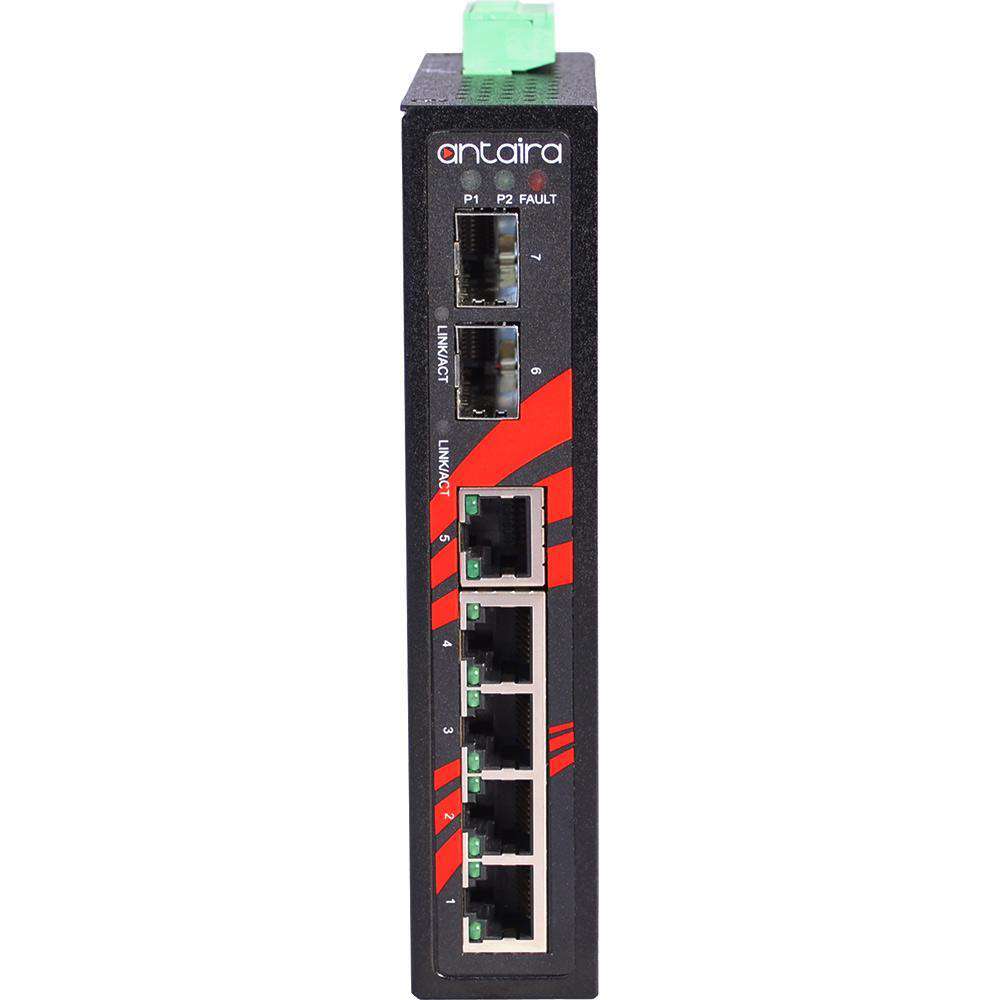

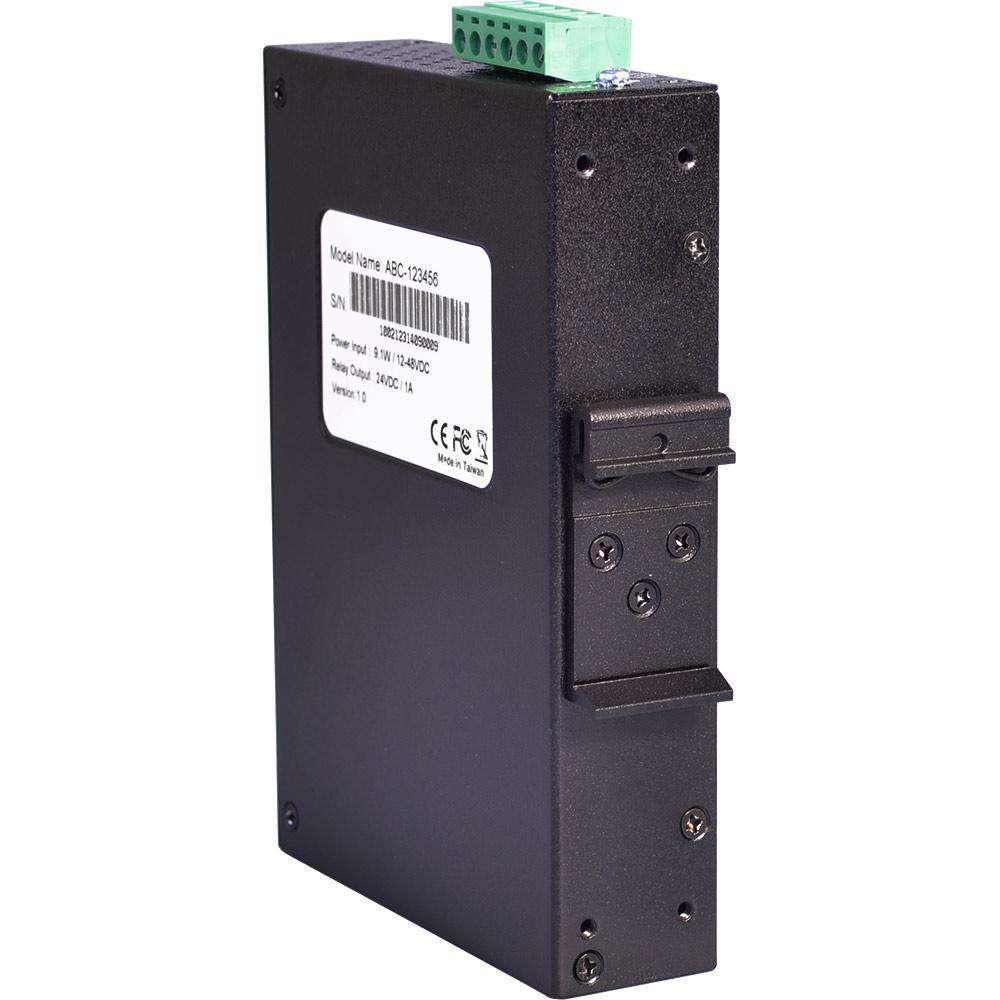

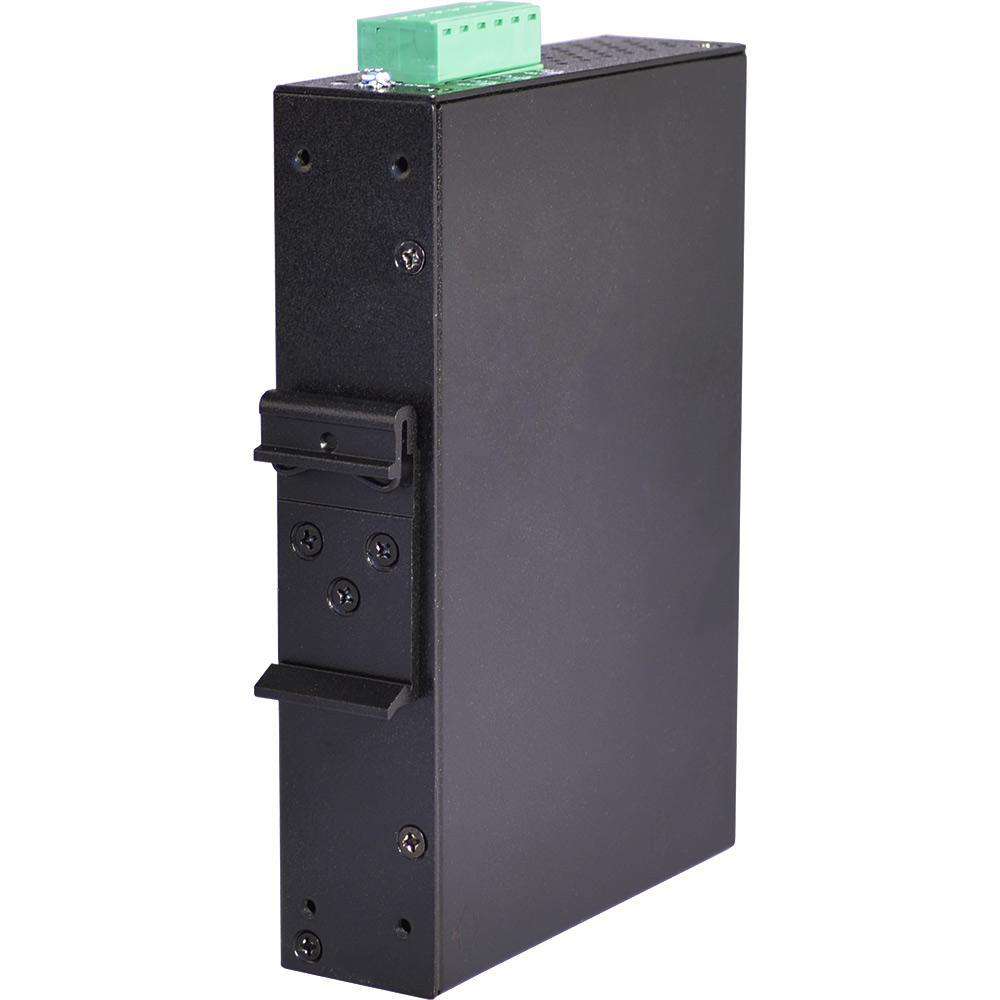

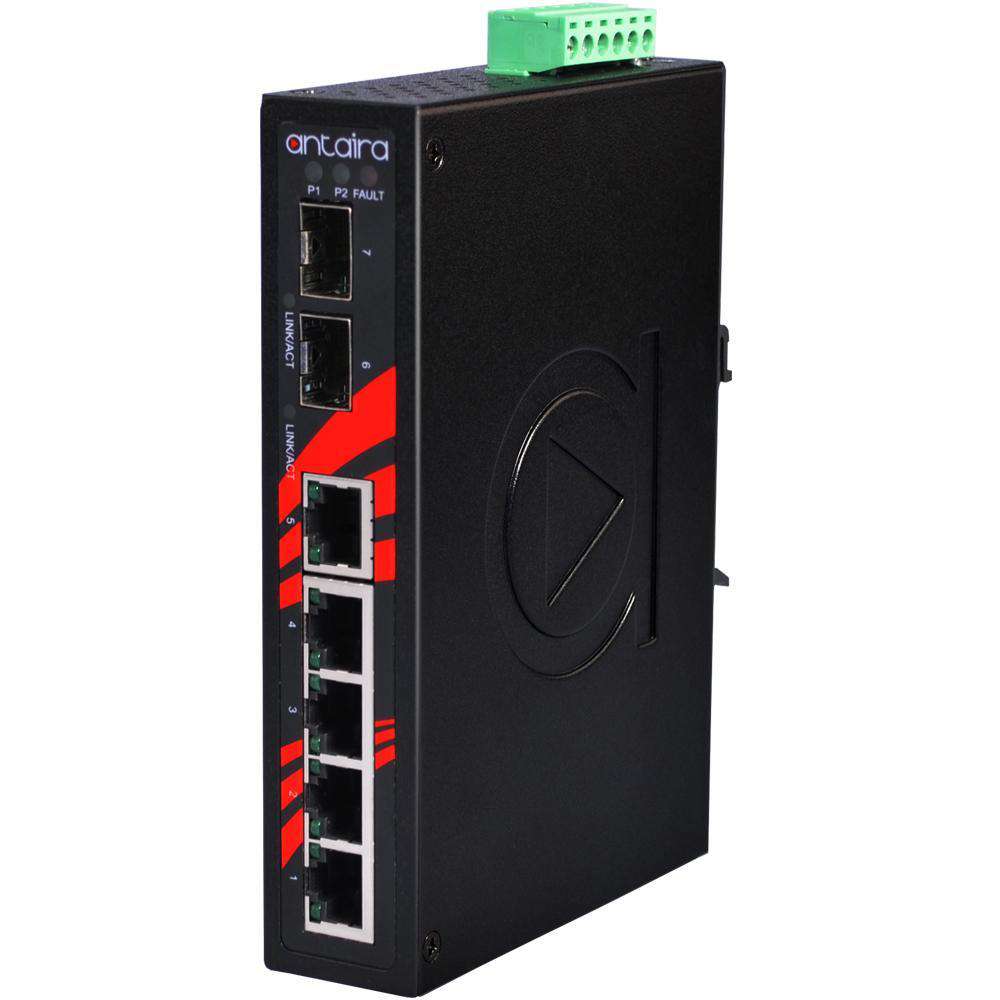

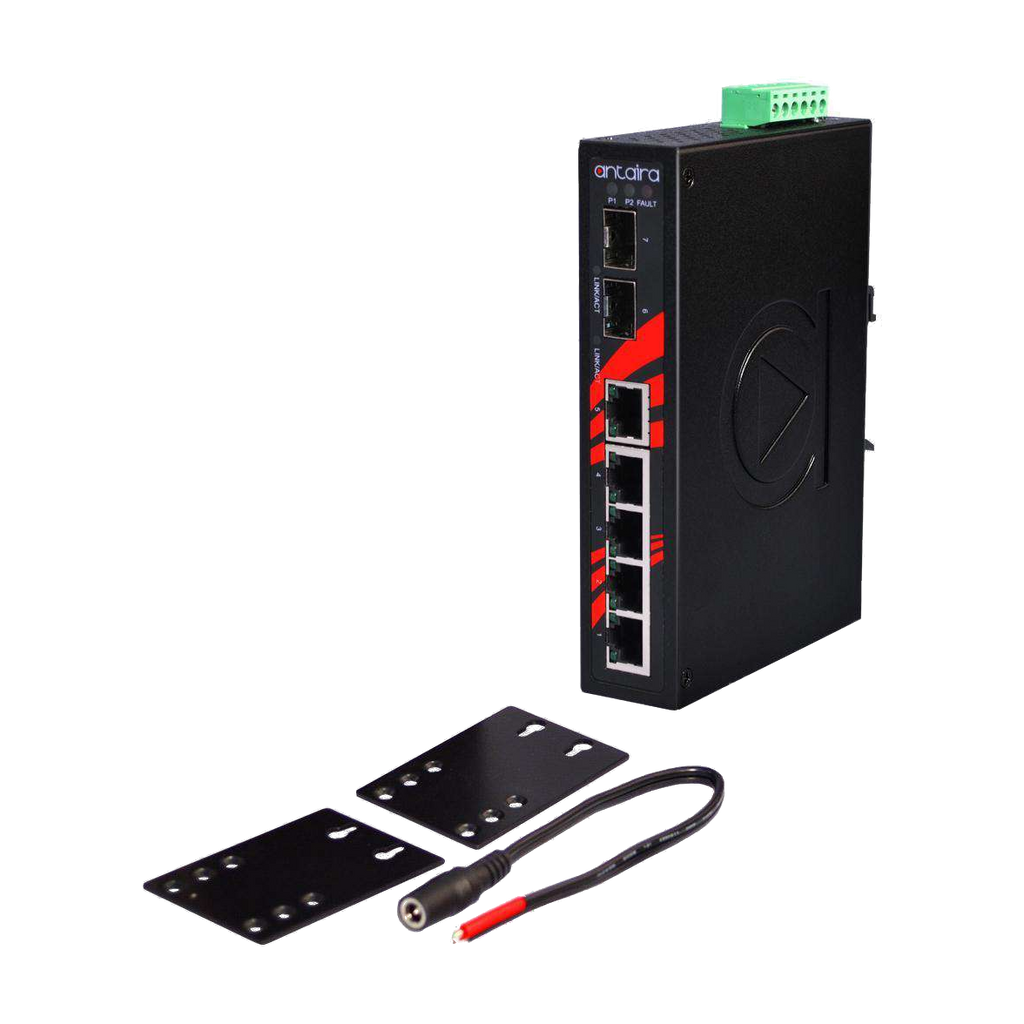

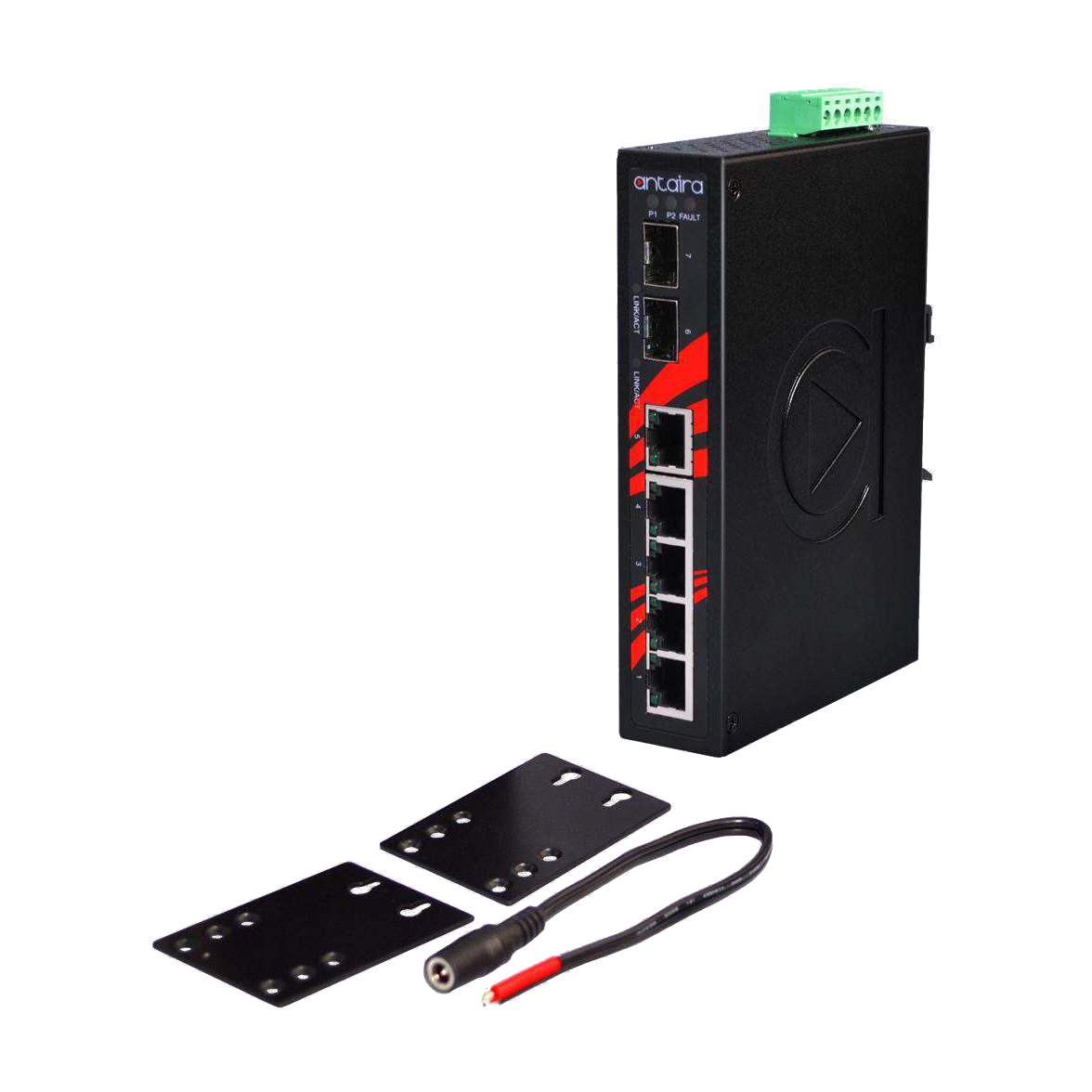

Switch LNX-0702C-SFP-T (5*10/100Tx + 2*100/1000 SFP)
Price excludes VAT
291.04€
Sale price
Price excludes VAT
291.04€
Regular price
Total with VAT (23%): 357.98€
Shipping calculated at checkout.
LNX-0702C-SFP-T
The Antaira Technologies’ LNX-0702C-SFP series industrial Gigabit unmanaged Ethernet switch features five 10/100Tx ports and two dual-rate 100/1000Fx SFP slots. This product series supports a wide power input from 12 to 48VDC and provides high EFT and ESD protection against unregulated voltage. It also offers wide operating-temperature models in either the standard range: – 10 to 70C or the extended range: - 40 to 75C. The LNP-0702C-SFP series is an ideal solution for harsh environments and industrial applications.
- Supports 5-Port 10/100Tx and 2-Port 100/1000 SFP Slots
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 10Gbps Backplane (Switching Fabric)
- 8K MAC address table
- Surge protection: 2,000 VDC support
- ESD protection: 6,000 VDC support
- Redundant power input design: 12~48VDC
- Built-in 1 relay output for power failure warning
- IP30 rugged metal enclosure design
- DIN-rail and wall-mount support
- Operating Temperature Range - STD: -40° to 75° C
- 5-Year Warranty
| Dimensions | 30mm (W) x 99mm (D) x 142mm (H) |
| Input voltage | 12~48VDC, redundant input with 1*removable 6-contact terminal block |
| Operating Temperature | EOT: -40° to 75° C |
| Power consumption | 6W |
| Warranty | 5 years |
