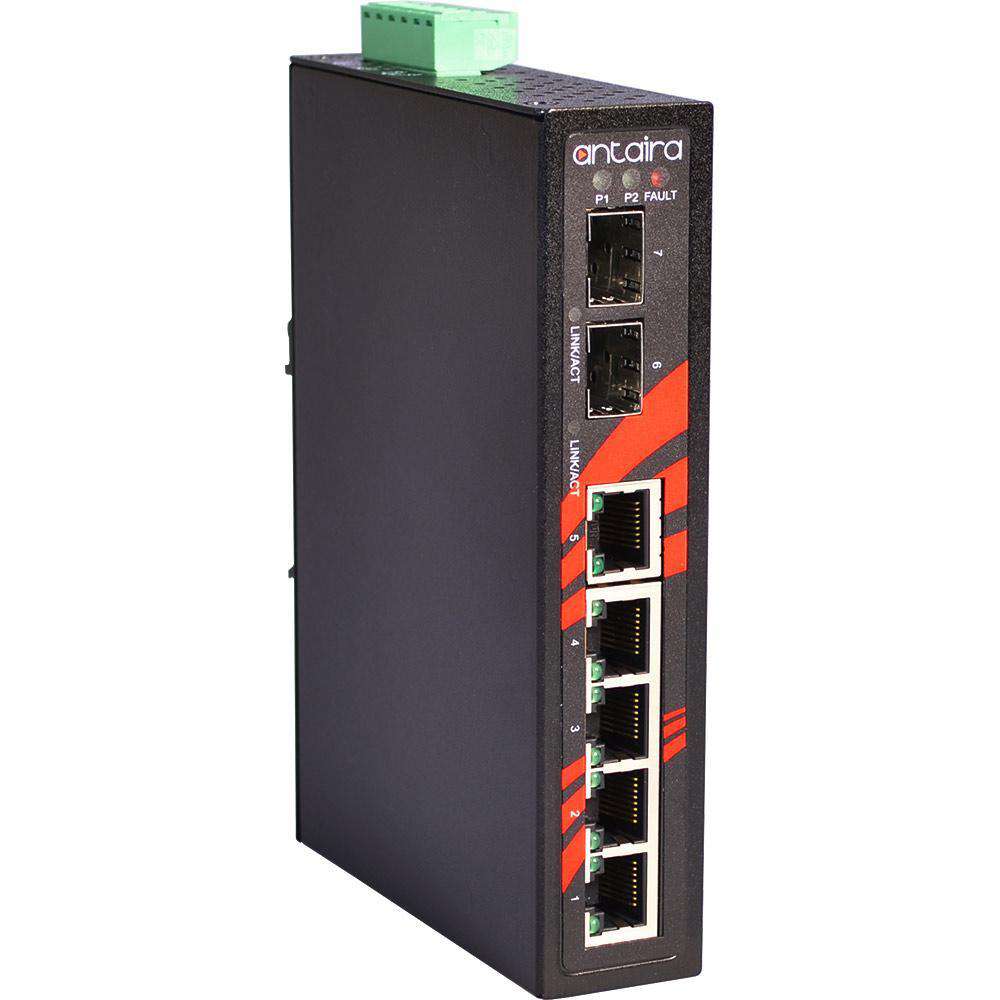

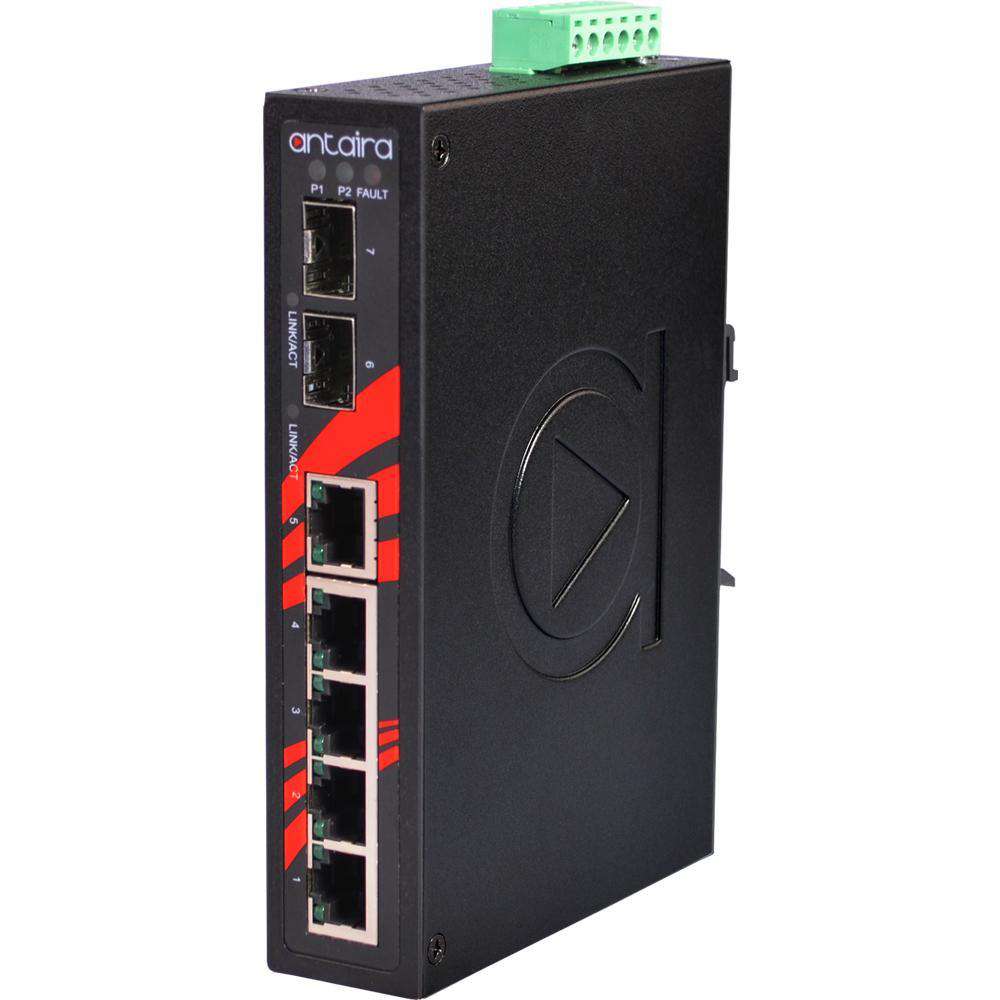

Switch LNX-0702G-SFP (5*10/100/1000Tx + 2*100/1000 SFP)
LNX-0702G-SFP
Antaira’s LNX-0702G-SFP industrial Gigabit unmanaged Ethernet switch series is IP30 rated and DIN-Rail mountable. The unit features five Gigabit Ethernet ports and two dual-rate (100/1000) SFP slots, making it ideal for applications that require high bandwidth and long-distance communication. This product series provides high EFT and ESD protection against unregulated voltage and is suitable for harsh environments. It supports power redundancy through a dual power input design with reverse polarity protection. In addition, the built-in relay warning function alerts maintenance personnel when power failures occur.
The LNX-0702G-SFP series offers an operating temperature range of -10 to 70°C and is specifically designed to meet the requirements of industrial automation, outdoor applications, and harsh weather environments.

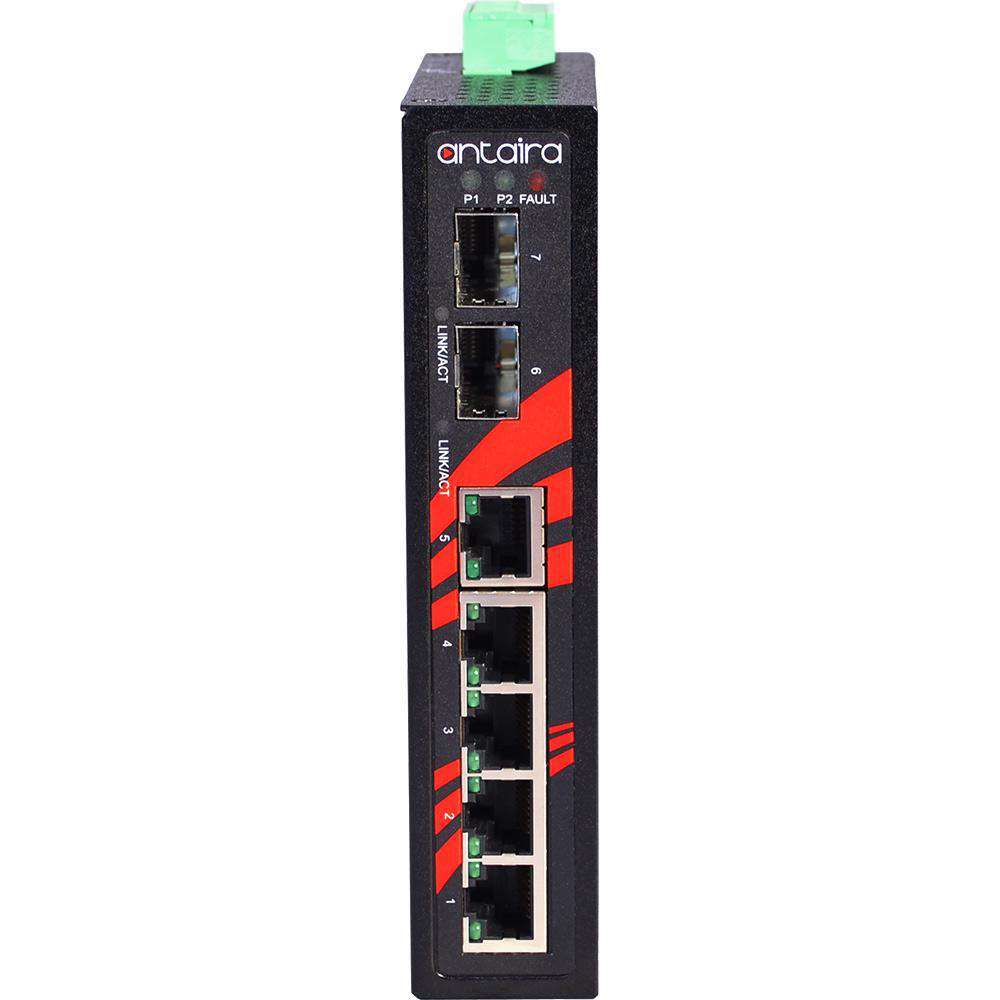

- 5*10/100/1000Tx Fast Ethernet Ports & 2*100/1000 SFP Slots
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 14Gbps backplane (Switching Fabric)
- 8K MAC address table
- 9.6Kbytes Jumbo Frame support
- Surge protection: 2,000 VDC support
- ESD protection: 6,000 VDC support
- Redundant power input design: 12~48VDC
- Built-in 1 relay output for power failure detection
- IP30 rugged metal enclosure design

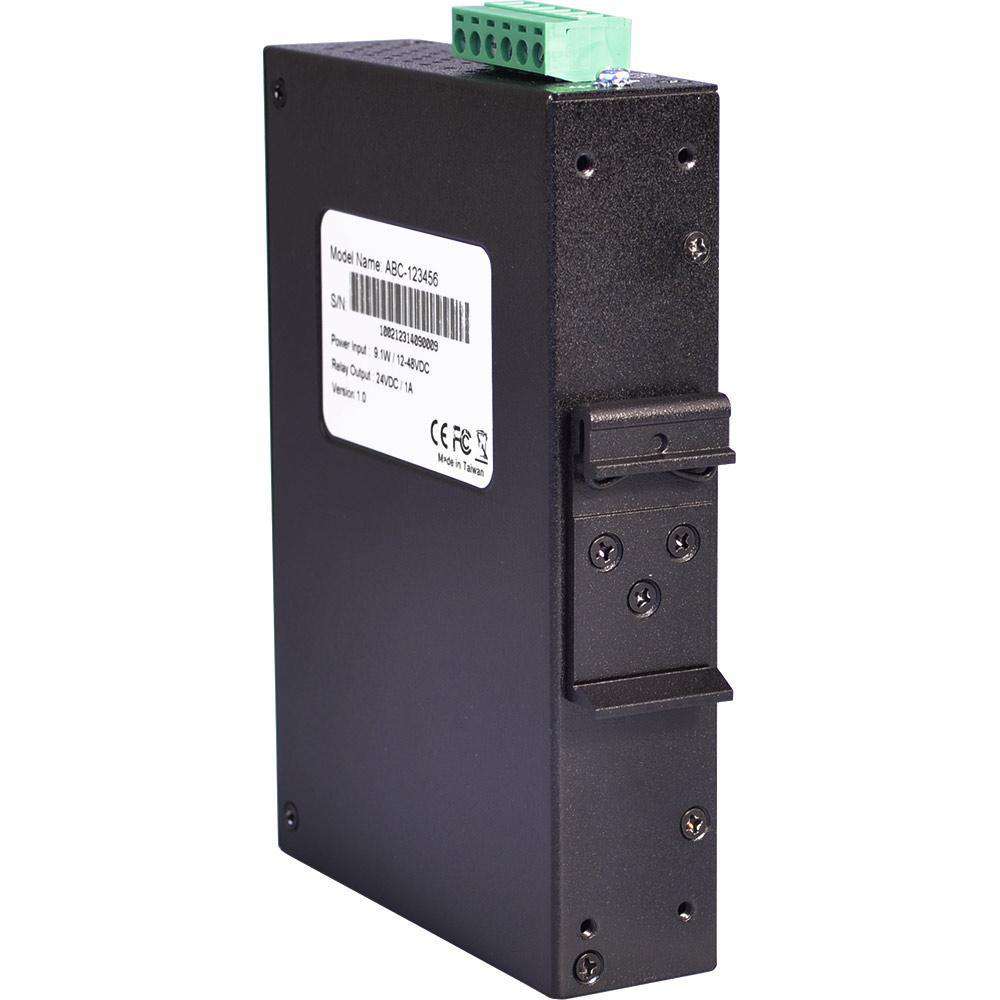

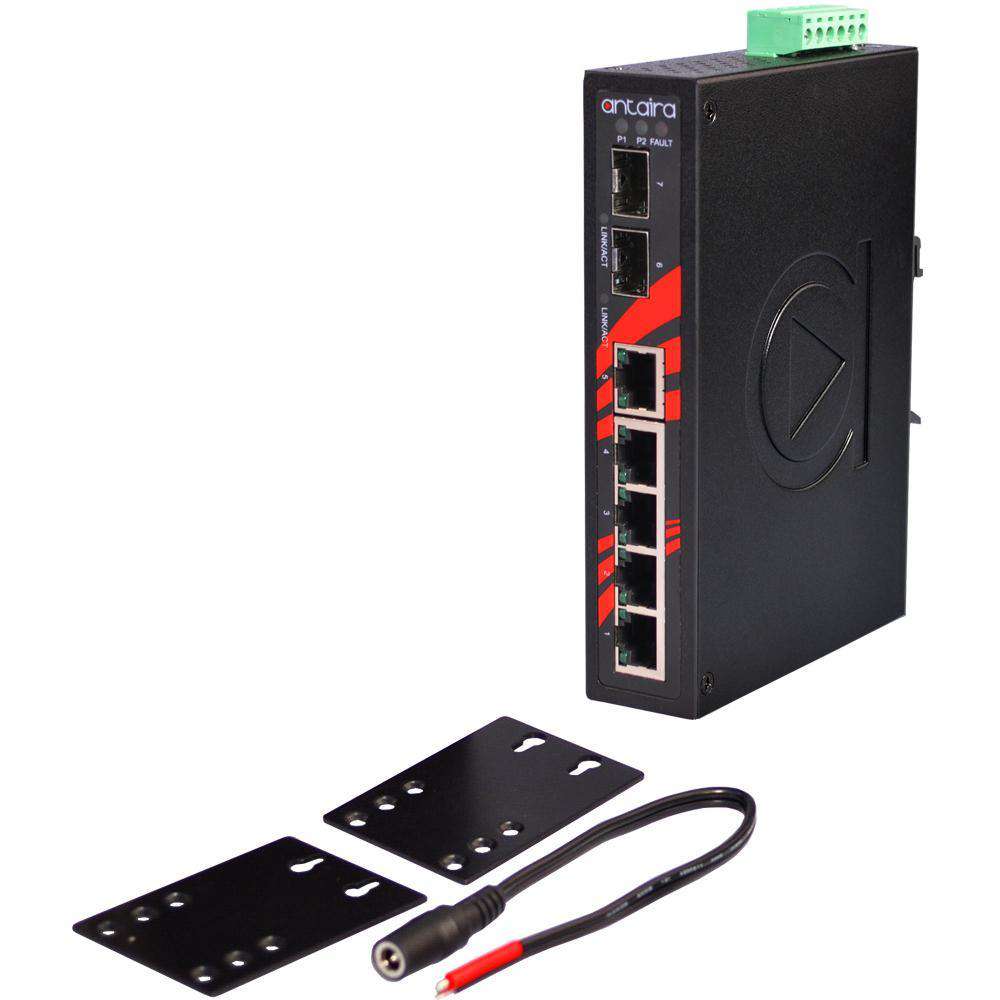

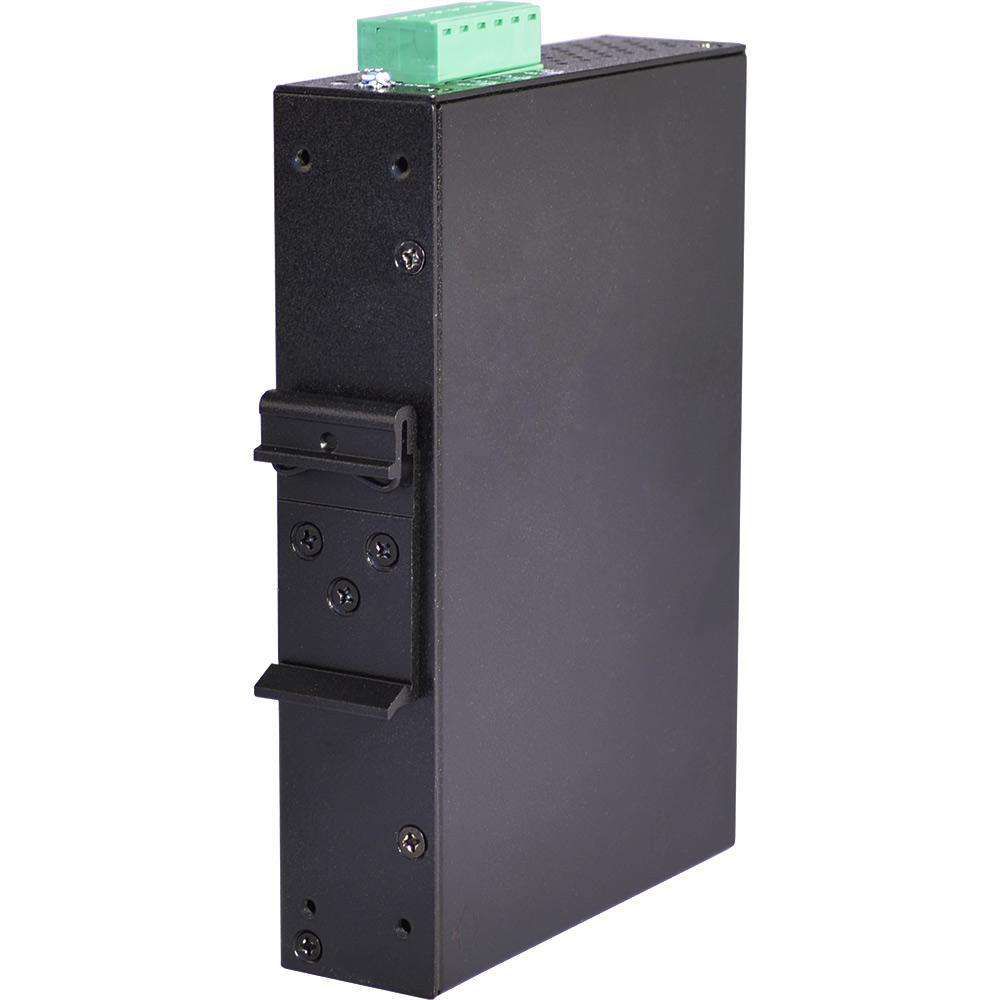

- DIN-rail and wall-mount support
- Operating Temperature Range - STD: -10° to 70° C
- 5-Year Warranty
| Dimensions | 30mm (W) x 99mm (D) x 142mm (H) |
| Ethernet Port | 5*10/100/1000BaseT(X) with auto-negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection; |
| Input Voltage | 12~48VDC, redundant input (with 1 * removable 6-contact terminal block) |
| Operating temperature | -10° to 70° C (14° to 158° F) |
| Storage temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| Power consumption | 9.1 Watts |
