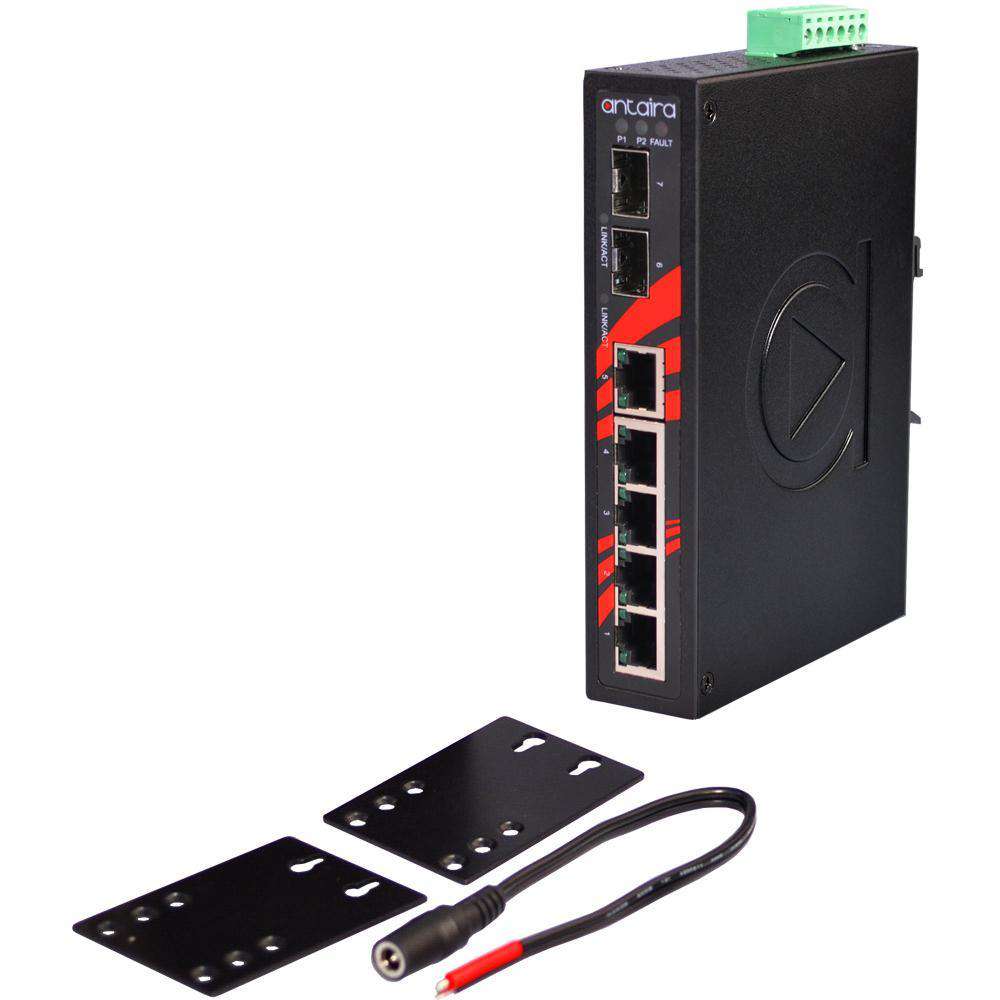

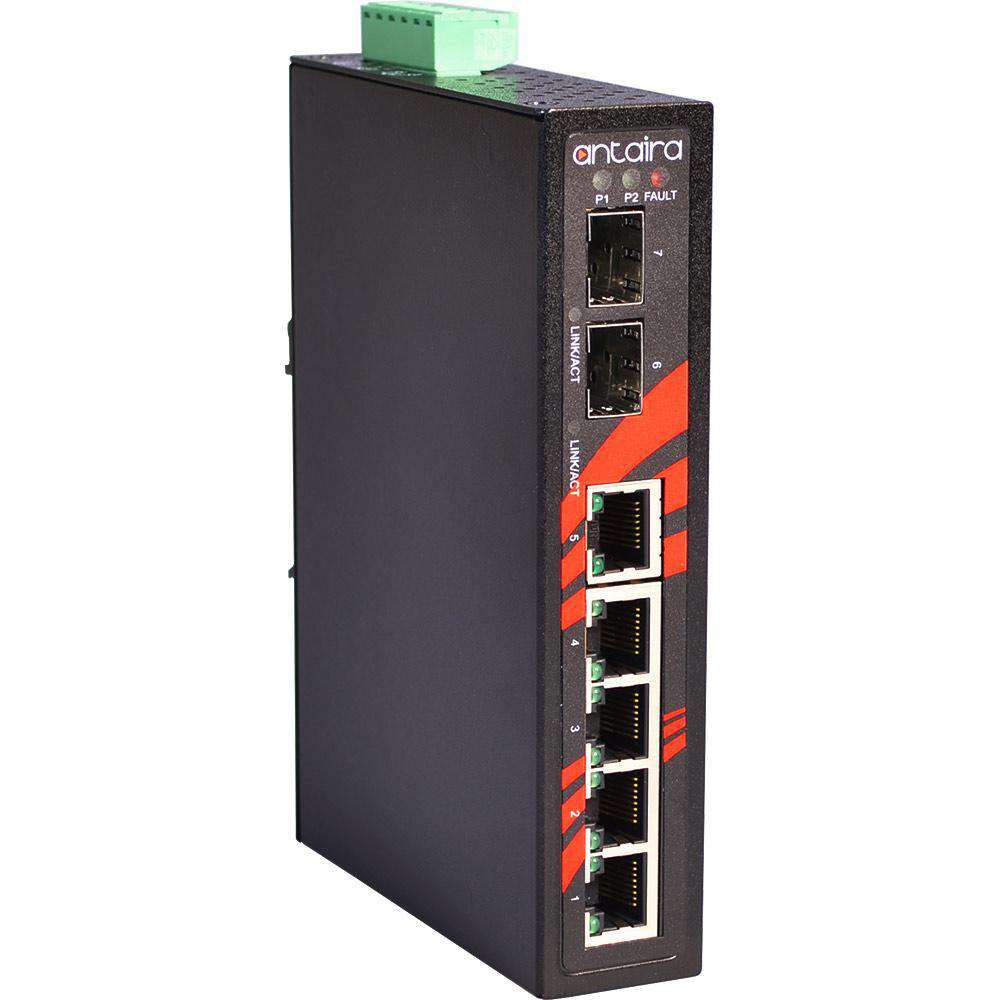

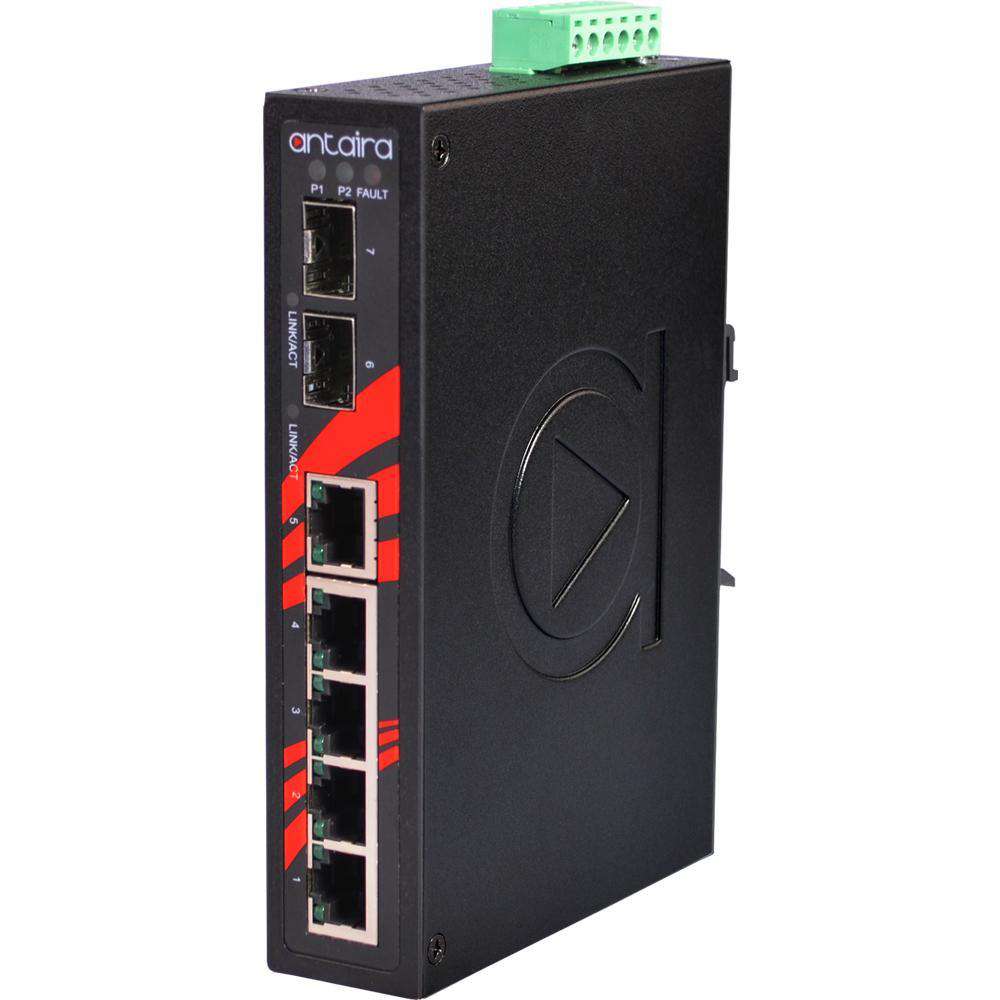

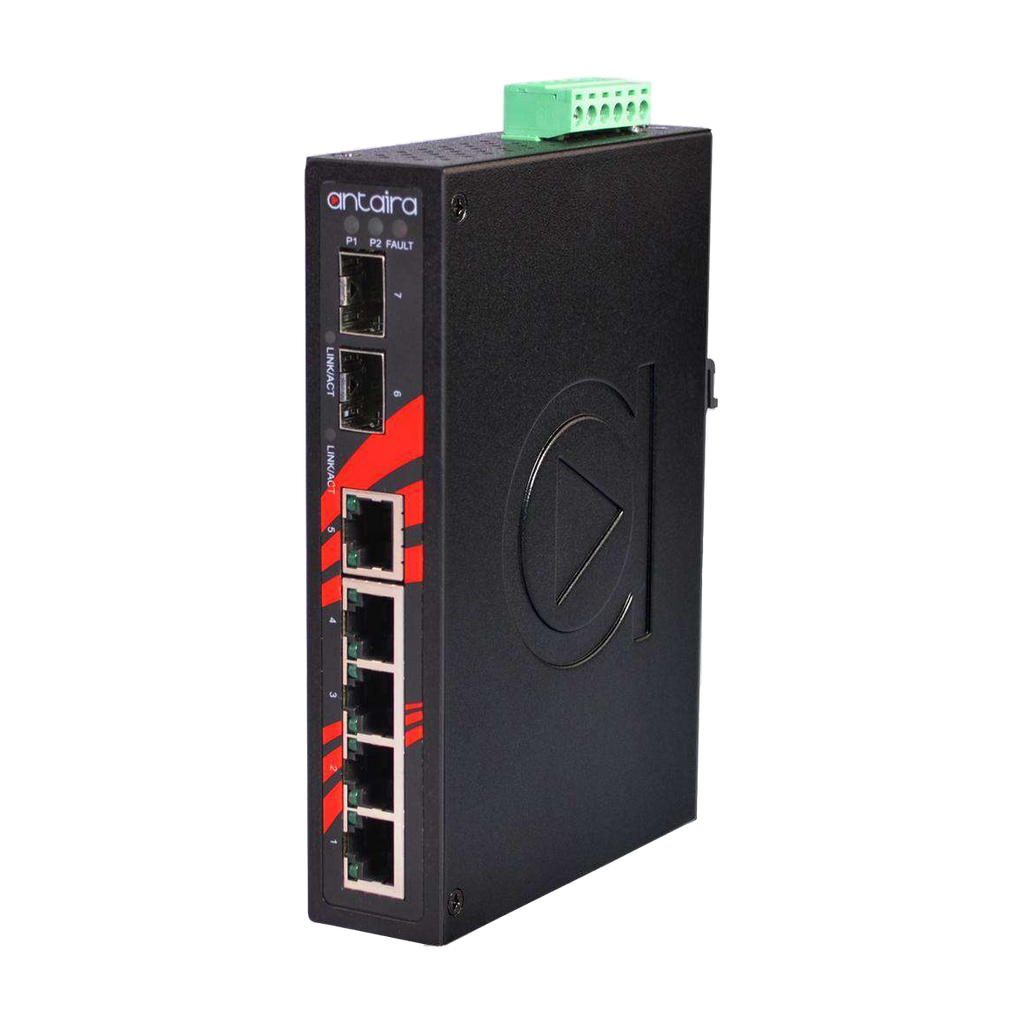

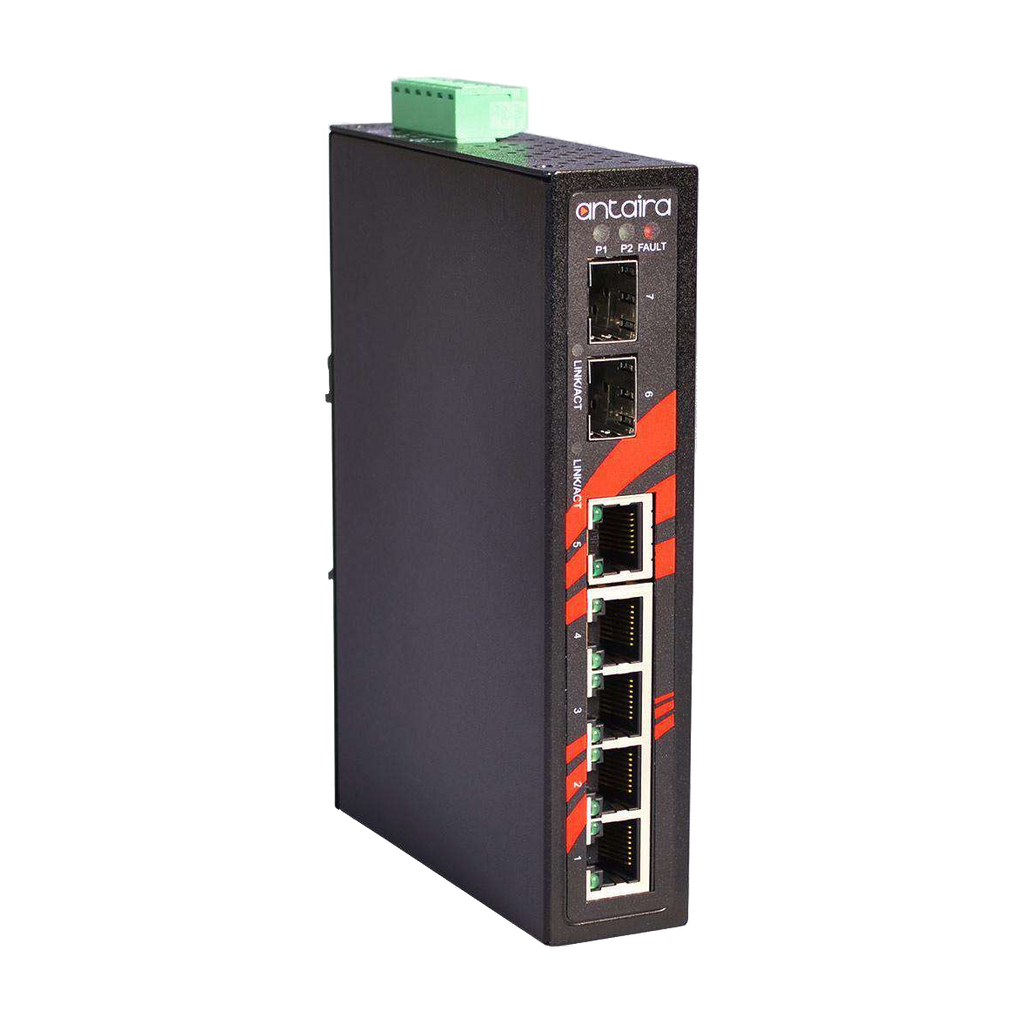

Switch LNX-0702G-SFP-T (5*10/100/1000Tx + 2*100/1000 SFP)
LNX-0702G-SFP-T
Antaira’s LNX-0702G-SFP-T industrial Gigabit unmanaged Ethernet switch series is IP30 rated and DIN-Rail mountable. The unit features five Gigabit Ethernet ports and two dual-rate (100/1000) SFP slots, making it ideal for applications requiring high bandwidth and long-distance communication. The LNX-0702G-SFP-T provides high EFT and ESD protection against unregulated voltage and is suitable for harsh environments. It supports power redundancy through a dual power input design with reverse-polarity protection. In addition, the built-in relay warning function alerts maintenance personnel when power failures occur.
The LNX-0702G-SFP-T has an extended operating temperature range of -40 to 75°C. It is designed to meet the specific requirements of industrial automation, outdoor applications, and harsh weather environments.

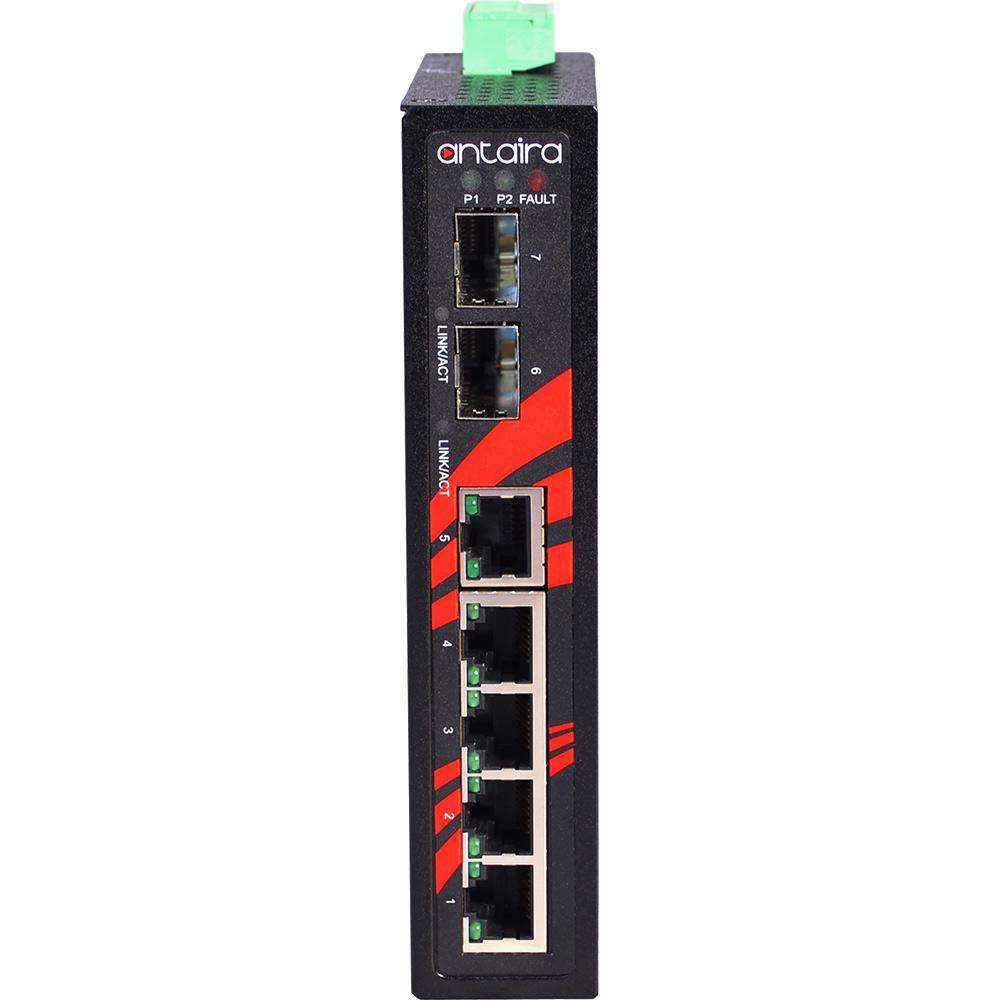

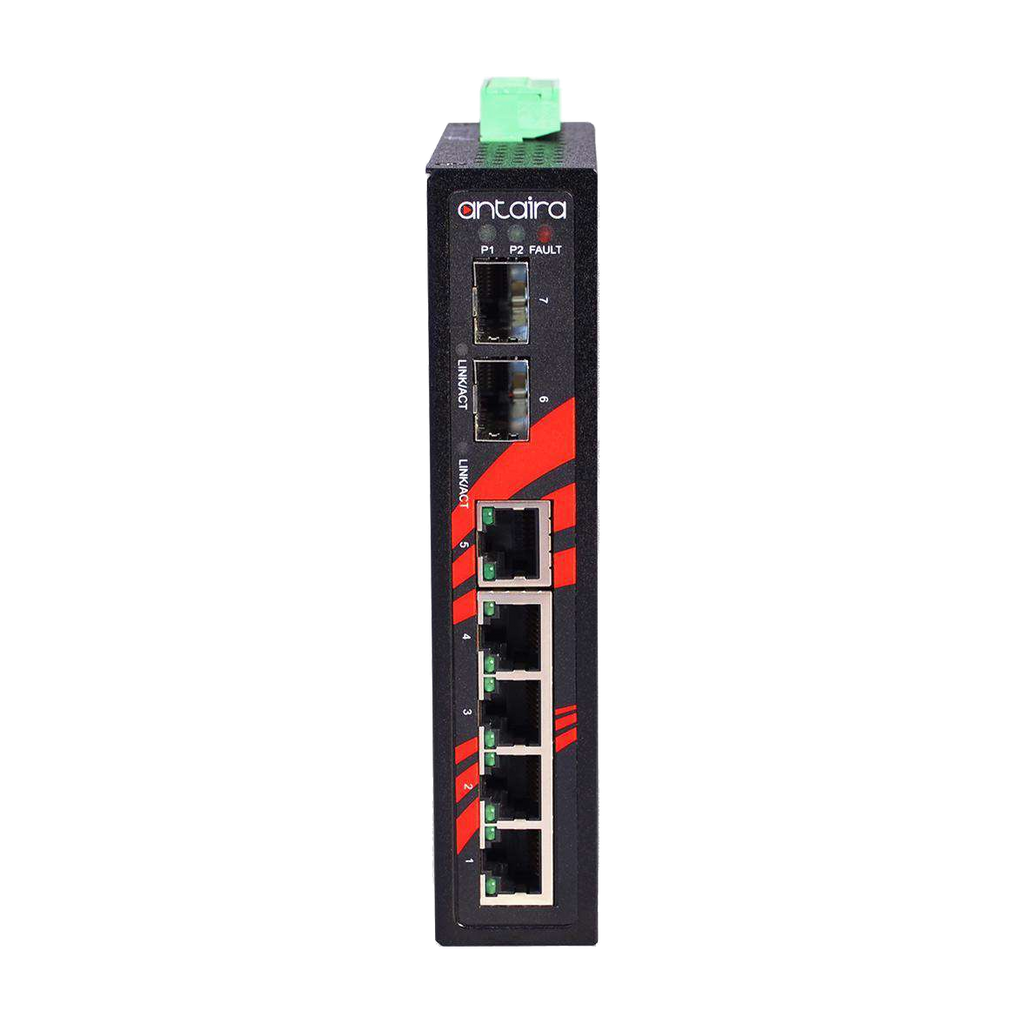

- 5*10/100/1000Tx Fast Ethernet Ports & 2*100/1000 SFP Slot
- Supports Auto MDI/MDI-X function
- Store-and-Forward switching architecture
- 14Gbps backplane (Switching Fabric)
- 8K MAC address table
- 9.6Kbytes Jumbo Frame support
- Surge protection: 2,000 VDC support
- ESD protection: 6,000 VDC support
- Redundant power input design: 12~48VDC
- Built-in 1 relay output for power failure detection
- IP30 rugged metal enclosure design

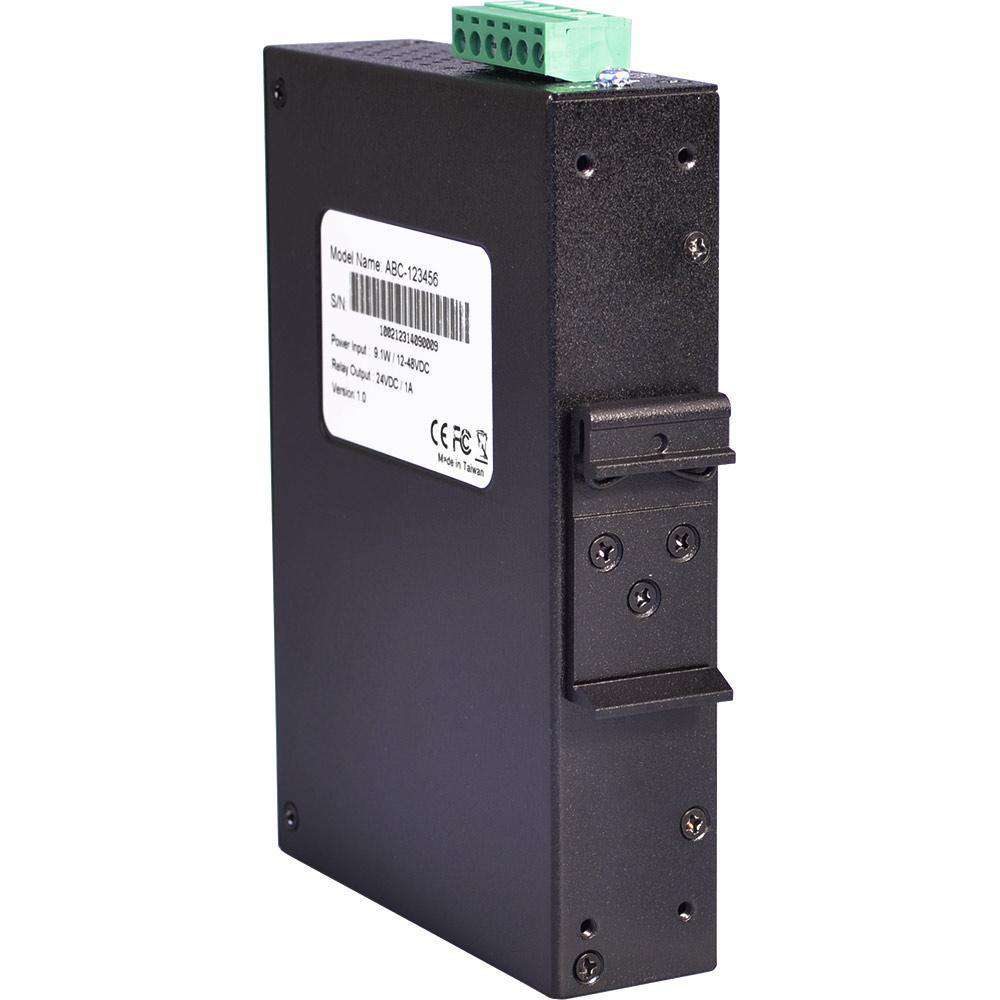

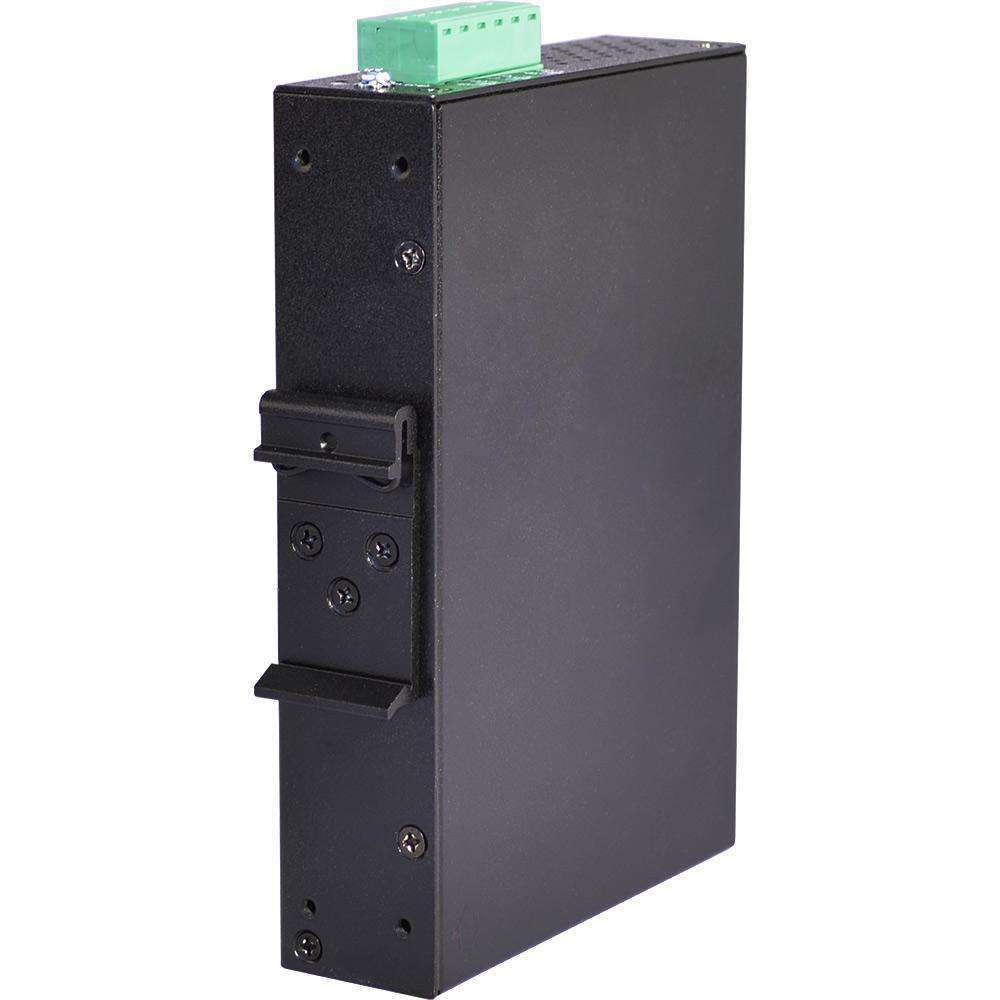

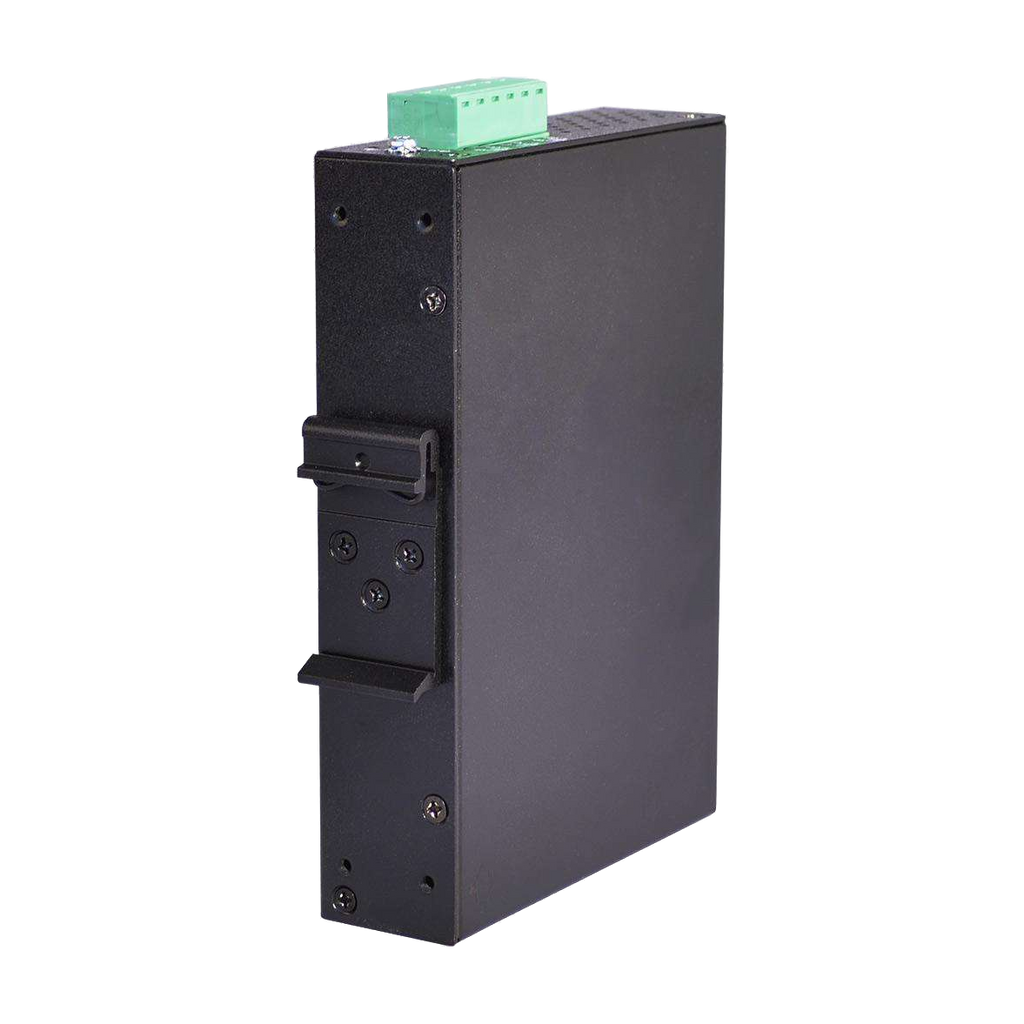

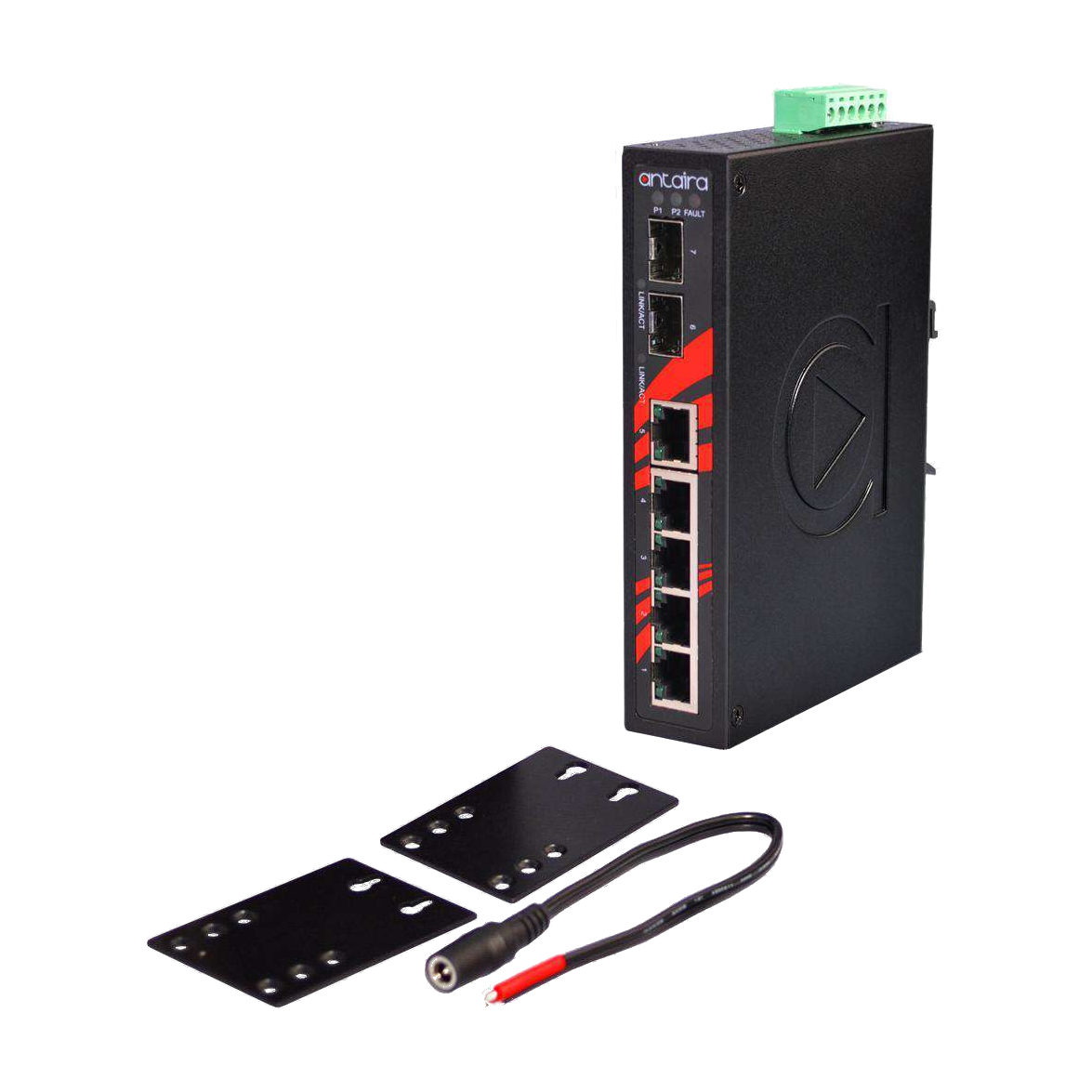

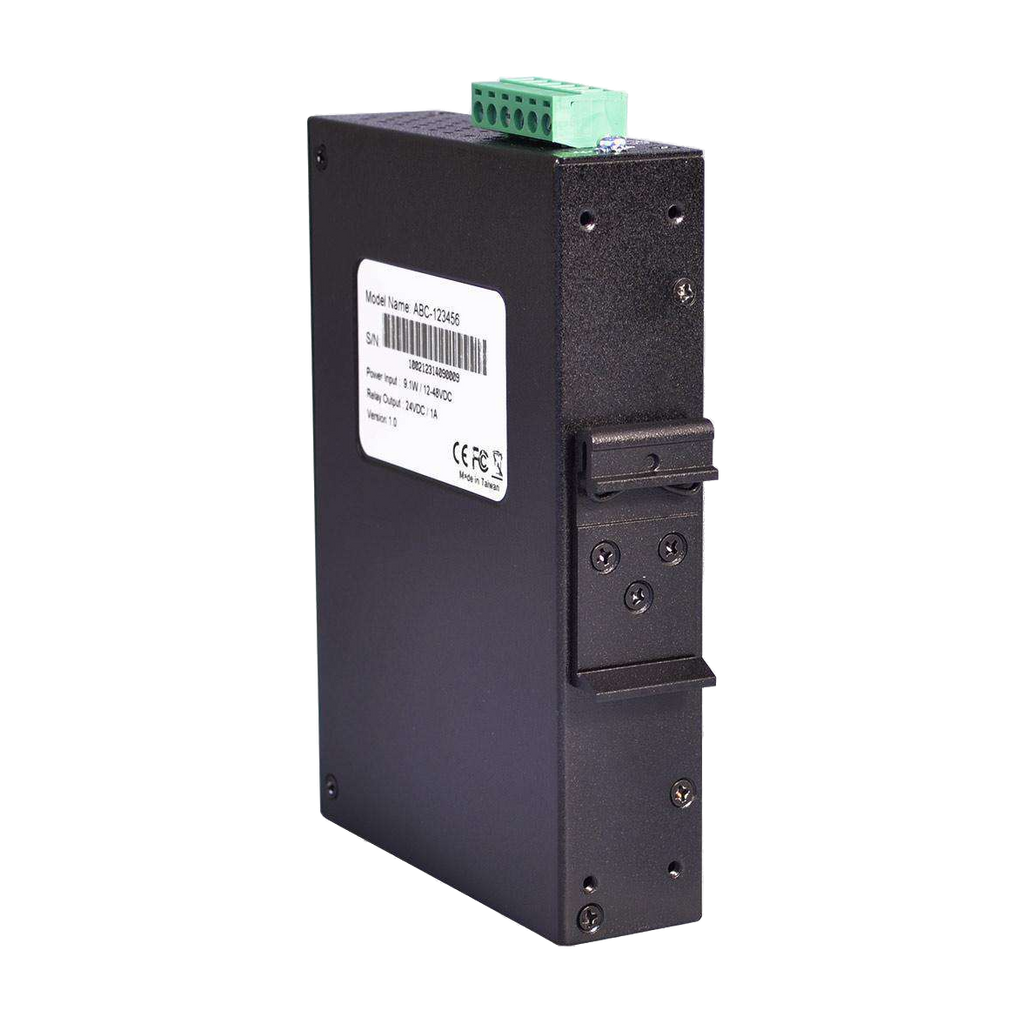

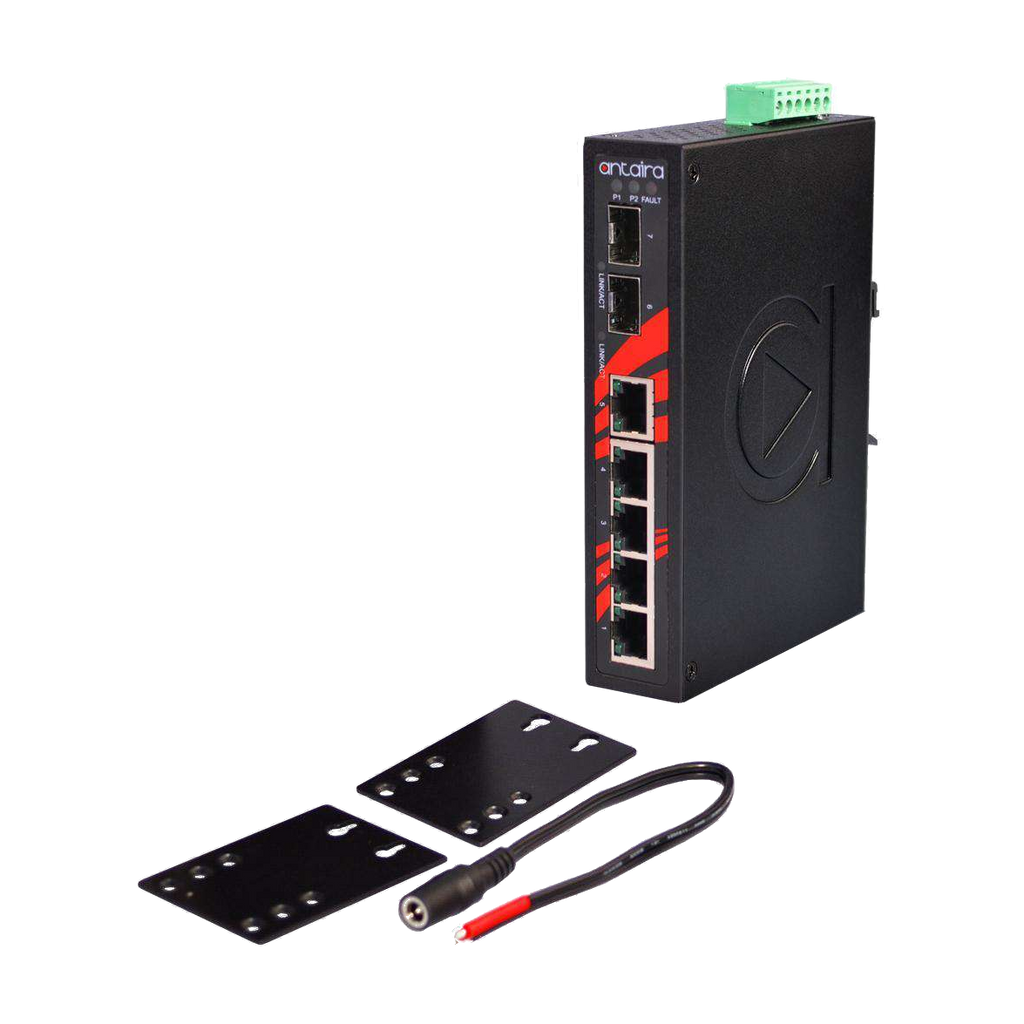

- DIN-Rail and wall-mount support
- Operating temperature range - STD: -40° to 75° C
- 5-year warranty
| Dimensions | 30mm (W) x 99mm (D) x 142mm (H) |
| Ethernet Port | 5*10/100/1000BaseT(X) ports with auto-negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection; |
| Input Voltage | 12~48VDC, redundant input (with 1 * removable 6-contact terminal block) |
| Operating temperature | -40° to 75° C |
| Storage temperature | -40°C ~ 85°C |
| Power consumption | 9.1 Watts |
