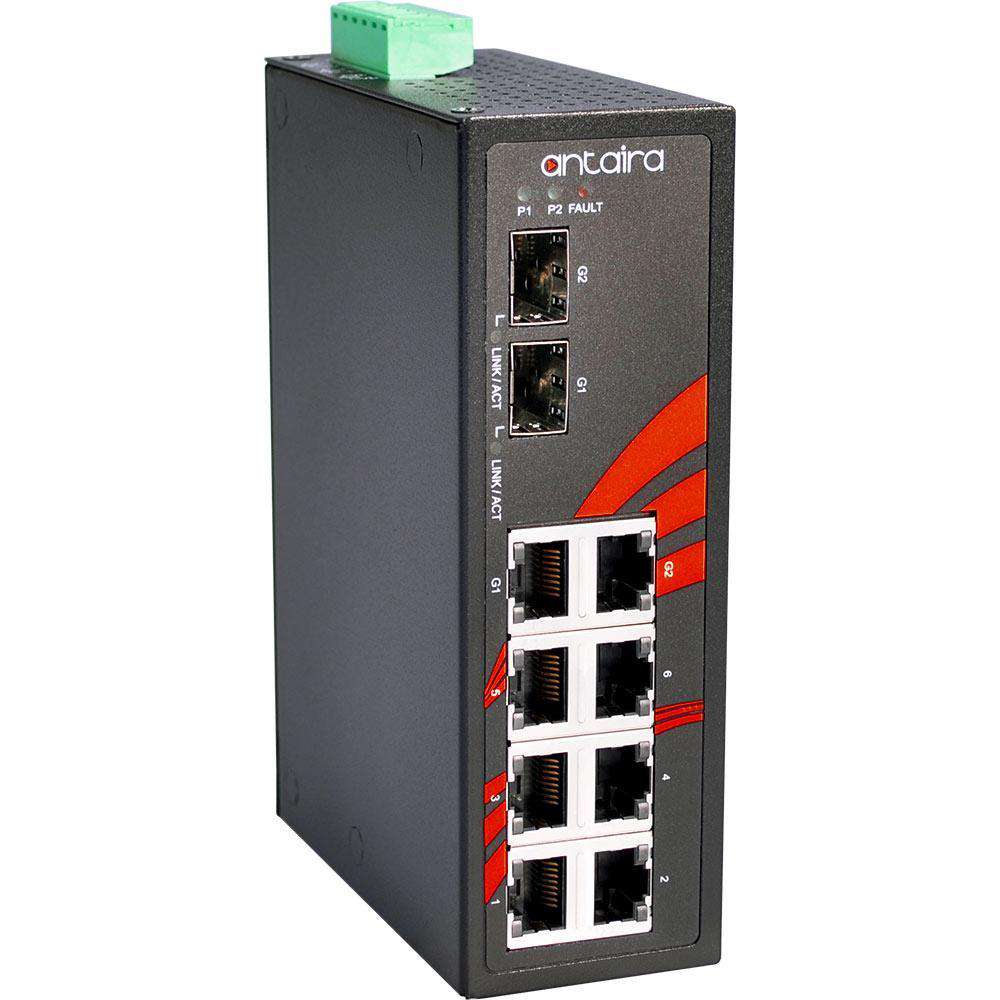

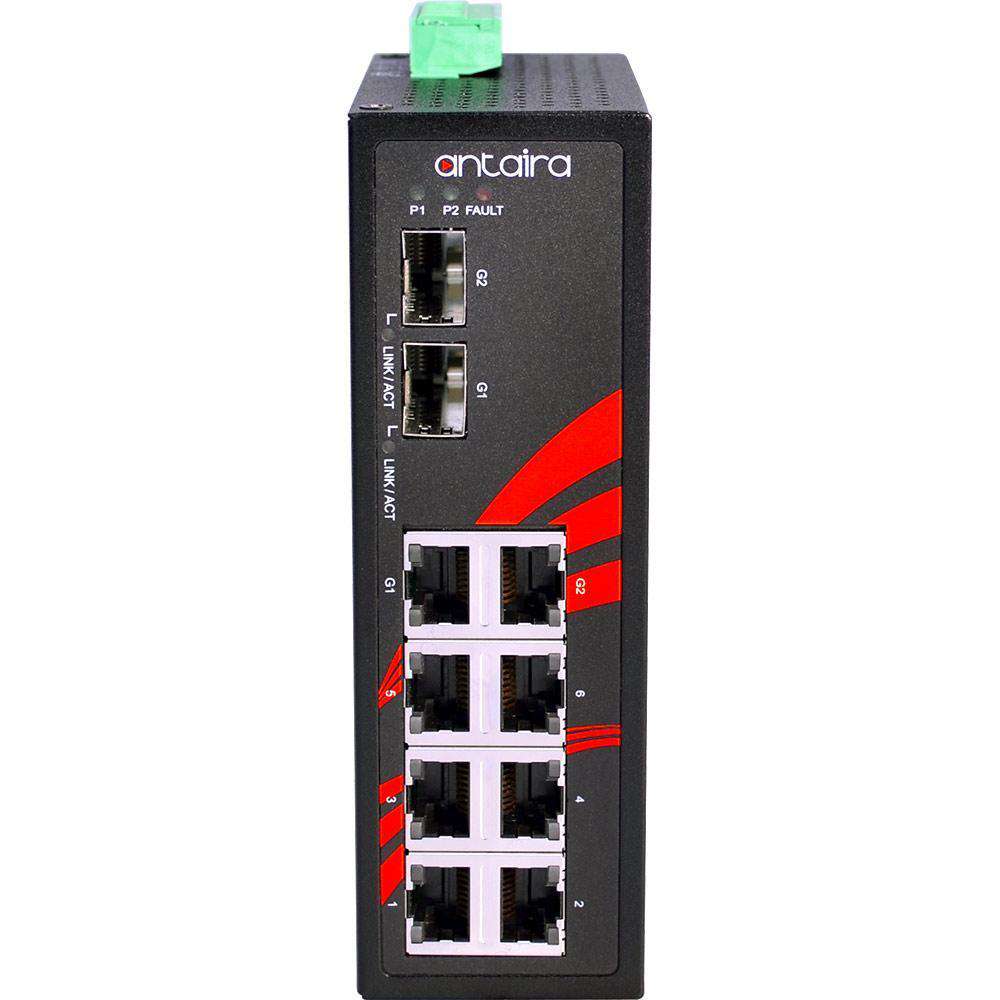

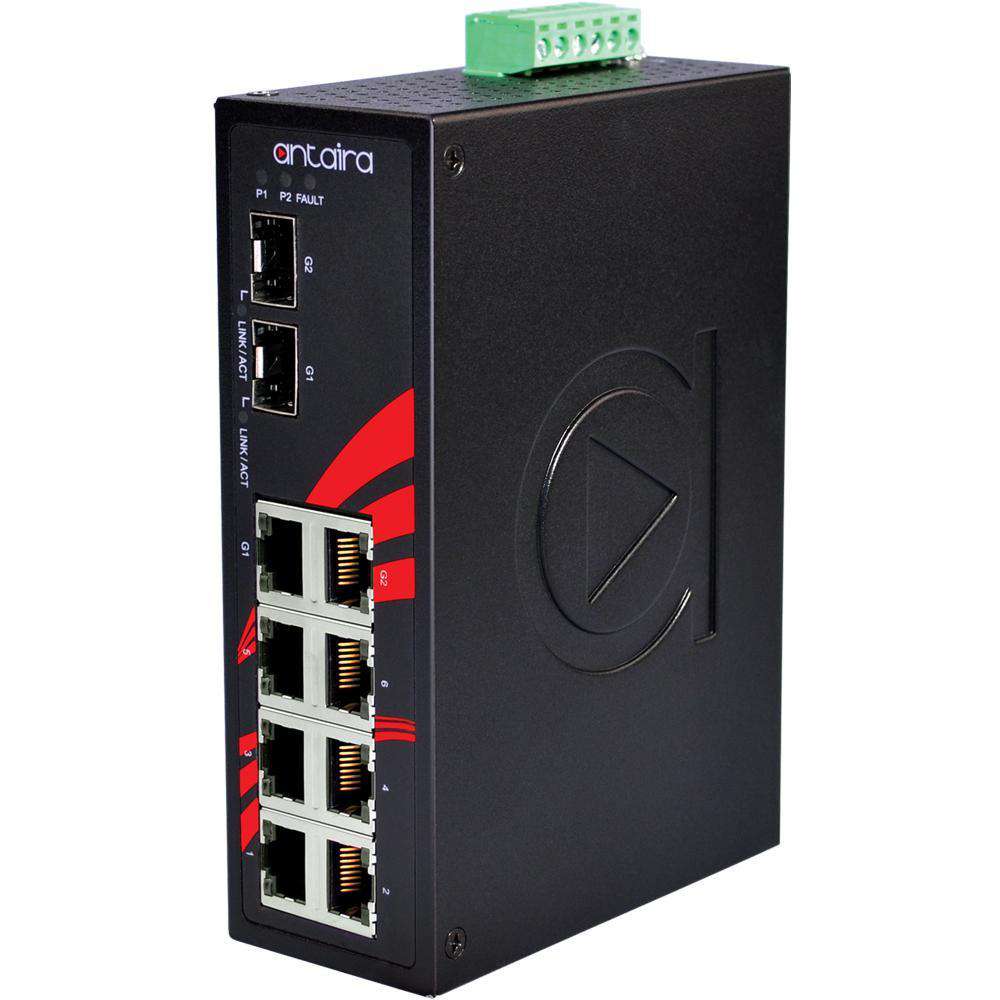

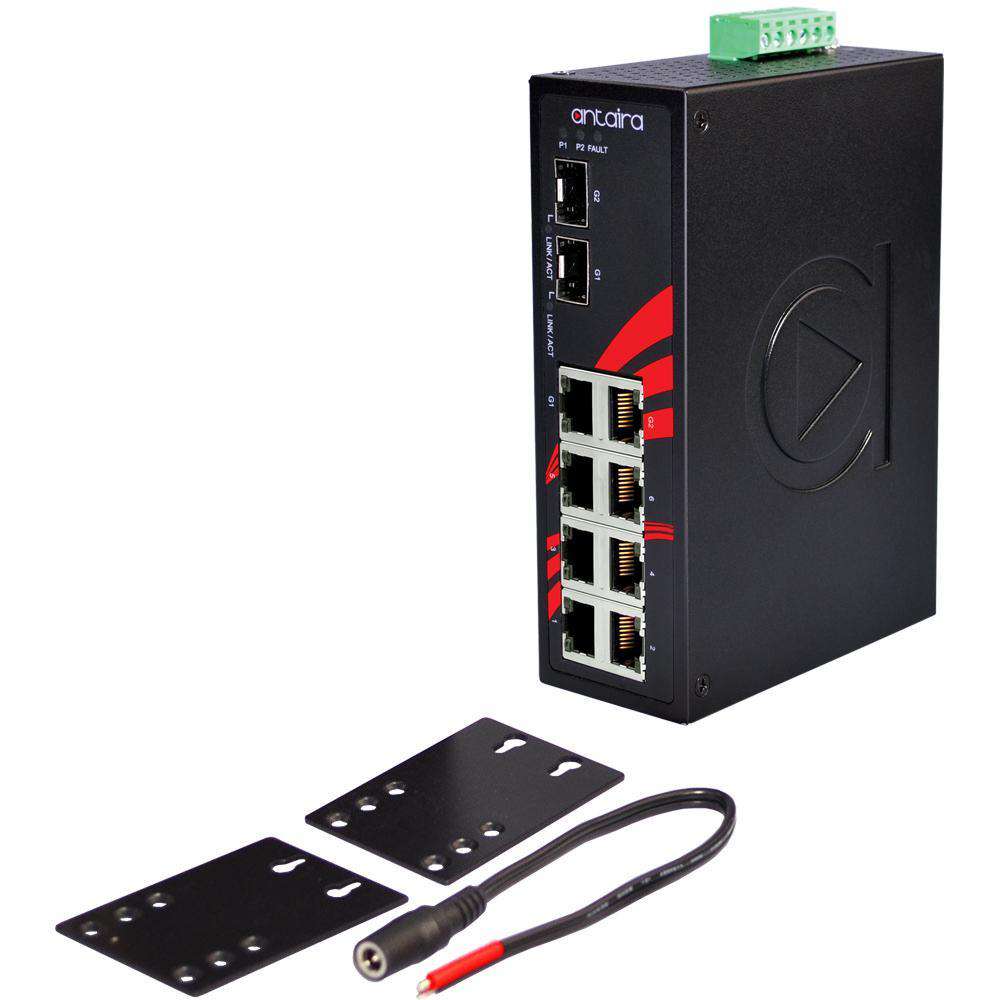

Switch LNX-0802C-SFP (6*10/100Tx + 2* combo Gigabit)
LNX-0802C-SFP
Antaira’s LNX-0802C-SFP industrial Gigabit unmanaged Ethernet switch series is IP30 rated and DIN-Rail mountable. Each unit features six 10/100Tx Fast Ethernet ports and two Gigabit combo ports, with two 10/100/1000 Fast Ethernet ports or two dual-rate (100/1000) SFP slots, making it ideal for applications that require high bandwidth and long-distance communication. This product series provides high EFT and ESD protection against unregulated voltage, as well as dual power inputs for redundancy with reverse-polarity protection; in addition, the built-in relay warning function alerts maintenance personnel when power failures occur. This series also includes two models supporting a wide operating temperature range: a standard model with a -10 to 70°C range and an extended operating temperature model with a -10 to 70°C range. It is specifically designed to meet the requirements of industrial automation, outdoor applications, and harsh weather environments.
- Supports 6-Port 10/100Tx and 2* Gigabit Combo Ports (2* 10/100/1000Tx RJ45 and 2* 100/1000 SFP Slots)
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 8K MAC Address Table
- Surge Protection: 2,000 VDC Support
- ESD Protection: 6,000 VDC Support
- Redundant Power Input Design: 12~48VDC
- Built-in 1 Relay Output for Power Failure Warning
- IP30 rugged metal enclosure design

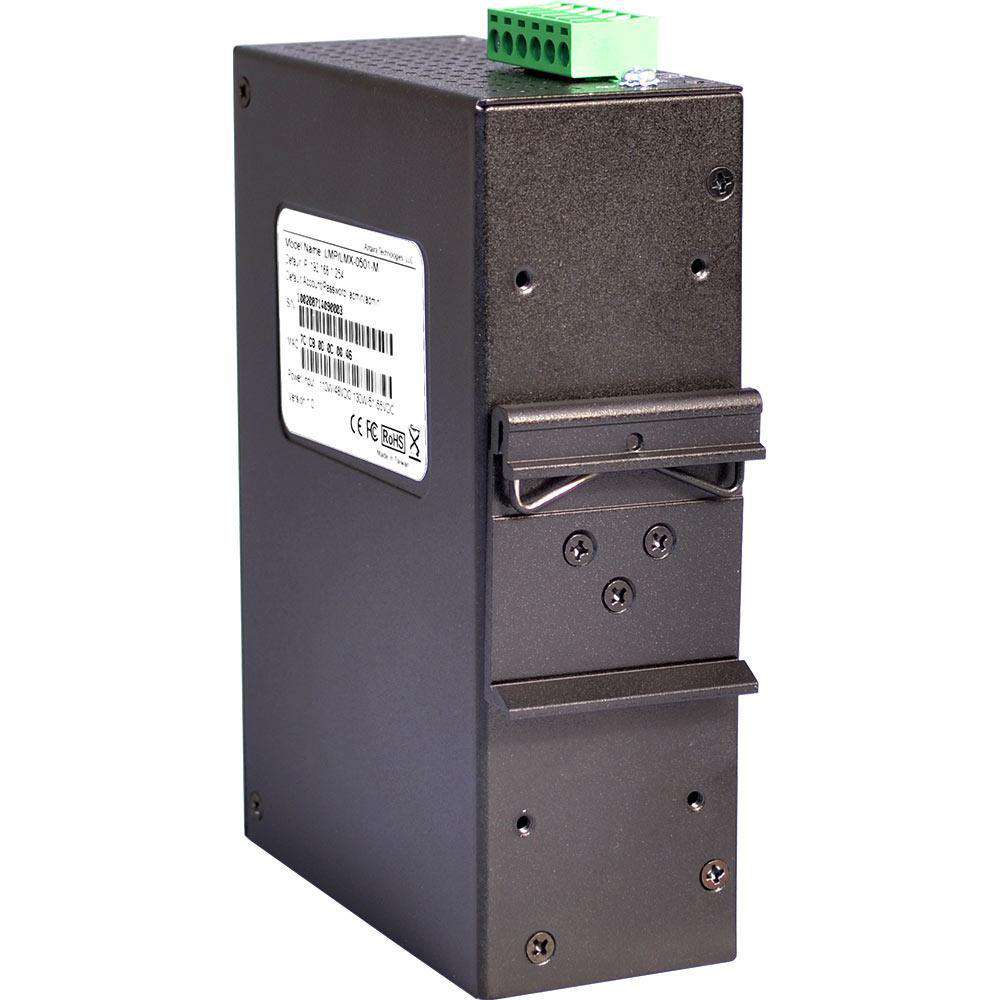

- DIN-Rail and wall-mount support
- Operating Temperature Range - EOT: -10° to 70° C
- 5-Year warranty
