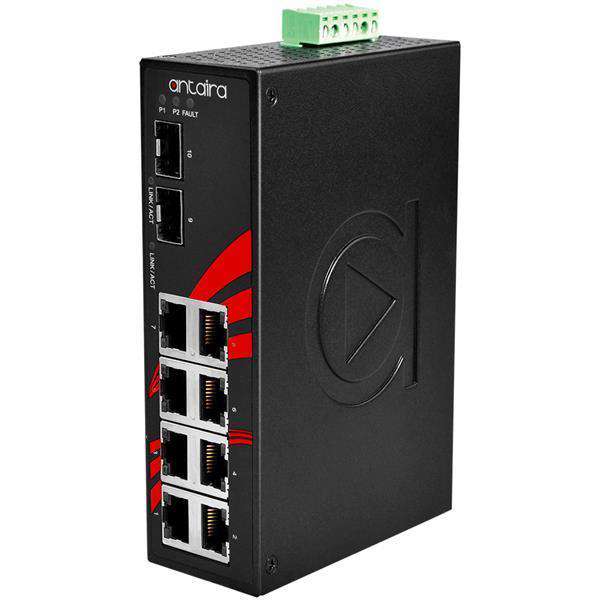

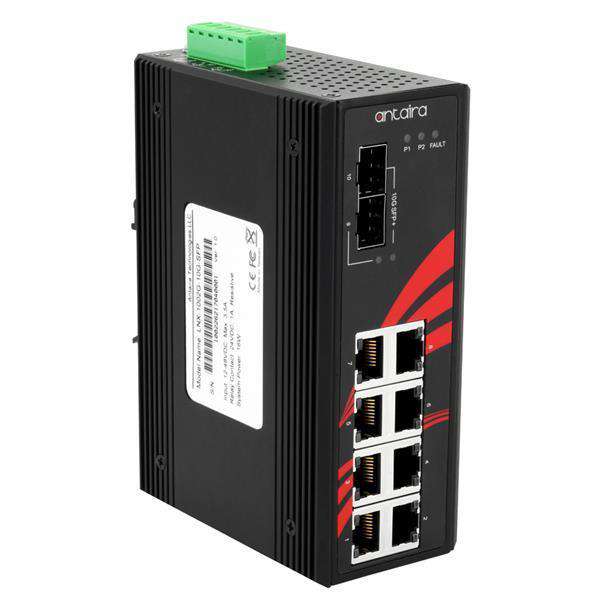

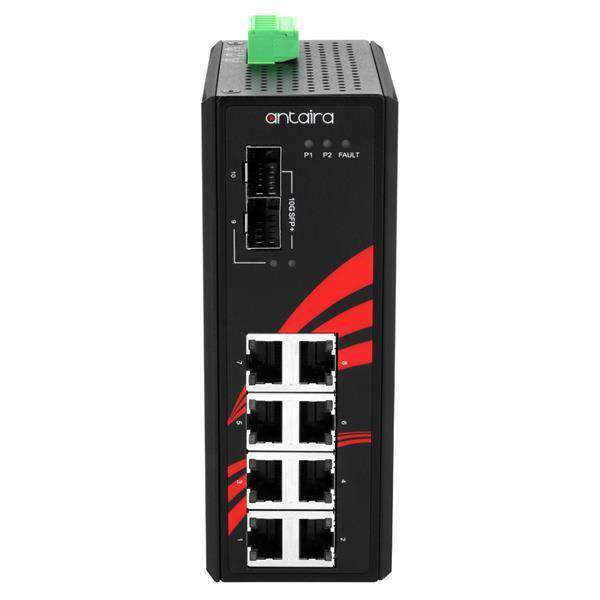

Switch LNX-1002G-10G-SFP (8* 10/100/1000Tx + 2* 10G SFP)
LNX-1002G-10G-SFP
Antaira’s new LNX-1002G-10G-SFP industrial Gigabit unmanaged Ethernet switch is IP30 rated and can be mounted on a DIN rail or wall. Each unit features eight Gigabit Ethernet ports and two 10G SFP+ slots for fibre connections, making it ideal for applications that require high bandwidth and long-distance communication.
This product provides high EFT and ESD protection against unregulated voltage and is suitable for harsh environments. The unit also supports an operating temperature range from -40° to 60°C.
The LNX-1002G-10G-SFP is an ideal industrial networking product for applications requiring high-bandwidth or high-density connections, such as power and utilities, water and wastewater treatment, oil/gas/mining, process control automation, security access control systems and intelligent transportation systems.
- Supports 8-Port 10/100/1000Tx Fast Ethernet ports and 2-Port 10G SFP+ fibre slots
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 16K MAC address table
- 9,216 bytes Jumbo Frame support
- Surge protection: 2,000 VDC support
- ESD protection: 6,000 VDC support
- Redundant power input design: 12~48VDC
- Built-in 1 relay output for power failure warning
- IP30 rugged metal enclosure design

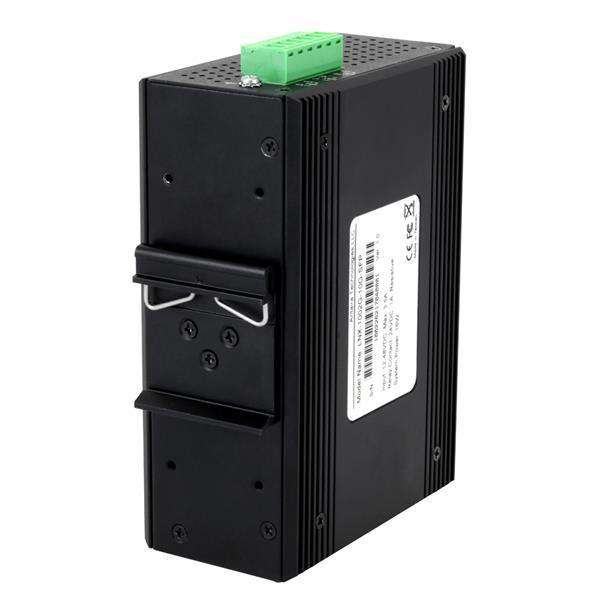

- DIN-rail and wall-mount support
- Operating temperature range: -40° to 60° C
- 5-Year Warranty
