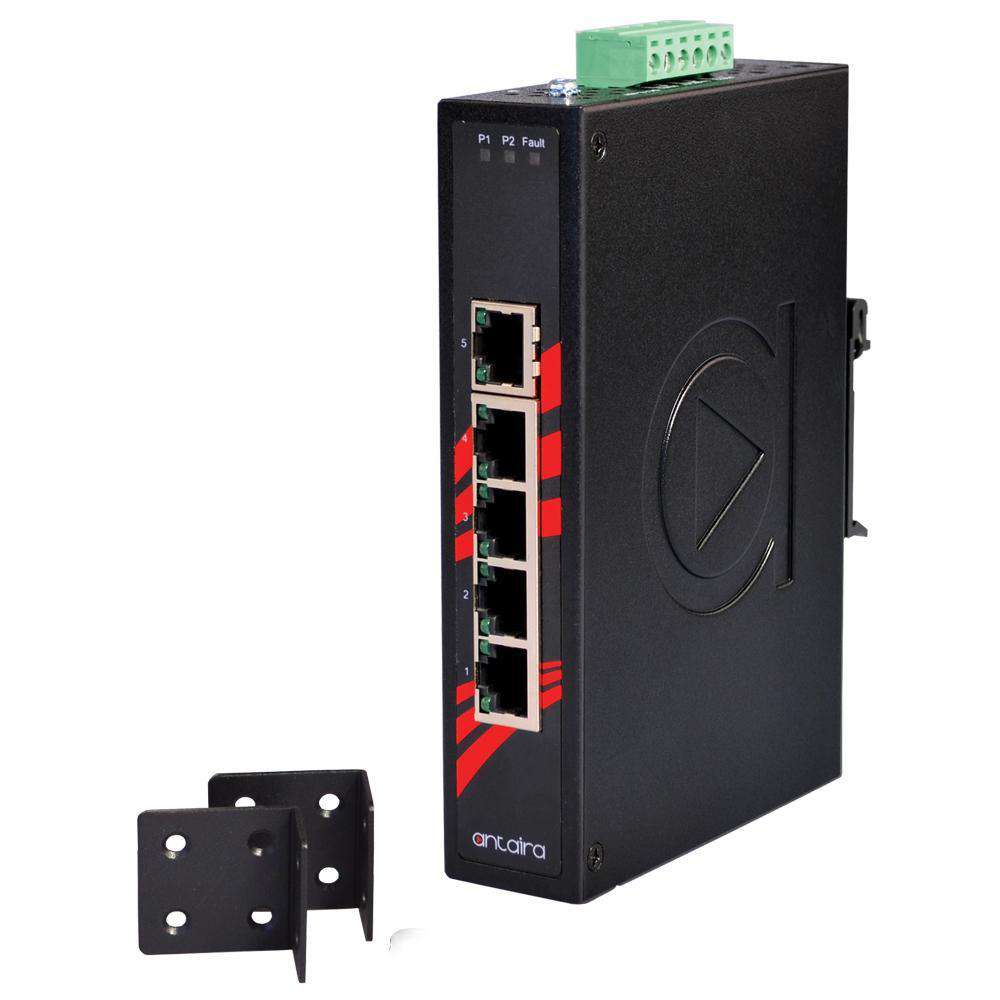

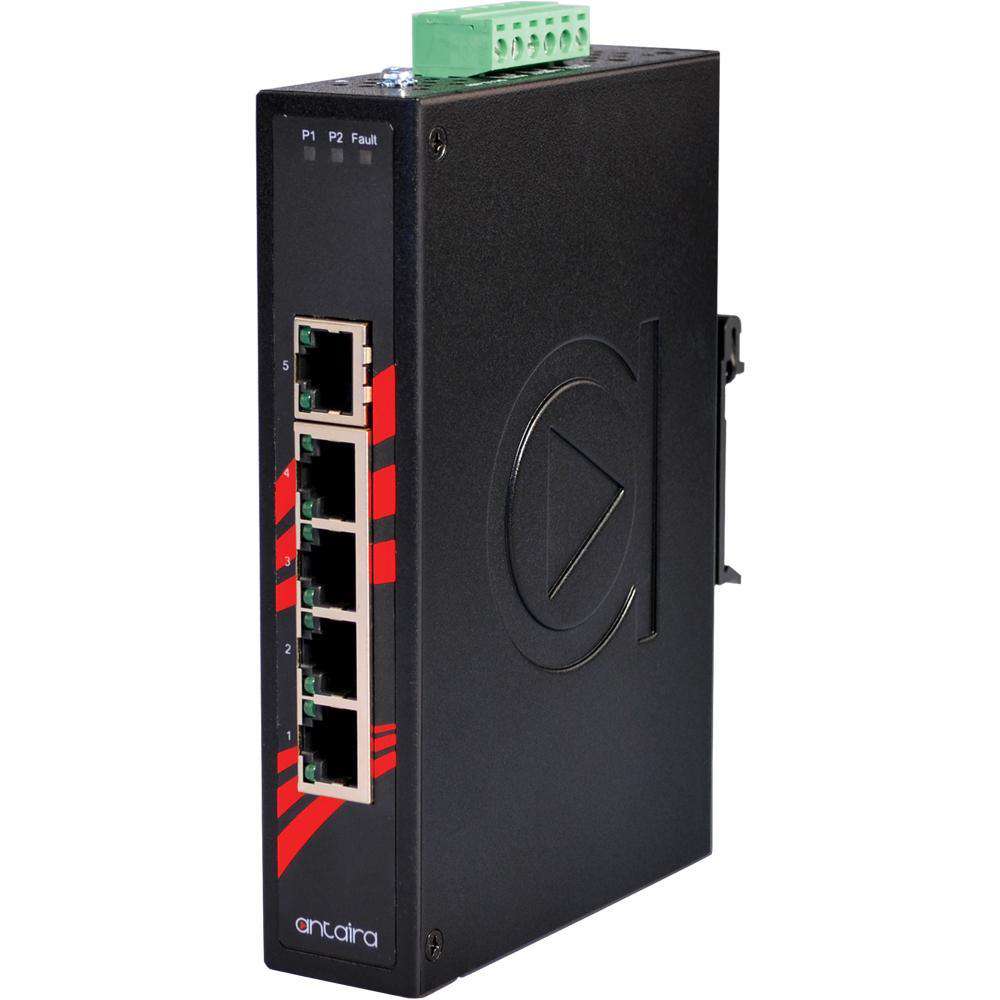

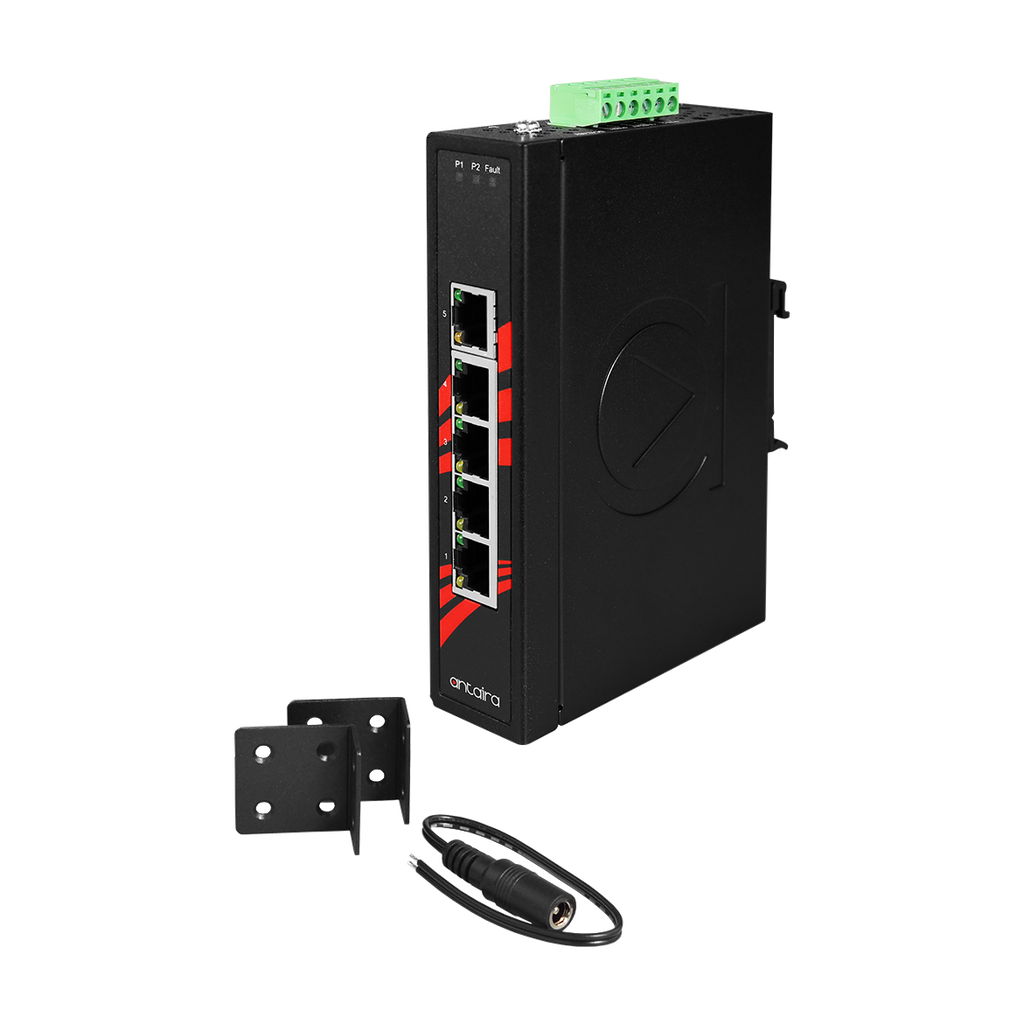

Switch LNX-C500A (5* 10/100TX) SLIM
Price excludes VAT
86.05€
Sale price
Price excludes VAT
86.05€
Regular price
Total with VAT (23%): 105.84€
Shipping calculated at checkout.
LNX-C500A
The Antaira Technologies LNX-500A industrial unmanaged Ethernet switch is a leading low-cost solution for automation and industrial networking projects. This 5-port Fast Ethernet switch supports 10/100 Mbps Auto-Negotiation and features a wide DC power input range (12 – 48VDC), making it suitable for applications such as in-vehicle or panel installations. Each port on the LNX-500A has two LED indicators for easy identification of link status and transmission speed. This rugged unmanaged Ethernet switch also supports Auto MDI/MDI-X and is UL Class 1, Division 2 certified for oil and gas applications. The LNX-500A has a slim, compact design housed in a rugged IP-30 enclosure that is ready for DIN-RAIL mounting in industrial applications.
- Industrial Unmanaged Ethernet Switch
- Store-and-Forward Switching Architecture
- Flow Control in Full-Duplex
- Back Pressure on Half-Duplex
- Supports Auto MDI/MDI-X Function
- Wide-Ranging Redundant Power Design
- UL Class I, Division 2 Certified
- DIN-Rail and Wall-Mount Design
- Slim IP-30 Case Design
| EMI | FCC Class A, CE-EN6100-4-2/3/4/5/6/8/11/12, CE-EN6100-6-2/4 |
| IEEE | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Backplane | 1.0Gbps |
| Operating Temperature | -10° ~ 70° C (14° ~ 158° F) |
| Storage Temperature | -40° ~ 85° C |
| Humidity | 5% ~ 95% non-condensing |
| Dimensions | IP-30, 30 x 140 x 95 mm (1.18 x 5.51 x 3.74 inches) |
| Safety | UL/cUL Class I, Division 2 CE-EN60950-1 |
| Protocols | CSMA/CD |
| Shock | IEC 60068-2-27 |
| Free fall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Ethernet Port | 5 x 10/100TX RJ-45 |
| MAC TABLE SIZE | 1K MAC Address Table |
| Buffer | 512Kbits |
| Method | Store and Forward |
| LED | Port: Link/Activity, Full Duplex/Collision; Unit: Power1, Power2, Fault |
| Transfer Rate | 14,880pps for Ethernet Port; 148,800pps for Fast Ethernet Port |
| Power Input | 12 ~ 48 VDC |
| Fault Output | 1 Relay Output |
| Power Consumption | 2.93 Watts |
| Power Redundancy | Yes |
| Warranty | 5 Years |
