Switch LNX-C500A-T (5* 10/100TX) | EOT -40~75C
LNX-C500A-T

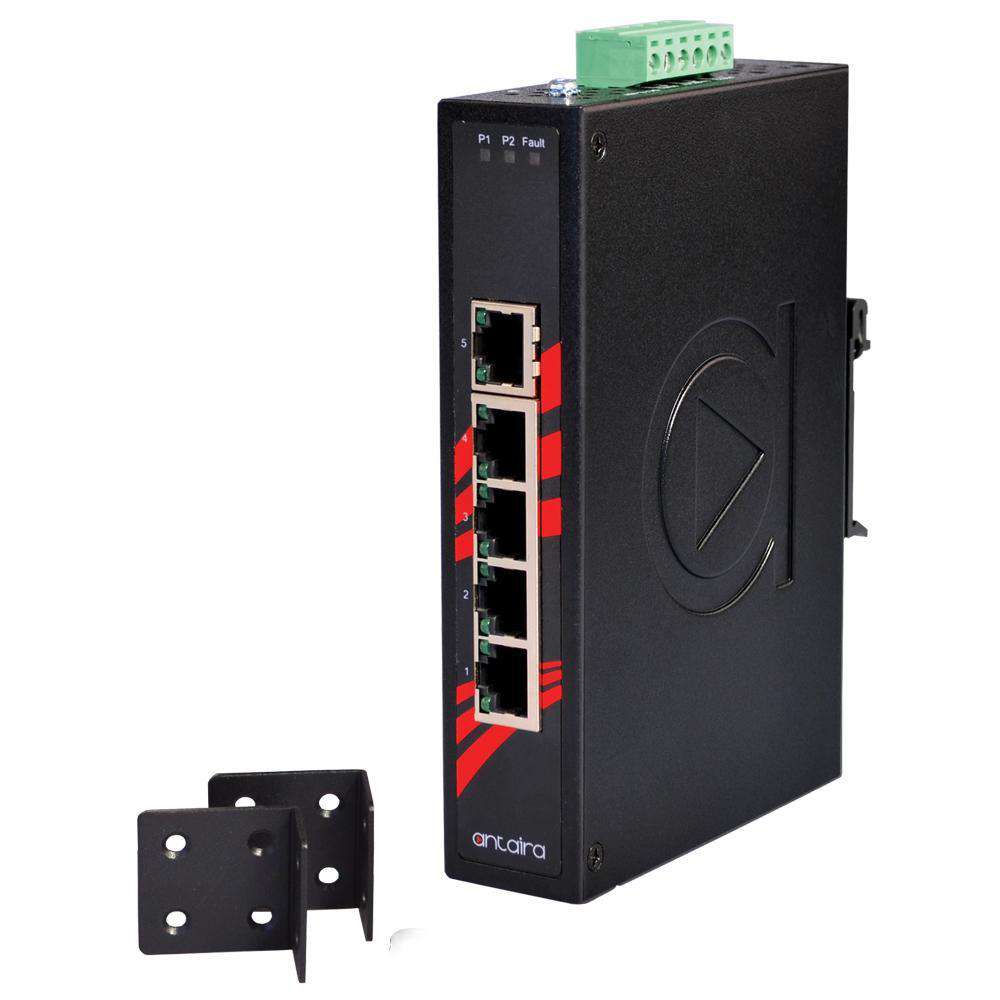

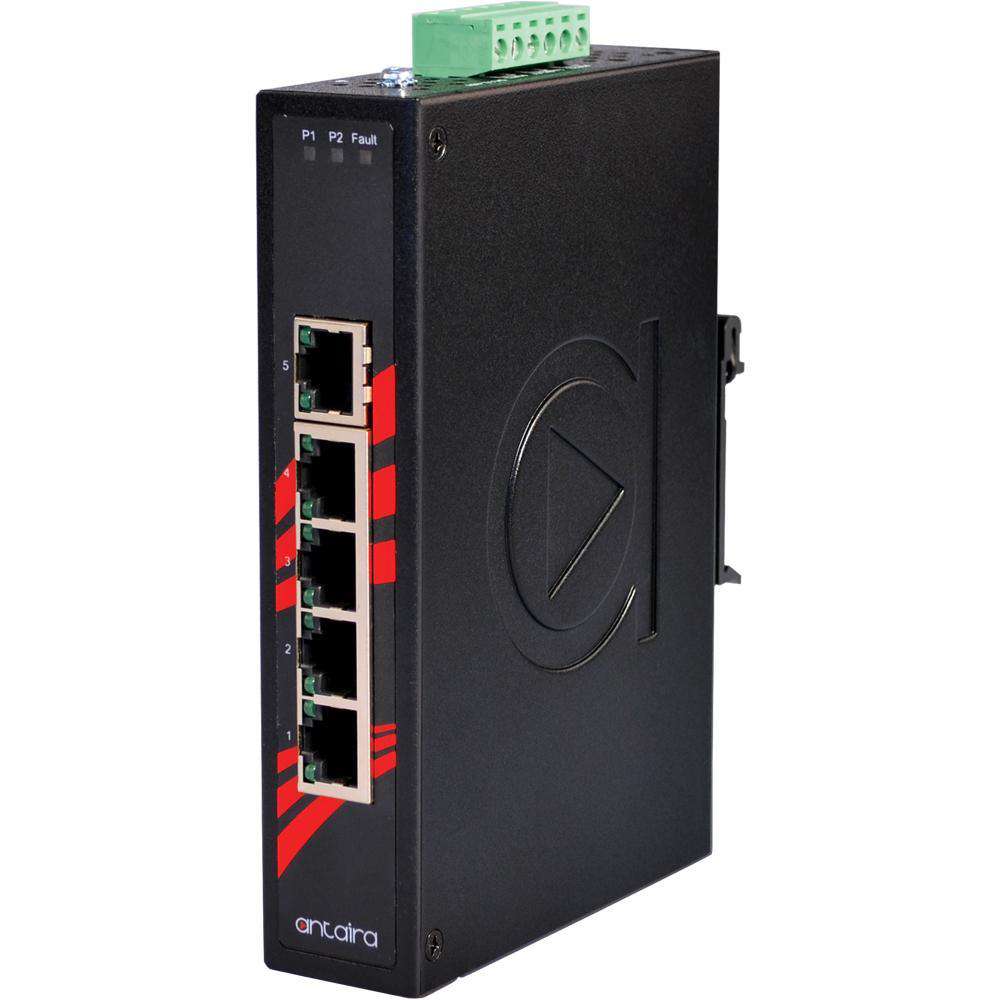

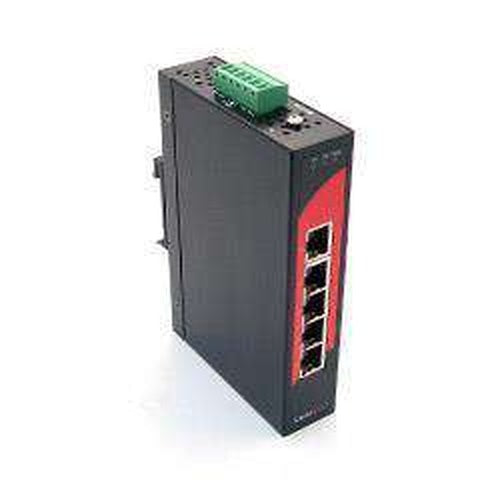

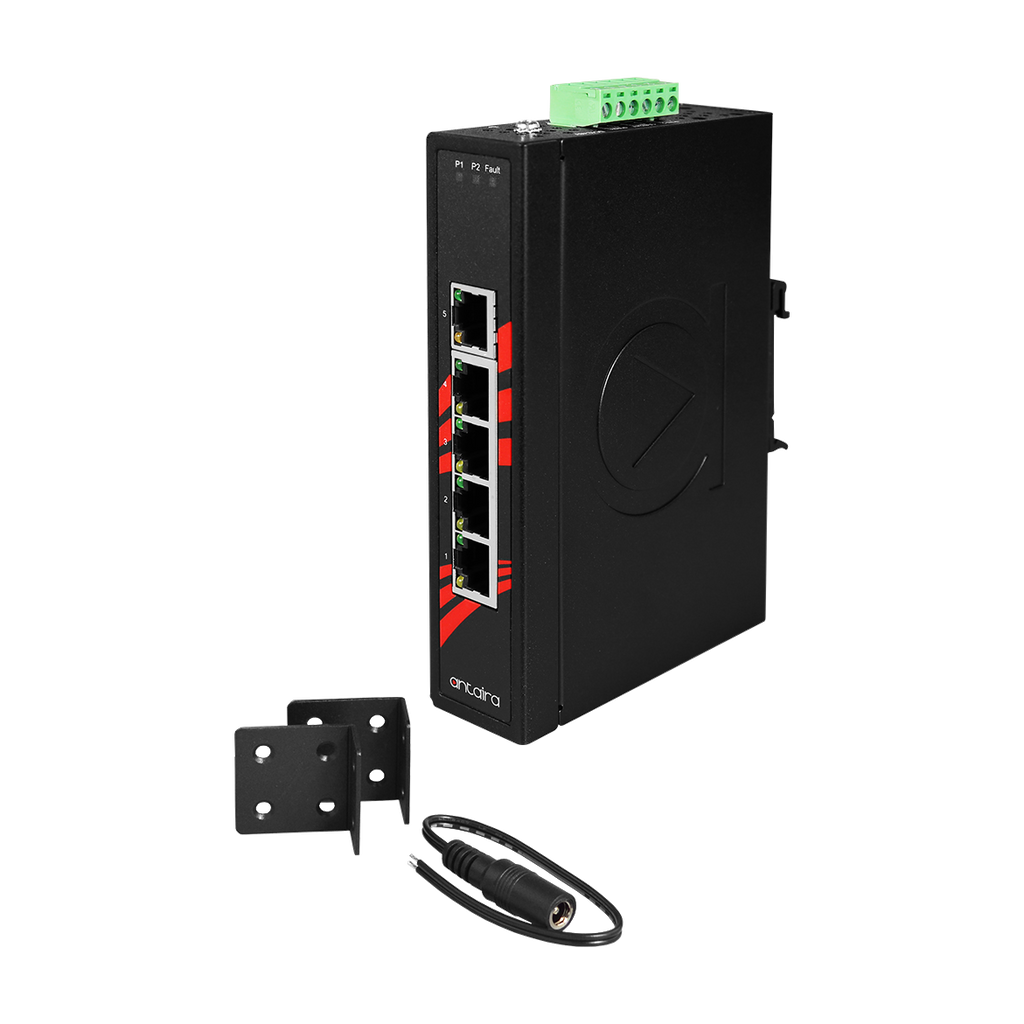

The Antaira Technologies LNX-500A-T wide-temperature industrial Ethernet switch is a leading, cost-effective solution for harsh-environment automation and industrial networking projects. This 5 port Fast Ethernet switch supports 10/100 Mbps Auto-Negotiation and features a wide DC power input range (12 – 48VDC), enabling applications such as in-vehicle or panel-mounted installations. The LNX-500A-T has a wide operating temperature range of -40ºC to 80ºC (-40ºF - 176ºF). Each port on the LNX-500A-T has two LED indicators for easy identification of link status and transmission speed. This ruggedized Ethernet switch also supports Auto MDI/MDI-X and is UL Class 1, Division 2 certified for oil and gas applications. The LNX-500A-T has a slim, compact form factor and is housed in a rugged IP-30 enclosure that is DIN-RAIL ready for industrial applications.
- Industrial Unmanaged Ethernet Switch
- Store-and-Forward Switching Architecture
- Flow Control in Full-Duplex
- Backpressure in Half-Duplex
- Supports Auto MDI/MDI-X Function
- Wide-Ranging Redundant Power Design
- UL Class I, Division 2 Certified
- DIN-Rail and Wall-Mount Design
- Slim IP-30 Case Design
- Operating Temperature Range: -40° to 80° C
| Backplane | 1.0Gbps |
| Buffer | 512Kbits |
| Dimensions | IP-30, 30 x 140 x 95 mm (1.18 x 5.51 x 3.74 inches) |
| EMI | FCC Class A, CE-EN6100-4-2/3/4/5/6/8/11/12, CE-EN6100-6-2/4 |
| Ethernet Port | 5 x 10/100TX RJ-45 |
| Fault Output | 1 Relay Output |
| Free Fall | IEC 60068-2-32 |
| Humidity | 5% ~ 95% non-condensing |
| IEEE | IEEE 802.3 IEEE 802.3u IEEE 802.3x |
| LED | Port: Link/Activity, Full Duplex/Collision; Unit: Power1, Power2, Fault |
| MAC Address Table | 1K MAC Address Table |
| Method | Store-and-Forward |
| Operating Temperature | -40° ~ 80° C (-40° ~ 176° F) |
| Power Consumption | 2.93 Watts |
| Power Input | 12 ~ 48 VDC |
| Power Redundancy | Yes |
| Protocols | CSMA/CD |
| Safety | UL/cUL Class I, Division 2; CE-EN60950-1 |
| Shock | IEC 60068-2-27 |
| Storage Temperature | -40° ~ 85° C |
| Transfer Rate | 14,880pps for Ethernet Port, 148,800pps for Fast Ethernet Port |
| Vibration | IEC 60068-2-6 |
| Warranty | 5 Years |
