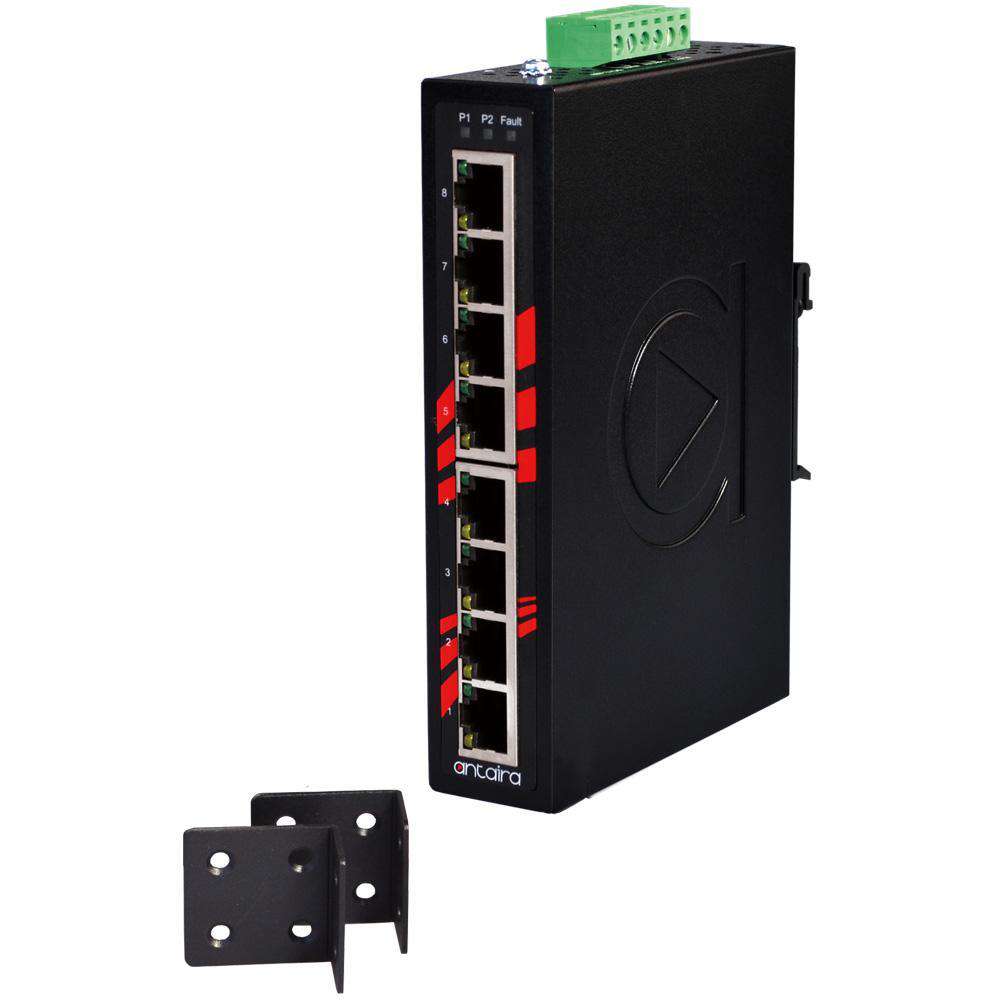

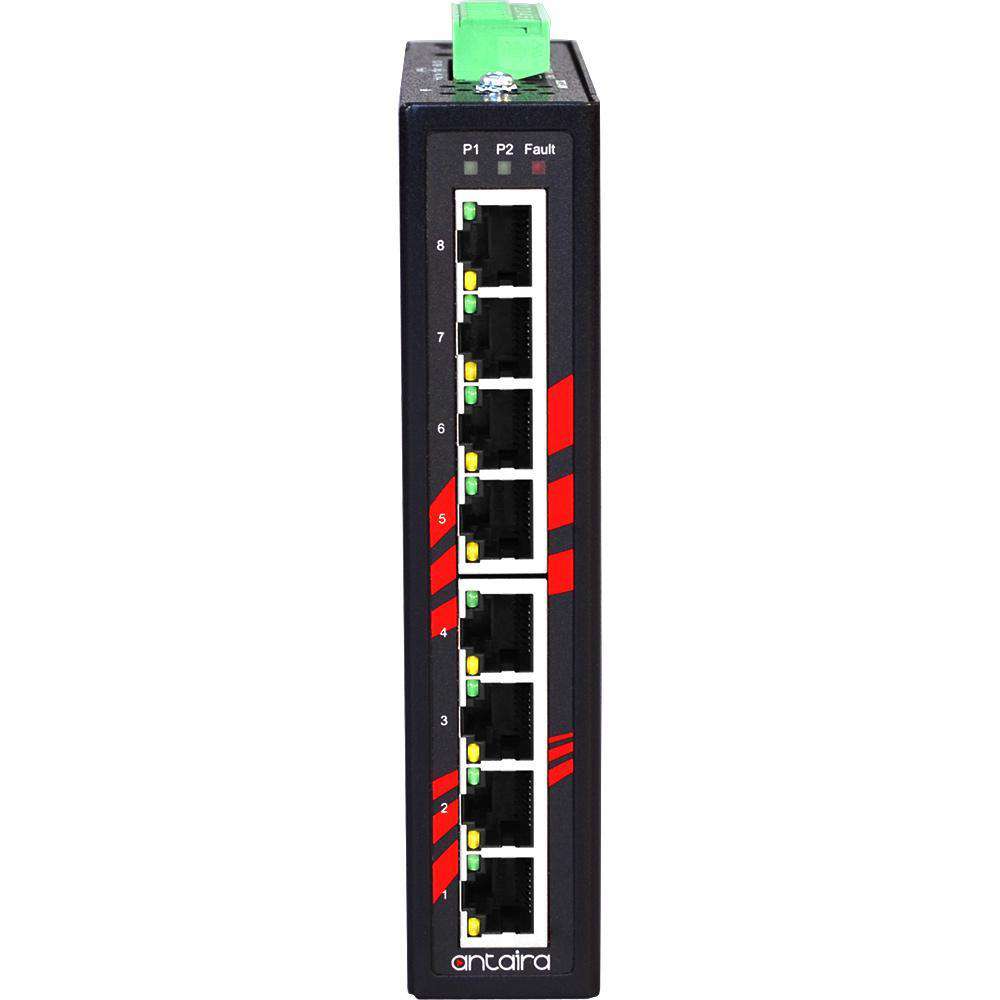

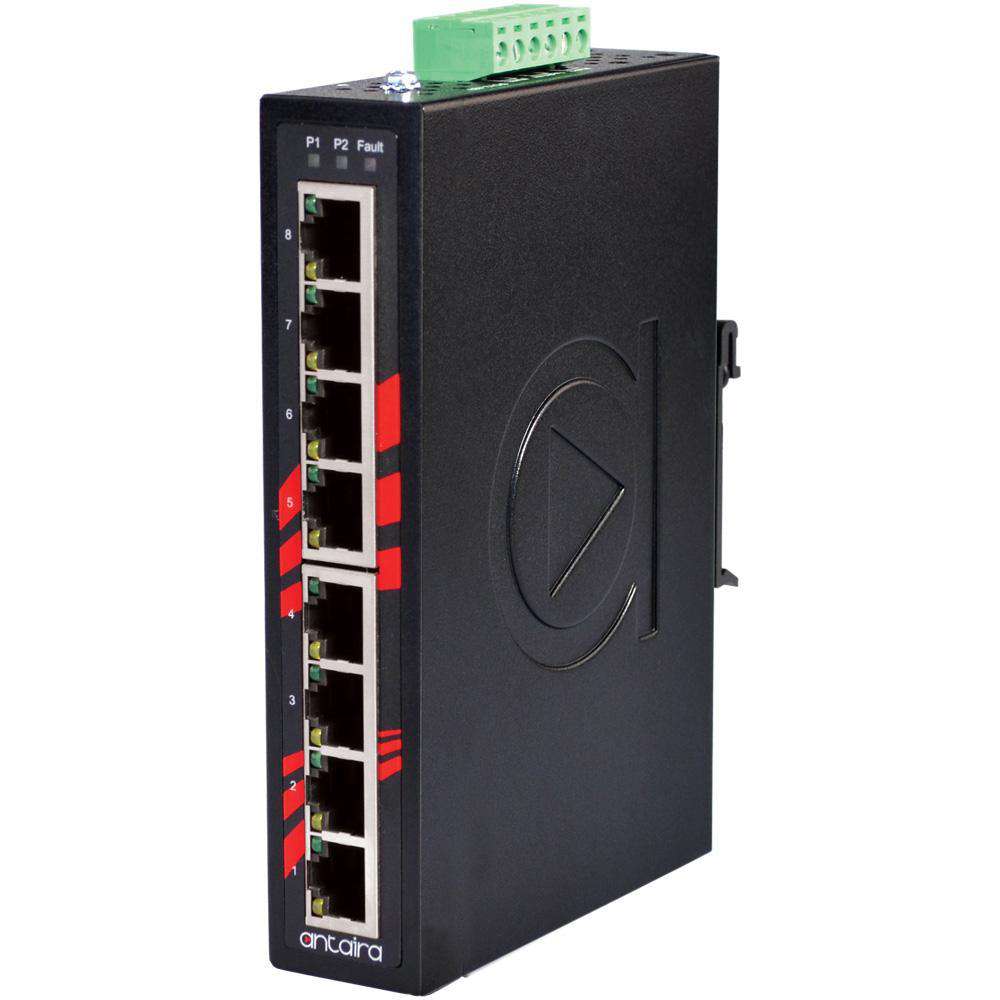

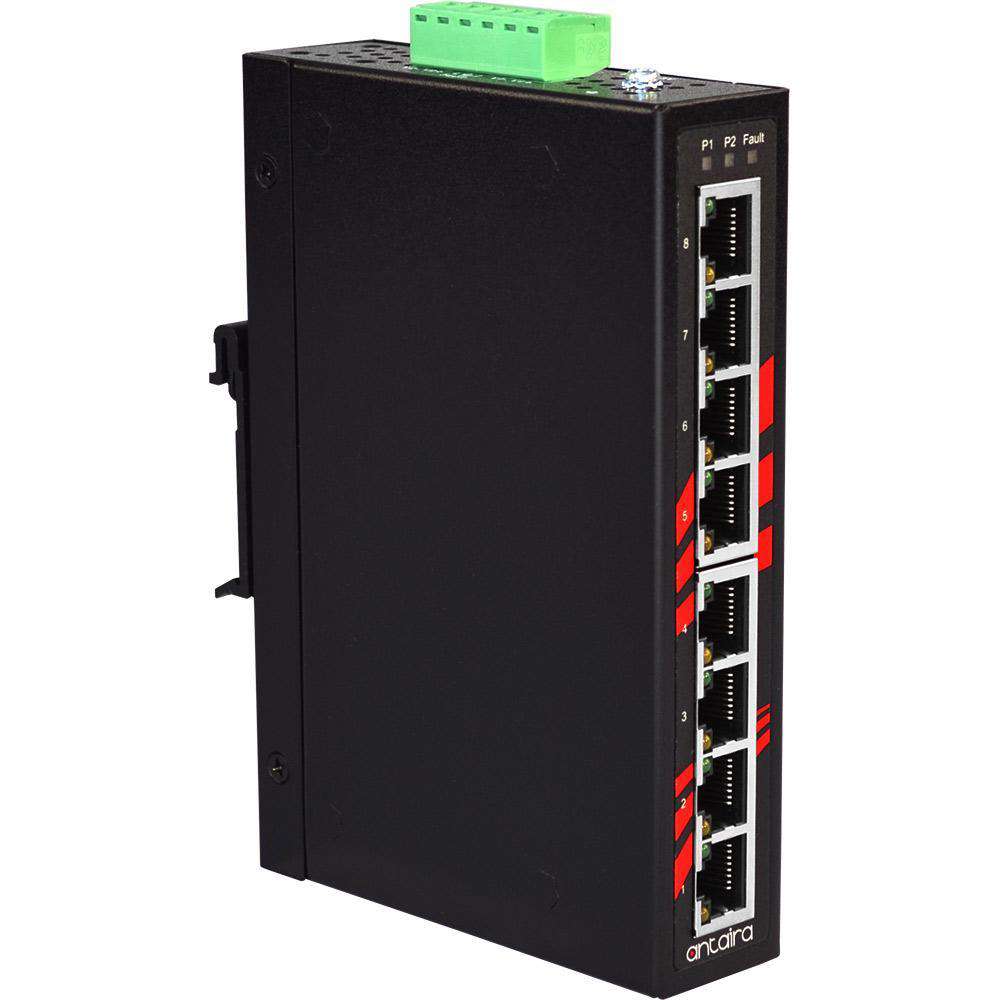

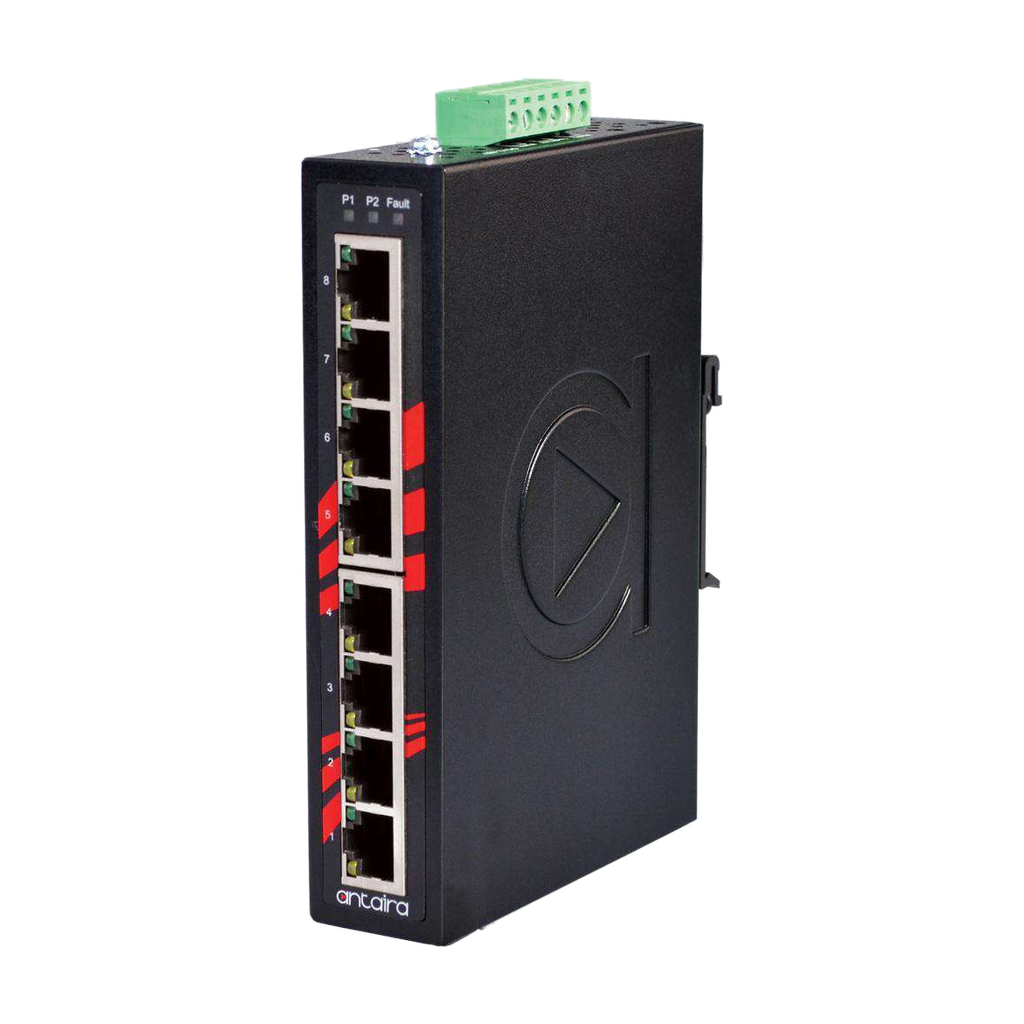

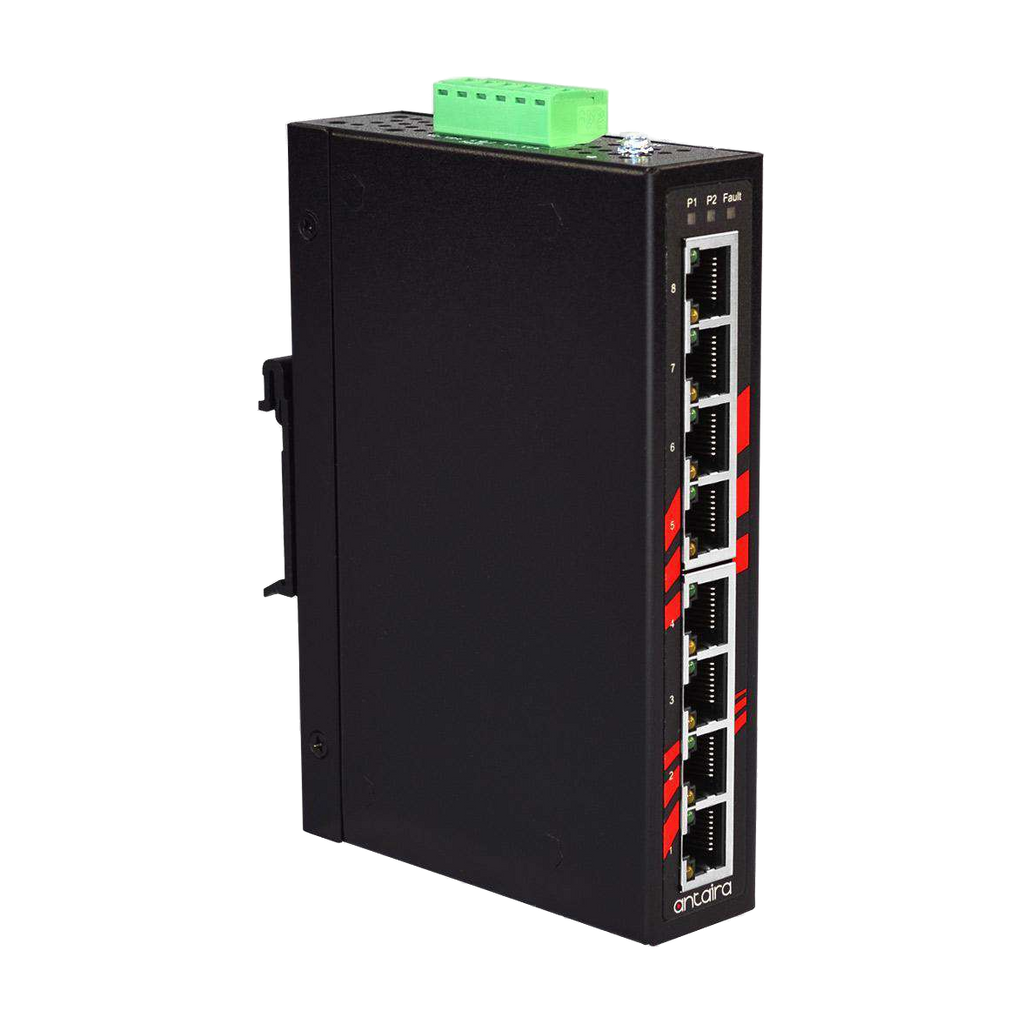

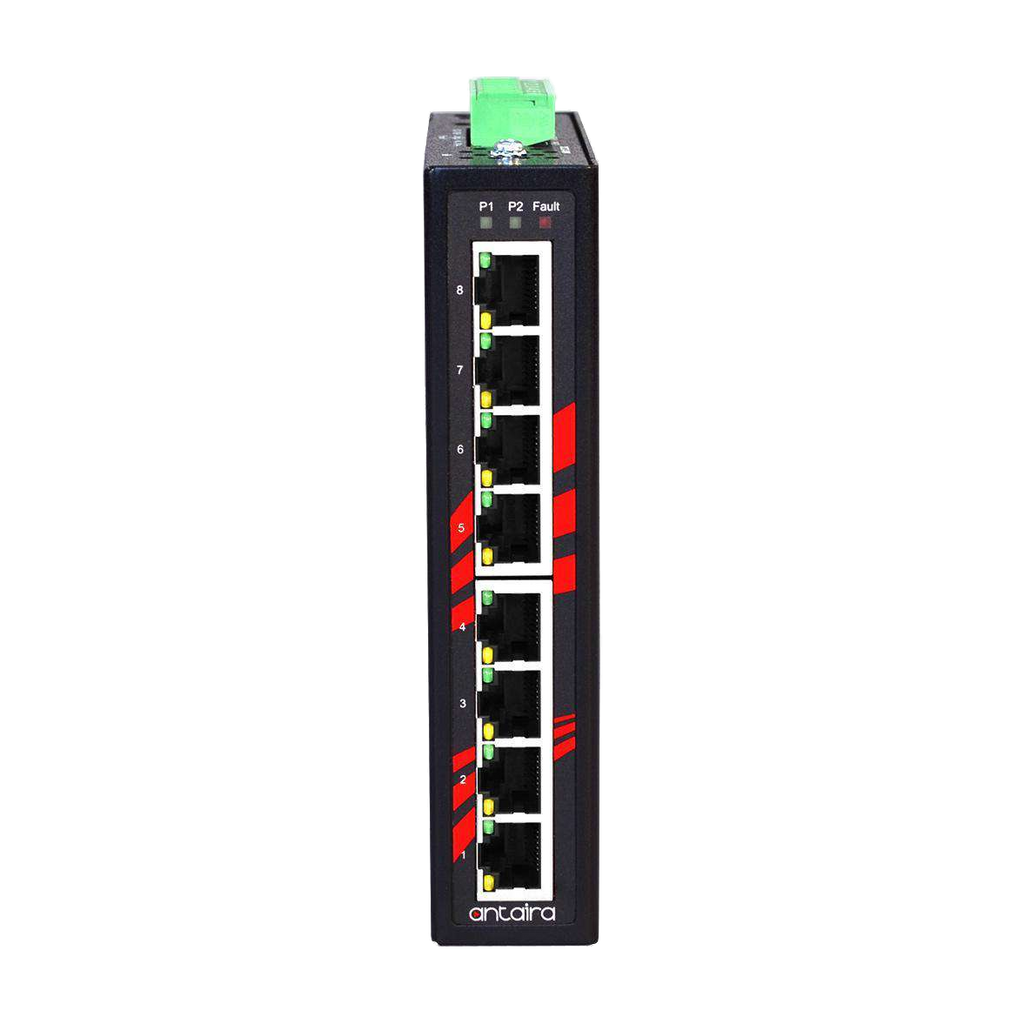

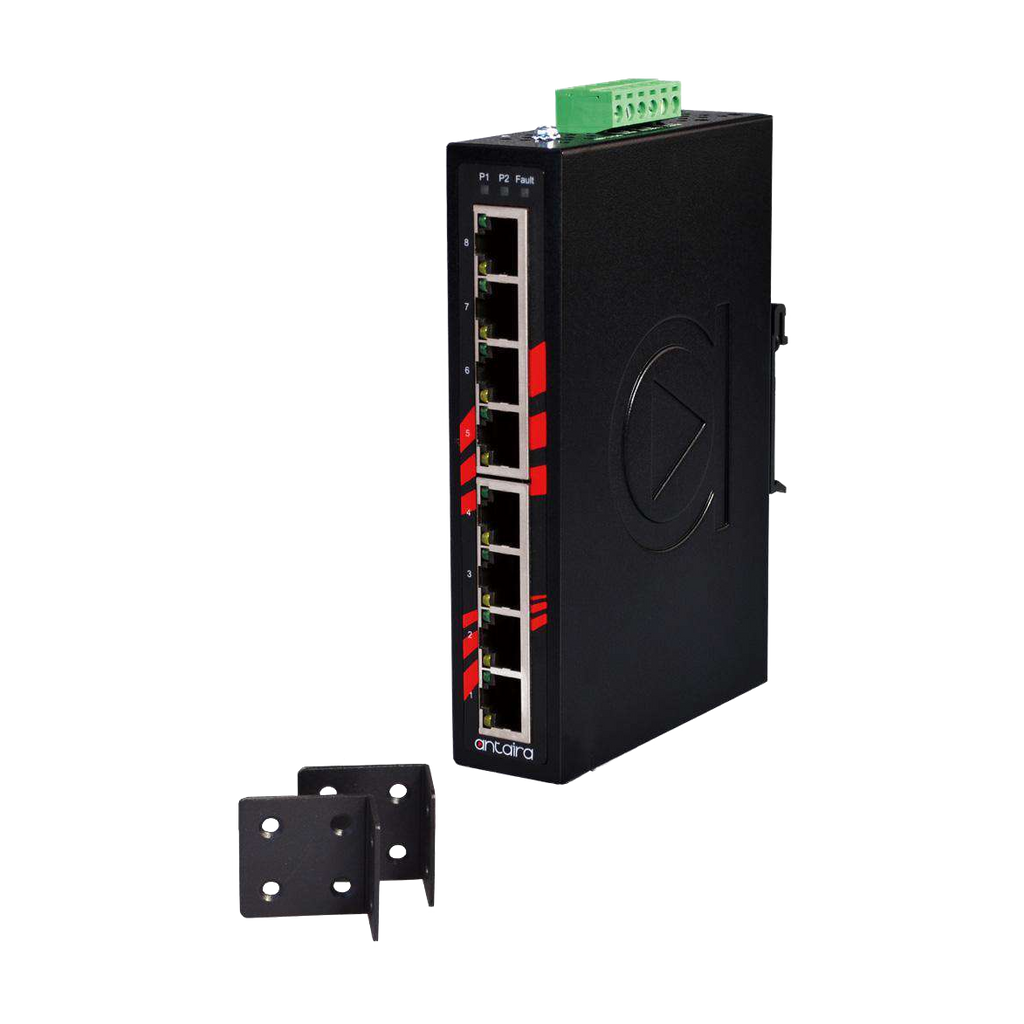

Switch LNX-800A (8* 10/100Tx) SLIM
Price excludes VAT
102.92€
Sale price
Price excludes VAT
102.92€
Regular price
Total with VAT (23%): 126.59€
Shipping calculated at checkout.
LNX-800A
The LNX-800A is a slim 8-port industrial Ethernet switch.
- Store-and-Forward switching architecture
- Flow control in Full-Duplex mode
- Back pressure in Half-Duplex mode
- Supports Auto MDI/MDI-X function
- Wide-range redundant power design
- UL Class I, Division 2 certified

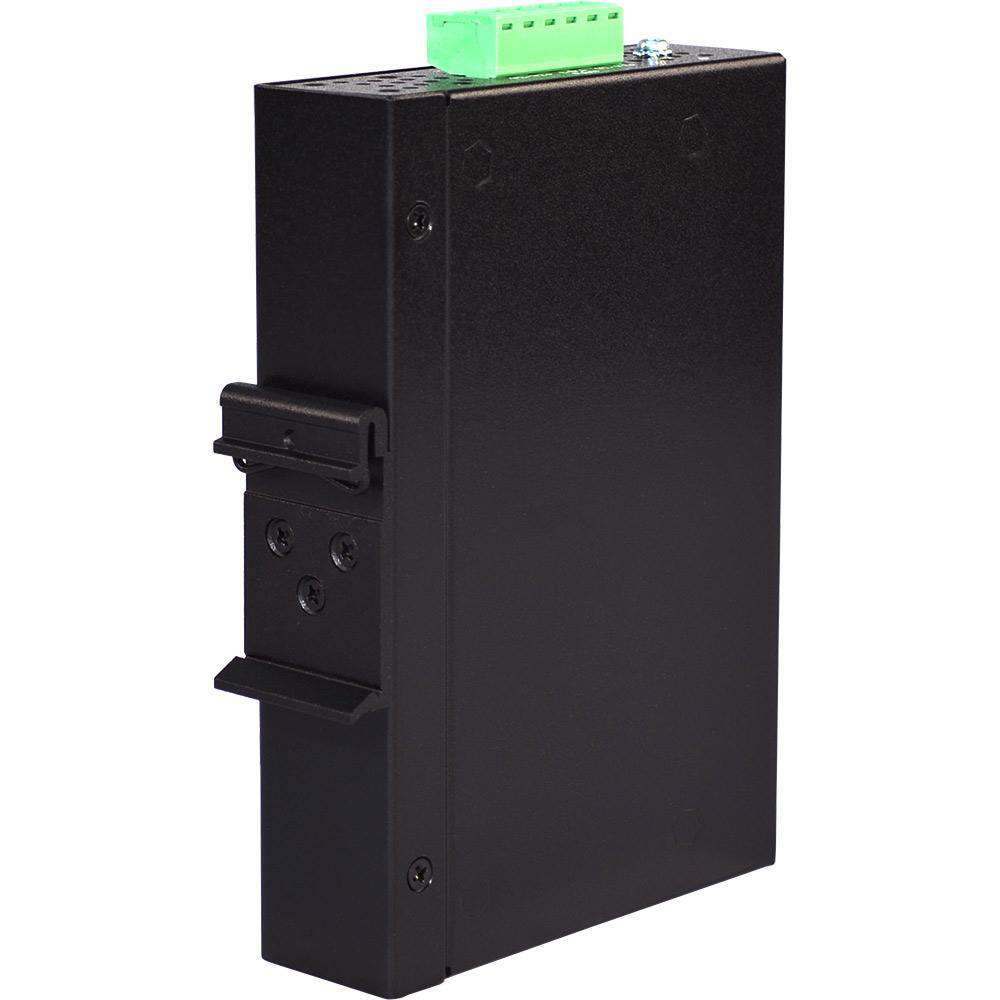

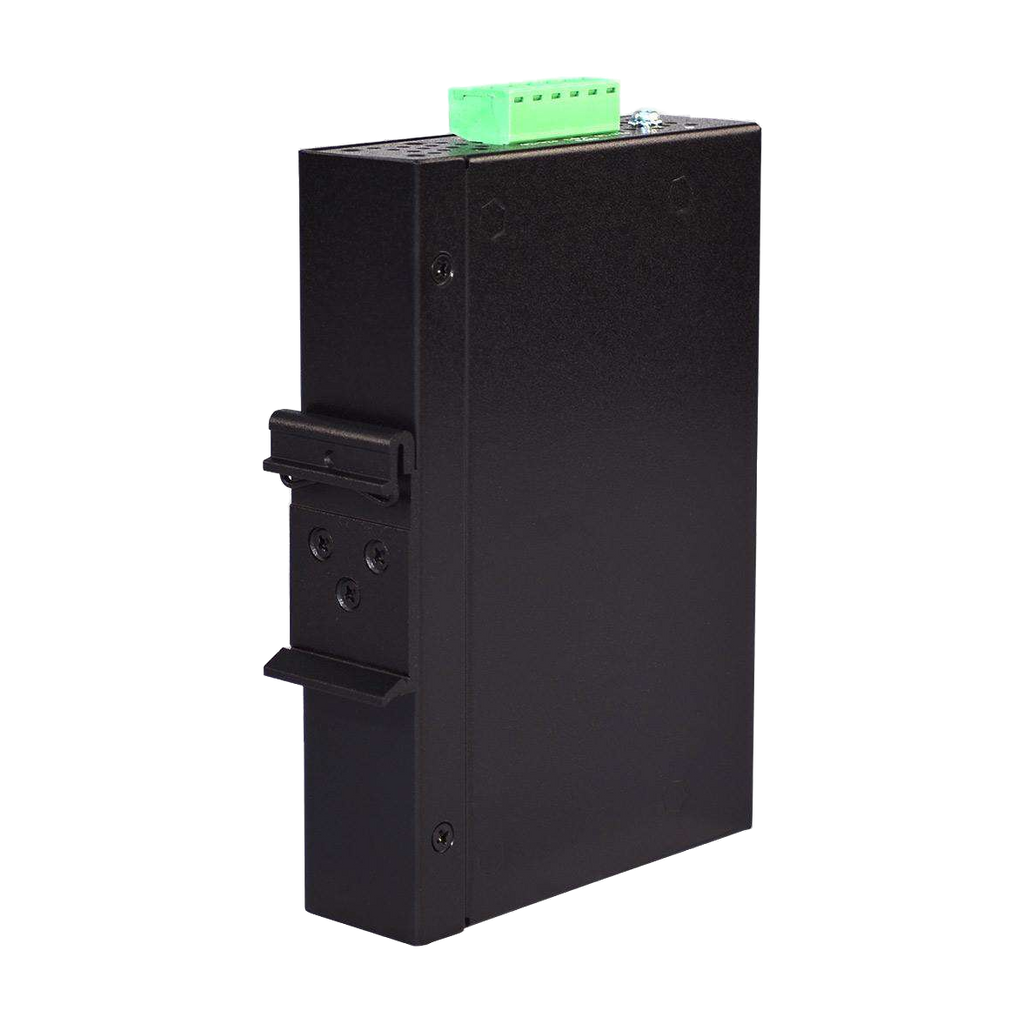

- DIN-rail and wall-mount design
- Slim IP-30 enclosure design
| Backplane | 1.0Gbps |
| Buffer | 512Kbits |
| Certifications | FCC, CE, UL 61010-1, UL 61010-2-201, ISA 12.12.01 |
| Dimensions | IP-30, 30 x 140 x 95 mm (1.18 x 5.51 x 3.74 inches) |
| EMI | FCC Class A, CE-EN6100-4-2/3/4/5/6/8/11/12, CE-EN6100-6-2/4 |
| Ethernet Port | 8 x 10/100TX RJ-45 |
| Fault Output | 1 Relay Output |
| Free Fall | IEC 60068-2-32 |
| Humidity | 5% ~ 95% non-condensing |
| IEEE | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| LED | Port: Link/Activity, Full Duplex/Collision; Unit: Power1, Power2, Fault |
| MAC Address Table | 1K MAC address table |
| Method | Store-and-Forward |
| Operating Temperature | -10° ~ 70° C (14° ~ 158° F) |
| Power Consumption | 4.71 Watts |
| Power Input | 12 ~ 48 VDC |
| Power Redundancy | Yes |
| Protocols | CSMA/CD |
| Shock | IEC 60068-2-27 |
| Storage Temperature | -40° ~ 85° C |
| Transfer rate | 14,880pps per Ethernet port, 148,800pps per Fast Ethernet port |
| Vibration | IEC 60068-2-6 |
| Warranty | 5 years |
