Switch LNX-800A-T (8* 10/100Tx) SLIM | EOT -40~75C
Price excludes VAT
117.26€
Sale price
Price excludes VAT
117.26€
Regular price
Total with VAT (23%): 144.23€
Shipping calculated at checkout.
LNX-800A-T

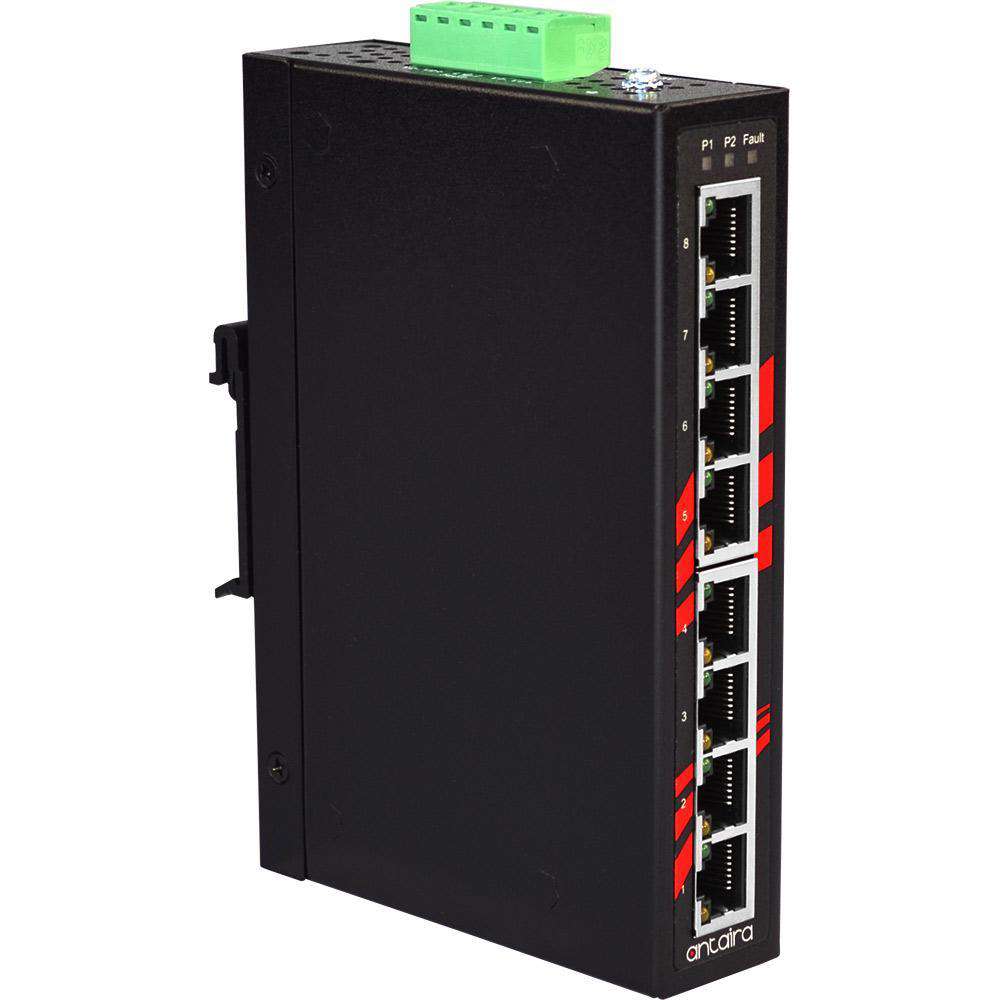

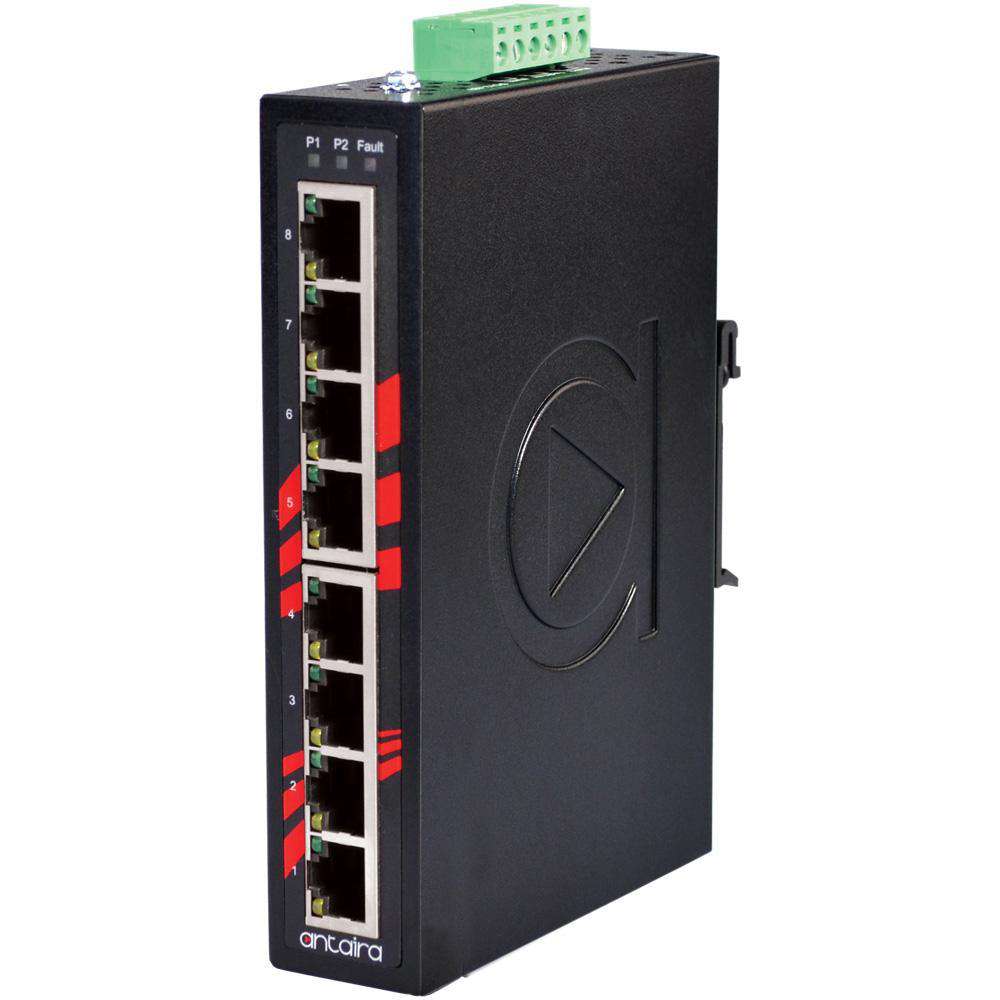

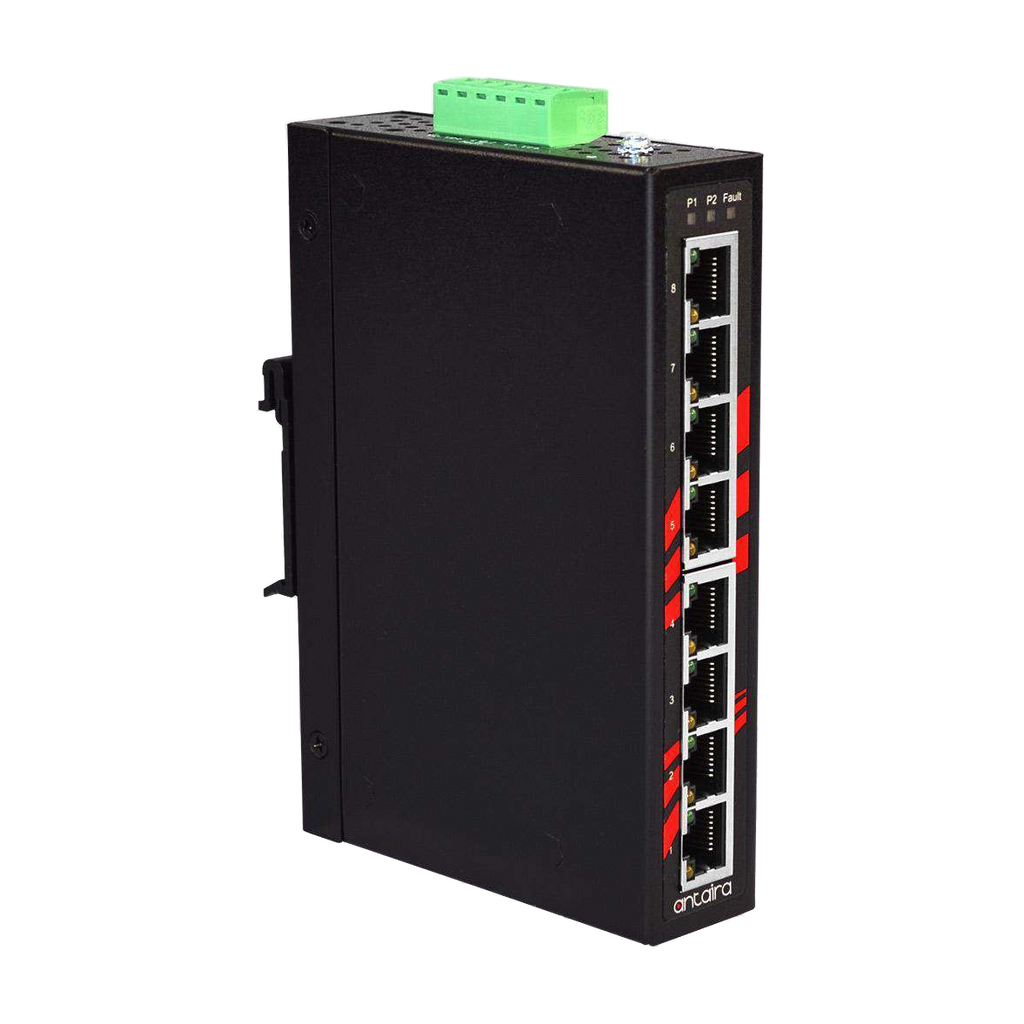

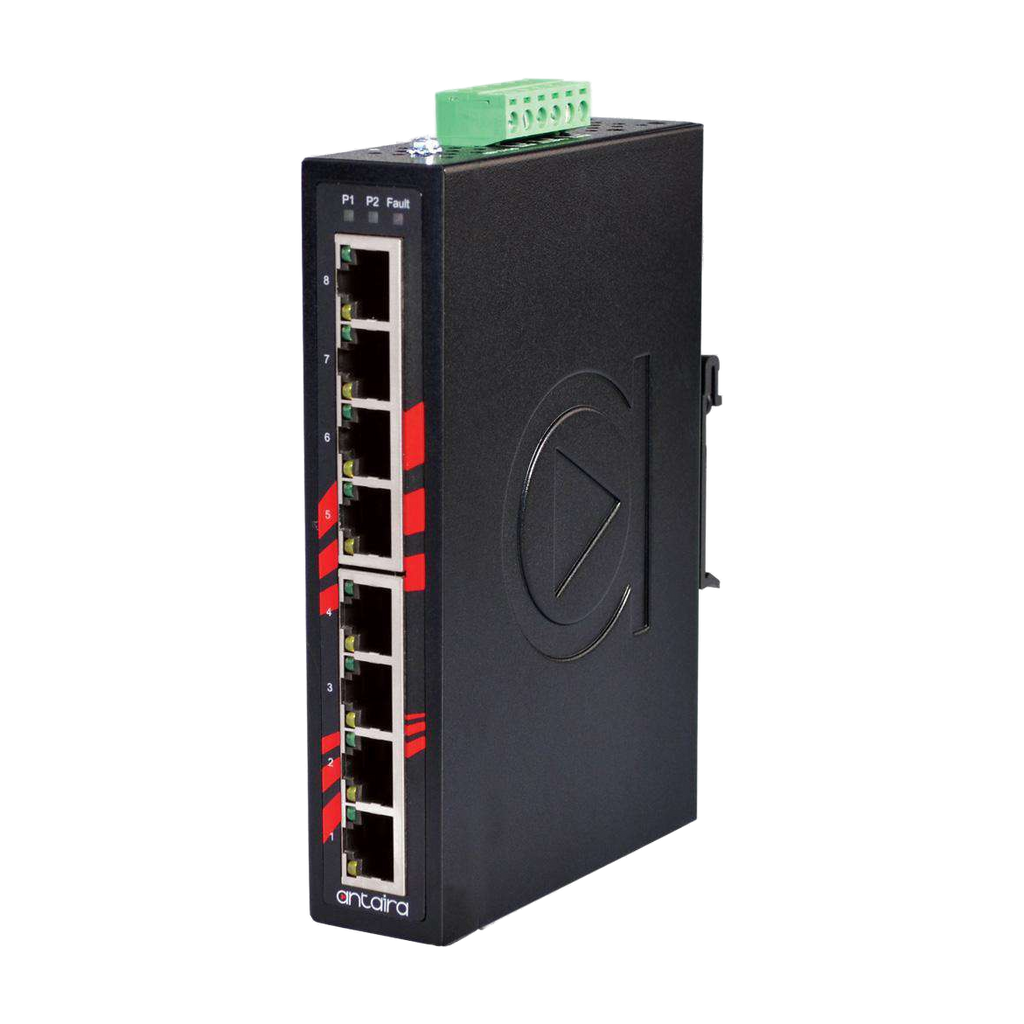

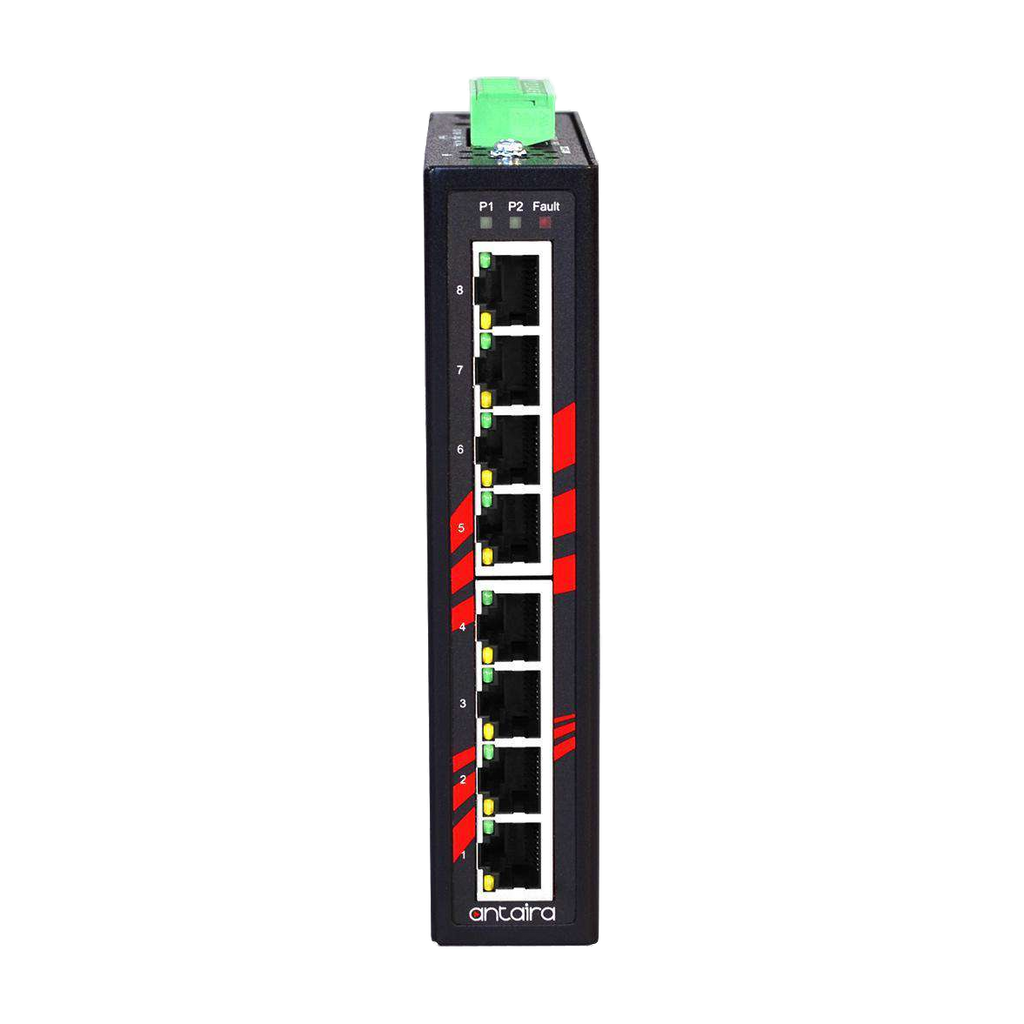

The LNX-800A-T is a slim 8-port industrial Ethernet switch.
(Extended Operating Temperature).
- Extended Operating Temperature -40° ~ 80° C (-40° ~ 176° F)
- Store-and-Forward Switching Architecture
- Flow Control in Full-Duplex
- Back Pressure on Half-Duplex
- Supports Auto MDI/MDI-X Function
- Wide-Ranging Redundant Power Design
- UL Class I, Division 2 Certified

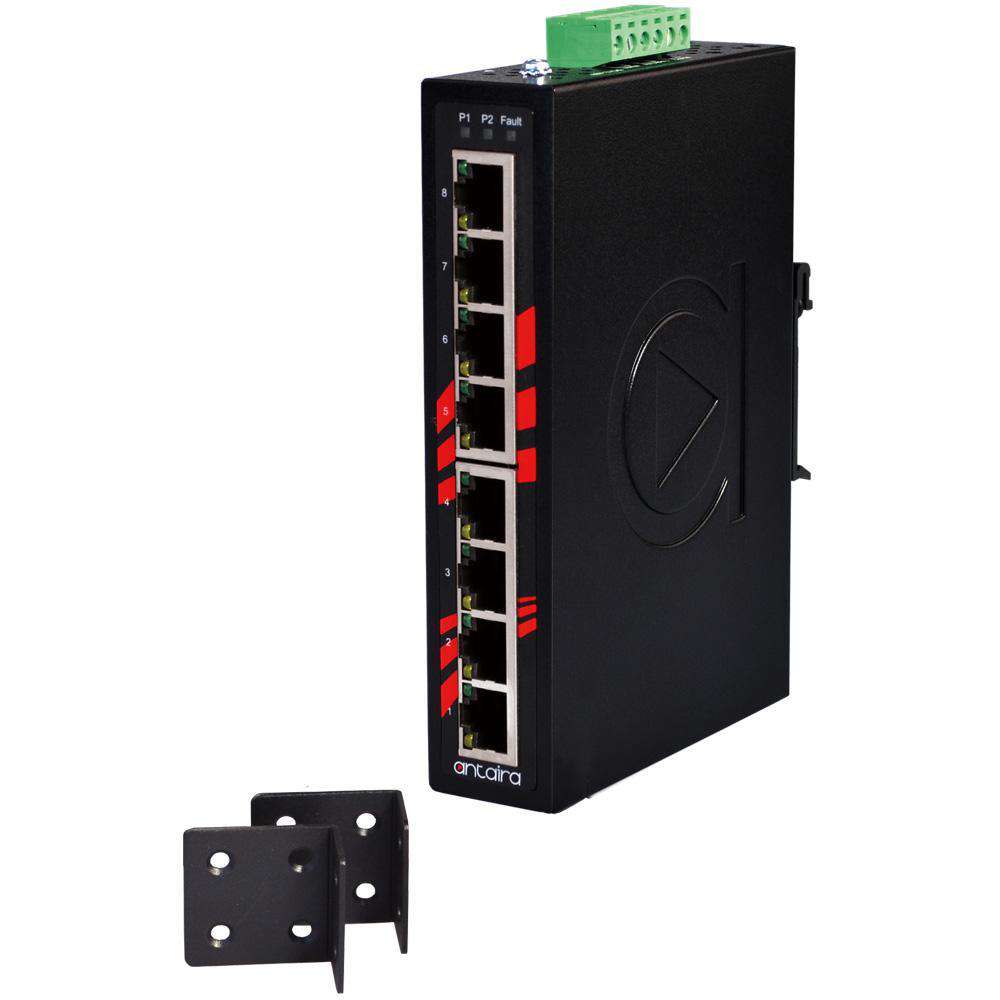

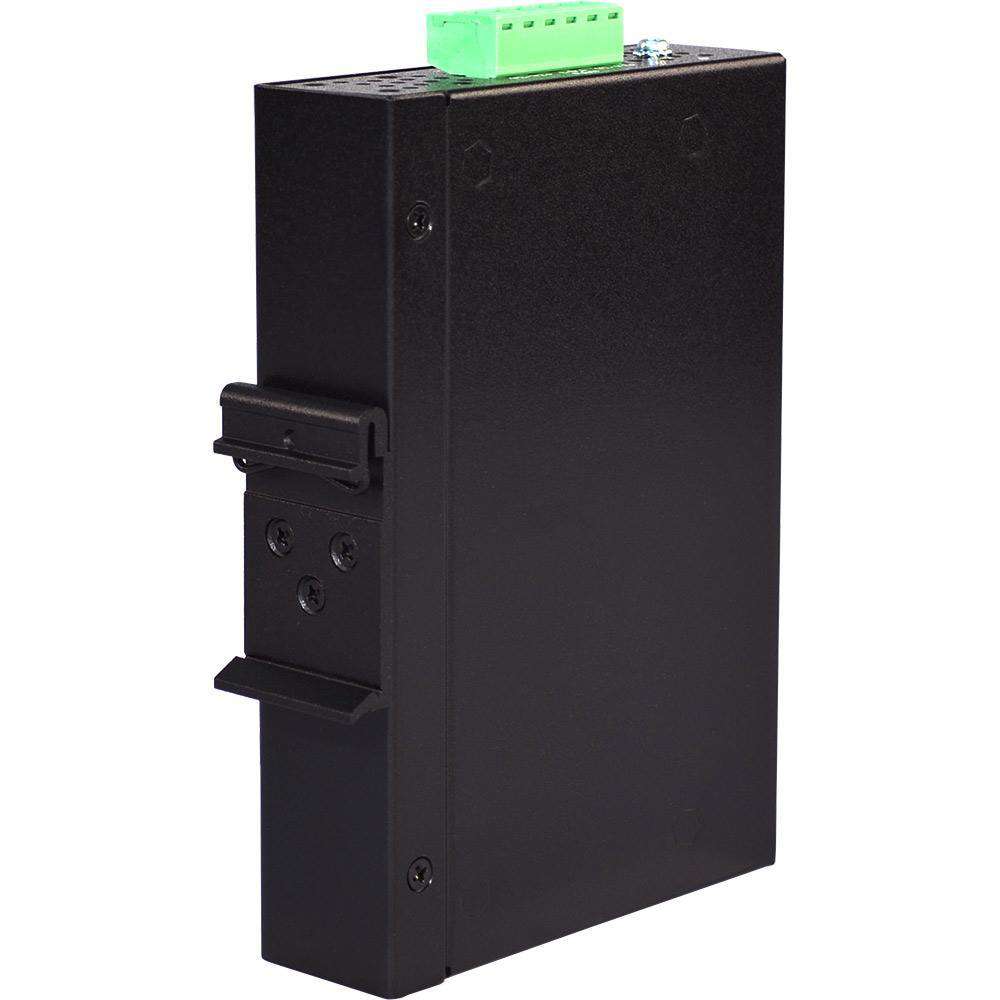

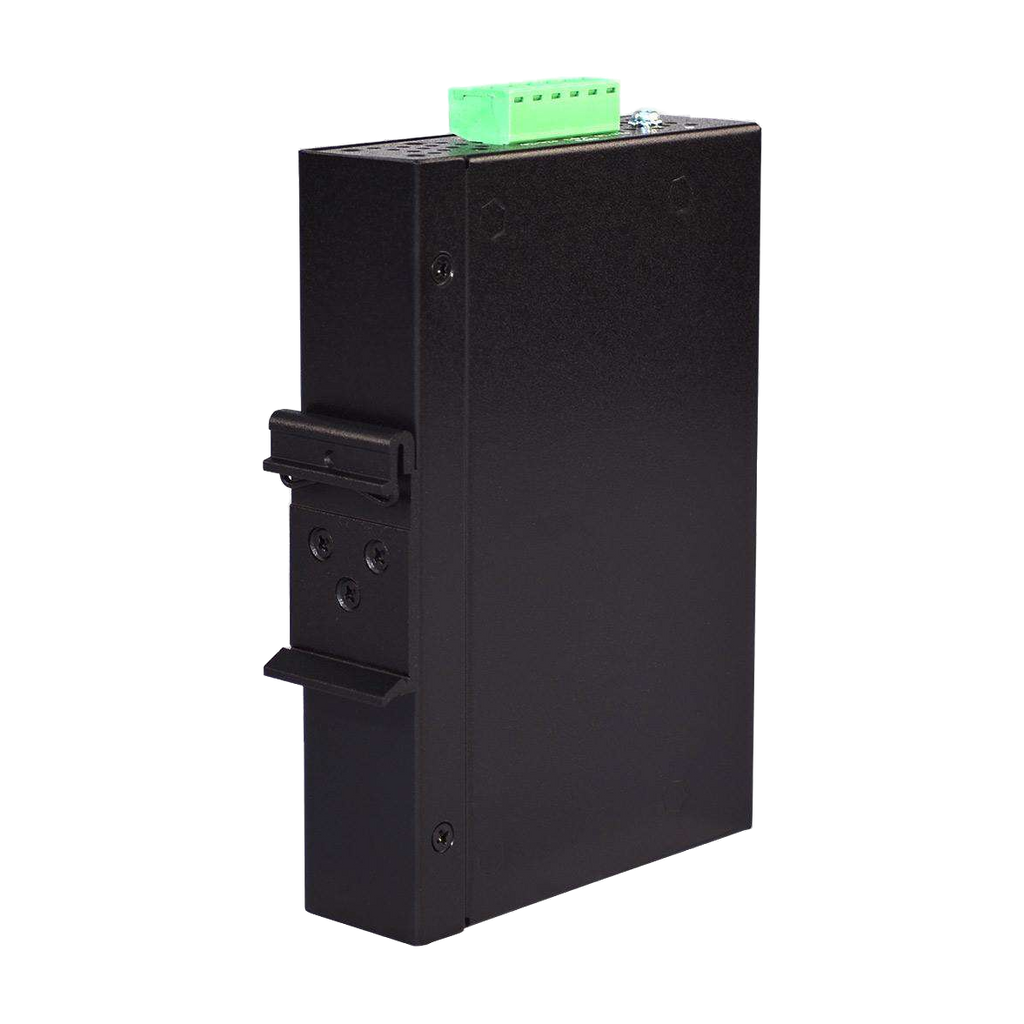

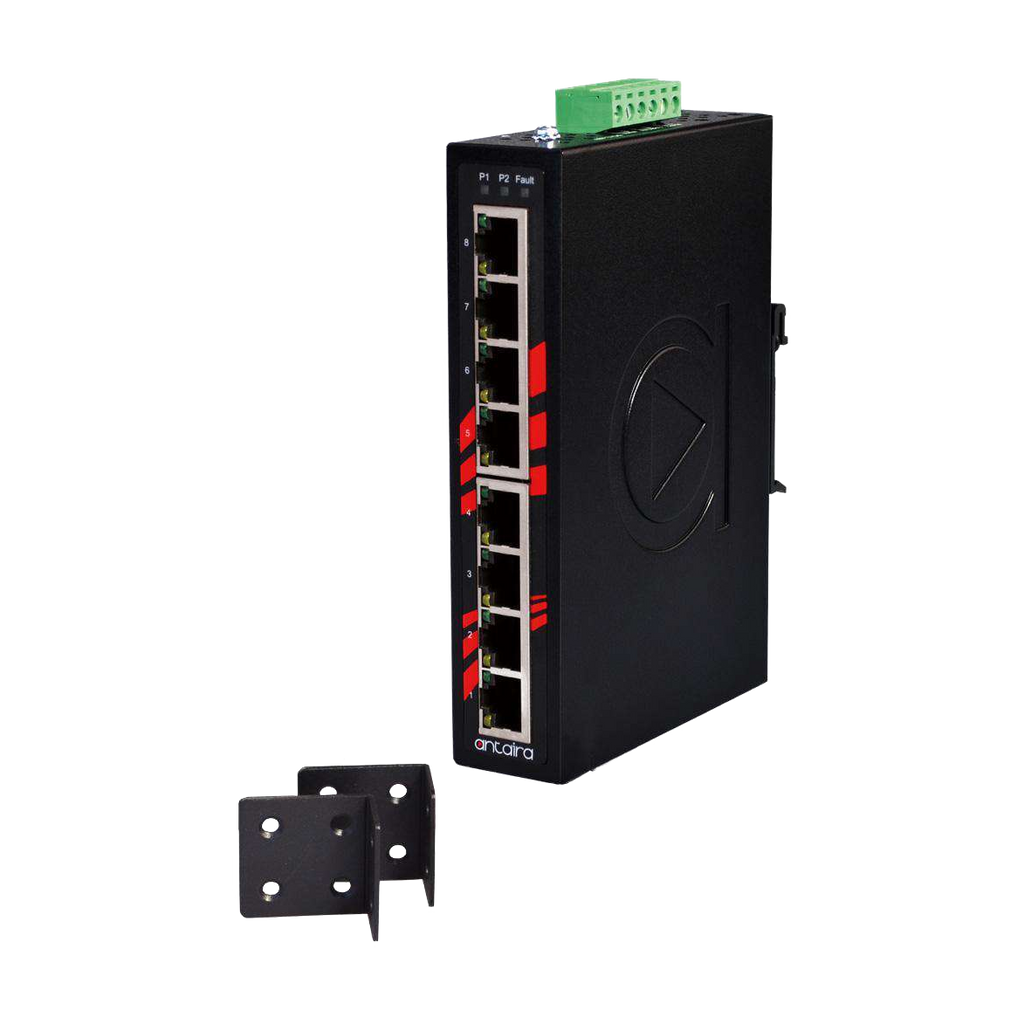

- DIN-Rail and Wall-Mount Design
- Slim IP-30 Case Design
| Backplane | 1.0Gbps |
| Buffer | 512Kbits |
| Certifications | FCC, CE, UL 61010-1, UL 61010-2-201, ISA 12.12.01, Class 1 Div 2 |
| Dimensions | IP-30, 30 x 140 x 95 mm (1.18 x 5.51 x 3.74 inches) |
| EMI | FCC Class A, CE-EN6100-4-2/3/4/5/6/8/11/12, CE-EN6100-6-2/4 |
| Ethernet Port | 8 x 10/100TX RJ-45 |
| Fault Output | 1 Relay Output |
| Free Fall | IEC 60068-2-32 |
| Humidity | 5% ~ 95% non-condensing |
| IEEE | IEEE 802.3 IEEE 802.3u IEEE 802.3x |

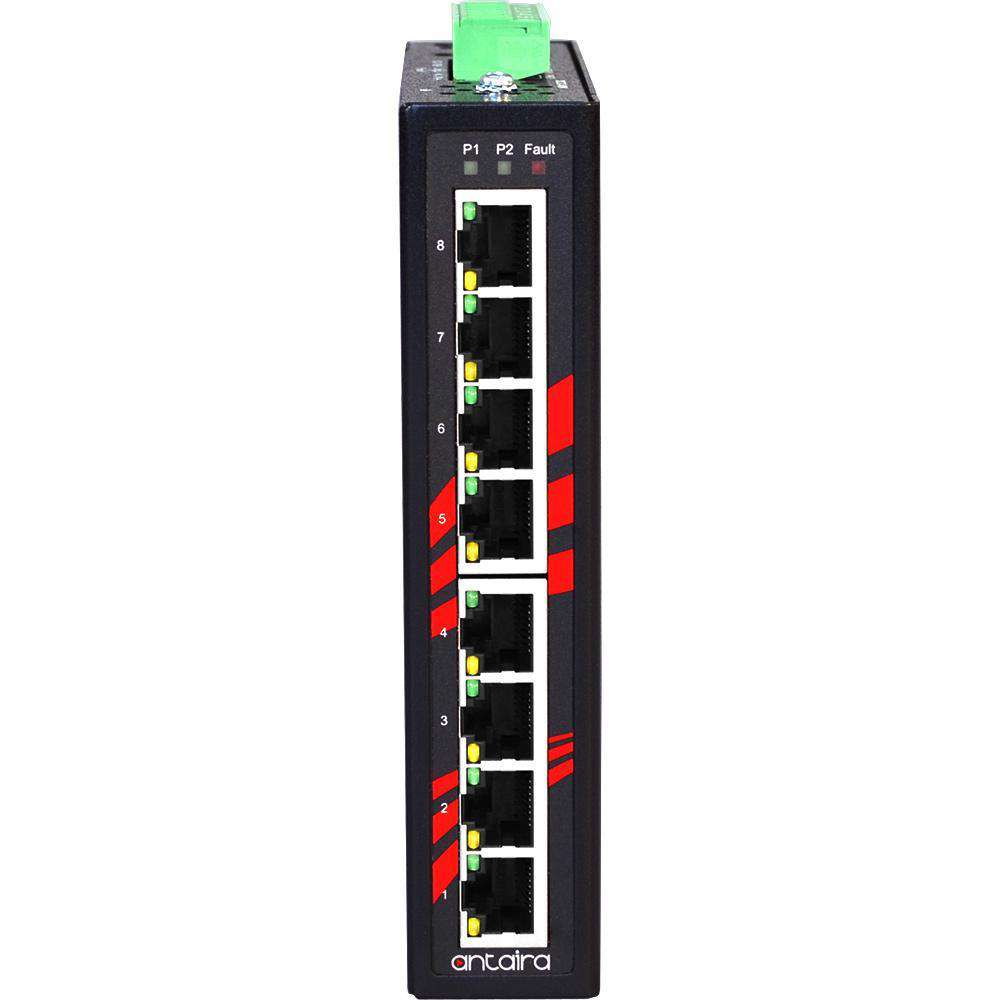

| LED | Port: Link/Activity, Full Duplex/Collision; unit: Power1, Power2, Fault |
| MAC Address Table | 1K MAC Address Table |
| Method | Store and Forward |
| Operating Temperature | -40° ~ 80° C (-40° ~ 176° F) |
| Power Consumption | 3.84 Watts |
| Power Input | 12 ~ 48 VDC |
| Power Redundancy | Yes |
| Protocols | CSMA/CD |
| Shock | IEC 60068-2-27 |
| Storage Temperature | -40° ~ 85° C |
| Transfer Rate | 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port |
| Vibration | IEC 60068-2-6 |
| Warranty | 5 Years |
